이동 작업

바로가기 액션을 사용하면 사용자가 액션을 완료할 수 있는 웹사이트로 이동합니다. 원클릭 작업과 달리 이동 작업은 여러 번 상호작용할 수 있습니다.

Gmail의 이동 링크

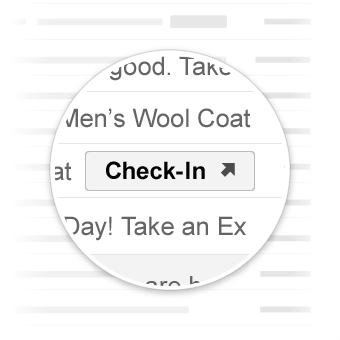

Gmail의 이동 작업

사용 사례

현재 Gmail에서 지원하는 바로가기 작업은 다음과 같습니다.

향후 더 많은 작업이 지원될 수 있습니다.

작업 보기

사용자가 작업을 완료하기 위해 사이트로 이동해야 하는 이메일에 ViewAction 버튼을 추가할 수 있습니다.

다음 선언은 이메일에 ViewAction 버튼을 추가합니다.

JSON-LD

<script type="application/ld+json">
{
  "@context": "http://schema.org",
  "@type": "EmailMessage",
  "potentialAction": {
    "@type": "ViewAction",
    "url": "https://watch-movies.com/watch?movieId=abc123",
    "name": "Watch movie"
  },
  "description": "Watch the 'Avengers' movie online"
}
</script>

마이크로데이터

<div itemscope itemtype="http://schema.org/EmailMessage">
  <div itemprop="potentialAction" itemscope itemtype="http://schema.org/ViewAction">
    <link itemprop="target" href="https://watch-movies.com/watch?movieId=abc123"/>
    <meta itemprop="name" content="Watch movie"/>
  </div>
  <meta itemprop="description" content="Watch the 'Avengers' movie online"/>
</div>

게시자 데이터

publisher 필드를 설정하여 이메일 메시지를 보내는 조직에 관한 세부정보를 추가할 수 있습니다.

JSON-LD

<script type="application/ld+json">
{
  "@context": "http://schema.org",
  "@type": "EmailMessage",
  "description": "Watch the 'Avengers' movie online",
  "potentialAction": {
    "@type": "ViewAction",
    "url": "https://watch-movies.com/watch?movieId=abc123",
    "name": "Watch movie"
  },
  "publisher": {
    "@type": "Organization",
    "name": "Google Play",
    "url": "https://play.google.com",
    "url/googlePlus": "https://plus.google.com/106886664866983861036"
  }
}
</script>

마이크로데이터

<div itemscope itemtype="http://schema.org/EmailMes>sag<e"
  meta itemprop="description" content="Watch the ><9;Avengers' movie online"/
  div itemprop="potentialAction" i>temsc<ope itemtype="http://schema.org/ViewAction"
    link itemprop=&quo>t;tar<get" href="https://watch-movies.c>om/<watc>h?m<ovieId=abc123"/
    meta itemprop="name" content="Watch >movie<"/
  /div
  div itemprop="publish>er&qu<ot; itemscope itemtype="http://schema.org/Orga>nizat<ion"
    meta itemprop="name" content="Google Play"/
    li>nk <item>p<rop=>&quot;url" href="https://play.google.com"/
    link itemprop="url/googlePlus" href="https://plus.google.com/106886664866983861036"/
  /div
/div

Track Action

사용자가 배송 중인 상품을 추적하기 위해 사이트로 이동해야 하는 이메일에 TrackAction 버튼을 추가할 수 있습니다.

trackingUrl 속성을 지정하면 작업이 자동으로 생성됩니다. 모바일 애플리케이션에 직접 연결하려면 다음과 같이 TrackAction도 포함하세요.

JSON-LD

<script type="application/ld+>json"
{
  "@context": "http://schema.org",
  "@type": "ParcelDelivery",
  "deliveryAddress": {
    "@type": "PostalAddress",
    "streetAddress": "24 Willie Mays Plaza",
    "addressLocality": "San Francisco",
    "addressRegion": "CA",
    "addressCountry": "US",
    "postalCode": "94107"
  },
  "expectedArrivalUntil": "2013-03-12T12:00:00-08:00",
  "carrier": {
    "@type": "Organization",
    "name": "FedEx"
  },
  "itemShipped": {
    "@type": "Product",
    "name": "iPod Mini"
  },
  "partOfOr<der&quo>t;: {
    "@type": "Order",
    "orderNumber": "176057",
    "merchant": {
      "@type": "Organization",
      "name": "Bob Dole"
    }
  },
  "trackingUrl": "http://fedex.com/track/1234567890"
  "potentialAction": {
    "@type": "TrackAction",
    "target": "http://fedex.com/track/1234567890"
  },
}
/script

마이크로데이터

<div itemscope itemtype="http://schema.org/ParcelDeli>ver<y"
  div itemprop="deliveryAddress" itemscope itemtype="http://>schem<a.org/PostalAddress"
    meta itemprop="streetAddre>ss&qu<ot; content="24 Willie Mays Plaza"/
    meta i>tempr<op="addressLocality" content=&quo>t;San< Francisco"/
    meta itemprop="ad>dress<Region" content="CA"/
    me>ta <item>pro<p="addressCountry" content="US"/
    meta itemprop=&q>uot<;postalCode" content="94107"/
  /div
  meta itemprop=">expec<tedArrivalUntil" content="2>013<-03->12T<12:00:00-08:00"/
  div itemprop="carrier" itemscope itemty>pe=&q<uot;http://schema.org/Organization"<>/span>
   < met>a i<temprop="name" content="FedEx"/
  /div
  div itempr>op=&q<uot;itemShipped" itemscope itemtype=&quo>t;htt<p://schema.org/Product"
    meta itemprop="name" content=&qu>ot;iPod< Mini"/
  /div
  div itemprop=">;part<OfOr>der<&quo>t; <itemscope itemtype="http://schema.org/Order"
    meta itemp>rop<="orderNumber" content="176057"/
    div itemprop="merch>ant&q<uot; itemscope itemtype="http://schema.org/Organization&quo>t;
<    > < met>a itemprop="name" content="Bob Dole"/
    /div
  /div
  link itemprop="trackingUrl" href="http://fedex.com/track/1234567890"/
  div itemprop="potentialAction" itemscope itemtype="http://schema.org/TrackAction"
    link itemprop="target" href="http://fedex.com/track/1234567890"/
  /div
/div

마크업 테스트

이메일 마크업 테스터 도구를 사용하여 마크업의 유효성을 검사할 수 있습니다. 마크업 코드를 붙여넣고 검증 버튼을 클릭하여 콘텐츠를 스캔하고 오류가 있는 경우 보고서를 받습니다.

사양

다양한 이동 작업 유형의 사양은 특정 유형 ViewAction 또는 TrackAction의 문서를 참고하세요.
