API structure

Page Summary

outlined_flag

• The Google Ads API consists of resources, which represent entities, and services, which retrieve and manipulate them.

• A Google Ads account is organized hierarchically, starting with the customer at the top level, followed by campaigns, ad groups, and ad group ads.

• Every object in Google Ads is identified by an ID, and resources also have a unique resource_name string.

• Services allow you to modify objects using mutate requests, retrieve objects and performance statistics with GoogleAdsService, and retrieve metadata with GoogleAdsFieldService.

This guide introduces the primary components that make up the Google Ads API. The Google Ads API consists of resources and services. A resource represents a Google Ads entity, while services retrieve and manipulate Google Ads entities.

Object hierarchy

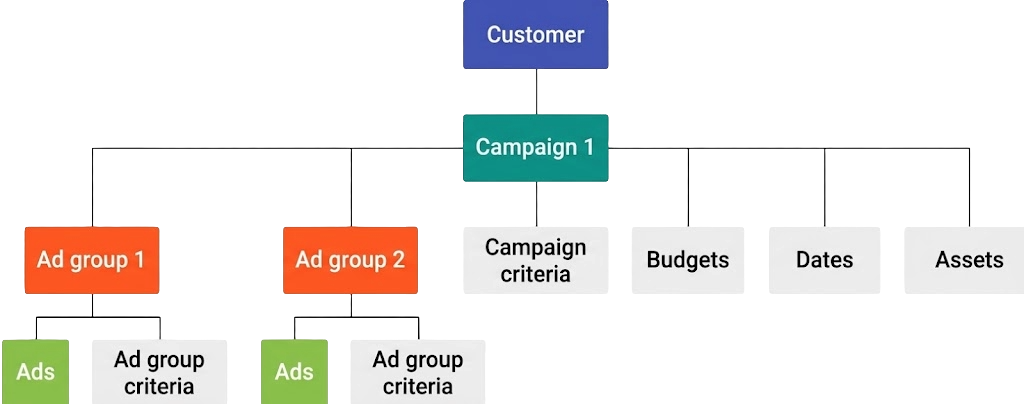

A Google Ads account can be viewed as a hierarchy of objects.

• The top-level resource of an account is the customer.

• Each customer contains one or more active campaigns.

• Each campaign contains one or more ad groups, used to group your ads into logical collections.

• An ad group ad represents an ad that you're running in an ad group. Except for App campaigns, which can have only one ad group ad per ad group, each ad group contains one or more ad group ads.

Performance Max campaigns use a different structure from other campaign types: instead of ad groups and ad group ads, a Performance Max campaign contains asset groups. You link creative assets to an asset group using AssetGroupAsset and attach audience or search theme signals using AssetGroupSignal.

You can attach one or more AdGroupCriterion or CampaignCriterion resources to an ad group or campaign. These represent criteria that define how ads get triggered.

There are many criterion types, such as keywords, age ranges, and locations. Criteria defined at the campaign level affect all other resources within the campaign. You can also specify budgets as well as start and end dates and times for campaigns, or for individual ads using AdGroupAd.start_date_time and AdGroupAd.end_date_time.

Finally, you can attach assets at the account, campaign, ad group, or asset group level. Assets let you provide extra information to your ads, like phone numbers, street addresses, or promotions. See Assets overview.

Resources

Resources represent the entities within your Google Ads account. Campaign and AdGroup are two examples of resources.

Object IDs

Every object in Google Ads is identified by its own ID. Some of these IDs are globally unique across all Google Ads accounts, while others are unique only within a confined scope.

These ID rules can be useful when designing local storage for your Google Ads objects.

Some objects can be used for multiple entity types. In such cases, the object contains a type field that describes its contents. For example, AdGroupAd can refer to an object such as a responsive search ad, hotel ad, or Demand Gen ad. This value can be accessed through the AdGroupAd.ad.type field, and returns a value in the AdType enum. Note that mutability can vary by version (for example, VideoResponsiveAdInfo on Ad is mutable in v24 and later).

Resource names

Each resource is uniquely identified by a resource_name string that concatenates the resource and its parents into a path. For example, campaign resource names have the form:

customers/customer_id/campaigns/campaign_id

So for a campaign with ID 987654 in the Google Ads account with customer ID 1234567, the resource_name would be:

customers/1234567/campaigns/987654

Services

Services let you retrieve and modify your Google Ads entities. There are three types of services: modification, object and stat retrieval, and metadata retrieval services.

Modify (mutate) objects

Resource-specific services modify instances of an associated resource type using a mutate request. You can also use GoogleAdsService.Mutate to perform atomic mutations across multiple resource types in a single request (such as creating a campaign budget, campaign, and ad group together).

Examples of resource-specific services:

• CustomerService for modifying customers.

• CampaignService for modifying campaigns.

• AdGroupService for modifying ad groups.

Each mutate request must include corresponding operation objects. For example, the CampaignService.MutateCampaigns method expects one or more instances of CampaignOperation. See Change objects for a detailed discussion of operations.

Concurrent mutates

A Google Ads object cannot be modified concurrently by more than one source. This could cause errors to arise if you have multiple users updating the same object with your app, or if you're mutating Google Ads objects in parallel using multiple threads. This includes updating the object from multiple threads in the same application, or from different applications (for example, your app and a simultaneous Google Ads UI session).

The API does not provide a way to lock an object before updating; if two sources try to simultaneously mutate an object, the API raises a DatabaseError.CONCURRENT_MODIFICATION_ERROR.

Asynchronous versus synchronous mutates

The Google Ads API mutate methods are synchronous. API calls return a response only after the objects are mutated, requiring you to wait for a response to each request. While this approach is relatively straightforward to code, it could negatively impact load balancing and waste resources if processes are forced to wait for calls to complete.

An alternate approach is to mutate objects asynchronously using BatchJobService, which performs batches of operations on multiple services without waiting for their completion. Once a batch job is submitted, Google Ads API servers execute operations asynchronously, freeing processes to perform other operations. You can periodically check the job status for completion.

See the Batch processing guide for more on asynchronous processing.

Mutate validation

Most mutate requests can be validated without actually executing the call against real data. You can test the request for missing parameters and incorrect field values without actually executing the operation.

To use this feature, set the request's optional validate_only boolean field to true. The request is fully validated as if it were going to be executed, but the final execution is skipped. If no errors are found, the response is returned with no mutated results populated (results is empty). If validation fails, the request fails with a GoogleAdsFailure RPC error by default (partial_failure = false), or returns a normal response with operation-specific errors in partial_failure_error when partial_failure = true.

validate_only is particularly useful in testing ads for common policy violations. Ads are automatically rejected if they violate policies such as having specific words, punctuation, capitalization, or length. A single bad ad could cause an entire batch to fail. Testing a new ad within a validate_only request can reveal any such violations. Refer to the code example for handling policy violation errors to see this in action.

Get objects and performance stats

GoogleAdsService is the single, unified service for retrieving objects and performance statistics.

All Search and SearchStream requests for GoogleAdsService require a query that specifies the resource to query, the resource attributes and performance metrics to retrieve, the predicates to use for filtering the request, and the segments to use to further break down performance statistics. For more information about query format, see the Google Ads Query Language guide.

Retrieve metadata

GoogleAdsFieldService retrieves metadata about resources in the Google Ads API, such as the available attributes for a resource and its data type. See the Resource metadata guide for details on querying this service.

This service provides information needed in constructing a query to GoogleAdsService. For convenience, the information returned by GoogleAdsFieldService is also available in the fields reference documentation.
