Setting up an Existing Map

This topic describes how to set up a map that was added to an Android app using the Maps SDK for Android.

Overview

Screenshot of a map of Kyto with map settings configured. After you add a map to your app, you can configure the initial and runtime settings of the map. The initial settings need be configured based on whether you added the map container (SupportMapFragment or MapView) statically or dynamically. If the map container was added statically, you can configure the initial map settings in the layout file. If it was added dynamically, you can configure the initial settings in the OnCreate callback with a GoogleMapOptions object.

For details about adding a map container, see the Adding a Map.

The initial map settings include the following:

At runtime you can configure these settings and some addition settings by updating the GoogleMap object in the onMapReady callback. The additional settings are configured through the methods of the GoogleMap class, such as those that configure the traffic layer and map padding.

Example

In the example code below and the screenshot above, the map is configured with the following settings.

The initial settings are configured in the layout file:

  • Enable zoom controls.
  • Enable rotate gesture controls.
  • Set the map tilt to 30.

The runtime settings:

  • Center the camera on Kyoto Japan.
  • Enable the hybrid map type.
  • Turn on the traffic layer.

Initial settings


<?xml version="1.0" encoding="utf-8"?>
<fragment xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:map="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:name="com.google.android.gms.maps.SupportMapFragment"
    android:id="@+id/map"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    map:uiZoomControls="true"
    map:uiRotateGestures="true"
    map:cameraTilt="30" />


Runtime settings

package com.example.mapsetup;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;

import com.google.android.gms.maps.CameraUpdateFactory;
import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.OnMapReadyCallback;
import com.google.android.gms.maps.SupportMapFragment;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.MarkerOptions;

public class MainActivity extends AppCompatActivity implements OnMapReadyCallback {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        SupportMapFragment mapFragment = (SupportMapFragment) getSupportFragmentManager()
                .findFragmentById(R.id.map);
        mapFragment.getMapAsync(this);

    }

    // Update the map configuration at runtime.
    @Override
    public void onMapReady(GoogleMap googleMap) {
        // Set the map coordinates to Kyoto Japan.
        LatLng kyoto = new LatLng(35.00116, 135.7681);
        // Set the map type to Hybrid.
        googleMap.setMapType(GoogleMap.MAP_TYPE_HYBRID);
        // Add a marker on the map coordinates.
        googleMap.addMarker(new MarkerOptions()
                .position(kyoto)
                .title("Kyoto"));
        // Move the camera to the map coordinates and zoom in closer.
        googleMap.moveCamera(CameraUpdateFactory.newLatLng(kyoto));
        googleMap.moveCamera(CameraUpdateFactory.zoomTo(15));
        // Display traffic.
        googleMap.setTrafficEnabled(true);

    }
}

Before you begin

Before you begin, you can set up a project and add a basic map through the following options:

  • Create an app using the Maps template for Android Studio. The Maps template automatically configures your project and adds a basic map. A fragment is used as the map container and it is added statically. For details, see the quickstart.

  • Manually configure your project for the SDK and add a basic map. This allows you to use any Anroid template and add a map to an existing app.

Set up a map after adding it statically

This section describes how to set the initial state of the map if you added it statically to your layout file.

The Maps SDK for Android defines a set of custom XML attributes for a SupportMapFragment or a MapView that you can use to configure the initial state of the map directly from the layout file. The following attributes are currently defined:

  • mapType — The type of map to display. Valid values include: none, normal, hybrid, satellite and terrain.

  • cameraTargetLat, cameraTargetLng, cameraZoom, cameraBearing, cameraTilt — The initial camera position. See the camera and views guide for details.

  • uiZoomControls, uiCompass — Specifies whether zoom controls and the compass are displayed. See UiSettings for details.

  • uiZoomGestures, uiScrollGestures, uiRotateGestures, uiTiltGestures — Specifies whether specific gestures are enabled. See UiSettings for details.

  • zOrderOnTop — Indicates whether the surface of the map view is displayed on top of the map window, map controls, and any object in the window. See SurfaceView.setZOrderOnTop(boolean) for details.

  • useViewLifecycle — Only valid with a SupportMapFragment object. Specifies whether the lifecycle of the map should be tied to the fragment's view or the fragment itself. See here for details.

  • liteModetrue to enable lite mode; otherwise, false.

In order to use these custom attributes within your layout file, it must include the following namespace declaration. You can choose any namespace, it doesn't have to be map:

xmlns:map="http://schemas.android.com/apk/res-auto"

You can then add the attributes with a map: prefix into your layout file.

The following layout file configures a SupportMapFragment object with custom map attributes. The same attributes can be applied to a MapView object as well.

<fragment xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:map="http://schemas.android.com/apk/res-auto"
  android:name="com.google.android.gms.maps.SupportMapFragment"
  android:id="@+id/map"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  map:cameraBearing="112.5"
  map:cameraTargetLat="-33.796923"
  map:cameraTargetLng="150.922433"
  map:cameraTilt="30"
  map:cameraZoom="13"
  map:mapType="normal"
  map:uiCompass="false"
  map:uiRotateGestures="true"
  map:uiScrollGestures="false"
  map:uiTiltGestures="true"
  map:uiZoomControls="false"
  map:uiZoomGestures="true"/>

Set up a map after adding it dynamically

This section describes how to set the initial state of the map if you added it to your app dynamically.

If you added a SupportMapFragment or MapView dynamically, then you can set the initial state of the map in a GoogleMapOptions object. The options available are the same options that are available in the layout file. You can create a GoogleMapOptions as follows:

Java

GoogleMapOptions options = new GoogleMapOptions();


Kotlin

val options = GoogleMapOptions()


And then configure it as follows:

Java

options.mapType(GoogleMap.MAP_TYPE_SATELLITE)
    .compassEnabled(false)
    .rotateGesturesEnabled(false)
    .tiltGesturesEnabled(false);


Kotlin

options.mapType(GoogleMap.MAP_TYPE_SATELLITE)
    .compassEnabled(false)
    .rotateGesturesEnabled(false)
    .tiltGesturesEnabled(false)


To apply these options when you are creating a map, do one of the following:

Set up the traffic layer

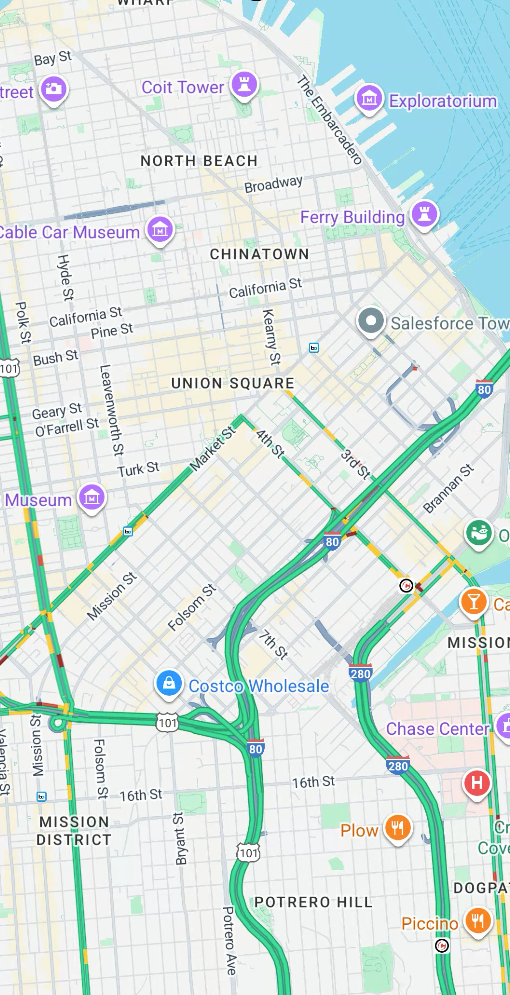

You can display traffic data on your map by enabling the traffic layer. You can enable and disable the traffic layer by calling the setTrafficEnabled() method, and you can determine whether the traffic layer is currently on by calling the isTrafficEnabled() method. The following screenshot displays a map with the traffic layer enabled.

Set the map type

To set the map type, call the setMapType method. For example, to display a satellite map:

Java

// Sets the map type to be "hybrid"
map.setMapType(GoogleMap.MAP_TYPE_HYBRID);


Kotlin

// Sets the map type to be "hybrid"
map.mapType = GoogleMap.MAP_TYPE_HYBRID


The following image compares the normal, hybrid and terrain map types:

MapType Comparison

Set up indoor map settings

At high zoom levels, the map shows floor plans for indoor spaces such as airports, shopping malls, large retail stores, and transit stations. These floor plans, called indoor maps, are displayed for the 'normal' and 'satellite' map types (GoogleMap.MAP_TYPE_NORMAL and GoogleMap.MAP_TYPE_SATELLITE). They are automatically enabled when the user zooms in, and they fade away when the map is zoomed out.

Deprecation notice: In a future release, indoor maps will only be available on the normal map type. From that future release, indoor maps will not be supported on satellite, terrain or hybrid maps. Even where indoor is not supported, isIndoorEnabled() will continue to return the value that has been set via setIndoorEnabled(), as it does now. By default, setIndoorEnabled is true. The release notes will let you know when indoor support becomes unavailable on those map types.

Indoor map example

Here is a summary of the indoor maps functionality in the API:

Set up map padding

This video shows an example of map padding.

A Google map is designed to fill the entire region defined by its container element, typically a MapView or SupportMapFragment. Several aspects of how the map appears and behaves are defined by the dimensions of its container:

  • The camera's target will reflect the center of the padded region.
  • Map controls are positioned relative to the edges of the map.
  • Legal information, such as copyright statements or the Google logo appear along the bottom edge of the map.

You can add padding around the edges of the map using the GoogleMap.setPadding() method. The map will continue to fill the entire container, but text and control positioning, map gestures, and camera movements will behave as if it has been placed in a smaller space. This results in the following changes:

  • Camera movements via API calls or button presses (e.g., compass, my location, zoom buttons) are relative to the padded region.
  • The getCameraPosition method returns the center of the padded region.
  • The Projection and getVisibleRegion methods return the padded region.
  • UI controls are offset from the edge of the container by the specified number of pixels.

Padding can be helpful when designing UIs that overlap some portion of the map. In the following image, the map is padded along the top and right edges. Visible map controls and legal text will be displayed along the edges of the padded region, shown in green, while the map will continue to fill the entire container, shown in blue. In this example, you could float a menu over the right side of the map without obscuring map controls.

Map Padding
