Collect and process information from Google Chat users

This guide describes how Google Chat apps can collect and process information from users by building form inputs in card-based interfaces.

In Google Chat, add-ons appear to users as Google Chat apps. To learn more, see the Extend Google Chat overview.

Chat apps request information from users to perform actions in or outside of Chat, including in the following ways:

• Configure settings. For example, to let users customize notification settings or configure and add the Chat app to one or more spaces.
• Create or update information in other Google Workspace applications. For example, let users create a Google Calendar event.
• Let users access and update resources in other apps or web services. For example, a Chat app can help users update the status of a support ticket directly from a Chat space.

Prerequisites

Build forms using cards

To collect information, Chat apps design forms and their inputs, and build them into cards. To display cards to users, Chat apps can use the following Chat interfaces:

• Chat messages that contain one or more cards.
• Dialogs, which are cards that open in a new window from messages and homepages.

Chat apps can build the cards using the following widgets:

• Form input widgets that request information from users. Optionally, you can add validation to form input widgets, to ensure that users input and format information correctly. Chat apps can use the following form input widgets:

  • Text inputs (textInput) for free-form or suggested text.

  • Selection inputs (selectionInput) are selectable UI elements such as checkboxes, radio buttons, and drop-down menus. Selection input widgets can also populate and suggest items from Google Workspace data (such as a Chat space) or a dynamic data source. For details, see the following section Add a multiselect menu.

  • Date time pickers (dateTimePicker) for date and time entries.

• A button widget so that users can submit values that they've input in the card. After a user clicks the button, the Chat app can then process the information that it receives.

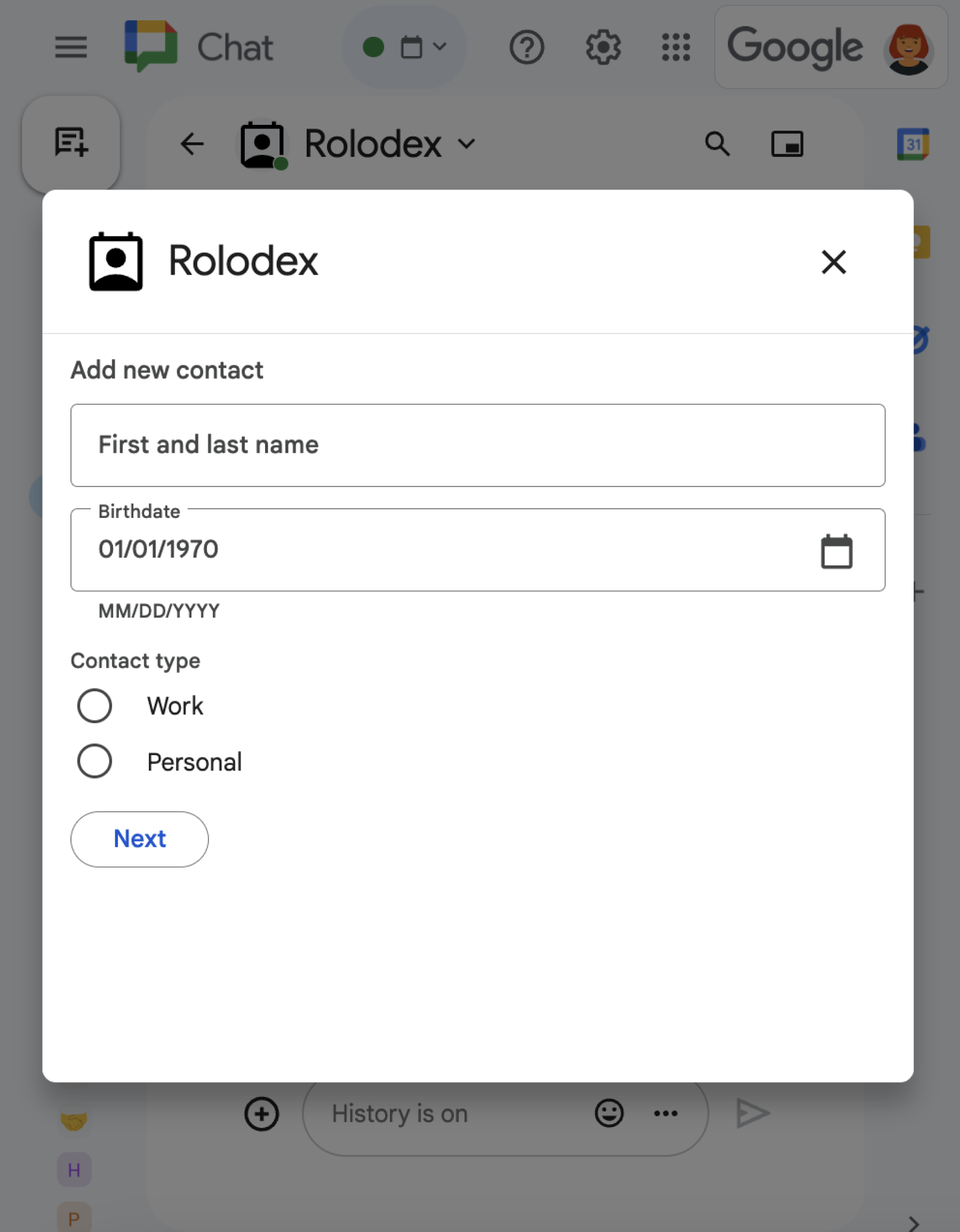

In the following example, a card collects contact information using a text input, date time picker, and selection input:

For more examples of interactive widgets that you can use to collect information, see Design an interactive card or dialog in the Google Chat API documentation.

Add a multiselect menu

To customize selection items or let users select items from a dynamic data source, Chat apps can use multiselect menus, which are a type of SelectionInput widget. For example, the following card displays a multiselect menu where users can dynamically select from a list of contacts:

You can populate items for a multiselect menu from the following data sources:

• Google Workspace data, which includes users or Chat spaces of which the user is a member. The menu only populates items from the same Google Workspace organization.
• External data sources, such as a relational database. For example, you can use multiselect menus to help a user select from a list of sales leads from a customer relationship management (CRM) system.

Populate items from a Google Workspace data source

To use Google Workspace data sources, specify the platformDataSource field in the SelectionInput widget. Unlike other selection input types, you omit SelectionItem objects, because these selection items are dynamically sourced from Google Workspace.

The following code shows a multiselect menu of Google Workspace users. To populate users, the selection input sets commonDataSource to USER:

{
  "selectionInput": {
    "name": "contacts",
    "type": "MULTI_SELECT",
    "label": "Selected contacts",
    "multiSelectMaxSelectedItems": 5,
    "multiSelectMinQueryLength": 1,
    "platformDataSource": {
      "commonDataSource": "USER"
    }
  }
}

The following code shows a multiselect menu of Chat spaces. To populate spaces, the selection input specifies the hostAppDataSource field. The multiselect menu also sets defaultToCurrentSpace to true, which makes the current space the default selection in the menu:

{
  "selectionInput": {
    "name": "spaces",
    "type": "MULTI_SELECT",
    "label": "Selected contacts",
    "multiSelectMaxSelectedItems": 3,
    "multiSelectMinQueryLength": 1,
    "platformDataSource": {
      "hostAppDataSource": {
        "chatDataSource": {
          "spaceDataSource": {
            "defaultToCurrentSpace": true
          }
        }
      }
    }
  }
}

Populate items from an external data source

Multiselect menus can also populate items from a third-party or external data source. To use an external data source, you specify the externalDataSource field in the SelectionInput widget that contains the function that queries and returns items from the data source.

To reduce the requests to an external data source, you can include suggested items that appear in the multiselect menu before users type in the menu. For example, you can populate recently searched contacts for the user. To populate suggested items from an external data source, specify static SelectionItem objects.

The following code shows a multiselect menu that queries and populates items from an external data source:

{
  "selectionInput": {
    "name": "contacts",
    "type": "MULTI_SELECT",
    "label": "Selected contacts",
    "multiSelectMaxSelectedItems": 3,
    "multiSelectMinQueryLength": 1,
    "externalDataSource": { "function": "FUNCTION" },
    // Suggested items loaded by default.
    // The list is static here but it could be dynamic.
    "items": [FUNCTION]
  }
}

Replace FUNCTION with the HTTP URL or Apps Script function name that queries the external database. For a complete example that shows how to return suggested items, see the section Suggest multiselect items.

Receive data from interactive widgets

Whenever users click a button, its Chat apps action is triggered with information about the interaction. In the commonEventObject of the event payload, the formInputs object contains any values that the user inputs.

You can retrieve the values from the object commonEventObject.formInputs.WIDGET_NAME, where WIDGET_NAME is the name field that you specified for the widget. The values are returned as a specific data type for the widget.

The following shows a portion of an event object where a user inputted values for each widget:

{
  "commonEventObject": { "formInputs": {
    "contactName": { "stringInputs": {
      "value": ["Kai 0"]
    }},
    "contactBirthdate": { "dateInput": {
      "msSinceEpoch": 1000425600000
    }},
    "contactType": { "stringInputs": {
      "value": ["Personal"]
    }}
  }}
}

To receive the data, your Chat app handles the event object to get the values that users input into widgets. The following table shows how to get the value for a given form input widget. For each widget, the table shows the data type that the widget accepts, where the value is stored in the event object, and an example value.

After the Chat app receives data, it can do any of the following:

• For cards that contain a multiselect menu, populate or suggest items based on what the user types into the menu.
• Transfer the data to another card, so that the user can review their information or continue to the next section of the form.
• Respond to the user to confirm that the user successfully completed the form.

Suggest multiselect items

If a card contains a multiselect menu that populates items from an external data source, the Chat app can return suggested items based on what users type into the menu. For example, if a user starts typing Atl for a menu that populates cities in the United States, your Chat app can autosuggest Atlanta before the user finishes typing. The Chat app can suggest up to 100 items.

To suggest and dynamically populate items in a multiselect menu, the SelectionInput widget on the card must specify a function that queries the external data source. To return suggested items, the function must do the following:

1. Handle an event object, which the Chat app receives when users type into the menu.
2. From the event object, get the value that the user types, which is represented in the event.commonEventObject.parameters["autocomplete_widget_query"] field.
3. Query the data source using the user input value to get one or more SelectionItems to suggest to the user.
4. Return suggested items by returning the action RenderActions with a modifyCard object.

The following code sample shows how a Chat app dynamically suggests items in the multiselect menu on a card. When a user types into the menu, the function or endpoint provided in the widget's externalDataSource field queries an external data source, and suggests items that that the user can select.

/**
 * Google Cloud Function that responds to events sent from a
 * Google Chat space.
 *
 * @param {Object} req Request sent from Google Chat space
 * @param {Object} res Response to send back
 */
exports.selectionInput = function selectionInput(req, res) {
  if (req.method === 'GET' || !req.body.chat) {
    return res.send('Hello! This function is meant to be used ' +
        'in a Google Chat Space.');
  }
  // Stores the Google Chat event
  const chatEvent = req.body.chat;

  // Handle user interaction with multiselect.
  if(chatEvent.widgetUpdatedPayload) {
    return res.send(queryContacts(req.body));
  }
  // Replies with a card that contains the multiselect menu.
  return res.send({ hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
    cardsV2: [{
      cardId: "contactSelector",
      card: { sections:[{ widgets: [{
        selectionInput: {
          name: "contacts",
          type: "MULTI_SELECT",
          label: "Selected contacts",
          multiSelectMaxSelectedItems: 3,
          multiSelectMinQueryLength: 1,
          externalDataSource: { function: "FUNCTION_URL" },
          // Suggested items loaded by default.
          // The list is static here but it could be dynamic.
          items: [getSuggestedContact("3")]
        }
      }]}]}
    }]
  }}}}});
};

/**
* Get contact suggestions based on text typed by users.
*
* @param {Object} event the event object that contains the user's query
* @return {Object} suggestions
*/
function queryContacts(event) {
  const query = event.commonEventObject.parameters["autocomplete_widget_query"];
  return { action: { modifyOperations: [{ updateWidget: { selectionInputWidgetSuggestions: { suggestions: [
    // The list is static here but it could be dynamic.
    getSuggestedContact("1"), getSuggestedContact("2"), getSuggestedContact("3"), getSuggestedContact("4"), getSuggestedContact("5")
  // Only return items based on the query from the user.
  ].filter(e => !query || e.text.includes(query)) }}}]}};
}

/**
 * Generate a suggested contact given an ID.
 *
 * @param {String} id The ID of the contact to return.
 * @return {Object} The contact formatted as a selection item in the menu.
 */
function getSuggestedContact(id) {
  return {
    value: id,
    startIconUri: "https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png",
    text: "Contact " + id
  };
}

/**
* Responds to a Message trigger in Google Chat.
*
* @param {Object} event the event object from Google Chat
* @return {Object} Response from the Chat app.
*/
function onMessage(event) {
  // Replies with a card that contains the multiselect menu.
  return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
    cardsV2: [{
      cardId: "contactSelector",
      card: { sections:[{ widgets: [{
        selectionInput: {
          name: "contacts",
          type: "MULTI_SELECT",
          label: "Selected contacts",
          multiSelectMaxSelectedItems: 3,
          multiSelectMinQueryLength: 1,
          externalDataSource: { function: "queryContacts" },
          // Suggested items loaded by default.
          // The list is static here but it could be dynamic.
          items: [getSuggestedContact("3")]
        }
      }]}]}
    }]
  }}}}};
}

/**
* Get contact suggestions based on text typed by users.
*
* @param {Object} event the event object that contains the user's query
* @return {Object} suggestions
*/
function queryContacts(event) {
  const query = event.commonEventObject.parameters["autocomplete_widget_query"];
  return { action: { modifyOperations: [{ updateWidget: { selectionInputWidgetSuggestions: { suggestions: [
    // The list is static here but it could be dynamic.
    getSuggestedContact("1"), getSuggestedContact("2"), getSuggestedContact("3"), getSuggestedContact("4"), getSuggestedContact("5")
  // Only return items based on the query from the user.
  ].filter(e => !query || e.text.includes(query)) }}}]}};
}

/**
* Generate a suggested contact given an ID.
*
* @param {String} id The ID of the contact to return.
* @return {Object} The contact formatted as a selection item in the menu.
*/
function getSuggestedContact(id) {
  return {
    value: id,
    startIconUri: "https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png",
    text: "Contact " + id
  };
}

Transfer data to another card

After a user submits information from a card, you might need to return additional cards to do any of the following:

• Help users to complete longer forms by creating distinct sections.
• Let users preview and confirm information from the initial card, so that they can review their answers before submitting.
• Dynamically populate the remaining parts of the form. For example, to prompt users to create an appointment, a Chat app could display an initial card that requests the reason for the appointment, and then populates another card that provides available times based on the appointment type.

To transfer the data input from the initial card, you can build the button widget with actionParameters that contain the widget's name and the value the user inputs, as shown in the following example:

{
  "buttonList": { "buttons": [{
    "text": "Submit",
    "onClick": { "action": {
      "function": "submitForm",
      "parameters": [
        {
          "key": "WIDGET_NAME",
          "value": "USER_INPUT_VALUE"
        },
        // Can specify multiple parameters
      ]
    }}
  }]}
}

Where WIDGET_NAME is the name of the widget and the USER_INPUT_VALUE is what the user inputs. For example, for a text input that collects a person's name, the widget name is contactName and an example value is Kai O.

When a user clicks the button, your Chat app receives an event object from which you can receive data.

Respond to a form submission

After receiving the data from a card message or dialog, the Chat app responds by either acknowledging receipt or returning an error.

In the following example, a Chat app sends a text message to confirm that it has successfully received a form submitted from a card message.

/**
 * Google Cloud Function that handles all Google Workspace Add On events for
 * the contact manager app.
 *
 * @param {Object} req Request sent from Google Chat space
 * @param {Object} res Response to send back
 */
exports.contactManager = function contactManager(req, res) {
  const chatEvent = req.body.chat;
  const chatMessage = chatEvent.messagePayload.message;

  // Handle message payloads in the event object
  if(chatEvent.messagePayload) {
    return res.send(handleMessage(chatMessage, chatEvent.user));
  // Handle button clicks on the card
  } else if(chatEvent.buttonClickedPayload) {
    switch(req.body.commonEventObject.parameters.actionName) {
        case "openDialog":
            return res.send(openDialog());
        case "openNextCard":
            return res.send(openNextCard(req.body));
        case "submitForm":
            return res.send(submitForm(req.body));
    }
  }
};

/**
 * Submits information from a dialog or card message.
 *
 * @param {Object} event the interactive event with form inputs.
 * @return {Object} a message response that posts a private message.
 */
function submitForm(event) {
  const chatUser = event.chat.user;
  const contactName = event.commonEventObject.parameters["contactName"];

  return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
    privateMessageViewer: chatUser,
    text: "✅ " + contactName + " has been added to your contacts."
  }}}}};
}

/**
 * Sends private text message that confirms submission.
 *
 * @param {Object} event the interactive event with form inputs.
 * @return {Object} a message response that posts a private message.
 */
function submitForm(event) {
  const chatUser = event.chat.user;
  const contactName = event.commonEventObject.parameters["contactName"];

  return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
    privateMessageViewer: chatUser,
    text: "✅ " + contactName + " has been added to your contacts."
  }}}}};
}

To process and close a dialog, you return an RenderActions object that specifies whether you want to send a confirmation message, update the original message or card, or just close the dialog. For steps, see Close a dialog.

Troubleshoot

When a Google Chat app or card returns an error, the Chat interface surfaces a message saying "Something went wrong." or "Unable to process your request." Sometimes the Chat UI doesn't display any error message, but the Chat app or card produces an unexpected result; for example, a card message might not appear.

Although an error message might not display in the Chat UI, descriptive error messages and log data are available to help you fix errors when error logging for Chat apps is turned on. For help viewing, debugging, and fixing errors, see Troubleshoot and fix Google Chat errors.
