فتح مربعات الحوار والرد عليها

توضّح هذه الصفحة كيف يمكن لتطبيق Chat فتح مربّعات الحوار والاستجابة لها.

مربعات الحوار هي واجهات مستندة إلى البطاقات وتفتحها تطبيقات Chat للتفاعل مع المستخدمين. لمساعدة المستخدمين على إكمال العمليات متعددة الخطوات، يمكن لتطبيق Chat فتح مربعات الحوار المتسلسلة.

تُعد مربّعات الحوار مفيدة للأنواع التالية من تفاعلات المستخدم:

  • جمع المعلومات من المستخدمين
  • مصادقة المستخدمين باستخدام خدمات الويب
  • ضبط إعدادات تطبيق Chat

يجب إرسال ردّ متزامن من تطبيق Chat باستخدام DialogEventType لفتح مربّع حوار أو إرساله أو إلغائه. لا تتوافق مربّعات الحوار مع تطبيقات Chat التي تم إنشاؤها باستخدام بنية غير متزامنة، مثل النشر/الاشتراك أو طريقة رسالة create. إذا كان تطبيق Chat يستخدم بنية غير متزامنة، استخدِم رسالة بطاقة بدلاً من مربّع حوار.

المتطلبات الأساسية

Node.js

  • حساب على Google Workspace يمكنه الوصول إلى Google Chat
  • تطبيق Chat. لإنشاء تطبيق Chat، اتّبِع خطوات quickstart هذه.
  • في حال فتح مربّع حوار استجابةً لأمر يتضمّن شرطة مائلة، سيتم ضبط أمر شرطة مائلة مع تحديد الخيار فتح مربّع حوار.

تتم كتابة نماذج رمز Node.js لتشغيلها كدالة Cloud.

برمجة تطبيقات

  • حساب على Google Workspace يمكنه الوصول إلى Google Chat
  • تطبيق Chat. لإنشاء تطبيق Chat، اتّبِع خطوات quickstart هذه.
  • في حال فتح مربّع حوار استجابةً لأمر يتضمّن شرطة مائلة، سيتم ضبط أمر شرطة مائلة مع تحديد الخيار فتح مربّع حوار.

Python

  • حساب على Google Workspace يمكنه الوصول إلى Google Chat
  • تطبيق Chat. لإنشاء تطبيق Chat، اتّبِع خطوات quickstart هذه.
  • في حال فتح مربّع حوار استجابةً لأمر يتضمّن شرطة مائلة، سيتم ضبط أمر شرطة مائلة مع تحديد الخيار فتح مربّع حوار.

تمت كتابة نماذج التعليمات البرمجية Python لتشغيلها كدالة Cloud، باستخدام Python 3.9.

فتح مربع حوار

يمكن لتطبيق Chat فتح مربّع حوار ردًا على نقر المستخدم على زر على رسالة بطاقة.

النقر على زر في بطاقة لفتح مربع حوار.
الشكل 1: النقر على زر على بطاقة لفتح مربّع حوار.

يمكن أن يفتح تطبيق Chat مربّع حوار ردًا على مستخدم يُصدر أمرًا بشرطة مائلة.

النقر على زر في بطاقة لفتح مربع حوار.
الشكل 2: إصدار أمر شرطة مائلة لفتح مربّع حوار.

عندما يفتح المستخدم مربّع حوار، يتلقّى تطبيق Chat حدث تفاعل يتضمّن المعلومات التالية:

  • isDialogEvent هي true.
  • تحدّد السمة DialogEventType أحد الإجراءات التالية التي اتّخذها المستخدم:

    • REQUEST_DIALOG: تم فتح مربّع حوار.
    • SUBMIT_DIALOG: تم النقر على زر في مربّع حوار.
    • CANCEL_DIALOG: تم إلغاء مربّع حوار.

على سبيل المثال، عندما يفتح مستخدم مربّع حوار، يتلقّى تطبيق Chat حدث تفاعل مشابهًا لما يلي:

JSON

{
  "type": enum (EventType),
  "eventTime": string,
  "threadKey": string,
  "message": {
    object (Message)
  },
  "user": {
    object (User)
  },
  "space": {
    object (Space)
  },
  "action": {
    object (FormAction)
  },
  "configCompleteRedirectUrl": string,
  "isDialogEvent": true,
  "dialogEventType": "REQUEST_DIALOG",
  "common": {
    object (CommonEventObject)
  }
}

يمكن لتطبيق Chat فتح مربّع حوار عن طريق عرض الرمز ActionResponse من "type": "DIALOG" مع DialogAction يتضمّن وصف JSON لمربّع الحوار:

JSON

{
  "action_response": {
    "type": "DIALOG",
    "dialog_action": {
      "dialog": {
        "body": {
          "sections": [
            {
              "header": "Add new contact",
              "widgets": [
                {
                  "textInput": {
                    "label": "Name",
                    "type": "SINGLE_LINE",
                    "name": "contactName"
                  }
                },
                {
                  "textInput": {
                    "label": "Address",
                    "type": "MULTIPLE_LINE",
                    "name": "address"
                  }
                },
                {
                  "decoratedText": {
                    "text": "Add to favorites",
                    "switchControl": {
                      "controlType": "SWITCH",
                      "name": "saveFavorite"
                    }
                  }
                },
                {
                  "decoratedText": {
                    "text": "Merge with existing contacts",
                    "switchControl": {
                      "controlType": "SWITCH",
                      "name": "mergeContact",
                      "selected": true
                    }
                  }
                },
                {
                  "buttonList": {
                    "buttons": [
                      {
                        "text": "Next",
                        "onClick": {
                          "action": {
                            "function": "openSequentialDialog"
                          }
                        }
                      }
                    ]
                  }
                }
              ]
            }
          ]
        }
      }
    }
  }
}

فتح مربّع حوار استجابةً للنقر على زرّ البطاقة

لجعل زر بطاقة يفتح مربع حوار، حدد ما يلي:

عندما ينقر مستخدم على زر في بطاقة، سيتلقّى تطبيق Chat حدث تفاعل يتضمّن المعلومات التالية:

لفتح مربّع حوار، يُرجى الردّ بما يلي:

  • ActionResponse من "type": "DIALOG".
  • تمثّل هذه السمة DialogAction تتضمّن وصف JSON لمربّع الحوار.

في هذا المثال، يستجيب تطبيق Chat لحدث تفاعل MESSAGE باستخدام بطاقة تحتوي على زر يفتح مربّع حوار:

Node.js

/**
* Responds to messages that have links whose URLs
* match URL patterns configured for link previews.
*
* @param {Object} event The event object from Chat
* API.
*
* @return {Object} Response from the Chat app
* attached to the message with the previewed link.
*/
exports.onMessage = function onMessage(req, res) {

  // Store the Google Chat event as a variable.
  const event = req.body;

  if (req.method === "GET" || !event.message) {
    res.send("Hello! This function is meant to be used in a Google Chat " +
      "Space.");
  }

  // Responds with a card that prompts the user to add a contact
  else {
    res.json({
      "cardsV2": [{
        "cardId": "addContact",
        "card": {
          "header": {
            "title": "Rolodex",
            "subtitle": "Manage your contacts!",
            "imageUrl": "https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png",
            "imageType": "CIRCLE"
          },
          "sections": [
            {
              "widgets": [
                {
                  "buttonList": {
                    "buttons": [
                      {
                        "text": "Add Contact",
                        "onClick": {
                          "action": {
                            "function": "openDialog",
                            "interaction": "OPEN_DIALOG"
                          }
                        }
                      }
                    ]
                  }
                }
              ]
            }
          ]
        }
      }]

    });
  }

  // Respond to button clicks on attached cards
  if (event.type === "CARD_CLICKED") {

    if (event.common.invokedFunction === "openDialog") {
      openDialog(event);
    };

    /**
    * Opens and starts a dialog that lets users add details about a contact.
    *
    * @param {object} event the event object from Google Chat.
    *
    * @return {object} open a dialog.
    */
    function openDialog(event) {
      res.json({
        "action_response": {
          "type": "DIALOG",
          "dialog_action": {
            "dialog": {
              "body": {
                "sections": [
                  {
                    "header": "Add new contact",
                    "widgets": [
                      {
                        "textInput": {
                          "label": "Name",
                          "type": "SINGLE_LINE",
                          "name": "name"
                        }
                      },
                      {
                        "textInput": {
                          "label": "Address",
                          "type": "MULTIPLE_LINE",
                          "name": "address"
                        }
                      },
                      {
                        "decoratedText": {
                          "text": "Add to favorites",
                          "switchControl": {
                            "controlType": "SWITCH",
                            "name": "saveFavorite"
                          }
                        }
                      },
                      {
                        "decoratedText": {
                          "text": "Merge with existing contacts",
                          "switchControl": {
                            "controlType": "SWITCH",
                            "name": "mergeContact",
                            "selected": true
                          }
                        }
                      },
                      {
                        "buttonList": {
                          "buttons": [
                            {
                              "text": "Next",
                              "onClick": {
                                "action": {
                                  "function": "openSequentialDialog"
                                }
                              }
                            }
                          ]
                        }
                      }
                    ]
                  }
                ]
              }
            }
          }
        }
      });
    };
  }
}

برمجة تطبيقات

/**
* Responds to a MESSAGE event in Google Chat with a card with a button
* that opens a dialog.
*
* @param {Object} event the event object from Chat API.
*
* @return {object} open a Dialog in response to a card's button click.
*/
function onMessage(event) {
  return {
    "cardsV2": [{
      "cardId": "addContact",
      "card": {
        "header": {
          "title": "Rolodex",
          "subtitle": "Manage your contacts!",
          "imageUrl": "https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png",
          "imageType": "CIRCLE"
        },
        "sections": [
          {
            "widgets": [
              {
                "buttonList": {
                  "buttons": [
                    {
                      "text": "Add Contact",
                      "onClick": {
                        "action": {
                          "function": "openDialog",
                          "interaction": "OPEN_DIALOG"
                        }
                      }
                    }
                  ]
                },
                "horizontalAlignment": "CENTER"
              }
            ]
          }
        ]
      }
    }]
  };
}

/**
* Responds to a CARD_CLICKED event in Google Chat.
*
* @param {Object} event the event object from Google Chat
*/
function onCardClick(event) {
  if (event.common.invokedFunction === "openDialog") {
    return openDialog(event);
  }
}

/**
* Opens a dialog in Google Chat.
*
* @param {Object} event the event object from Chat API.
*
* @return {object} open a Dialog in Google Chat.
*/
function openDialog(event) {
  return {
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Name",
                      "type": "SINGLE_LINE",
                      "name": "contactName"
                    }
                  },
                  {
                    "textInput": {
                      "label": "Address",
                      "type": "MULTIPLE_LINE",
                      "name": "address"
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Add to favorites",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "saveFavorite"
                      }
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Merge with existing contacts",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "mergeContact",
                        "selected": true
                      }
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Next",
                          "onClick": {
                            "action": {
                              "function": "openSequentialDialog"
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  };
}

Python

from typing import Any, Mapping

import flask
import functions_framework

@functions_framework.http
def main(req: flask.Request) -> Mapping[str, Any]:
  """Responds to a MESSAGE event in Google Chat that includes the /createContact
     slash command by opening a dialog.

  Args:
      req (flask.Request): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """

  if req.method == 'GET':
    return 'Sorry, this function must be called from a Google Chat.'

  request = req.get_json(silent=True)

  if request.get('type') == 'CARD_CLICKED':
    if request.get('common', dict()).get('invokedFunction') == 'open_dialog':
      return open_dialog(request)

  else:
    return {
      'cardsV2': [{
        'cardId': 'addContact',
        'card': {
          'header': {
            'title': 'Rolodex',
            'subtitle': 'Manage your contacts!',
            'imageUrl': 'https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png',
            'imageType': 'CIRCLE'
          },
          'sections': [
            {
              'widgets': [
                {
                  'buttonList': {
                    'buttons': [
                      {
                        'text': 'Add Contact',
                        'onClick': {
                          'action': {
                            'function': 'open_dialog',
                            'interaction': 'OPEN_DIALOG'
                          }
                        }
                      }
                    ]
                  }
                }
              ]
            }
          ]
        }
      }]
    }

def open_dialog(request: Mapping[str, Any]) -> Mapping[str, Any]:
  """Opens a dialog in Google Chat.

  Args:
      request (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """
  return {
    'action_response': {
      'type': 'DIALOG',
      'dialog_action': {
        'dialog': {
          'body': {
            'sections': [
              {
                'header': 'Add new contact',
                'widgets': [
                  {
                    'textInput': {
                      'label': 'Name',
                      'type': 'SINGLE_LINE',
                      'name': 'name'
                    }
                  },
                  {
                    'textInput': {
                      'label': 'Address',
                      'type': 'MULTIPLE_LINE',
                      'name': 'address'
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Add to favorites',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'saveFavorite'
                      }
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Merge with existing contacts',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'mergeContact',
                        'selected': True
                      }
                    }
                  },
                  {
                    'buttonList': {
                      'buttons': [
                        {
                          'text': 'Next',
                          'onClick': {
                            'action': {
                              'function': 'open_sequential_dialog'
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  }

فتح مربع حوار استجابة لأحد الأوامر التي تبدأ بشرطة مائلة

عندما يفتح مستخدم مربّع حوار يتضمّن أمر شرطة مائلة الذي تم إعداده لفتح مربّع حوار، يتلقّى تطبيق Chat حدث تفاعل يتضمّن المعلومات التالية:

لفتح مربّع حوار، يُرجى الردّ بما يلي:

في هذا المثال، يستجيب تطبيق Chat للأمر /createContact الذي يبدأ بشرطة مائلة من خلال فتح مربّع حوار:

Node.js

/**
* Responds to messages that have links whose URLs
* match URL patterns configured for link previews.
*
* @param {Object} event The event object from Chat
* API.
*
* @return {Object} Response from the Chat app
* attached to the message with the previewed link.
*/
exports.onMessage = function onMessage(req, res) {

  // Store the Google Chat event as a variable.
  const event = req.body;

  if (req.method === "GET" || !event.message) {
    res.send("Hello! This function is meant to be used in a Google Chat " +
      "Space.");
  }

  // Checks for the presence of event.message.slashCommand.
  // If the slash command is "/help", responds with a text message.
  // If the slash command is "/createContact", opens a dialog.
  if (event.message.slashCommand) {
    switch (event.message.slashCommand.commandId) {
      case 1: // /help
        res.json({"text": "Contact bot helps you update your address book!"});
      case 2:  // /createContact
        openDialog(event);
    }
  }
};

/**
* Opens and starts a dialog that lets users add details about a contact.
*
* @param {object} event the event object from Google Chat.
*
* @return {object} open a dialog.
*/
function openDialog(event) {
  res.json({
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Name",
                      "type": "SINGLE_LINE",
                      "name": "name"
                    }
                  },
                  {
                    "textInput": {
                      "label": "Address",
                      "type": "MULTIPLE_LINE",
                      "name": "address"
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Add to favorites",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "saveFavorite"
                      }
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Merge with existing contacts",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "mergeContact",
                        "selected": true
                      }
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Next",
                          "onClick": {
                            "action": {
                              "function": "openSequentialDialog"
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  });
};

برمجة تطبيقات

/**
* Responds to a MESSAGE event in Google Chat that includes the /createContact
* slash command by opening a dialog.
*
* @param {Object} event the event object from Chat API.
*
* @return {object} open a Dialog in response to a slash command.
*/
function onMessage(event) {

  // Checks for the presence of event.message.slashCommand.
  // If the slash command is "/help", responds with a text message.
  // If the slash command is "/createContact", opens a dialog.
  if (event.message.slashCommand) {
    switch (event.message.slashCommand.commandId) {
      case 1: // /help
        return {"text": "Contact bot helps you update your address book!"}
      case 2:  // /createContact
        return openDialog(event);
    }
  }
}

/**
* Opens a dialog in Google Chat.
*
* @param {Object} event the event object from Chat API.
*
* @return {object} open a Dialog in Google Chat.
*/
function openDialog(event) {
  return {
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Name",
                      "type": "SINGLE_LINE",
                      "name": "contactName"
                    }
                  },
                  {
                    "textInput": {
                      "label": "Address",
                      "type": "MULTIPLE_LINE",
                      "name": "address"
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Add to favorites",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "saveFavorite"
                      }
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Merge with existing contacts",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "mergeContact",
                        "selected": true
                      }
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Next",
                          "onClick": {
                            "action": {
                              "function": "openSequentialDialog"
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  };
}

Python

from typing import Any, Mapping

import flask
import functions_framework

@functions_framework.http
def main(req: flask.Request) -> Mapping[str, Any]:
  """Responds to a MESSAGE event in Google Chat that includes the /createContact
     slash command by opening a dialog.

  Args:
      req (flask.Request): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a slash command.
  """
  if req.method == 'GET':
    return 'Sorry, this function must be called from a Google Chat.'

  request = req.get_json(silent=True)

  if slash_command := request.get('message', dict()).get('slashCommand'):
    command_id = slash_command['commandId']
    if command_id == 1:
      return {'text': 'Contact bot helps you update your address book!'}

    elif command_id == 2:
      return open_dialog(request)

def open_dialog(request: Mapping[str, Any]) -> Mapping[str, Any]:
  """Opens a dialog in Google Chat.

  Args:
      request (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a slash command.
  """
  return {
    'action_response': {
      'type': 'DIALOG',
      'dialog_action': {
        'dialog': {
          'body': {
            'sections': [
              {
                'header': 'Add new contact',
                'widgets': [
                  {
                    'textInput': {
                      'label': 'Name',
                      'type': 'SINGLE_LINE',
                      'name': 'name'
                    }
                  },
                  {
                    'textInput': {
                      'label': 'Address',
                      'type': 'MULTIPLE_LINE',
                      'name': 'address'
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Add to favorites',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'saveFavorite'
                      }
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Merge with existing contacts',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'mergeContact',
                        'selected': True
                      }
                    }
                  },
                  {
                    'buttonList': {
                      'buttons': [
                        {
                          'text': 'Next',
                          'onClick': {
                            'action': {
                              'function': 'open_sequential_dialog'
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  }

فتح مربّعات حوار تسلسلية

عندما تتطلّب تفاعلات المستخدمين أكثر من مربّع حوار واحد، يمكنك فتح مربّع حوار آخر من خلال عرض مربّع الحوار التالي في التسلسل استجابةً للرمز SUBMIT_DIALOG DialogEventType.

مربّع حوار يعرض مجموعة متنوعة من التطبيقات المصغّرة المختلفة
الشكل 3: مربّع حوار مفتوح يطلب من المستخدم إضافة جهة اتصال.

في زر البطاقة الذي يؤدي إلى تعديل مربّع الحوار، يمكنك عرض onClick.action.function كاسم لدالة تفتح مربّع الحوار التالي مع إبقاء onClick.action.interaction غير محدّدة.

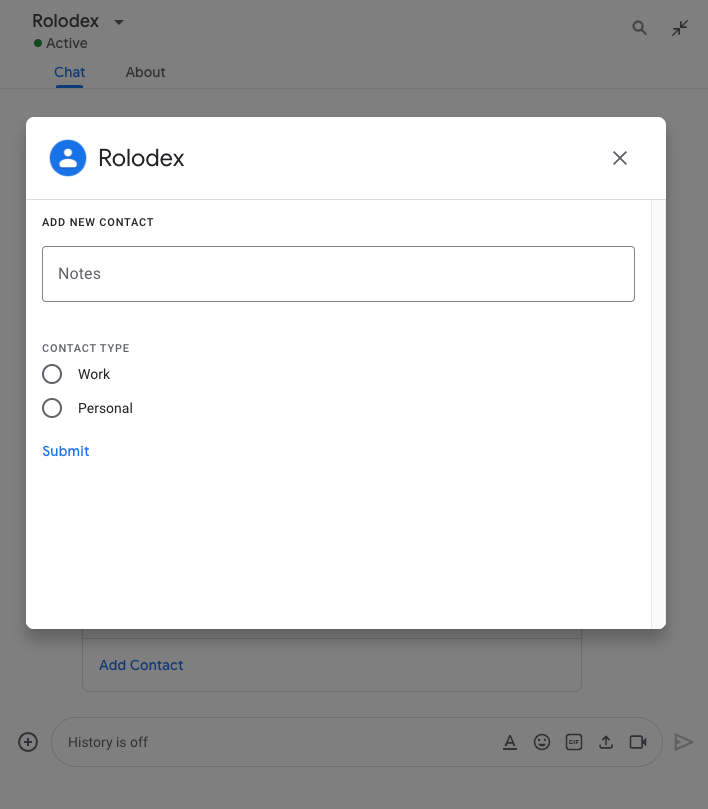

مربّع حوار يعرض مجموعة متنوعة من التطبيقات المصغّرة المختلفة
الشكل 4: يطالب مربع الحوار الثاني المستخدم بتقديم مزيد من المعلومات.

عند الانتهاء، يتلقّى تطبيق Chat القيم التي أدخلها المستخدمون في مربّع الحوار على هيئة JSON. أبلِغ المستخدمين بأنّ تفاعلهم نجح من خلال الرد باستخدام رسالة نصية أو رسالة بطاقة.

عندما ينقر المستخدمون على زر في مربّع حوار، يتلقّى تطبيق Chat حدث تفاعل يتضمّن المعلومات التالية:

في هذا المثال، يستجيب تطبيق Chat لحدث تفاعل CARD_CLICKED من خلال نقرة على زر مربّع الحوار من خلال فتح مربّع حوار آخر:

Node.js

// Respond to button clicks on attached cards
if (event.type === "CARD_CLICKED") {

  // Open the first dialog.
  if (event.common.invokedFunction === "openDialog") {
    openDialog(event);
  }

  // Open the second dialog.
  if (event.common.invokedFunction === "openSequentialDialog") {
    openSequentialDialog(event);
  }
}

/**
* Opens and starts a dialog that lets users add details about a contact.
*
* @param {object} event the event object from Google Chat.
*
* @return {object} open a dialog.
*/
function openDialog(event) {
  res.json({
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Name",
                      "type": "SINGLE_LINE",
                      "name": "name"
                    }
                  },
                  {
                    "textInput": {
                      "label": "Address",
                      "type": "MULTIPLE_LINE",
                      "name": "address"
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Add to favorites",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "saveFavorite"
                      }
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Merge with existing contacts",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "mergeContact",
                        "selected": true
                      }
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Next",
                          "onClick": {
                            "action": {
                              "function": "openSequentialDialog"
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  });
};

/**
* Opens a second dialog that lets users add more contact details.
*
* @param {object} event the event object from Google Chat.
*
* @return {object} open a dialog.
*/
function openSequentialDialog(event) {
  res.json({
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Notes",
                      "type": "MULTIPLE_LINE",
                      "name": "notes"
                    }
                  },
                  {
                    "selectionInput": {
                      "type": "RADIO_BUTTON",
                      "label": "Contact type",
                      "name": "contactType",
                      "items": [
                        {
                          "text": "Work",
                          "value": "Work",
                          "selected": false
                        },
                        {
                          "text": "Personal",
                          "value": "Personal",
                          "selected": false
                        }
                      ]
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Submit",
                          "onClick": {
                            "action": {
                              "function": "confirmDialogSuccess",
                              "parameters": [
                                {
                                  "key": "confirmDialogSuccess",
                                  "value": "confirmDialogSuccess"
                                }
                              ]
                            }
                          }
                        }
                      ]
                    },
                    "horizontalAlignment": "END"
                  }
                ]
              }
            ]
          }
        }
      }
    }
  });
}

برمجة تطبيقات

/**
* Responds to a CARD_CLICKED event in Google Chat.
*
* @param {Object} event the event object from Google Chat
*/
function onCardClick(event) {

  // When a user clicks a card, the Chat app checks to see which function to run.
  if (event.common.invokedFunction === "openDialog") {
    return openDialog(event);
  }

  if (event.common.invokedFunction === "openSequentialDialog") {
    return openSequentialDialog(event);
  }
}

/**
* Opens and starts a dialog that lets users add details about a contact.
*
* @param {object} event the event object from Google Chat.
*
* @return {object} open a dialog.
*/
function openDialog(event) {
  return {
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Name",
                      "type": "SINGLE_LINE",
                      "name": "contactName"
                    }
                  },
                  {
                    "textInput": {
                      "label": "Address",
                      "type": "MULTIPLE_LINE",
                      "name": "address"
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Add to favorites",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "saveFavorite"
                      }
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Merge with existing contacts",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "mergeContact",
                        "selected": true
                      }
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Next",
                          "onClick": {
                            "action": {

                              // Specifies which function to run
                              // in response to the card click.
                              "function": "openSequentialDialog"
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  };
}

/**
* Opens a second dialog that lets users add more contact details.
*
* @param {object} event the event object from Google Chat.
*
* @return {object} open a dialog.
*/
function openSequentialDialog(event) {
  return {
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Notes",
                      "type": "MULTIPLE_LINE",
                      "name": "notes"
                    }
                  },
                  {
                    "selectionInput": {
                      "type": "RADIO_BUTTON",
                      "label": "Contact type",
                      "name": "contactType",
                      "items": [
                        {
                          "text": "Work",
                          "value": "Work",
                          "selected": false
                        },
                        {
                          "text": "Personal",
                          "value": "Personal",
                          "selected": false
                        }
                      ]
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Submit",
                          "onClick": {
                            "action": {

                              // Specifies which function to run
                              // in response to the card click.
                              "function": "receiveDialog",
                              "parameters": [
                                {
                                  "key": "receiveDialog",
                                  "value": "receiveDialog"
                                }
                              ]
                            }
                          }
                        }
                      ]
                    },
                    "horizontalAlignment": "END"
                  }
                ]
              }
            ]
          }
        }
      }
    }
  };
}

Python

from typing import Any, Mapping

import flask
import functions_framework

@functions_framework.http
def main(req: flask.Request) -> Mapping[str, Any]:
  """Responds to a MESSAGE event in Google Chat that includes the /createContact
     slash command by opening a dialog.

  Args:
      req (flask.Request): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """

  if req.method == 'GET':
    return 'Sorry, this function must be called from a Google Chat.'

  request = req.get_json(silent=True)

  if request.get('type') == 'CARD_CLICKED':
    if invoked_function := request.get('common', dict()).get('invokedFunction'):
      if invoked_function == 'open_dialog':
        return open_dialog(request)

      elif invoked_function == 'open_sequential_dialog':
        return open_dialog(request)

def open_dialog(request: Mapping[str, Any]) -> Mapping[str, Any]:
  """Opens a dialog in Google Chat.

  Args:
      request (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """
  return {
    'action_response': {
      'type': 'DIALOG',
      'dialog_action': {
        'dialog': {
          'body': {
            'sections': [
              {
                'header': 'Add new contact',
                'widgets': [
                  {
                    'textInput': {
                      'label': 'Name',
                      'type': 'SINGLE_LINE',
                      'name': 'name'
                    }
                  },
                  {
                    'textInput': {
                      'label': 'Address',
                      'type': 'MULTIPLE_LINE',
                      'name': 'address'
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Add to favorites',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'saveFavorite'
                      }
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Merge with existing contacts',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'mergeContact',
                        'selected': True
                      }
                    }
                  },
                  {
                    'buttonList': {
                      'buttons': [
                        {
                          'text': 'Next',
                          'onClick': {
                            'action': {
                              'function': 'open_sequential_dialog'
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  }

def open_sequential_dialog(request: Mapping[str, Any]) -> Mapping[str, Any]:
  """Opens a second dialog that lets users add more contact details.

  Args:
      request (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """
  return {
    'action_response': {
      'type': 'DIALOG',
      'dialog_action': {
        'dialog': {
          'body': {
            'sections': [
              {
                'header': 'Add new contact',
                'widgets': [
                  {
                    'textInput': {
                      'label': 'Notes',
                      'type': 'MULTIPLE_LINE',
                      'name': 'notes'
                    }
                  },
                  {
                    'selectionInput': {
                      'type': 'RADIO_BUTTON',
                      'label': 'Contact type',
                      'name': 'contactType',
                      'items': [
                        {
                          'text': 'Work',
                          'value': 'Work',
                          'selected': False
                        },
                        {
                          'text': 'Personal',
                          'value': 'Personal',
                          'selected': False
                        }
                      ]
                    }
                  },
                  {
                    'buttonList': {
                      'buttons': [
                        {
                          'text': 'Submit',
                          'onClick': {
                            'action': {
                              'function': 'receiveDialog',
                              'parameters': [
                                {
                                  'key': 'receiveDialog',
                                  'value': 'receiveDialog'
                                }
                              ]
                            }
                          }
                        }
                      ]
                    },
                    'horizontalAlignment': 'END'
                  }
                ]
              }
            ]
          }
        }
      }
    }
  }

تلقّي بيانات النموذج من مربّعات الحوار

عندما ينقر المستخدمون على زر في مربّع حوار، يتم إرسال البيانات التي أدخلوها إلى تطبيق Chat، ويتلقّى تطبيق Chat حدث تفاعل بالمعلومات التالية:

تتوفّر البيانات التي يُدخِلها المستخدمون في مربّع الحوار في حدث التفاعل على أنّه Event.common.formInputs، وهي خريطة تكون فيها المفاتيح عبارة عن أرقام تعريف سلاسل يتم تخصيصها لكل أداة مربّع حوار، وتمثل القيم إدخال المستخدم لكل أداة. تمثل الكائنات المختلفة أنواعًا مختلفة من بيانات الإدخال. على سبيل المثال، تمثل Event.common.formInputs.stringInputs مدخلات السلسلة.

عندما يرسل المستخدم مربّع حوار، يتلقّى تطبيق Chat حدث تفاعل مثل هذا من Chat:

JSON

{
  "type": enum (EventType),
  "eventTime": string,
  "threadKey": string,
  "message": {
    object (Message)
  },
  "user": {
    object (User)
  },
  "space": {
    object (Space)
  },
  "action": {
    object (FormAction)
  },
  "configCompleteRedirectUrl": string,

  // Indicates that this event is dialog-related.
  "isDialogEvent": true,

  // Indicates that a user clicked a button, and all data
  // they entered in the dialog is included in Event.common.formInputs.
  "dialogEventType": "SUBMIT_DIALOG",
  "common": {
    "userLocale": string,
    "hostApp": enum (HostApp),
    "platform": enum (Platform),
    "timeZone": {
      object (TimeZone)
    },

    // Represents user data entered in a dialog.
    "formInputs": {

      // Represents user data entered for a specific field in a dialog.
      "NAME": {

        // Represents string data entered in a dialog, like text input fields
        // and check boxes.
        "stringInputs": {

          // An array of strings entered by the user in a dialog.
          "value": [
            string
          ]
        }
      }
    },
    "parameters": {
      string: string,
      ...
    },
    "invokedFunction": string
  }
}

يمكن لتطبيق Chat الوصول إلى أول قيمة يُدخلها المستخدم في event.common.formInputs.NAME.stringInputs.value[0]، حيث يكون NAME هو الحقل name في تطبيق TextInput المصغّر.

بعد تلقّي بيانات نموذج مربّع الحوار، من المفترض أن يستجيب تطبيق Chat بعبارة ActionResponse:

  • للإقرار بالاستلام بنجاح، يُرجى الردّ بإرسال ActionResponse يحتوي على "actionStatus": "OK". يؤدي هذا إلى إغلاق مربع الحوار دون نشر رد.
  • للردّ على الرسالة برسالة نصية أو رسالة بطاقة، يجب الردّ باستخدام ActionResponse يتضمّن ResponseType NEW_MESSAGE أو UPDATE_MESSAGE أو UPDATE_USER_MESSAGE_CARDS. لمزيد من المعلومات، يُرجى الاطّلاع على الرد على مربّع حوار.
  • لعرض رسالة خطأ، يجب الردّ بإرسال ActionResponse يحتوي على "actionStatus": "ERROR MESSAGE".

يتحقق المثال التالي من توفُّر قيمة name. وإذا لم يكن متاحًا، يعرض تطبيق Chat رسالة خطأ. وفي حال توفُّرها، يقر تطبيق Chat باستلام بيانات النموذج ويغلق مربّع الحوار.

Node.js

/**
* Checks for a form input error, the absence of
* a "name" value, and returns an error if absent.
* Otherwise, confirms successful receipt of a dialog.
*
* Confirms successful receipt of a dialog.
*
* @param {Object} event the event object from Chat API.
*
* @return {Object} open a Dialog in Google Chat.
*/
function receiveDialog(event) {

  // Checks to make sure the user entered a name
  // in a dialog. If no name value detected, returns
  // an error message. Any "actionStatus" value other than "OK"
  // gets returned as an error.
  if (event.common.formInputs.WIDGET_NAME.stringInputs.value[0] === "") {
    res.json({
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": "Don't forget to name your new contact!"
        }
      }
    });

    // Otherwise the Chat app indicates that it received
    // form data from the dialog. An "actionStatus" of "OK" is
    // interpreted as code 200, and the dialog closes.
  } else {
    res.json({
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": "OK"
        }
      }
    });
  }
}

برمجة تطبيقات

/**
* Checks for a form input error, the absence of
* a "name" value, and returns an error if absent.
* Otherwise, confirms successful receipt of a dialog.
*
* Confirms successful receipt of a dialog.
*
* @param {Object} event the event object from Chat API.
*
* @return {object} open a Dialog in Google Chat.
*/
function receiveDialog(event) {

  // Checks to make sure the user entered a name
  // in a dialog. If no name value detected, returns
  // an error message. Any "actionStatus" value other than "OK"
  // gets returned as an error.
  if (event.common.formInputs.WIDGET_NAME[""].stringInputs.value[0] === "") {
    return {
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": "Don't forget to name your new contact!"
        }
      }
    };

    // Otherwise the Chat app indicates that it received
    // form data from the dialog. An "actionStatus" of "OK" is
    // interpreted as code 200, and the dialog closes.
  } else {
    return {
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": "OK"
        }
      }
    };
  }
}

Python

def receive_dialog(event: Mapping[str, Any]) -> Mapping[str, Any]:
  """Checks for a form input error, the absence of a "name" value, and returns
     an error if absent. Otherwise, confirms successful receipt of a dialog.

  Args:
      event (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: the response.
  """

  if common := event.get('common'):
    if form_inputs := common.get('formInputs'):
      if contact_name := form_inputs.get('WIDGET_NAME'):
        if string_inputs := contact_name.get('stringInputs'):
          if name := string_inputs.get('value')[0]:
            return {
              'actionResponse': {
                'type': 'DIALOG',
                'dialogAction': {
                  'actionStatus': 'OK'
                }
              }
            }
          else:
            return {
              'actionResponse': {
                'type': 'DIALOG',
                'dialogAction': {
                  'actionStatus': 'Don\'t forget to name your new contact!'
                }
              }
            }

الرد على مربّع حوار

يمكنك الرد على مربّع حوار برسالة جديدة أو تحديث رسالة حالية.

الردّ على مربّع حوار برسالة جديدة

للرد على نموذج لمربّع حوار بإرسال رسالة جديدة، يعرض تطبيق Chat الرمز ActionResponse من النوع NEW_MESSAGE، بالإضافة إلى ترميز يشير إلى محتوى الرسالة الجديدة. عند تلقي هذا الرد، يتم إغلاق مربع الحوار ويتم نشر الرسالة الجديدة.

الرمز التالي هو مثال على استجابة JSON لمربّع حوار يرسله تطبيق Chat لإنشاء رسالة رد جديدة:

JSON

{
  "actionResponse": {
    "type": "NEW_MESSAGE",
  },
  "text": "This message is a reply to a dialog form submission.",
  "cardsV2": [
    {
      "cardId": "reply-card-id",
      "card": {
        "header": {
          "title": "Reply card title"
        },
        "sections": [
          {
            "widgets": [
              {
                "textParagraph": {
                  "text": "Reply card message"
                }
              }
            ]
          }
        ]
      }
    }
  ]
}

يمكن لتطبيق Chat أيضًا الردّ بشكل غير متزامن من خلال رسالة نصية أو بطاقة.

الردّ على مربّع حوار برسالة معدَّلة

عند الردّ على مربّع حوار يتضمّن رسالة معدَّلة، يمكنك تعديل رسالة حالية في تطبيق Chat أو تعديل معاينة الرابط.

رسائل تطبيق Chat

للردّ على إرسال نموذج مربّع حوار يتضمن تعديلاً على رسالة حالية تم إرسالها بواسطة تطبيق Chat، يتم عرض الرمز ActionResponse من النوع UPDATE_MESSAGE. يشتمل الرد على ترميز يشير إلى محتوى الرسالة المعدّلة. عند تلقي هذا الرد، يتم إغلاق مربع الحوار ويتم تعديل الرسالة بالمحتوى الجديد.

الرمز التالي هو مثال على استجابة JSON لمربّع حوار يرسله تطبيق Chat لتعديل رسالة حالية في تطبيق Chat:

JSON

{
  "actionResponse": {
    "type": "UPDATE_MESSAGE",
  },
  "text": "This message has been updated with new content in response to a dialog form submission.",
  "cardsV2": [
    {
      "cardId": "updated-card-id",
      "card": {
        "header": {
          "title": "Updated card title"
        },
        "sections": [
          {
            "widgets": [
              {
                "textParagraph": {
                  "text": "Updated card message"
                }
              }
            ]
          }
        ]
      }
    }
  ]
}

يمكن لتطبيق Chat أيضًا تحديث رسالة في تطبيق Chat بشكل غير متزامن باستخدام Google Chat API.

لتعديل معاينات الروابط بمحتوى جديد استجابةً لعمليات إرسال نماذج الحوار، يعرض تطبيق Chat نوع ActionResponse من النوع UPDATE_USER_MESSAGE_CARDS. يتضمّن الرد ترميزًا لرسائل البطاقات الجديدة التي يتم تعديل معاينات الروابط بها. بعد تلقّي هذا الرد، يتم إغلاق مربّع الحوار ويتم تعديل معاينات الروابط باستخدام رسائل البطاقة الجديدة.

في المثال التالي لاستجابة JSON، يتم تعديل معاينة الرابط من خلال عرض رسالة بطاقة جديدة:

JSON

{
  "actionResponse": "UPDATE_USER_MESSAGE_CARDS",
  "cardsV2": [
    {
      "cardId" : "updated-card-id",
      "card" : {
        "header": {
          "title": "Updated card title"
        },
        "sections": [
          {
            "widgets" : [
              {
                "textParagraph": {
                  "text": "Updated card message"
                }
              }
            ]
          }
        ]
      }
    }
  ]
}

الرد على مربّع حوار لرسائل بطاقة الصفحة الرئيسية للتطبيق

بالنسبة إلى رسائل بطاقة الصفحة الرئيسية للتطبيق فقط، هناك طريقتان مختلفتان لإغلاق مربع الحوار:

  • CLOSE_DIALOG: يتم إغلاق مربّع الحوار والعودة إلى رسالة بطاقة الصفحة الرئيسية للتطبيق.
  • CLOSE_DIALOG_AND_EXECUTE: يتم إغلاق مربّع الحوار وإعادة تحميل رسالة بطاقة الصفحة الرئيسية للتطبيق.

HTTP

يستخدم نموذج التعليمات البرمجية التالي CLOSE_DIALOG لإغلاق مربع الحوار والعودة إلى رسالة بطاقة الصفحة الرئيسية للتطبيق:

def close_dialog():
  """Handles dismiss dialog request from Chat."""
  return {
      'render_actions': {
          'action': {
              'navigations': [{
                'end_navigation': {'action': 'CLOSE_DIALOG'}
              }]
          }
      }
  }

برمجة تطبيقات

يستخدم نموذج التعليمات البرمجية التالي CLOSE_DIALOG لإغلاق مربع الحوار والعودة إلى رسالة بطاقة الصفحة الرئيسية للتطبيق:

function closeDialog(event) {
  return {
    render_actions: {
      action:{
        navigations:[{
          end_navigation:{
            action: "CLOSE_DIALOG"
          }
        }]
      }
    }
  };
}

مثال كامل: Rolodex، جهة الاتصال التي تدير تطبيق Chat

في هذا المثال، يفتح تطبيق Chat مربّع حوار حتى يتمكّن المستخدم من إضافة تفاصيل عن جهة الاتصال، مثل الاسم والبريد الإلكتروني والعنوان:

Node.js

/**
* Responds to messages that have links whose URLs
* match URL patterns configured for link previews.
*
* @param {Object} event The event object from Chat
* API.
*
* @return {Object} Response from the Chat app
* attached to the message with the previewed link.
*/
exports.onMessage = function onMessage(req, res) {

  // Store the Google Chat event as a variable.
  const event = req.body;

  if (req.method === "GET" || !event.message) {
    res.send("Hello! This function is meant to be used in a Google Chat " +
      "Space.");
  }

  // Checks for the presence of event.message.slashCommand.
  // If the slash command is "/help", responds with a text message.
  // If the slash command is "/createContact", opens a dialog.
  if (event.message.slashCommand) {
    switch (event.message.slashCommand.commandId) {
      case 1: // /help
        res.json({"text": "Contact bot helps you update your address book!"});
      case 2:  // /createContact
        openDialog(event);
    }
  }

  // If the Chat app doesn"t detect a slash command, it responds
  // with a card that prompts the user to add a contact
  else {
    res.json({
      "cardsV2": [{
        "cardId": "addContact",
        "card": {
          "header": {
            "title": "Rolodex",
            "subtitle": "Manage your contacts!",
            "imageUrl": "https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png",
            "imageType": "CIRCLE"
          },
          "sections": [
            {
              "widgets": [
                {
                  "buttonList": {
                    "buttons": [
                      {
                        "text": "Add Contact",
                        "onClick": {
                          "action": {
                            "function": "openDialog",
                            "interaction": "OPEN_DIALOG"
                          }
                        }
                      }
                    ]
                  }
                }
              ]
            }
          ]
        }
      }]
    });
  }

  // Respond to button clicks on attached cards
  if (event.type === "CARD_CLICKED") {

    if (event.common.invokedFunction === "openDialog") {
      openDialog(event);
    }

    if (event.common.invokedFunction === "openSequentialDialog") {
      openSequentialDialog(event);
    }

    if (event.common.invokedFunction === "confirmDialogSuccess") {
      confirmDialogSuccess(event);
    }

  }
};

/**
* Opens and starts a dialog that lets users add details about a contact.
*
* @param {object} event the event object from Google Chat.
*
* @return {object} open a dialog.
*/
function openDialog(event) {
  res.json({
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Name",
                      "type": "SINGLE_LINE",
                      "name": "name"
                    }
                  },
                  {
                    "textInput": {
                      "label": "Address",
                      "type": "MULTIPLE_LINE",
                      "name": "address"
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Add to favorites",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "saveFavorite"
                      }
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Merge with existing contacts",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "mergeContact",
                        "selected": true
                      }
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Next",
                          "onClick": {
                            "action": {
                              "function": "openSequentialDialog"
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  });
};

/**
* Opens a second dialog that lets users add more contact details.
*
* @param {object} event the event object from Google Chat.
*
* @return {object} open a dialog.
*/
function openSequentialDialog(event) {
  res.json({
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Notes",
                      "type": "MULTIPLE_LINE",
                      "name": "notes"
                    }
                  },
                  {
                    "selectionInput": {
                      "type": "RADIO_BUTTON",
                      "label": "Contact type",
                      "name": "contactType",
                      "items": [
                        {
                          "text": "Work",
                          "value": "Work",
                          "selected": false
                        },
                        {
                          "text": "Personal",
                          "value": "Personal",
                          "selected": false
                        }
                      ]
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Submit",
                          "onClick": {
                            "action": {
                              "function": "confirmDialogSuccess",
                              "parameters": [
                                {
                                  "key": "confirmDialogSuccess",
                                  "value": "confirmDialogSuccess"
                                }
                              ]
                            }
                          }
                        }
                      ]
                    },
                    "horizontalAlignment": "END"
                  }
                ]
              }
            ]
          }
        }
      }
    }
  });
}

/**
* Checks for a form input error, the absence of
* a "name" value, and returns an error if absent.
* Otherwise, confirms successful receipt of a dialog.
*
* Confirms successful receipt of a dialog.
*
* @param {Object} event the event object from Chat API.
*
* @return {object} open a Dialog in Google Chat.
*/
function receiveDialog(event) {

  // Checks to make sure the user entered a name
  // in a dialog. If no name value detected, returns
  // an error message. Any "actionStatus" value other than "OK"
  // gets returned as an error.
  if (event.common.formInputs.contactName.stringInputs.value[0] === "") {
    res.json({
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": "Don't forget to name your new contact!"
        }
      }
    });

    // Otherwise the Chat app indicates that it received
    // form data from the dialog. An "actionStatus" of "OK" is
    // interpreted as code 200, and the dialog closes.
  } else {
    res.json({
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": "OK"
        }
      }
    });
  }
}

برمجة تطبيقات

apps-script/dialogs/rolodex.gs
/**
* Responds to a MESSAGE event in Google Chat.
*
* @param {Object} event the event object from Chat API.
*
* @return {Object} open a Dialog in response to a slash command
* or a card"s button click.
*/
function onMessage(event) {

  // Checks for the presence of event.message.slashCommand.
  // If the slash command is "/help", responds with a text message.
  // If the slash command is "/createContact", opens a dialog.
  if (event.message.slashCommand) {
    switch (event.message.slashCommand.commandId) {
      case 1: // /help
        return {"text": "Contact bot helps you update your address book!"}
      case 2:  // /createContact
        return openDialog(event);
    }
  }

  // If the Chat app doesn"t detect a slash command, it responds
  // with a card that prompts the user to add a contact
  else {
    return {
      "cardsV2": [{
        "cardId": "addContact",
        "card": {
          "header": {
            "title": "Rolodex",
            "subtitle": "Manage your contacts!",
            "imageUrl": "https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png",
            "imageType": "CIRCLE"
          },
          "sections": [
            {
              "widgets": [
                {
                  "buttonList": {
                    "buttons": [
                      {
                        "text": "Add Contact",
                        "onClick": {
                          "action": {
                            "function": "openDialog",
                            "interaction": "OPEN_DIALOG"
                          }
                        }
                      }
                    ]
                  }
                }
              ]
            }
          ]
        }
      }]

    };
  }
}

/**
* Responds to a CARD_CLICKED event in Google Chat.
*
* @param {Object} event the event object from Google Chat
*/
function onCardClick(event) {

  if (event.common.invokedFunction === "openDialog") {
    return openDialog(event);
  }

  if (event.common.invokedFunction === "openSequentialDialog") {
    const contactName = fetchFormValue(event, "contactName");
    const address = fetchFormValue(event, "address");
    return openSequentialDialog(contactName, address);
  }

  if (event.common.invokedFunction === "receiveDialog") {
    const parameters = event.common.parameters;
    parameters["contactType"] = fetchFormValue(event, "contactType");
    parameters["notes"] = fetchFormValue(event, "notes");
    return receiveDialog(parameters);
  }
}

/**
 * Extracts form input value for a given widget
 *
 * @param {Object} event the event object from Google Chat
 * @param {String} widgetName the widget name
 * @returns the form input value for the widget
 */
function fetchFormValue(event, widgetName) {
  const widget = event.common.formInputs[widgetName];
  if (widget) {
    return widget[""]["stringInputs"]["value"][0];
  }
}

/**
* Opens and starts a dialog that lets users add details about a contact.
*
*
* @return {Object} open a dialog.
*/
function openDialog(event) {
  return {
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Name",
                      "type": "SINGLE_LINE",
                      "name": "contactName"
                    }
                  },
                  {
                    "textInput": {
                      "label": "Address",
                      "type": "MULTIPLE_LINE",
                      "name": "address"
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Add to favorites",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "saveFavorite"
                      }
                    }
                  },
                  {
                    "decoratedText": {
                      "text": "Merge with existing contacts",
                      "switchControl": {
                        "controlType": "SWITCH",
                        "name": "mergeContact",
                        "selected": true
                      }
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Next",
                          "onClick": {
                            "action": {
                              "function": "openSequentialDialog"
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  };
}

/**
* Opens a second dialog that lets users add more contact details.
*
* @param {String} contactName the contact name from the previous dialog.
* @param {String} address the address from the previous dialog.
*
* @return {Object} open a dialog.
*/
function openSequentialDialog(contactName, address) {
  return {
    "action_response": {
      "type": "DIALOG",
      "dialog_action": {
        "dialog": {
          "body": {
            "sections": [
              {
                "header": "Add new contact",
                "widgets": [
                  {
                    "textInput": {
                      "label": "Notes",
                      "type": "MULTIPLE_LINE",
                      "name": "notes"
                    }
                  },
                  {
                    "selectionInput": {
                      "type": "RADIO_BUTTON",
                      "label": "Contact type",
                      "name": "contactType",
                      "items": [
                        {
                          "text": "Work",
                          "value": "Work",
                          "selected": false
                        },
                        {
                          "text": "Personal",
                          "value": "Personal",
                          "selected": false
                        }
                      ]
                    }
                  },
                  {
                    "buttonList": {
                      "buttons": [
                        {
                          "text": "Submit",
                          "onClick": {
                            "action": {
                              "function": "receiveDialog",
                              "parameters": [
                                {
                                  "key": "contactName",
                                  "value": contactName
                                },
                                {
                                  "key": "address",
                                  "value": address
                                }
                              ]
                            }
                          }
                        }
                      ]
                    },
                    "horizontalAlignment": "END"
                  }
                ]
              }
            ]
          }
        }
      }
    }
  };
}

/**
* Checks for a form input error, the absence of
* a "name" value, and returns an error if absent.
* Otherwise, confirms successful receipt of a dialog.
*
* Confirms successful receipt of a dialog.
*
* @param {Object} parameters the form input values.
*
* @return {Object} open a Dialog in Google Chat.
*/
function receiveDialog(parameters) {

  // Checks to make sure the user entered a name
  // in a dialog. If no name value detected, returns
  // an error message.
  if (!parameters.contactName) {
    return {
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": {
            "statusCode": "INVALID_ARGUMENT",
            "userFacingMessage": "Don't forget to name your new contact!"
          }
        }
      }
    };

    // Otherwise the Chat app indicates that it received
    // form data from the dialog. Any value other than "OK"
    // gets returned as an error. "OK" is interpreted as
    // code 200, and the dialog closes.
  } else {
    return {
      "actionResponse": {
        "type": "DIALOG",
        "dialogAction": {
          "actionStatus": {
            "statusCode": "OK",
            "userFacingMessage": "Success " + JSON.stringify(parameters)
          }
        }
      }
    };
  }
}

Python

from typing import Any, Mapping

import flask
import functions_framework

@functions_framework.http
def main(req: flask.Request) -> Mapping[str, Any]:
  """Responds to a MESSAGE event in Google Chat that includes the /createContact
     slash command by opening a dialog.

  Args:
      req (flask.Request): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """

  if req.method == 'GET':
    return 'Sorry, this function must be called from a Google Chat.'

  request = req.get_json(silent=True)

  if request.get('type') == 'CARD_CLICKED':
    invoked_function = request.get('common', dict()).get('invokedFunction')
    if invoked_function == 'open_dialog':
      return open_dialog(request)

    elif invoked_function == 'open_sequential_dialog':
      return open_dialog(request)

    elif invoked_function == "receive_dialog":
      return receive_dialog(request)

  else:
    return {
      'cardsV2': [{
        'cardId': 'addContact',
        'card': {
          'header': {
            'title': 'Rolodex',
            'subtitle': 'Manage your contacts!',
            'imageUrl': 'https://www.gstatic.com/images/branding/product/2x/contacts_48dp.png',
            'imageType': 'CIRCLE'
          },
          'sections': [
            {
              'widgets': [
                {
                  'buttonList': {
                    'buttons': [
                      {
                        'text': 'Add Contact',
                        'onClick': {
                                'action': {
                                  'function': 'open_dialog',
                                  'interaction': 'OPEN_DIALOG'
                                }
                        }
                      }
                    ]
                  }
                }
              ]
            }
          ]
        }
      }]
    }

def open_dialog(request: Mapping[str, Any]) -> Mapping[str, Any]:
  """Opens a dialog in Google Chat.

  Args:
      request (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """
  return {
    'action_response': {
      'type': 'DIALOG',
      'dialog_action': {
        'dialog': {
          'body': {
            'sections': [
              {
                'header': 'Add new contact',
                'widgets': [
                  {
                    'textInput': {
                      'label': 'Name',
                      'type': 'SINGLE_LINE',
                      'name': 'name'
                    }
                  },
                  {
                    'textInput': {
                      'label': 'Address',
                      'type': 'MULTIPLE_LINE',
                      'name': 'address'
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Add to favorites',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'saveFavorite'
                      }
                    }
                  },
                  {
                    'decoratedText': {
                      'text': 'Merge with existing contacts',
                      'switchControl': {
                        'controlType': 'SWITCH',
                        'name': 'mergeContact',
                        'selected': True
                      }
                    }
                  },
                  {
                    'buttonList': {
                      'buttons': [
                        {
                          'text': 'Next',
                          'onClick': {
                            'action': {
                              'function': 'open_sequential_dialog'
                            }
                          }
                        }
                      ]
                    }
                  }
                ]
              }
            ]
          }
        }
      }
    }
  }

def open_sequential_dialog(request: Mapping[str, Any]) -> Mapping[str, Any]:
  """Opens a second dialog that lets users add more contact details.

  Args:
      request (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: open a Dialog in response to a card's button click.
  """
  return {
    'action_response': {
      'type': 'DIALOG',
      'dialog_action': {
        'dialog': {
              'body': {
                'sections': [
                  {
                    'header': 'Add new contact',
                    'widgets': [
                      {
                        'textInput': {
                          'label': 'Notes',
                          'type': 'MULTIPLE_LINE',
                          'name': 'notes'
                        }
                      },
                      {
                        'selectionInput': {
                          'type': 'RADIO_BUTTON',
                          'label': 'Contact type',
                          'name': 'contactType',
                          'items': [
                            {
                              'text': 'Work',
                              'value': 'Work',
                              'selected': False
                            },
                            {
                              'text': 'Personal',
                              'value': 'Personal',
                              'selected': False
                            }
                          ]
                        }
                      },
                      {
                        'buttonList': {
                          'buttons': [
                            {
                              'text': 'Submit',
                              'onClick': {
                                'action': {
                                  'function': 'receive_dialog',
                                  'parameters': [
                                    {
                                      'key': 'receiveDialog',
                                      'value': 'receiveDialog'
                                    }
                                  ]
                                }
                              }
                            }
                          ]
                        },
                        'horizontalAlignment': 'END'
                      }
                    ]
                  }
                ]
              }
        }
      }
    }
  }

def receive_dialog(event: Mapping[str, Any]) -> Mapping[str, Any]:
  """Checks for a form input error, the absence of a "name" value, and returns
     an error if absent. Otherwise, confirms successful receipt of a dialog.

  Args:
      event (Mapping[str, Any]): the event object from Chat API.

  Returns:
      Mapping[str, Any]: the response.
  """

  if event.get('common', dict()) \
      .get('formInputs', dict()).get('contactName', dict()) \
          .get('stringInputs').get('value', list()):
    return {
      'actionResponse': {
        'type': 'DIALOG',
        'dialogAction': {
          'actionStatus': 'OK'
        }
      }
    }
  else:
    return {
      'actionResponse': {
        'type': 'DIALOG',
        'dialogAction': {
          'actionStatus': "Don't forget to name your new contact!"
        }
      }
    }

تحديد المشاكل وحلّها

عندما يعرض أحد تطبيقات Google Chat أو بطاقة خطأً، تعرض واجهة Chat رسالة "حدث خطأ" أو "تعذّرت معالجة طلبك". في بعض الأحيان، لا تعرض واجهة مستخدم Chat أي رسالة خطأ، ولكن يعرض تطبيق Chat أو البطاقة نتيجة غير متوقّعة، على سبيل المثال، قد لا تظهر رسالة البطاقة.

على الرغم من احتمال عدم ظهور رسالة خطأ في واجهة مستخدم Chat، تتوفّر رسائل الخطأ وبيانات السجلّ الوصفية لمساعدتك في إصلاح الأخطاء عند تفعيل تسجيل الأخطاء في تطبيقات Chat. للحصول على مساعدة في عرض الأخطاء وتصحيحها وإصلاحها، يُرجى الاطّلاع على مقالة تحديد مشاكل Google Chat وحلّها.
