معاينة الروابط في رسائل Google Chat

Node.js

إضافة Google Workspace التي توفّر ميزات إضافية في Google Chat لإنشاء تطبيق، أكمِل البدء السريع لاستخدام بروتوكول HTTP.

برمجة تطبيقات

إضافة Google Workspace التي توفّر ميزات إضافية في Google Chat لإنشاء تطبيق، أكمِل الخطوات الأساسية لبدء استخدام Apps Script.

JSON

message: {
  matchedUrl: {
    url: "https://support.example.com/cases/case123"
  },
  ... // other message attributes redacted
}

Node.js

/**
 * Google Cloud Function that handles messages that have links whose
 * URLs match URL patterns configured for link previewing.
 *
 *
 * @param {Object} req Request sent from Google Chat space
 * @param {Object} res Response to send back
 */
exports.previewLinks = function previewLinks(req, res) {
  const chatEvent = req.body.chat;

  // Handle MESSAGE events
  if(chatEvent.messagePayload) {
    return res.send(handlePreviewLink(chatEvent.messagePayload.message));
  // Handle button clicks
  } else if(chatEvent.buttonClickedPayload) {
    return res.send(handleCardClick(chatEvent.buttonClickedPayload.message));
  }
};

/**
 * Respond to messages that have links whose URLs match URL patterns configured
 * for link previewing.
 *
 * @param {Object} chatMessage The chat message object from Google Workspace Add On event.
 * @return {Object} Response to send back depending on the matched URL.
 */
function handlePreviewLink(chatMessage) {
  // If the Chat app does not detect a link preview URL pattern, reply
  // with a text message that says so.
  if (!chatMessage.matchedUrl) {
    return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
      text: 'No matchedUrl detected.'
    }}}}};
  }

  // Reply with a text message for URLs of the subdomain "text"
  if (chatMessage.matchedUrl.url.includes("text.example.com")) {
    return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
      text: 'event.chat.messagePayload.message.matchedUrl.url: ' + chatMessage.matchedUrl.url
    }}}}};
  }
}

برمجة تطبيقات

/**
 * Reply to messages that have links whose URLs match the pattern
 * "text.example.com" configured for link previewing.
 *
 * @param {Object} event The event object from Google Workspace Add-on.
 *
 * @return {Object} The action response.
 */
function onMessage(event) {
  // Stores the Google Chat event as a variable.
  const chatMessage = event.chat.messagePayload.message;

  // If the Chat app doesn't detect a link preview URL pattern, reply
  // with a text message that says so.
  if (!chatMessage.matchedUrl) {
    return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
      text: 'No matchedUrl detected.'
    }}}}};
  }

  // Reply with a text message for URLs of the subdomain "text".
  if (chatMessage.matchedUrl.url.includes("text.example.com")) {
    return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
      text: 'event.chat.messagePayload.message.matchedUrl.url: ' + chatMessage.matchedUrl.url
    }}}}};
  }
}

Node.js

/**
 * Google Cloud Function that handles messages that have links whose
 * URLs match URL patterns configured for link previewing.
 *
 *
 * @param {Object} req Request sent from Google Chat space
 * @param {Object} res Response to send back
 */
exports.previewLinks = function previewLinks(req, res) {
  const chatEvent = req.body.chat;

  // Handle MESSAGE events
  if(chatEvent.messagePayload) {
    return res.send(handlePreviewLink(chatEvent.messagePayload.message));
  // Handle button clicks
  } else if(chatEvent.buttonClickedPayload) {
    return res.send(handleCardClick(chatEvent.buttonClickedPayload.message));
  }
};

/**
 * Respond to messages that have links whose URLs match URL patterns configured
 * for link previewing.
 *
 * @param {Object} chatMessage The chat message object from Google Workspace Add On event.
 * @return {Object} Response to send back depending on the matched URL.
 */
function handlePreviewLink(chatMessage) {

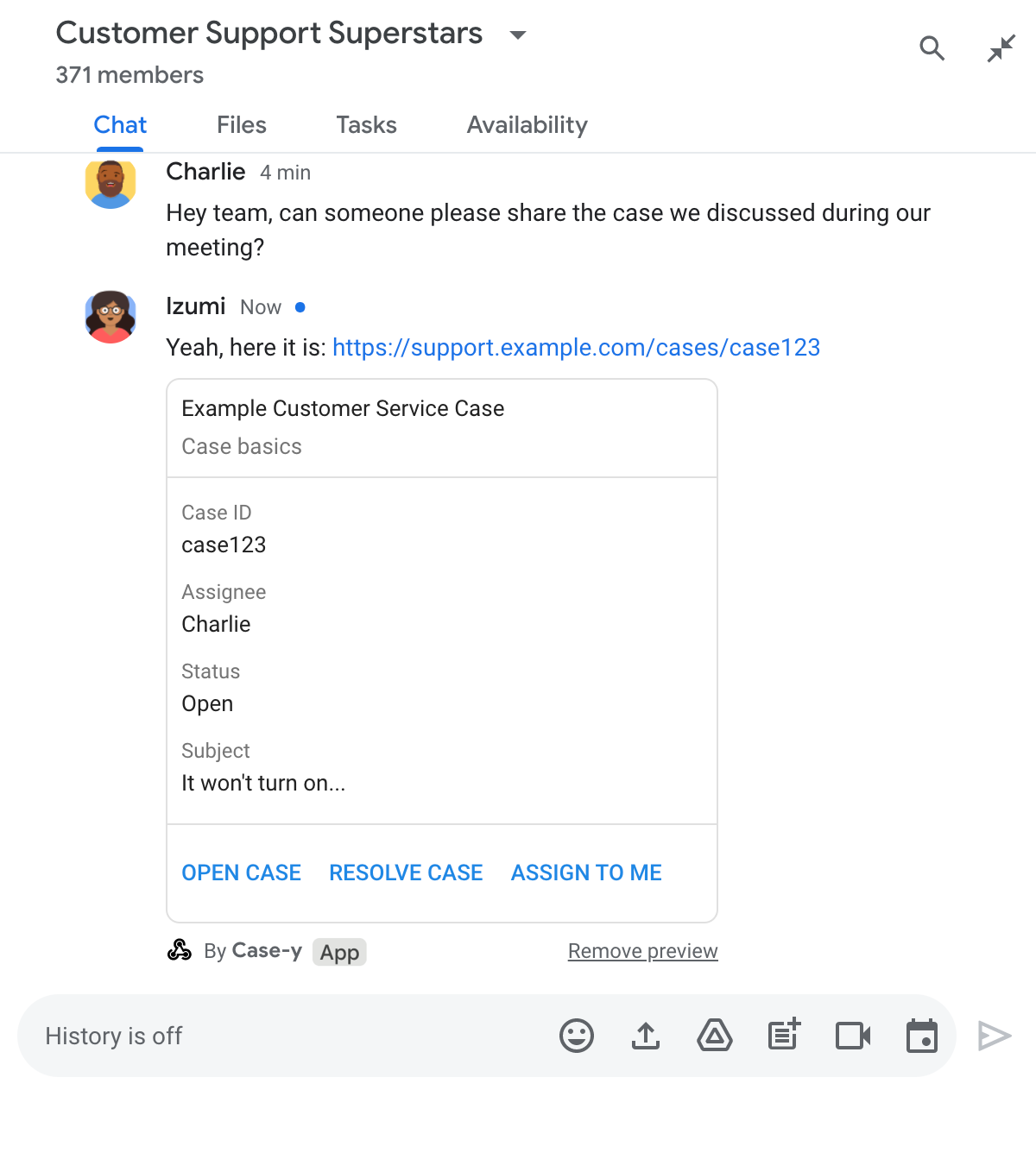

  // Attach a card to the message for URLs of the subdomain "support"
  if (chatMessage.matchedUrl.url.includes("support.example.com")) {
    // A hard-coded card is used in this example. In a real-life scenario,
    // the case information would be fetched and used to build the card.
    return { hostAppDataAction: { chatDataAction: { updateInlinePreviewAction: { cardsV2: [{
      cardId: 'attachCard',
      card: {
        header: {
          title: 'Example Customer Service Case',
          subtitle: 'Case basics',
        },
        sections: [{ widgets: [
        { decoratedText: { topLabel: 'Case ID', text: 'case123'}},
        { decoratedText: { topLabel: 'Assignee', text: 'Charlie'}},
        { decoratedText: { topLabel: 'Status', text: 'Open'}},
        { decoratedText: { topLabel: 'Subject', text: 'It won\'t turn on...' }},
        { buttonList: { buttons: [{
          text: 'OPEN CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123'
          }},
        }, {
          text: 'RESOLVE CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123?resolved=y',
          }},
        }, {
          text: 'ASSIGN TO ME',
          // Use runtime environment variable set with self URL
          onClick: { action: { function: process.env.BASE_URL }}
        }]}}
        ]}]
      }
    }]}}}};
  }
}

برمجة تطبيقات

يُرسِل هذا المثال رسالة بطاقة من خلال عرض ملف JSON للبطاقة. يمكنك أيضًا استخدام خدمة بطاقات Apps Script.

/**
 * Attach a card to messages that have links whose URLs match the pattern
 * "support.example.com" configured for link previewing.
 *
 * @param {Object} event The event object from Google Workspace Add-on.
 *
 * @return {Object} The action response.
 */
function onMessage(event) {
  // Stores the Google Chat event as a variable.
  const chatMessage = event.chat.messagePayload.message;

  // Attach a card to the message for URLs of the subdomain "support".
  if (chatMessage.matchedUrl.url.includes("support.example.com")) {
    // A hard-coded card is used in this example. In a real-life scenario,
    // the case information would be fetched and used to build the card.
    return { hostAppDataAction: { chatDataAction: { updateInlinePreviewAction: { cardsV2: [{
      cardId: 'attachCard',
      card: {
        header: {
          title: 'Example Customer Service Case',
          subtitle: 'Case summary',
        },
        sections: [{ widgets: [
        { decoratedText: { topLabel: 'Case ID', text: 'case123'}},
        { decoratedText: { topLabel: 'Assignee', text: 'Charlie'}},
        { decoratedText: { topLabel: 'Status', text: 'Open'}},
        { decoratedText: { topLabel: 'Subject', text: 'It won\'t turn on...' }},
        { buttonList: { buttons: [{
          text: 'OPEN CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123'
          }},
        }, {
          text: 'RESOLVE CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123?resolved=y',
          }},
        }, {
          text: 'ASSIGN TO ME',
          // Clicking this button triggers the execution of the function
          // "assign" from the Apps Script project.
          onClick: { action: { function: 'assign'}}
        }]}}
        ]}]
      }
    }]}}}};
  }
}

Node.js

/**
 * Google Cloud Function that handles messages that have links whose
 * URLs match URL patterns configured for link previewing.
 *
 *
 * @param {Object} req Request sent from Google Chat space
 * @param {Object} res Response to send back
 */
exports.previewLinks = function previewLinks(req, res) {
  const chatEvent = req.body.chat;

  // Handle MESSAGE events
  if(chatEvent.messagePayload) {
    return res.send(handlePreviewLink(chatEvent.messagePayload.message));
  // Handle button clicks
  } else if(chatEvent.buttonClickedPayload) {
    return res.send(handleCardClick(chatEvent.buttonClickedPayload.message));
  }
};

/**
 * Respond to clicks by assigning user and updating the card that was attached to a
 * message with a previewed link.
 *
 * @param {Object} chatMessage The chat message object from Google Workspace Add On event.
 * @return {Object} Action response depending on the original message.
 */
function handleCardClick(chatMessage) {

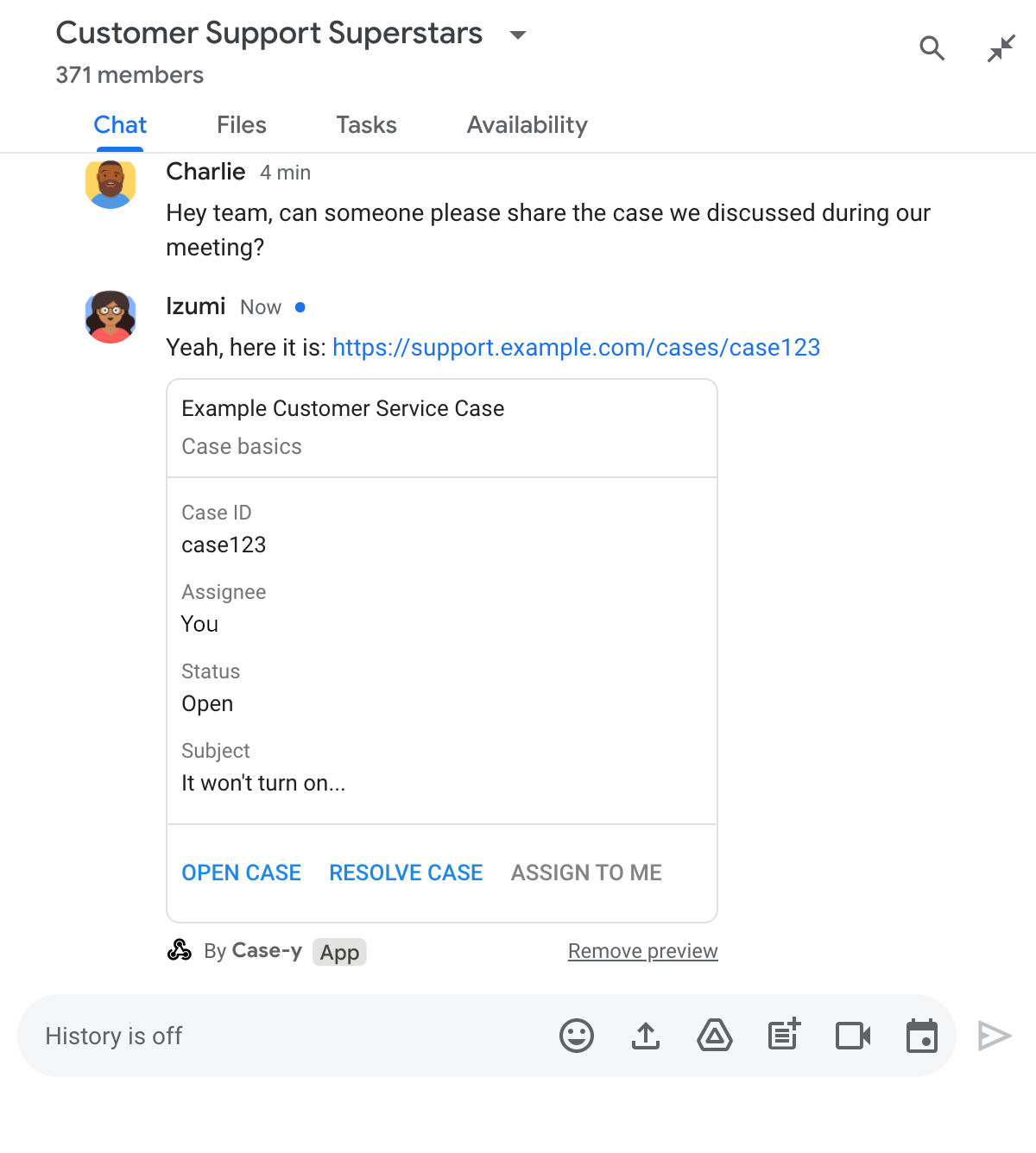

  // Creates the updated card that displays "You" for the assignee
  // and that disables the button.
  //
  // A hard-coded card is used in this example. In a real-life scenario,
  // an actual assign action would be performed before building the card.
  const message = { cardsV2: [{
    cardId: 'attachCard',
    card: {
      header: {
        title: 'Example Customer Service Case',
        subtitle: 'Case basics',
      },
      sections: [{ widgets: [
        { decoratedText: { topLabel: 'Case ID', text: 'case123'}},
        // The assignee is now "You"
        { decoratedText: { topLabel: 'Assignee', text: 'You'}},
        { decoratedText: { topLabel: 'Status', text: 'Open'}},
        { decoratedText: { topLabel: 'Subject', text: 'It won\'t turn on...' }},
        { buttonList: { buttons: [{
          text: 'OPEN CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123'
          }},
        }, {
          text: 'RESOLVE CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123?resolved=y',
          }},
        }, {
          text: 'ASSIGN TO ME',
          // The button is now disabled
          disabled: true,
          // Use runtime environment variable set with self URL
          onClick: { action: { function: process.env.BASE_URL }}
        }]}}
      ]}]
    }
  }]};

  // Checks whether the message event originated from a human or a Chat app
  // to return the adequate action response.
  if(chatMessage.sender.type === 'HUMAN') {
    return { hostAppDataAction: { chatDataAction: { updateInlinePreviewAction: message }}};
  } else {
    return { hostAppDataAction: { chatDataAction: { updateMessageAction: message }}};
  }
}

برمجة تطبيقات

يُرسِل هذا المثال رسالة بطاقة من خلال عرض ملف JSON للبطاقة. يمكنك أيضًا استخدام خدمة بطاقات Apps Script.

/**
 * Assigns and updates the card that's attached to a message with a
 * previewed link of the pattern "support.example.com".
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 *
 * @return {Object} Action response depending on the message author.
 */
function assign(event) {
  // Creates the updated card that displays "You" for the assignee
  // and that disables the button.
  //
  // A hard-coded card is used in this example. In a real-life scenario,
  // an actual assign action would be performed before building the card.
  const message = { cardsV2: [{
    cardId: 'attachCard',
    card: {
      header: {
        title: 'Example Customer Service Case',
        subtitle: 'Case summary',
      },
      sections: [{ widgets: [
        { decoratedText: { topLabel: 'Case ID', text: 'case123'}},
        // The assignee is now "You"
        { decoratedText: { topLabel: 'Assignee', text: 'You'}},
        { decoratedText: { topLabel: 'Status', text: 'Open'}},
        { decoratedText: { topLabel: 'Subject', text: 'It won\'t turn on...' }},
        { buttonList: { buttons: [{
          text: 'OPEN CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123'
          }},
        }, {
          text: 'RESOLVE CASE',
          onClick: { openLink: {
            url: 'https://support.example.com/orders/case123?resolved=y',
          }},
        }, {
          text: 'ASSIGN TO ME',
          // The button is now disabled
          disabled: true,
          onClick: { action: { function: 'assign'}}
        }]}}
      ]}]
    }
  }]};

  // Use the adequate action response type. It depends on whether the message
  // the preview link card is attached to was created by a human or a Chat app.
  if(event.chat.buttonClickedPayload.message.sender.type === 'HUMAN') {
    return { hostAppDataAction: { chatDataAction: { updateInlinePreviewAction: message }}};
  } else {
    return { hostAppDataAction: { chatDataAction: { updateMessageAction: message }}};
  }
}
