Mở hộp thoại tương tác

Node.js

Một tiện ích bổ sung của Google Workspace mở rộng Google Chat. Để tạo một ứng dụng, hãy hoàn tất phần Bắt đầu nhanh về HTTP.

Apps Script

Một tiện ích bổ sung của Google Workspace mở rộng Google Chat. Để tạo một ứng dụng, hãy hoàn tất phần Bắt đầu nhanh với Apps Script.

Node.js

/**
 * Google Cloud Function that handles all Google Workspace Add On events for
 * the contact manager app.
 *
 * @param {Object} req Request sent from Google Chat space
 * @param {Object} res Response to send back
 */
exports.contactManager = function contactManager(req, res) {
  const chatEvent = req.body.chat;
  // Handle MESSAGE events
  if(chatEvent.messagePayload) {
    return res.send(handleMessage(req.body));
  // Handle button clicks
  } else if(chatEvent.buttonClickedPayload) {
    switch(req.body.commonEventObject.parameters.actionName) {
        case "openInitialDialog":
            return res.send(openInitialDialog(req.body));
        case "openConfirmationDialog":
            return res.send(openConfirmationDialog(req.body));
        case "submitDialog":
            return res.send(submitDialog(req.body));
    }
  }
};

/**
 * Responds to a message in Google Chat.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} response that handles dialogs.
 */
function handleMessage(event) {

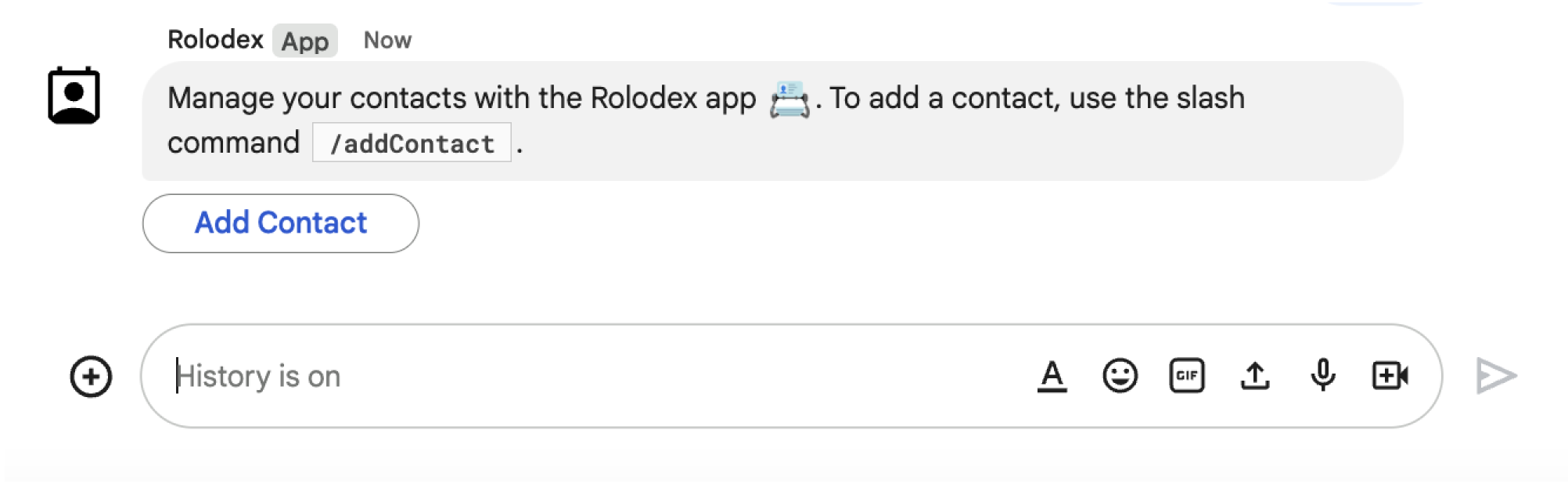

  // Reply with a message that contains a button to open the initial dialog
  return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
    text: "To add a contact, use the `ADD CONTACT` button below.",
    accessoryWidgets: [{ buttonList: { buttons: [{
      text: "ADD CONTACT",
      onClick: { action: {
        // Use runtime environment variable set with self URL
        function: process.env.BASE_URL,
        parameters: [{ key: "actionName", value: "openInitialDialog" }],
        interaction: "OPEN_DIALOG"
      }}
    }]}}]
  }}}}};
}

/**

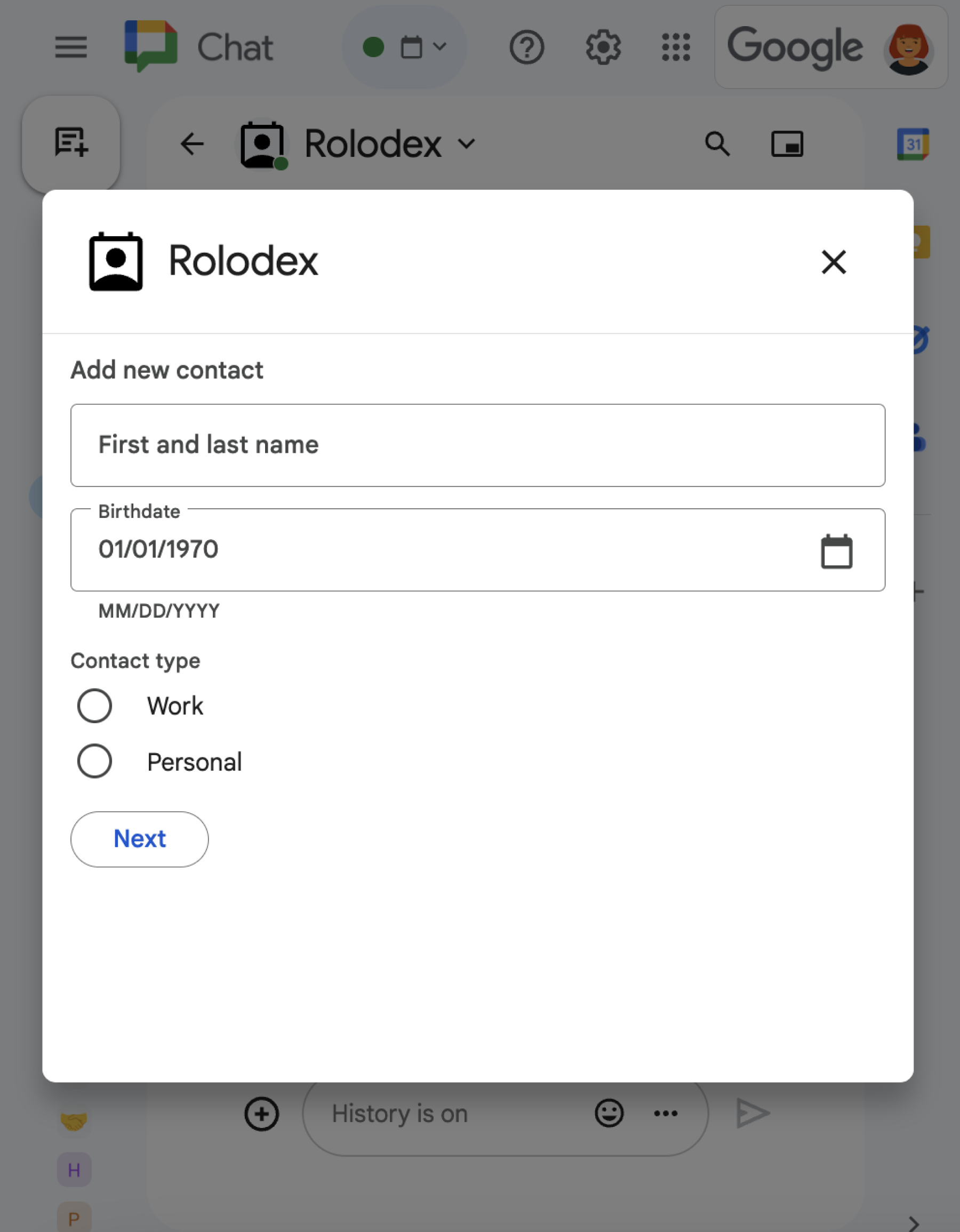

 * Opens the initial step of the dialog that lets users add contact details.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} open the dialog.
 */
function openInitialDialog(event) {
  return { action: { navigations: [{ pushCard: { sections: [{ widgets: [{
    textInput: {
      name: "contactName",
      label: "First and last name",
      type: "SINGLE_LINE"
    }},
    WIDGETS, {
    buttonList: { buttons: [{
      text: "NEXT",
      onClick: { action: {
        // Use runtime environment variable set with self URL
        function: process.env.BASE_URL,
        parameters: [{ key: "actionName", value: "openConfirmationDialog" }]
      }}
    }]}}
  ]}]}}]}};
}

/**
 * Opens the second step of the dialog that lets users confirm details.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} update the dialog.
 */
function openConfirmationDialog(event) {
  // Retrieve the form input values
  const name = event.commonEventObject.formInputs["contactName"].stringInputs.value[0];
  return { action: { navigations: [{ pushCard: { sections: [{ widgets: [{
    // Display the input values for confirmation
    textParagraph: { text: "<b>Name:</b> " + name }},
    WIDGETS, {
    buttonList: { buttons: [{
      text: "SUBMIT",
      onClick: { action: {
        // Use runtime environment variable set with self URL
        function: process.env.BASE_URL,
        parameters: [{
          key: "actionName", value: "submitDialog" }, {
          // Pass input values as parameters for last dialog step (submission)
          key: "contactName", value: name
        }]
      }}
    }]}}]
  }]}}]}};
}

Apps Script

Ví dụ này gửi thông báo thẻ bằng cách trả về JSON thẻ. Bạn cũng có thể sử dụng dịch vụ thẻ Apps Script.

/**
 * Responds to a message in Google Chat.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} response that handles dialogs.
 */
function onMessage(event) {
  // Reply with a message that contains a button to open the initial dialog
  return { hostAppDataAction: { chatDataAction: { createMessageAction: { message: {
    text: "To add a contact, use the `ADD CONTACT` button below.",
    accessoryWidgets: [{ buttonList: { buttons: [{
      text: "ADD CONTACT",
      onClick: { action: {
        function: "openInitialDialog",
        interaction: "OPEN_DIALOG"
      }}
    }]}}]
  }}}}};
}

/**
 * Opens the initial step of the dialog that lets users add contact details.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} open the dialog.
 */
function openInitialDialog(event) {
  return { action: { navigations: [{ pushCard: { sections: [{ widgets: [{
    textInput: {
      name: "contactName",
      label: "First and last name",
      type: "SINGLE_LINE"
    }},
    WIDGETS, {
    buttonList: { buttons: [{
      text: "NEXT",
      onClick: { action: { function : "openConfirmationDialog" }}
    }]}}
  ]}]}}]}};
}

/**
 * Opens the second step of the dialog that lets users confirm details.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} update the dialog.
 */
function openConfirmationDialog(event) {
  // Retrieve the form input values
  const name = event.commonEventObject.formInputs["contactName"].stringInputs.value[0];
  return { action: { navigations: [{ pushCard: { sections: [{ widgets: [{
    // Display the input values for confirmation
    textParagraph: { text: "<b>Name:</b> " + name }},
    WIDGETS, {
    buttonList: { buttons: [{
      text: "SUBMIT",
      onClick: { action: {
        function: "submitDialog",
        // Pass input values as parameters for last dialog step (submission)
        parameters: [{ key: "contactName", value: name }]
      }}
    }]}}]
  }]}}]}};
}

Node.js

/**
 * Handles submission and closes the dialog.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} close the dialog with a status in text notification.
 */
function submitDialog(event) {
  // Validate the parameters.
  if (!event.commonEventObject.parameters["contactName"]) {
    return { action: {
      navigations: [{ endNavigation: "CLOSE_DIALOG"}],
      notification: { text: "Failure, the contact name was missing!" }
    }};
  }

  return { action: {
    navigations: [{ endNavigation: "CLOSE_DIALOG"}],
    notification: { text: "Success, the contact was added!" }
  }};
}

Apps Script

/**
 * Handles submission and closes the dialog.
 *
 * @param {Object} event The event object from the Google Workspace Add-on.
 * @return {Object} close the dialog with a status in text notification.
 */
function submitDialog(event) {
  // Validate the parameters.
  if (!event.commonEventObject.parameters["contactName"]) {
    return { action: {
      navigations: [{ endNavigation: "CLOSE_DIALOG"}],
      notification: { text: "Failure, the contact name was missing!" }
    }};
  }

  return { action: {
    navigations: [{ endNavigation: "CLOSE_DIALOG"}],
    notification: { text: "Success, the contact was added!" }
  }};
}
