Cast Dialog

The Cast dialog is shown whenever the Cast button is pressed. The Cast dialog lets users connect, control, and disconnect from Web Receivers.

If you're developing a custom implementation or building an app for iOS or Chrome, you must implement this dialog in a consistent way, so that users recognize and trust it to function consistently across devices, apps and platforms. Refer to the Reference apps for examples.

  Cast dialog, not connected (receivers available)

Required (default behavior of Android MediaRouter):
  A   When the sender app is not connected to a Cast receiver, tapping the Cast button shows the Cast dialog
  B   The Cast dialog title, "Cast to" appears
  C   The Cast dialog shows a list of available Web Receivers
  D   Each receiver currently casting should display, "Casting app name"

Note the multi-user scenarios:

  • When another user connects to a receiver currently casting from the same app and account, the sender app provides the controls for the cast content.
  • When another user connects to a receiver currently casting from an app that is not casting, the previous sender app disconnects and the new sender app connects.

Android

Cast dialog, not connected

Cast home screen

iOS

Cast dialog, not connected

Cast home screen

Chrome

Cast dialog, not connected

Cast home screen



  Cast dialog, connected but not casting

Required
  A   When the sender app is connected to a Web Receiver, tapping the Cast button shows the Cast dialog
  B   The Cast dialog title "Receiver-Name" appears
  C   The Cast dialog shows a button to stop casting with button label "STOP CASTING" (for more information about disconnecting, see Sender stops cast)

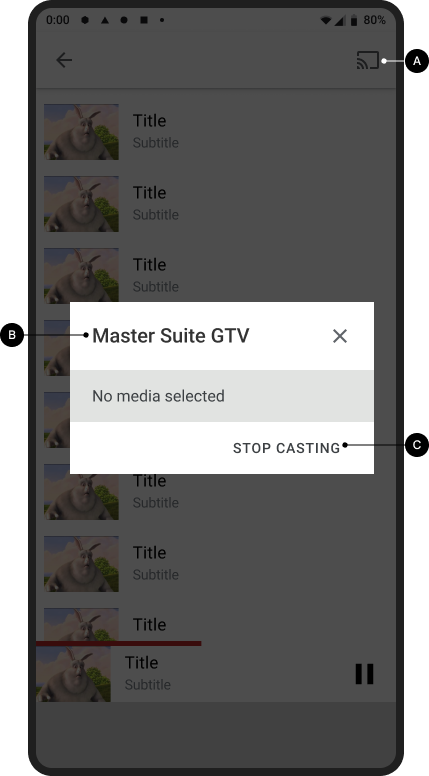

Android

Cast dialog, connected but not casting

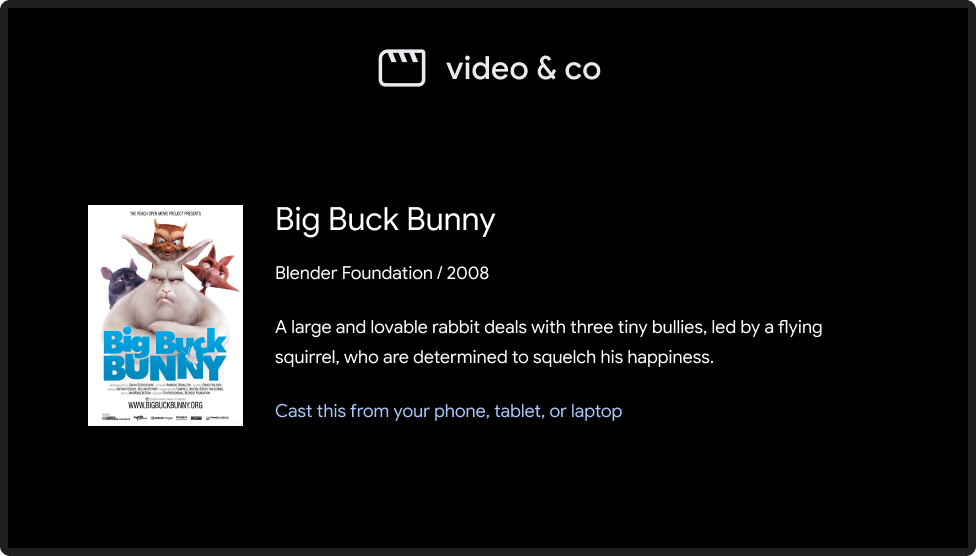

Receiver app loaded / idle

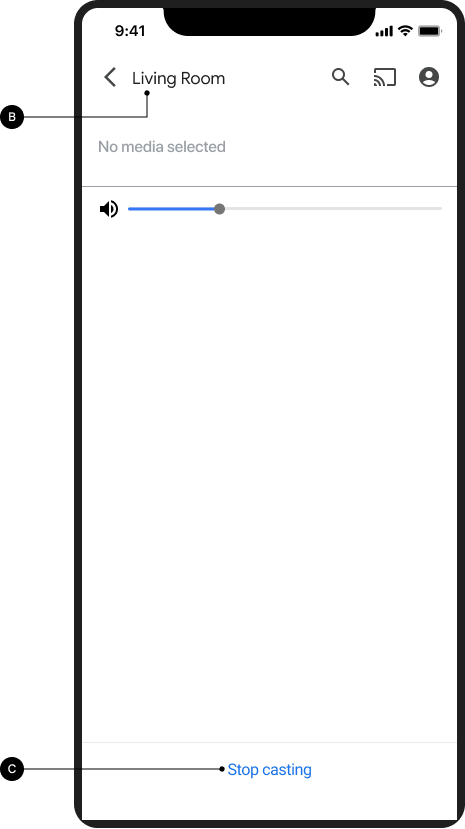

iOS

Cast dialog, connected but not casting

Receiver app loaded / idle



  Cast dialog, while casting

Required
  A   The Cast dialog title "Receiver-Name" appears
  B   The receiver or content currently casting is shown below the title
  C   The Cast dialog shows a "STOP CASTING" button that stops casting (for more information see Sender stops cast)

Best practice

  • For the best user experience, provide persistent controls in addition to the controls in the Cast dialog.

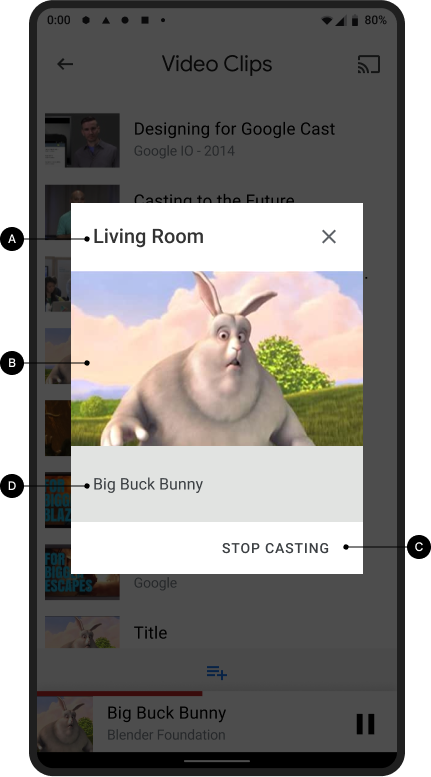

Android

Cast dialog, while casting

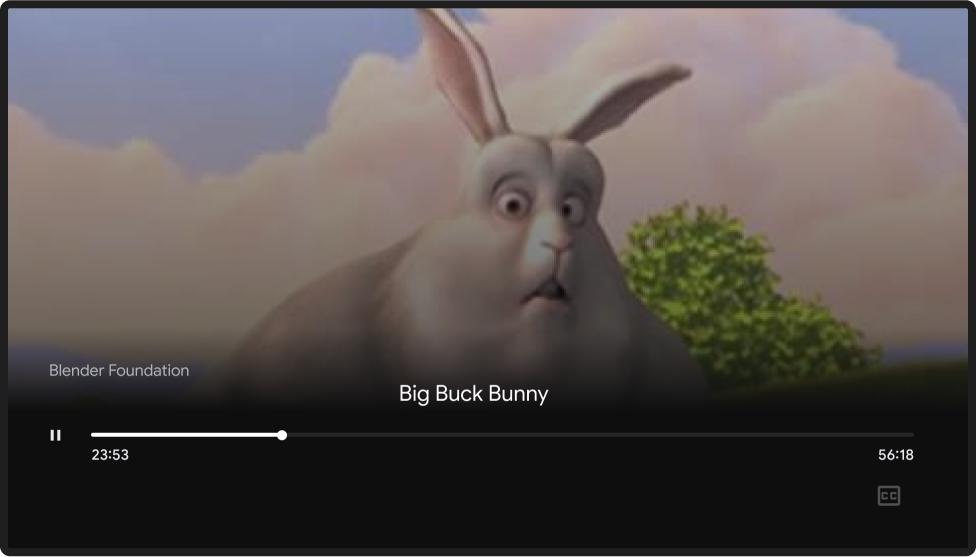

Receiver playing content

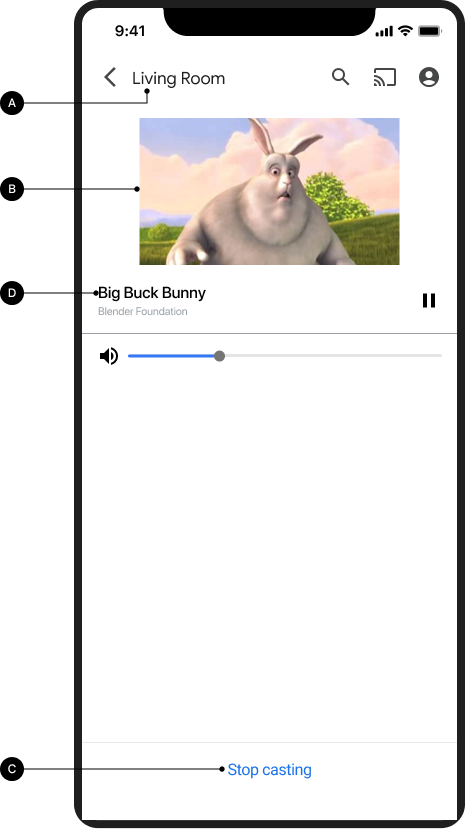

iOS

Cast dialog, while casting

Receiver playing content

Chrome

Cast dialog, while casting

Receiver playing content
