This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an Android app.
Supported integrations and ad formats
The mediation adapter for Pangle has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
App open | 1 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
Requirements
- Android API level 21 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Pangle UI
Sign up or Log in to your Pangle account.
Add a new application
Navigate to the Applications tab and click the Add App button.
Select the Operating System you wish to create an application for and fill out the rest of the form. Then, click Submit.
Take note of your application's App ID.
Create an ad placement
Once your application has been created, click the Add button to create your ad placement.
Bidding
Select your Ad Format and Ad Placement Name, and select In-App Bidding as the Pricing Type. Fill out the rest of the form and click Submit.
Once your ad placement is created, take note of the Ad Placement ID.
Waterfall
Select your Ad Format and Ad Placement Name, and Global CPM as the Pricing Type. Fill out the rest of the form and click Submit.
Once your ad placement is created, take note of the Ad Placement ID.
Locate Pangle Reporting API key
Bidding
This step isn't required for bidding integrations.
Waterfall
Take note of the User ID at the bottom left corner of the page.
Click Integrations > SDK & API > Pangle Reporting API 2.0. Take note of Role ID and Security Key.
Turn on test mode
Follow the instructions in Pangle's How to add a Test Ad guide on how to enable Pangle test ads.
Step 2: Set up Pangle demand in AdMob UI
Cómo configurar la mediación para tu unidad de anuncios
Debes agregar Pangle a la configuración de mediación para tu unidad de anuncios.
Primero, accede a tu cuenta de AdMob. A continuación, ve a la pestaña Mediación. Si tienes un grupo de mediación existente que deseas modificar, haz clic en el nombre de ese grupo para editarlo y ve a Agregar Pangle como fuente del anuncio.
Para crear un grupo de mediación nuevo, selecciona Crear grupo de mediación.
Ingresa el formato del anuncio y la plataforma y, luego, haz clic en Continuar.
Asígnale un nombre a tu grupo de mediación y selecciona las ubicaciones para la que deseas segmentar tus anuncios. A continuación, establece el estado del grupo de mediación en Habilitado y haz clic en Agregar bloques de anuncios.
Asocia este grupo de mediación a una o más de tusAdMob unidades de anuncios existentes. Luego, haga clic en Listo.
Ahora deberías ver la tarjeta Bloques de anuncios propagada con las unidades de anuncios que seleccionaste:
Agregar Pangle como fuente del anuncio
Ofertas
En la tarjeta Ofertas de la sección Fuentes del anuncio, selecciona Agregar fuente del anuncio. Luego, selecciona Pangle.

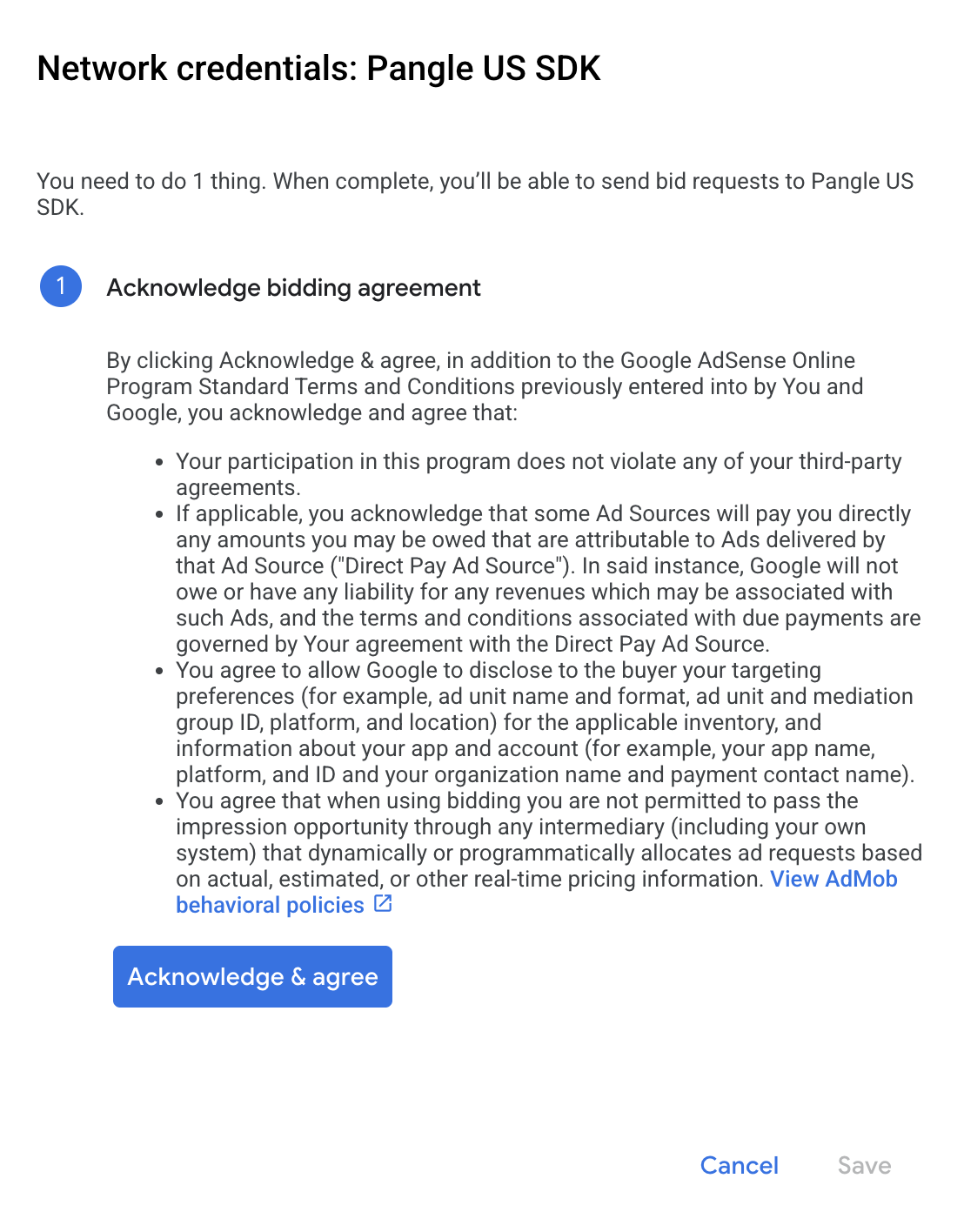

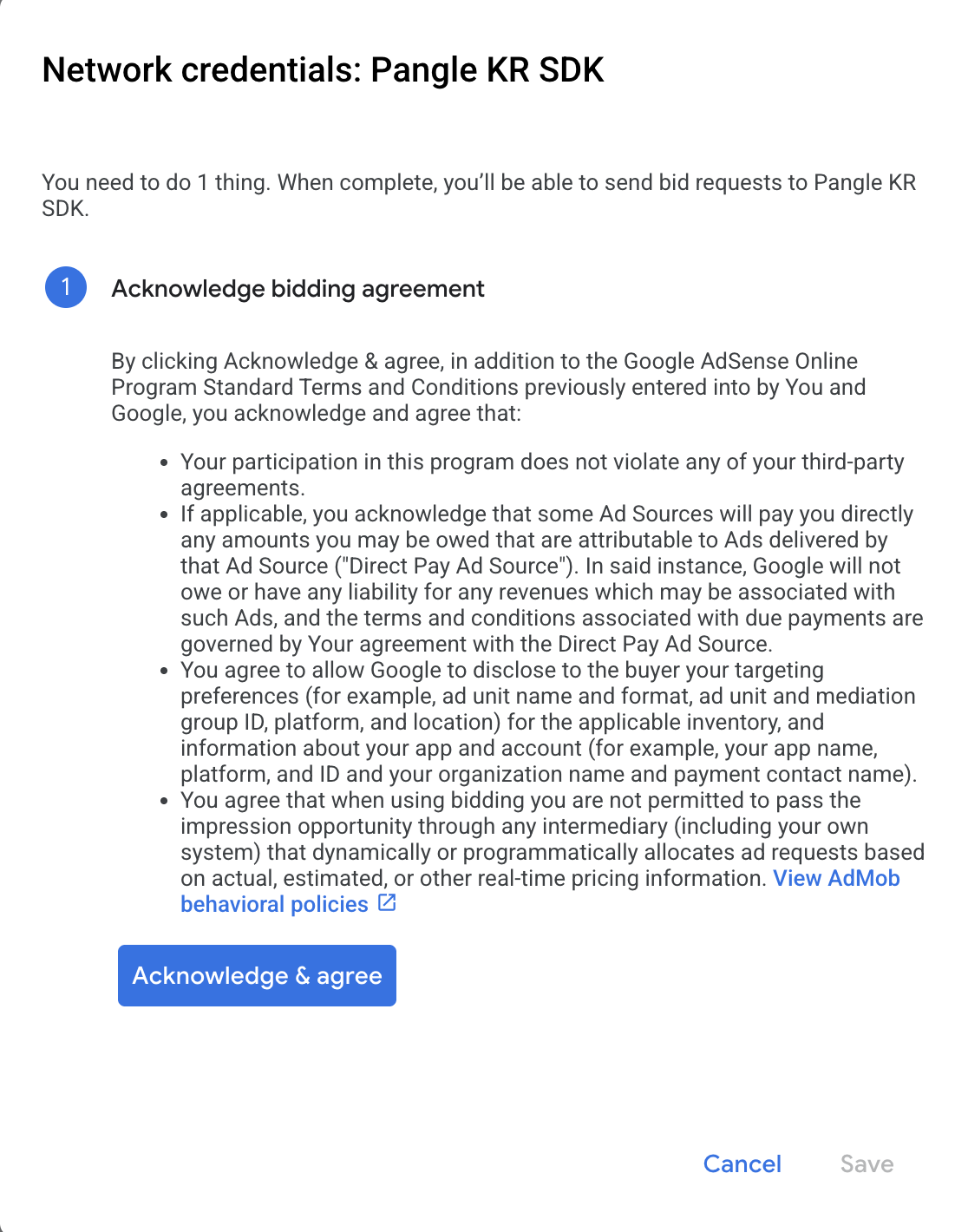

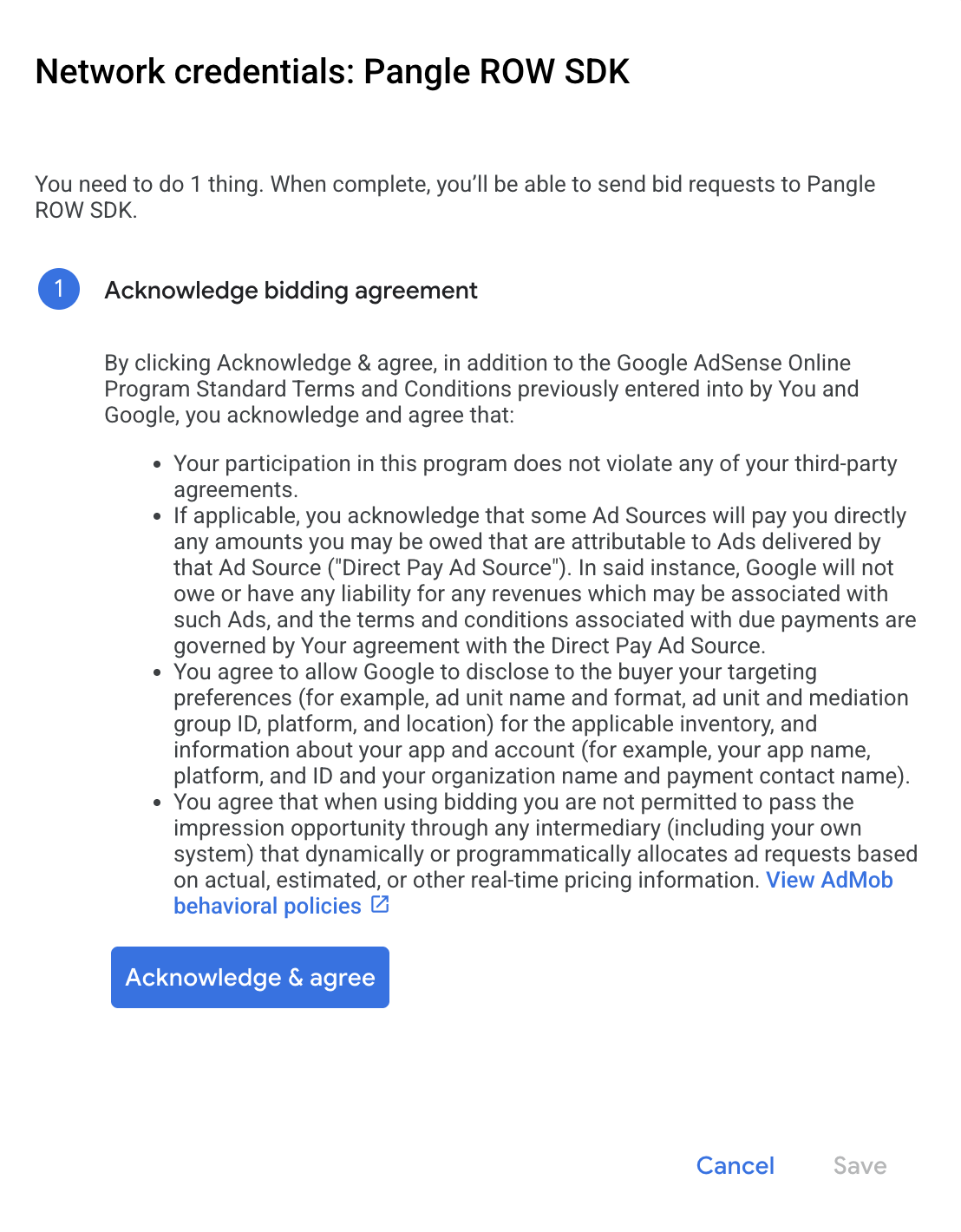

Haz clic en Cómo firmar un acuerdo de asociación y configura una asociación de licitación conPangle.
Haz clic en Confirmar y aceptar y, luego, en Continuar.

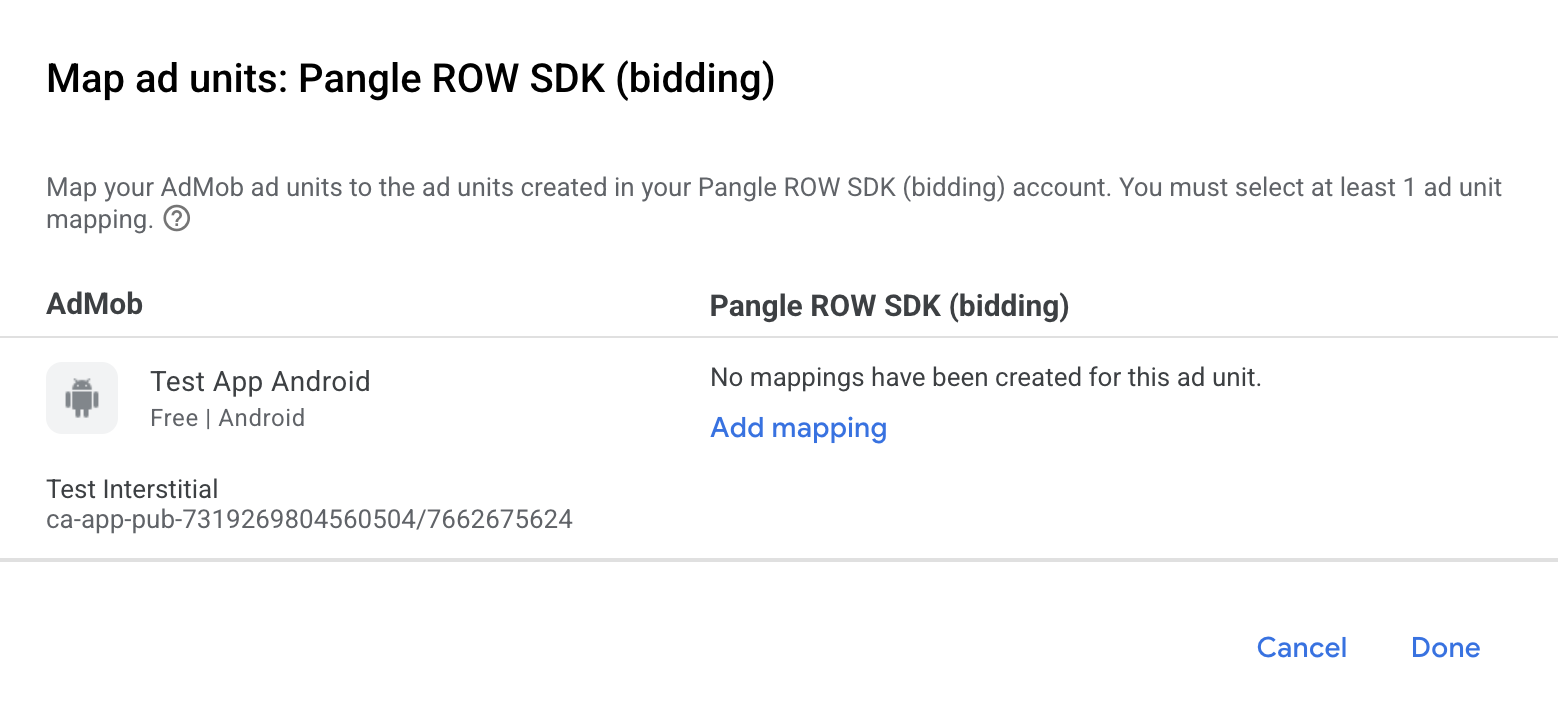

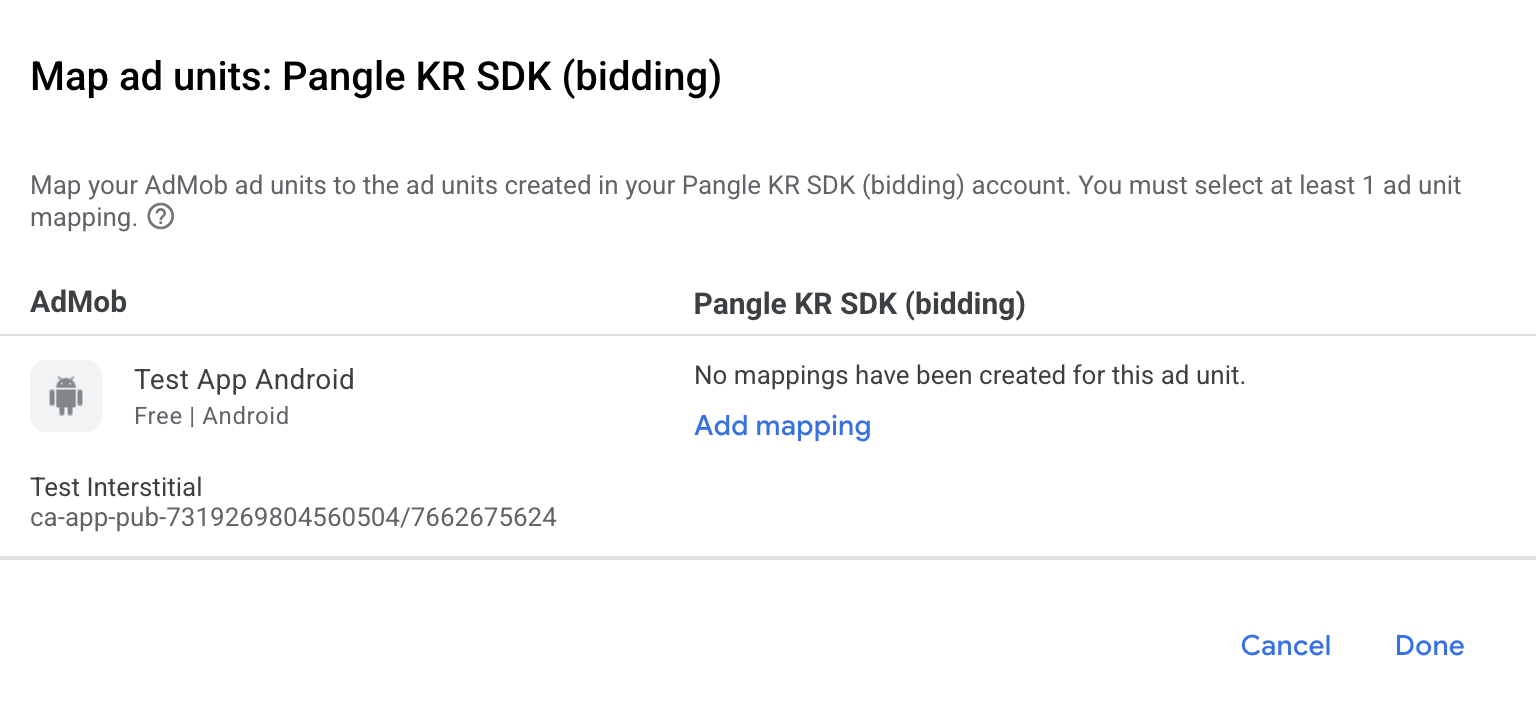

Si ya tienes una asignación para Pangle, puedes seleccionarla. De lo contrario, haz clic en Agregar asignación.

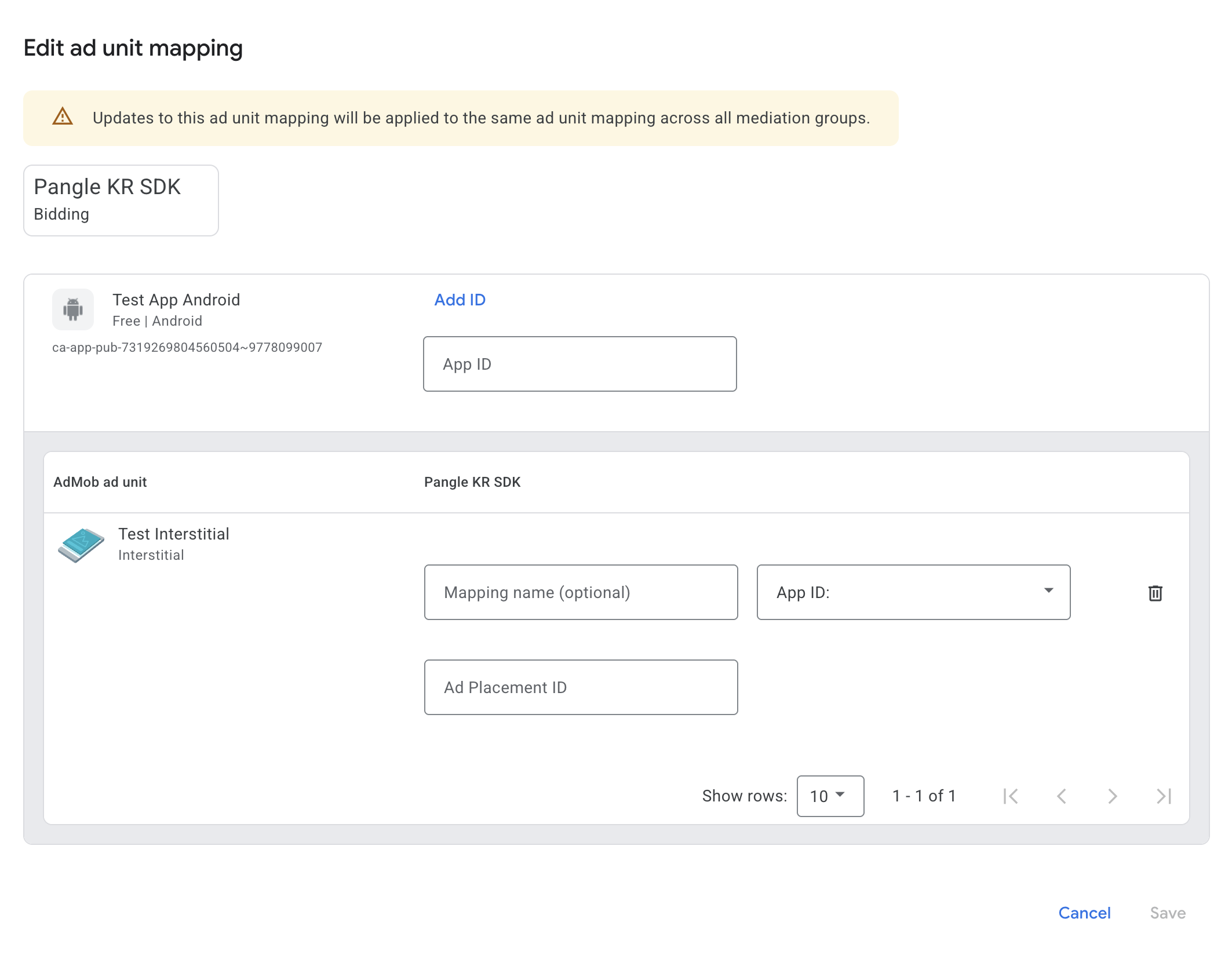

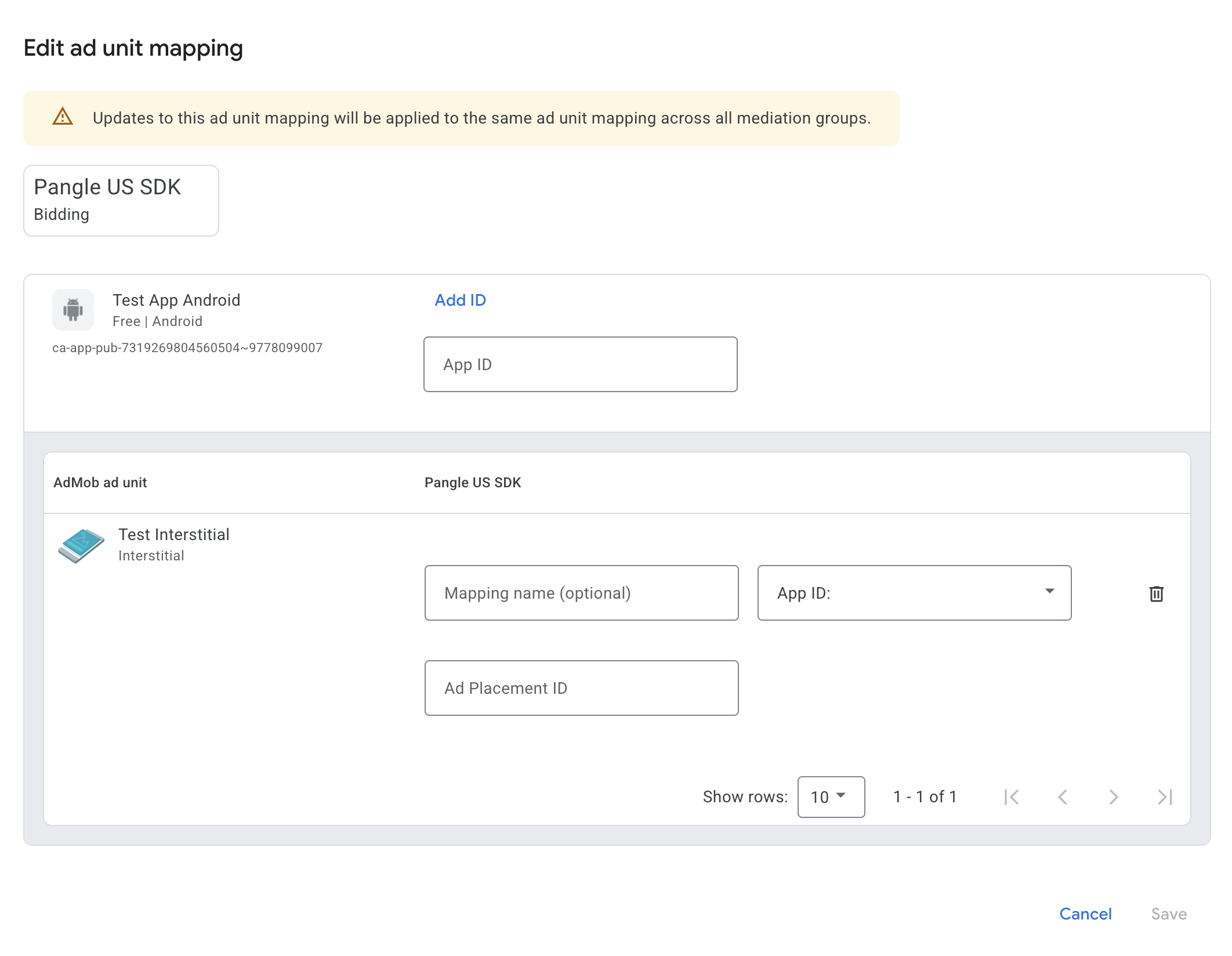

A continuación, ingresa el App ID and Ad Placement IDobtenido en la sección anterior. Luego, haga clic en Listo.
Importante: Los App ID deben estar asociados con la app de destino como en la IU dePangle .Cascada
En la tarjeta Waterfall de la sección Fuentes del anuncio, selecciona Agregar fuente del anuncio. Luego, selecciona Pangle.
Selecciona Pangle. Luego, ingresa un valor de eCPM para Pangle y haz clic en Continuar.Si ya tienes una asignación para Pangle, puedes seleccionarla. De lo contrario, haz clic en Agregar asignación.
A continuación, ingresa el App ID and Ad Placement IDobtenido en la sección anterior. Luego, haga clic en Listo.
Step 3: Import the Pangle SDK and adapter
Android Studio integration (recommended)
In your project-level settings.gradle.kts
file, add the following
repositories:
dependencyResolutionManagement {
repositories {
google()
mavenCentral()
maven {
url = uri("https://artifact.bytedance.com/repository/pangle/")
}
}
}
Then, in your app-level build.gradle.kts
file, add the following
implementation dependencies and configurations. Use the latest versions of the
Pangle SDK and adapter:
dependencies {
implementation("com.google.android.gms:play-services-ads:23.3.0")
implementation("com.google.ads.mediation:pangle:6.1.0.9.0")
}
Manual integration
Download the latest version of the Pangle SDK for Android and extract the
open_ad_sdk.aar
under from the downloaded archive folder and add it to your project.Navigate to the Pangle adapter artifacts on Google's Maven Repository. Select the latest version, download the Pangle adapter's
.aar
file, and add it to your project.
Step 4: Add required code
ProGuard obfuscation
If you use ProGuard to obfuscate Android code, follow the instructions in Pangle's documentation to ensure Pangle SDK code isn't obfuscated.
Step 5: Test your implementation
Habilitar anuncios de prueba
Asegúrate de registrar tu dispositivo de prueba en AdMob y habilitar el modo de prueba en la Pangle IU.
Cómo verificar los anuncios de prueba
Para verificar que recibes anuncios de prueba dePangle, habilita las pruebas de fuentes de anuncios individuales en el inspector de anuncios mediante la Pangle (Bidding) and Pangle (Waterfall) fuente de anuncios.
Optional Steps
Native ads
Ad rendering
The Pangle adapter returns its native ads as
NativeAd
objects. It populates the following
fields
for a
NativeAd
.
Field | Assets always included by Pangle adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Pangle adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
MediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Pangle, you can check the
underlying error from the ad response using
ResponseInfo.getAdapterResponses()
under the following classes:
com.pangle.ads
com.google.ads.mediation.pangle.PangleMediationAdapter
Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.pangle | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.pangle | The requested ad size does not match a Pangle supported banner size. |
103 | com.google.ads.mediation.pangle | Missing or invalid bid response. |
-1-60000 | com.pangle.ads | Pangle SDK returned an error. See Pangle's documentation for more details. |
Pangle Android Mediation Adapter Changelog
Version 6.1.0.9.0
- Verified compatibility with Pangle SDK version 6.1.0.9.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Pangle SDK version 6.1.0.9.
Version 6.1.0.7.0
- Verified compatibility with Pangle SDK version 6.1.0.7.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Pangle SDK version 6.1.0.7.
Version 6.1.0.6.0
- Verified compatibility with Pangle SDK version 6.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Pangle SDK version 6.1.0.6.
Version 6.0.0.8.0
- Verified compatibility with Pangle SDK version 6.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.8.
Version 6.0.0.7.0
- Verified compatibility with Pangle SDK version 6.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.7.
Version 6.0.0.5.0
- Verified compatibility with Pangle SDK version 6.0.0.5.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.5.
Version 6.0.0.4.0
- Verified compatibility with Pangle SDK version 6.0.0.4.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.4.
Version 6.0.0.3.0
- Verified compatibility with Pangle SDK version 6.0.0.3.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 6.0.0.3.
Version 5.9.0.6.0
- Verified compatibility with Pangle SDK version 5.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 5.9.0.6.
Version 5.9.0.5.0
- Verified compatibility with Pangle SDK version 5.9.0.5.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Pangle SDK version 5.9.0.5.
Version 5.9.0.4.0
- Verified compatibility with Pangle SDK version 5.9.0.4.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.9.0.4.
Version 5.9.0.2.0
- Verified compatibility with Pangle SDK version 5.9.0.2.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.9.0.2.
Version 5.8.1.0.0
- Verified compatibility with Pangle SDK version 5.8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.8.1.0.
Version 5.8.0.9.0
- Verified compatibility with Pangle SDK version 5.8.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Pangle SDK version 5.8.0.9.
Version 5.8.0.7.0
- Verified compatibility with Pangle SDK version 5.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.8.0.7.
Version 5.8.0.6.0
- Verified compatibility with Pangle SDK version 5.8.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.8.0.6.
Version 5.7.0.3.0
- Verified compatibility with Pangle SDK version 5.7.0.3.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.7.0.3.
Version 5.7.0.2.0
- Verified compatibility with Pangle SDK version 5.7.0.2.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.7.0.2.
Version 5.7.0.1.0
- Verified compatibility with Pangle SDK version 5.7.0.1.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.7.0.1.
Version 5.6.0.3.0
- Verified compatibility with Pangle SDK version 5.6.0.3.
- Updated the minimum required Google Mobile Ads SDK version to 22.6.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Pangle SDK version 5.6.0.3.
Version 5.5.0.9.0
- Updated the minimum required Google Mobile Ads SDK version to 22.5.0.
- Verified compatibility with Pangle SDK version 5.5.0.9.
Built and tested with:
- Google Mobile Ads SDK version 22.5.0.
- Pangle SDK version 5.5.0.9.
Version 5.5.0.8.0
- Verified compatibility with Pangle SDK version 5.5.0.8.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.5.0.8.
Version 5.5.0.7.0
- Verified compatibility with Pangle SDK version 5.5.0.7.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.5.0.7.
Version 5.5.0.6.0
- Bidding app open ad format isn't supported in this version as this adapter version was reverted to depend on Google Mobile Ads SDK version 22.3.0.
- Verified compatibility with Pangle SDK version 5.5.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.5.0.6.
Version 5.5.0.4.0
- Added bidding support for app open ad format.
- Added watermark support for bidding ads.
- Updated the minimum required Google Mobile Ads SDK version to 22.4.0.
- Verified compatibility with Pangle SDK version 5.5.0.4.
Built and tested with:
- Google Mobile Ads SDK version 22.4.0.
- Pangle SDK version 5.5.0.4.
Version 5.4.1.1.0
- Fixed an issue where the adapter fails to initialize.
- Verified compatibility with Pangle SDK version 5.4.1.1.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.4.1.1.
Version 5.4.0.9.0
- Verified compatibility with Pangle SDK version 5.4.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 22.3.0.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Pangle SDK version 5.4.0.9.
Version 5.4.0.8.0
- Verified compatibility with Pangle SDK version 5.4.0.8.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.4.0.8.
Version 5.3.0.6.0
- Verified compatibility with Pangle SDK version 5.3.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.3.0.6.
Version 5.3.0.5.0
- Verified compatibility with Pangle SDK version 5.3.0.5.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.3.0.5.
Version 5.3.0.4.0
- Verified compatibility with Pangle SDK version 5.3.0.4.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Pangle SDK version 5.3.0.4.
Version 5.2.0.7.0
- Verified compatibility with Pangle SDK version 5.2.0.7.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Pangle SDK version 5.2.0.7.
Version 5.2.0.6.0
- Verified compatibility with Pangle SDK version 5.2.0.6.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Pangle SDK version 5.2.0.6.
Version 5.2.0.5.0
- Verified compatibility with Pangle SDK version 5.2.0.5.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Pangle SDK version 5.2.0.5.
Version 5.2.0.3.0
- Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
- Verified compatibility with Pangle SDK version 5.2.0.3.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.2.0.3.
Version 5.1.0.9.0
- Verified compatibility with Pangle SDK version 5.1.0.9.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.1.0.9.
Version 5.1.0.8.0
- Verified compatibility with Pangle SDK version 5.1.0.8.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.1.0.8.
Version 5.1.0.6.0
- Updated adapter to use new
VersionInfo
class. - Updated the minimum required Google Mobile Ads SDK version to 22.0.0.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Pangle SDK version 5.1.0.6.
Version 5.0.1.1.0
- Verified compatibility with Pangle SDK version 5.0.1.1.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.1.1.
Version 5.0.1.0.0
- Verified compatibility with Pangle SDK version 5.0.1.0.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.1.0.
Version 5.0.0.9.0
- Verified compatibility with Pangle SDK version 5.0.0.9.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.9.
Version 5.0.0.8.0
- Verified compatibility with Pangle SDK version 5.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.8.
Version 5.0.0.7.0
- Verified compatibility with Pangle SDK version 5.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.7.
Version 5.0.0.6.0
- Verified compatibility with Pangle SDK version 5.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 5.0.0.6.
Version 4.9.0.9.0
- Verified compatibility with Pangle SDK version 4.9.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 21.5.0.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Pangle SDK version 4.9.0.9.
Version 4.9.0.8.0
- Verified compatibility with Pangle SDK version 4.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.9.0.8.
Version 4.9.0.7.0
- Verified compatibility with Pangle SDK version 4.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.9.0.7.
Version 4.9.0.6.0
- Verified compatibility with Pangle SDK version 4.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.9.0.6.
Version 4.8.1.0.0
- Verified compatibility with Pangle SDK version 4.8.1.0.
- Updated the minimum required Google Mobile Ads SDK version to 21.4.0.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Pangle SDK version 4.8.1.0.
Version 4.8.0.9.0
- Verified compatibility with Pangle SDK version 4.8.0.9.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.9.
Version 4.8.0.8.0
- Verified compatibility with Pangle SDK version 4.8.0.8.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.8.
Version 4.8.0.7.0
- Verified compatibility with Pangle SDK version 4.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.7.
Version 4.8.0.6.0
- Verified compatibility with Pangle SDK version 4.8.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.8.0.6.
Version 4.7.0.7.0
- Verified compatibility with Pangle SDK version 4.7.0.7.
- Updated the minimum required Google Mobile Ads SDK version to 21.3.0.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Pangle SDK version 4.7.0.7.
Version 4.7.0.6.0
- Verified compatibility with Pangle SDK version 4.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.7.0.6.
Version 4.7.0.5.0
- Verified compatibility with Pangle SDK version 4.7.0.5.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.7.0.5.
Version 4.7.0.3.0
- Verified compatibility with Pangle SDK version 4.7.0.3.
- The adapter now attempts to initialize the Pangle SDK before loading ads.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.7.0.3.
Version 4.6.0.9.0
- Verified compatibility with Pangle SDK version 4.6.0.9.
- Updated the minimum required Google Mobile Ads SDK version to 21.2.0.
Built and tested with:
- Google Mobile Ads SDK version 21.2.0.
- Pangle SDK version 4.6.0.9.
Version 4.5.0.6.1
- Added bidding support for native ad format.
- Updated the minimum required Google Mobile Ads SDK version to 21.1.0.
Built and tested with:
- Google Mobile Ads SDK version 21.1.0.
- Pangle SDK version 4.5.0.6.
Version 4.5.0.6.0
- Verified compatibility with Pangle SDK version 4.5.0.6.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.6.
Version 4.5.0.5.0
- Verified compatibility with Pangle SDK version 4.5.0.5.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.5.
Version 4.5.0.4.0
- Verified compatibility with Pangle SDK version 4.5.0.4.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.4.
Version 4.5.0.3.0
- Verified compatibility with Pangle SDK version 4.5.0.3.
- Updated
compileSdkVersion
andtargetSdkVersion
to API 31. - Updated the minimum required Google Mobile Ads SDK version to 21.0.0.
- Updated the minimum required Android API level to 19.
Built and tested with:
- Google Mobile Ads SDK version 21.0.0.
- Pangle SDK version 4.5.0.3.
Version 4.3.0.9.0
- Verified compatibility with Pangle SDK version 4.3.0.9.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.9.
Version 4.3.0.8.0
- Verified compatibility with Pangle SDK version 4.3.0.8.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.8.
Version 4.3.0.7.0
- Verified compatibility with Pangle SDK version 4.3.0.7.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.7.
Version 4.3.0.6.0
- Verified compatibility with Pangle SDK version 4.3.0.6.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.6.
Version 4.3.0.4.0
- Verified compatibility with Pangle SDK version 4.3.0.4.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.3.0.4.
Version 4.2.5.3.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 20.6.0.
- Pangle SDK version 4.2.5.3.
