This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Line using AdMob Mediation, covering waterfall integrations. It covers how to add Line to an ad unit's mediation configuration, and how to integrate the Line SDK and adapter into an Android app.
The dashboard interface for Line uses Japanese text for its labels, buttons, and descriptions. The screenshots in this guide have not been translated. In this guide's descriptions and instructions however, labels and buttons are translated with their English language equivalents in parentheses.
Supported integrations and ad formats
The mediation adapter for Line has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | 1 |
Formats | |
Banner | |
Interstitial | |
Rewarded | |
Native |
1 Waterfall integration is in open beta.
Requirements
- Android API level 21 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Line UI
Log in to your Line account.
Add a new application

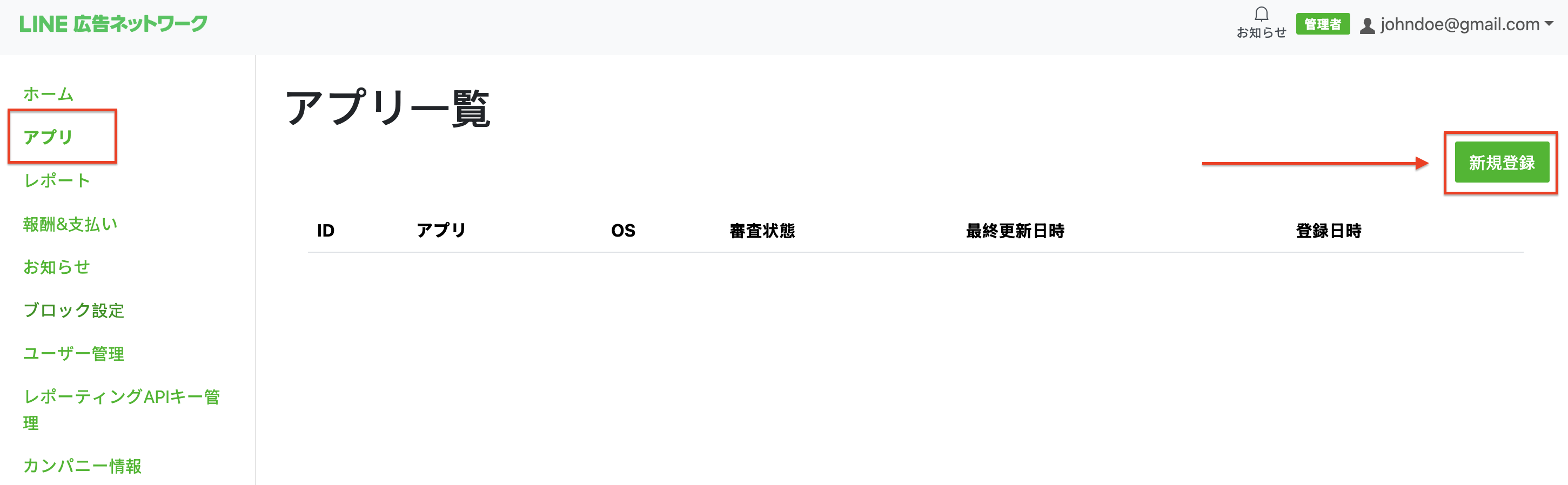

Click 広告枠管理 (Ad Slot Management) > メディア (Media). Then, click 新規作成 (Create New).

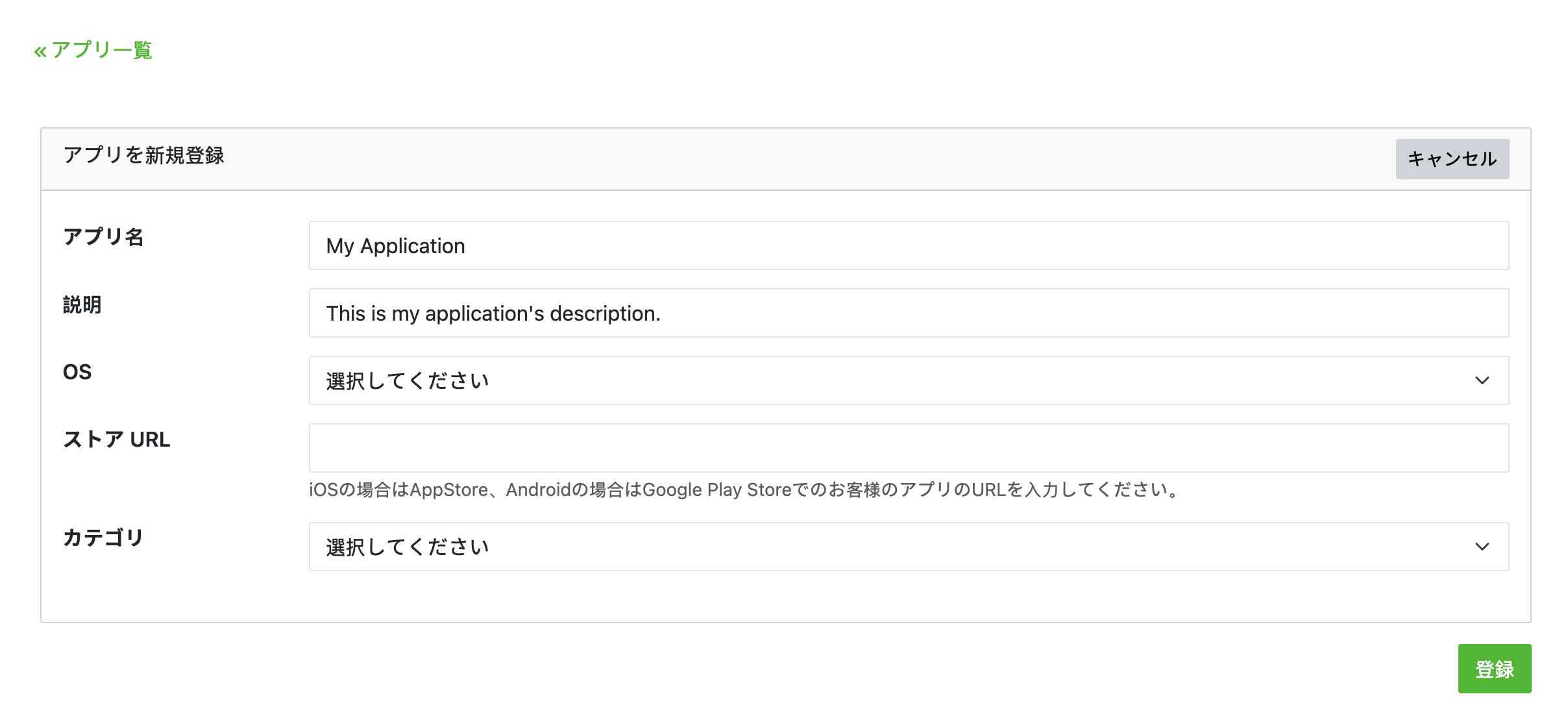

Fill out the form and click 登録 (Register).

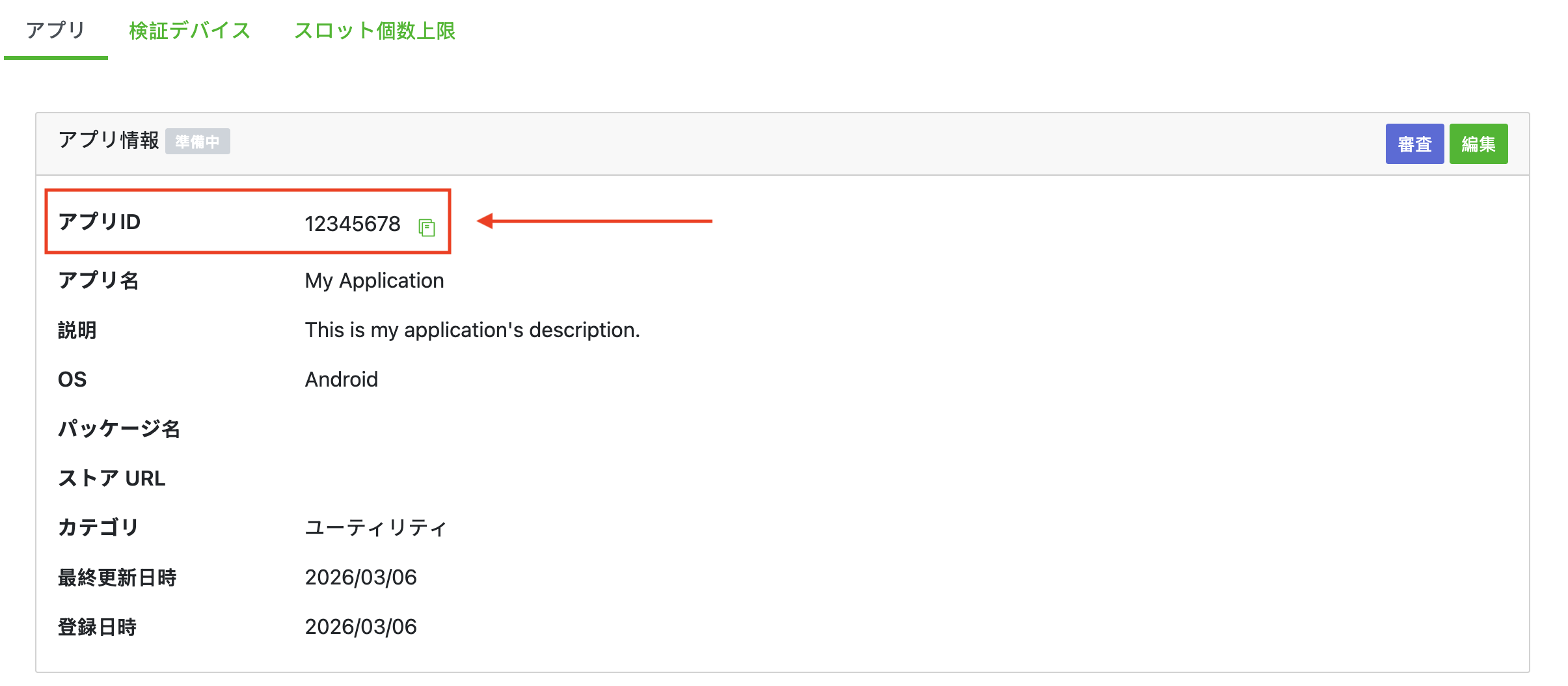

Take note of the Application ID.
Create an ad placement
Click the ID of the application you want to add an ad placement. Then, select 詳細 (Detail).

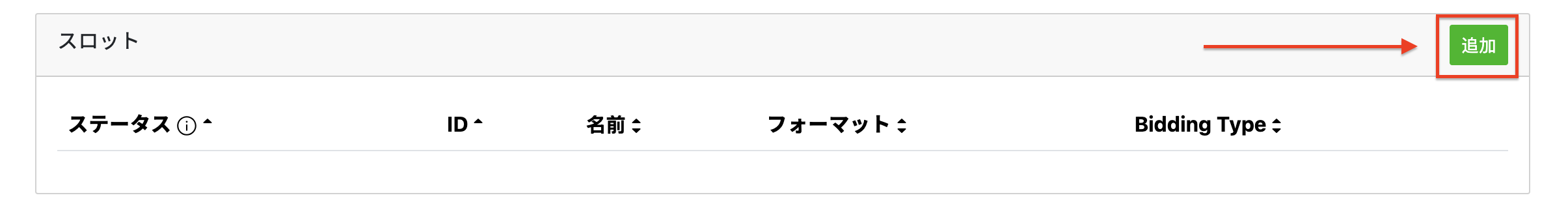

Click スロット 追加 (Add Slot).

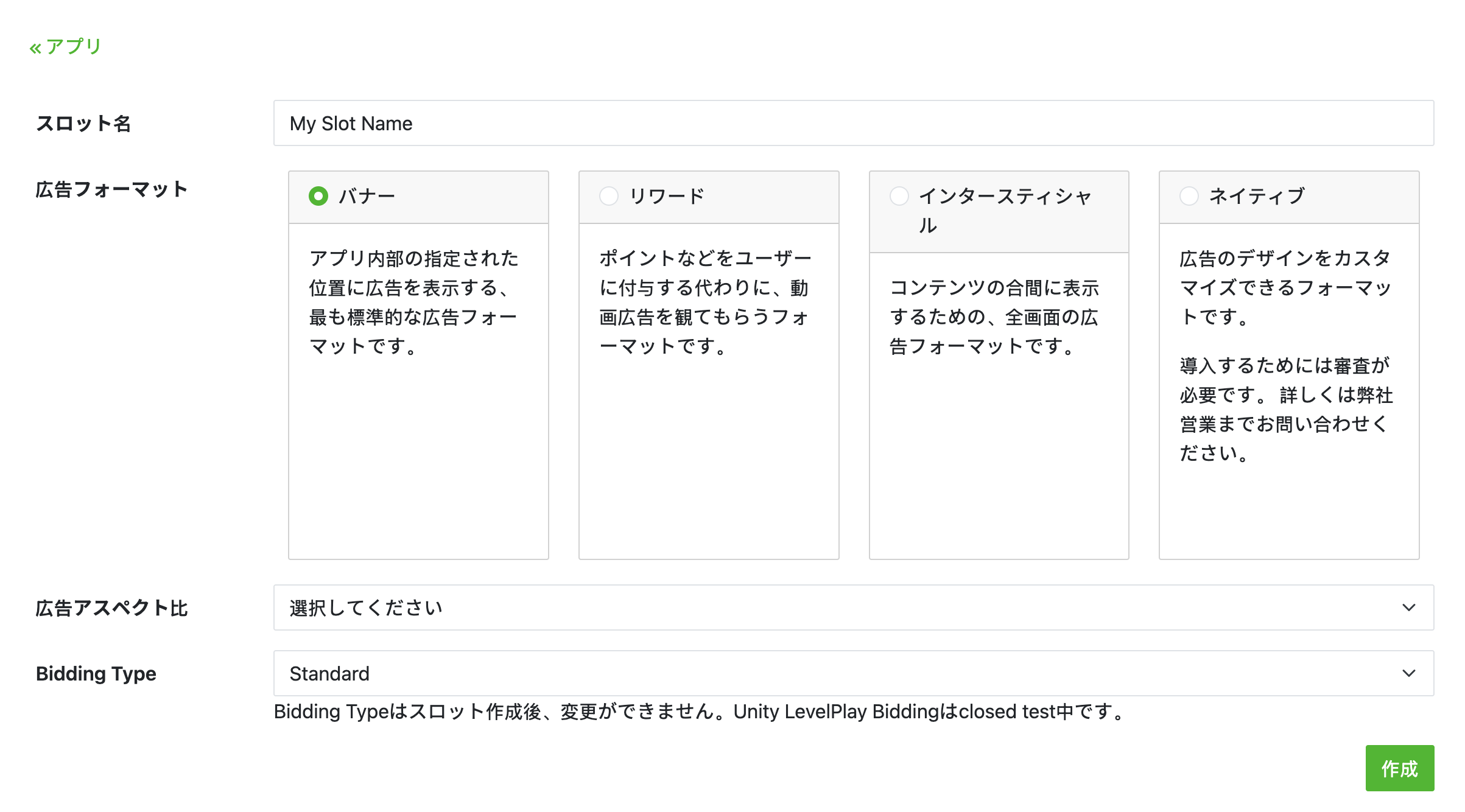

Fill out the form and once done, click (登録) Register.

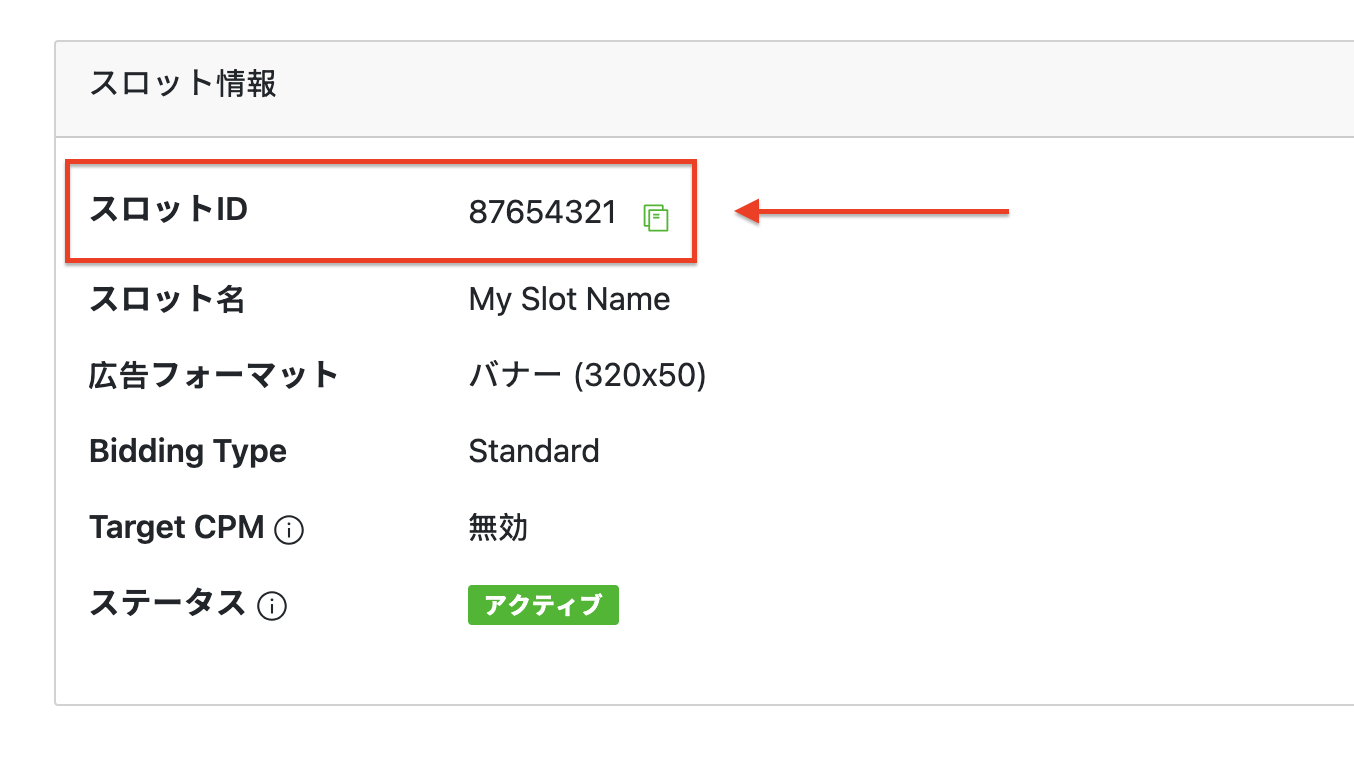

Take note of the Slot ID.
Step 2: Set up Line demand in AdMob UI
Configurer les paramètres de médiation pour votre bloc d'annonces
Vous devez ajouter Line à la configuration de la médiation pour votre bloc d'annonces.
Connectez-vous à votre compte AdMob. Accédez ensuite à l'onglet Médiation. Si vous souhaitez modifier un groupe de médiation existant, cliquez sur son nom pour le modifier, puis passez à l'étape Ajouter Line comme source d'annonces.
Pour créer un groupe de médiation, sélectionnez Créer un groupe de médiation.
Saisissez le format de votre annonce et votre plate-forme, puis cliquez sur Continuer.
Attribuez un nom à votre groupe de médiation, puis sélectionnez les zones géographiques à cibler. Définissez ensuite l'état du groupe de médiation sur Activé, puis cliquez sur Ajouter des blocs d'annonces.
Associez ce groupe de médiation à un ou plusieurs de vos blocs d'annoncesAdMob existants. Cliquez ensuite sur Done (OK).
Vous devriez maintenant voir la fiche des blocs d'annonces que vous avez sélectionnés:
Ajouter Line comme source d'annonces
Sous la fiche Waterfall (Cascade d'annonces) de la section Ad Sources (Sources d'annonces), sélectionnez Add Ad Source (Ajouter une source d'annonces). Sélectionnez ensuite Line.

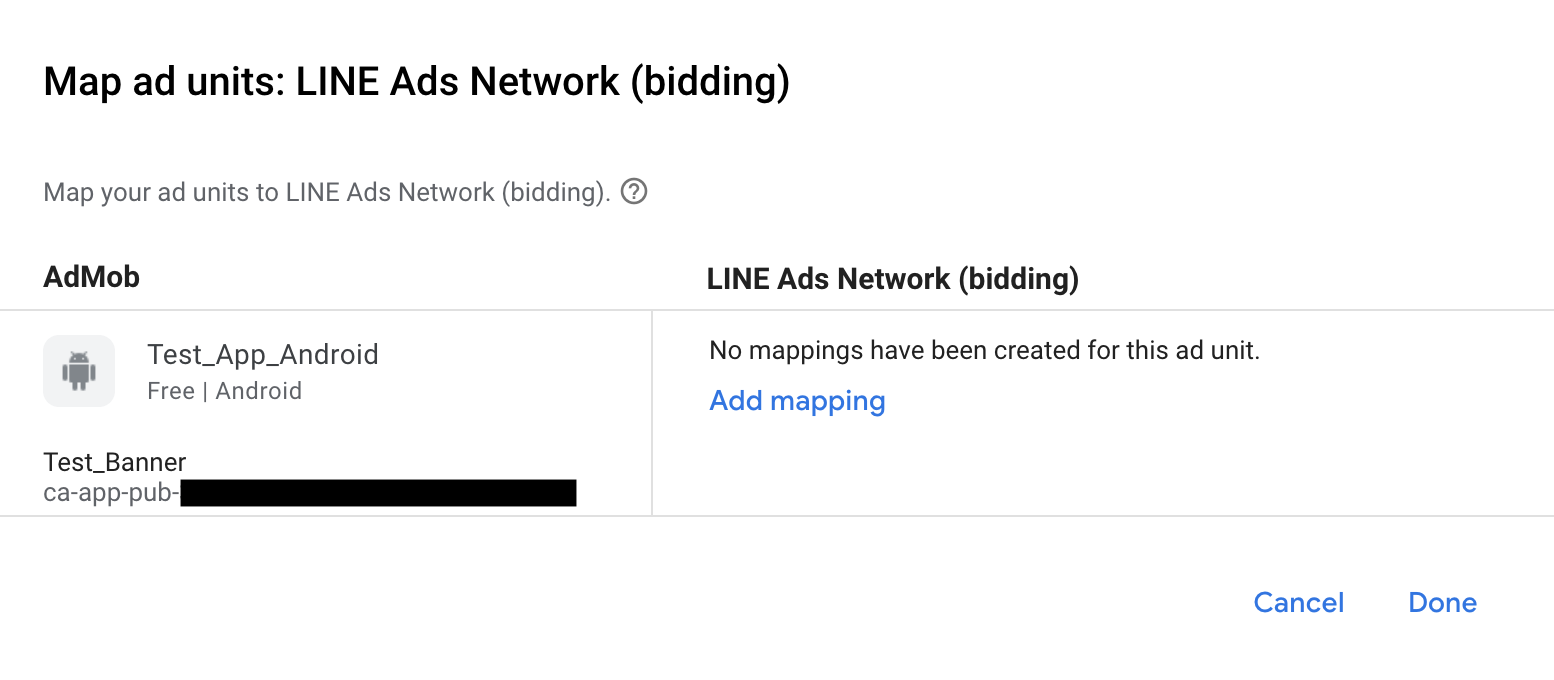

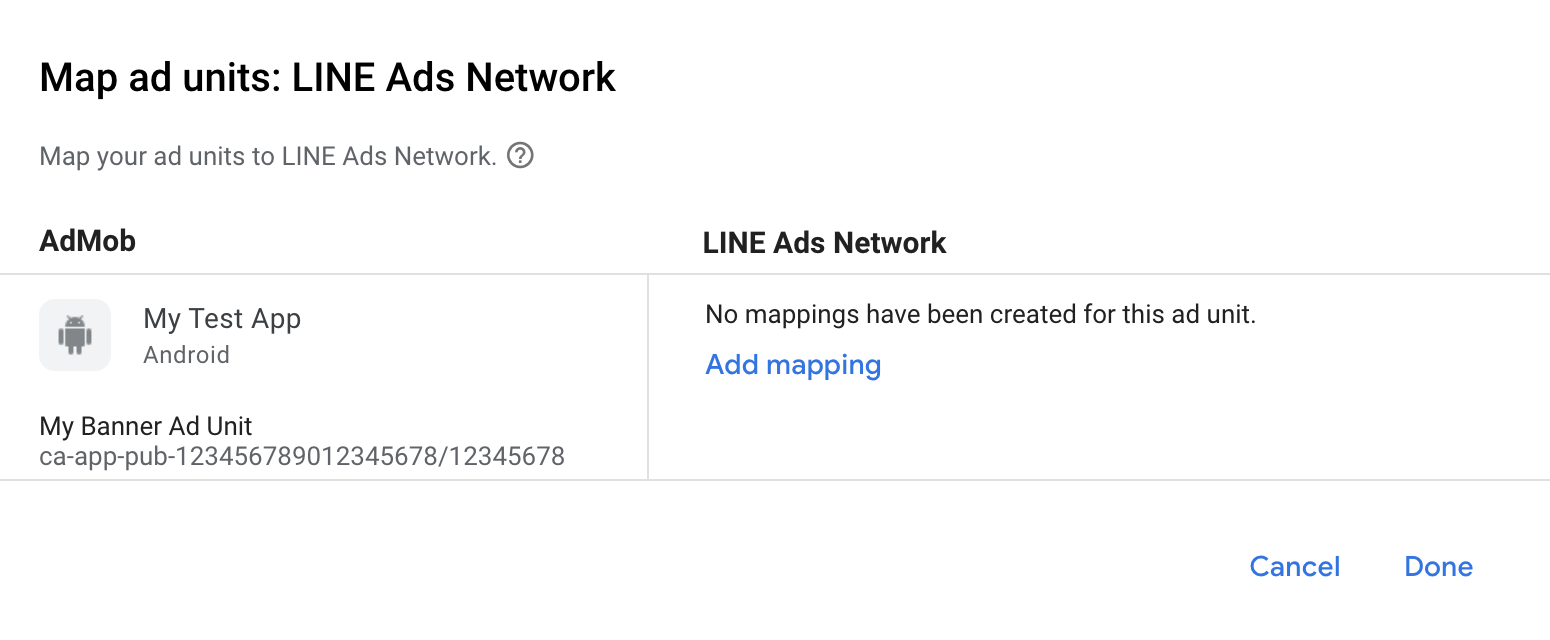

Sélectionnez Line. Ensuite, saisissez une valeur d'eCPM pour Line et cliquez sur Continuer.Si vous disposez déjà d'un mappage pour Line, vous pouvez le sélectionner. Sinon, cliquez sur Ajouter un mappage.

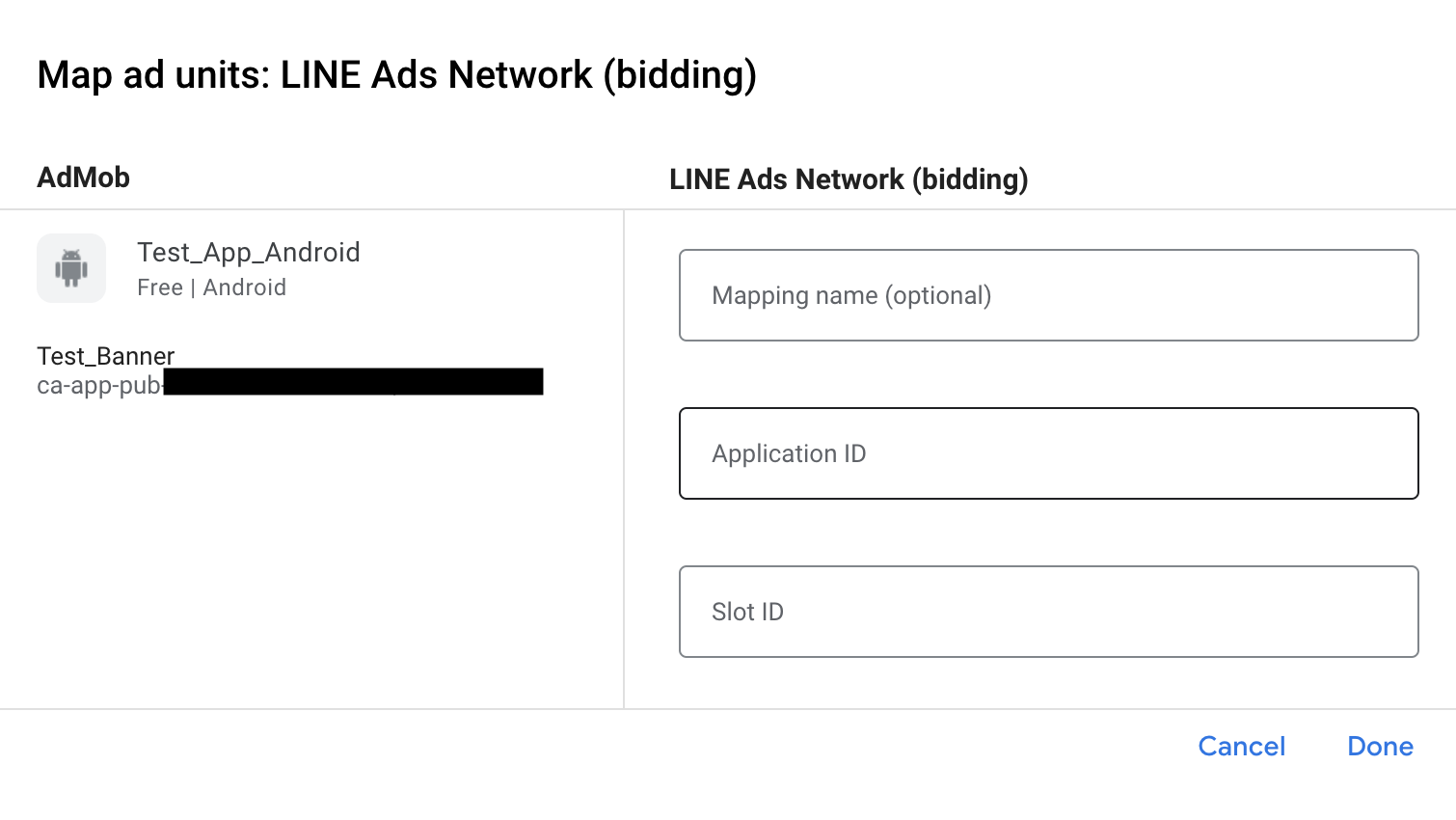

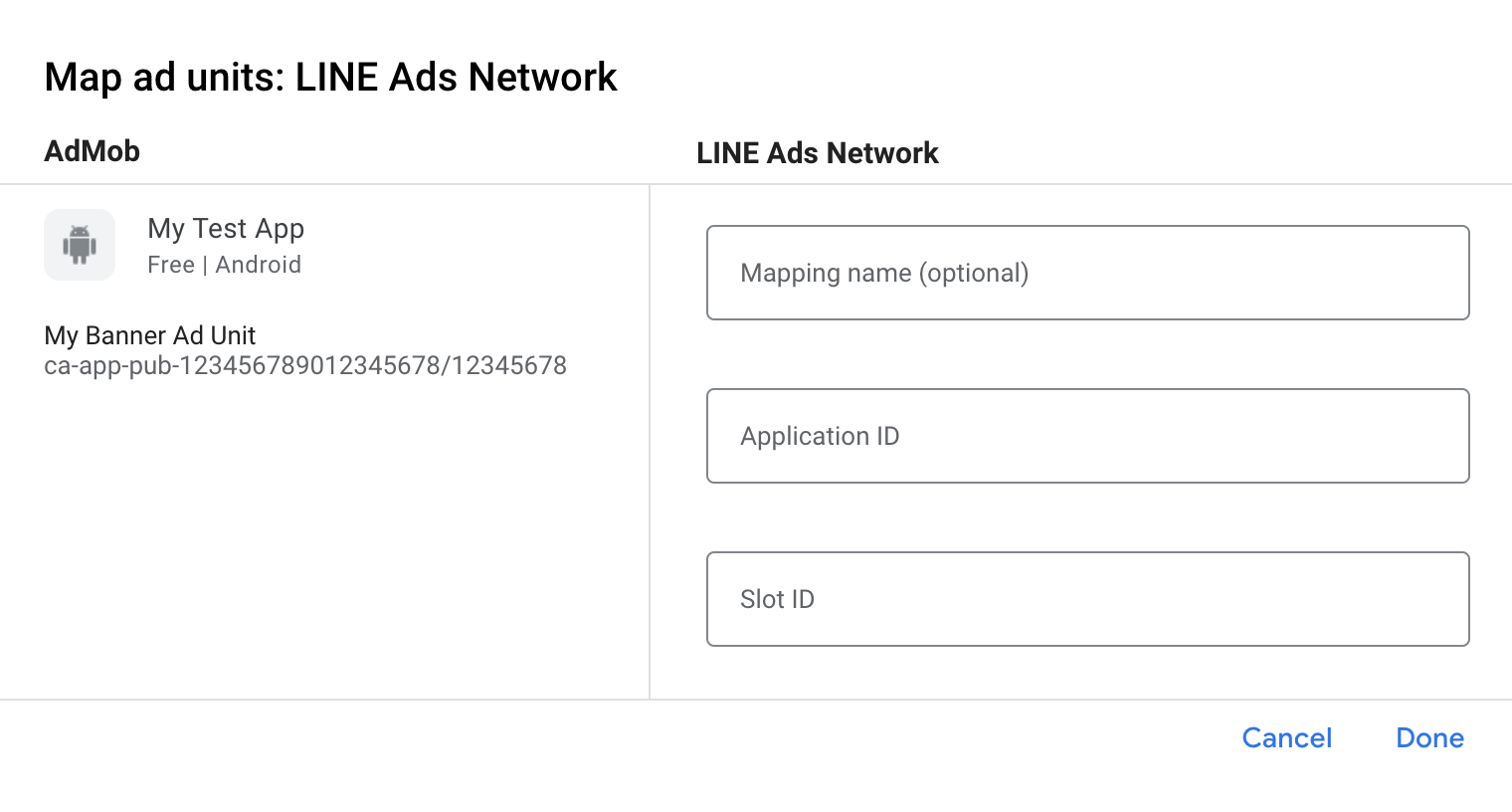

Saisissez ensuite les Application ID and Slot IDobtenus à la section précédente. Cliquez ensuite sur Done (OK).
Step 3: Import the Line SDK and Adapter
Android Studio integration (recommended)
In your app-level build.gradle.kts
file, add the following implementation
dependencies and configurations. Use the latest versions of the Line SDK
and adapter:
dependencies {
implementation("com.google.android.gms:play-services-ads:23.4.0")
implementation("com.google.ads.mediation:line:2.8.20240827.0")
}
Manual integration
Download the latest version of the Line SDK's
.aar
file and add it to your project.Navigate to the Line adapter artifacts on Google's Maven Repository. Select the latest version, download the Line adapter's
.aar
file, and add it to your project.
Step 4: Add required code
No additional code is required for Line integration.
Step 5: Test your implementation
Activer les annonces tests
Veillez à enregistrer votre appareil de test pour AdMob.
Suivez les instructions dans Documentation de Line pour savoir comment activer les annonces de test de ligne.
Valider les annonces tests
Pour vérifier que vous recevez des annonces tests deLine, activez le test d'une source d'annonce unique dans l'inspecteur d'annonces à l'aide de Line (Waterfall) sources d'annonces.
Optional steps
Network-specific parameters
The Line adapter supports an additional request parameter which can be passed
to the adapter using the LineExtras
class. This class constructor includes
the following parameters:
enableAdSound
- A
boolean
to specify the default sound start state of banner, interstitial and rewarded ads.
Here's a code example of how to create an ad request that sets these parameters:
Java
LineExtras lineExtras = new LineExtras(true);
Bundle extras = lineExtras.build();
AdRequest request = new AdRequest.Builder()
.addNetworkExtrasBundle(LineMediationAdapter.class, extras)
.build();
Kotlin
val lineExtras = LineExtras(true)
val extras = lineExtras.build()
val request = AdRequest.Builder()
.addNetworkExtrasBundle(LineMediationAdapter::class.java, extras)
.build()
Using native ads
Ad rendering
The Line adapter populates the following
Native ads advanced field descriptions
for a
NativeAd
.
Field | Assets always included by Line adapter |
---|---|
Headline | |
Image | |
Body | |
App icon | 1 |
Call to action | |
Star rating | |
Store | |
Price |
1 For native ads, the Line SDK does not provide an app icon asset. Instead, the Line adapter populates the app icon with a transparent image.
Error codes
If the adapter fails to receive an ad from Line, you can check the
underlying error from the ad response using
ResponseInfo.getAdapterResponses()
under the following classes:
com.line.ads
com.google.ads.mediation.line.LineMediationAdapter
Here are the codes and accompanying messages thrown by the Line adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
1-10 | com.five_corp.ad | Line SDK returned an SDK-specific error. See Line's documentation for more details. |
101 | com.google.ads.mediation.line | Missing or invalid Application ID. |
102 | com.google.ads.mediation.line | Missing or invalid Slot ID. |
103 | com.google.ads.mediation.line | The requested ad size does not match a Line supported banner ad size. |
104 | com.google.ads.mediation.line | Failed to load an interstitial or rewarded ad due to missing activity context. |
105 | com.google.ads.mediation.line | Line SDK failed to show an interstitial or rewarded ad. |
106 | com.google.ads.mediation.line | Failed to load a native ad due to missing assets. |
LINE Android Mediation Adapter Changelog
Next Version
- Implemented AdLoader to enable RTB for Interstitial Ads.
- Implemented AdLoader to enable RTB for Rewarded Ads.
Version 2.8.20240827.0
- Verified compatibility with FiveAd SDK version 2.8.20240827.0
Built and tested with:
- Google Mobile Ads SDK version 23.3.0.
- FiveAd SDK version 2.8.20240827.0
Version 2.8.20240808.0
- Verified compatibility with FiveAd SDK version 2.8.20240808.0
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- FiveAd SDK version 2.8.20240808.0
Version 2.8.20240722.0
- Verified compatibility with FiveAd SDK version 2.8.20240722.0
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- FiveAd SDK version 2.8.20240722.0
Version 2.7.20240515.0
- Verified compatibility with FiveAd SDK version 2.7.20240515.0
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- FiveAd SDK version 2.7.20240515.0
Version 2.7.20240214.1
- Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
- Verified compatibility with FiveAd SDK version 2.7.20240214.0.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- FiveAd SDK version 2.7.20240214.0.
Version 2.7.20240214.0
- Verified compatibility with FiveAd SDK version 2.7.20240214.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- FiveAd SDK version 2.7.20240214.0.
Version 2.7.20240126.0
- Verified compatibility with FiveAd SDK version 2.7.20240126.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- FiveAd SDK version 2.7.20240126.0.
Version 2.7.20240112.0
- Removed deprecated
FiveAdViewEventListener
in favor ofFiveAdCustomLayoutEventListener
,FiveAdVideoRewardEventListener
,FiveAdInterstitialEventListener
andFiveAdNativeEventListener
. - Verified compatibility with FiveAd SDK version 2.7.20240112.
- Updated the minimum required Google Mobile Ads SDK version to 22.6.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- FiveAd SDK version 2.7.20240112.
Version 2.6.20230607.1
- Added
LineExtras
class for publishers to define default sound settings for banner, interstitial and rewarded ad formats. - Updated the minimum required Google Mobile Ads SDK version to 22.4.0.
Built and tested with:
- Google Mobile Ads SDK version 22.4.0.
- FiveAd SDK version 2.6.20230607.
Version 2.6.20230607.0
- Initial release.
- Adds support for banner, interstitial, rewarded and native ad formats.
- Verified compatibility with FiveAd SDK version 2.6.20230607.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- FiveAd SDK version 2.6.20230607.
