Intégrer l'échange de transfert de données à la médiation

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from DT Exchange using AdMob Mediation, covering waterfall integrations. It covers how to add DT Exchange to an ad unit's mediation configuration and how to integrate the DT Exchange SDK and adapter into an Android app.

Supported integrations and ad formats

The mediation adapter for DT Exchange has the following capabilities:

Integration
Bidding
Waterfall
Formats
Banner
Interstitial
Rewarded
Native

Requirements

  • Android API level 21 or higher

Step 1: Set up configurations in DT Exchange UI

Add new app and ad placement

Sign up or log in to DT Exchange Console.

Click on the Add App button to add your app.

Manage Apps

Select your Platform, fill out the rest of the form, and click Add Placements.

Enter a name for the new placement in the field labeled Name your Placement and select your desired Placement Type from the dropdown list. Finally, click Save Placement.

Setup

App ID and Placement ID

Open the left navigation bar by hovering your mouse over it. Then click Apps from the left menu.

Menu

On the App Management page, take note of the App ID next to your app.

App ID

Select your app, navigate to the Placements tab, and click on the copy icon next to Placement Name. Take note of the Placement ID.

Placement ID

Publisher ID, Consumer Key and Consumer Secret

Click on your username from the left menu and select User Profile.

User Profile Menu

Take note of the Publisher ID, Consumer Key, and Consumer Secret as these are needed in the next step.

User Profile

Step 2: Set up DT Exchange demand in AdMob UI

Configurer les paramètres de médiation pour votre bloc d'annonces

Vous devez ajouter DT Exchange à la configuration de la médiation pour votre bloc d'annonces.

Connectez-vous à votre compte AdMob. Accédez ensuite à l'onglet Médiation. Si vous souhaitez modifier un groupe de médiation existant, cliquez sur son nom pour le modifier, puis passez à l'étape Ajouter DT Exchange comme source d'annonces.

Pour créer un groupe de médiation, sélectionnez Créer un groupe de médiation.

Saisissez le format de votre annonce et votre plate-forme, puis cliquez sur Continuer.

Attribuez un nom à votre groupe de médiation, puis sélectionnez les zones géographiques à cibler. Définissez ensuite l'état du groupe de médiation sur Activé, puis cliquez sur Ajouter des blocs d'annonces.

Associez ce groupe de médiation à un ou plusieurs de vos blocs d'annoncesAdMob existants. Cliquez ensuite sur Done (OK).

Vous devriez maintenant voir la fiche des blocs d'annonces que vous avez sélectionnés:

Ajouter DT Exchange comme source d'annonces

Sous la fiche Waterfall (Cascade d'annonces) de la section Ad Sources (Sources d'annonces), sélectionnez Add Ad Source (Ajouter une source d'annonces). Sélectionnez ensuite DT Exchange.

Sélectionnez DT Exchange et activez le bouton Optimiser. Saisissez l' Publisher ID, Consumer Secret and Consumer Key obtenue à la section précédente pour configurer l'optimisation de la source d'annonces pour DT Exchange. Ensuite, saisissez une valeur d'eCPM pour DT Exchange et cliquez sur Continuer.

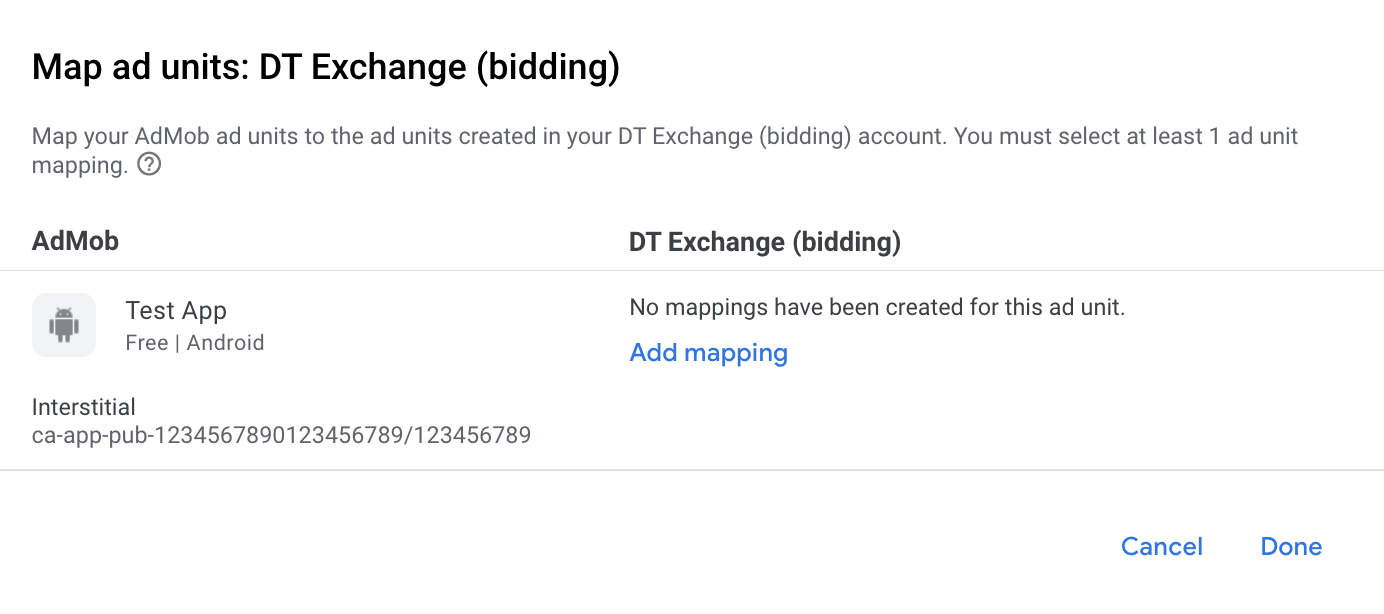

Si vous disposez déjà d'un mappage pour DT Exchange, vous pouvez le sélectionner. Sinon, cliquez sur Ajouter un mappage.

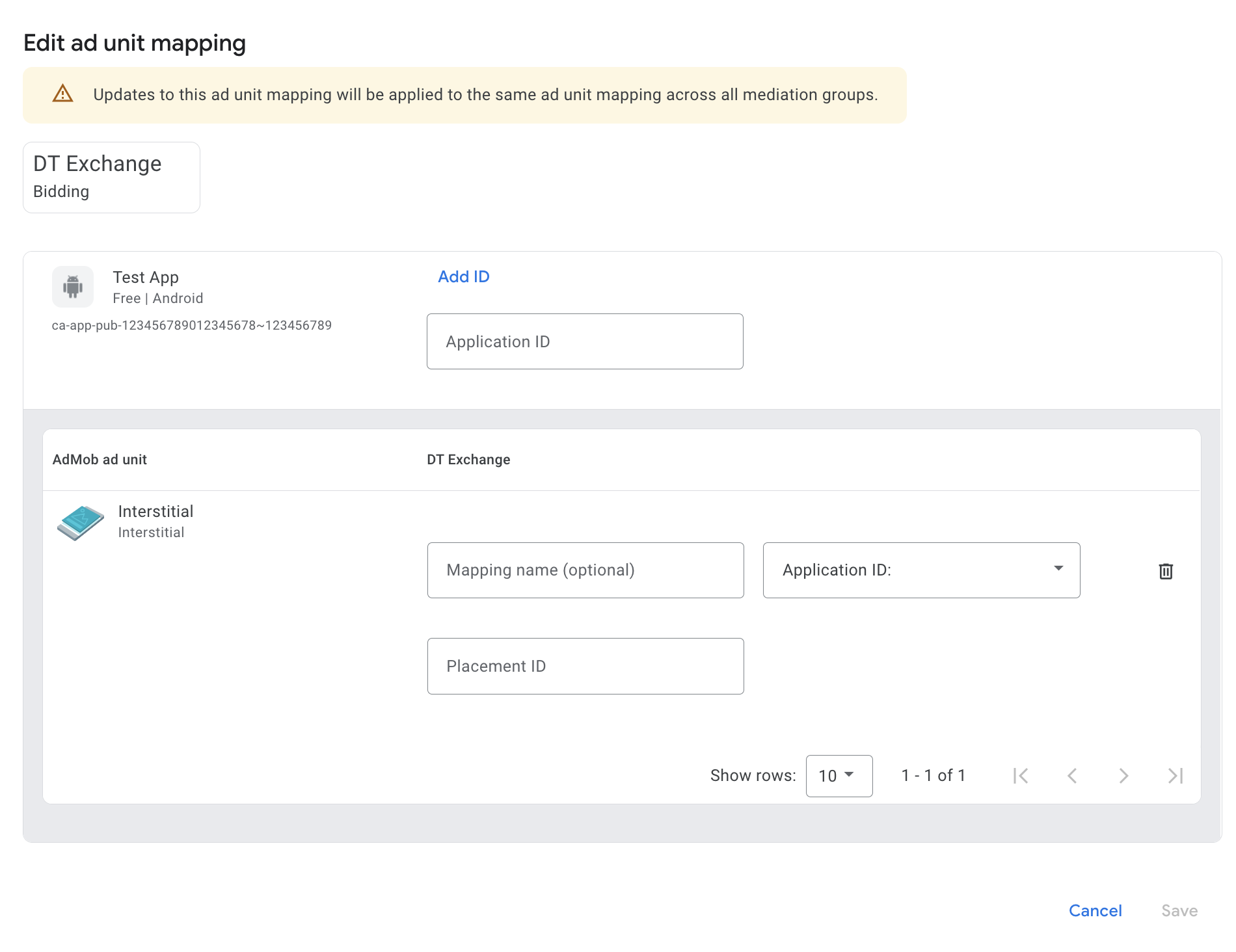

Saisissez ensuite les Application ID and Placement IDobtenus à la section précédente. Cliquez ensuite sur Done (OK).

Add Fyber to GDPR and US state regulations ad partners list

Suivez les étapes indiquées dans Paramètres RGPD et Paramètres des réglementations des États américains pour ajouter Fyber à la liste des partenaires publicitaires sur le RGPD et les réglementations des États américains dans l' AdMob UI.

Step 3: Import the DT Exchange SDK and adapter

In your app-level build.gradle.kts file, add the following implementation dependencies and configurations. Use the latest versions of the DT Exchange SDK and adapter:

dependencies {
    implementation("com.google.android.gms:play-services-ads:23.1.0")
    implementation("com.google.ads.mediation:fyber:8.2.7.0")
}

Manual integration

  • Download the latest version of the DT Exchange SDK for Android and add the following files to your project:
    • ia-mraid-kit-release-x.y.z.aar
    • ia-sdk-core-release-x.y.z.aar
    • ia-video-kit-release-x.y.z.aar
  • Navigate to the DT Exchange adapter artifacts on Google's Maven Repository. Select the latest version, download the DT Exchange adapter's .aar file, and add it to your project.

Step 4: Implement privacy settings on DT Exchange SDK

Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.

DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.

Java

import com.fyber.inneractive.sdk.external.InneractiveAdManager;
// ...

InneractiveAdManager.setGdprConsent(true);
InneractiveAdManager.setGdprConsentString("myGdprConsentString");

Kotlin

import com.fyber.inneractive.sdk.external.InneractiveAdManager
// ...

InneractiveAdManager.setGdprConsent(true)
InneractiveAdManager.setGdprConsentString("myGdprConsentString")

Visit DT Exchange's GDPR Resource Page and their GDPR implementation guide for more details and the values that may be provided in the method.

US states privacy laws

U.S. states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The U.S. states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.

DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.

Java

import com.fyber.inneractive.sdk.external.InneractiveAdManager;
// ...

InneractiveAdManager.setUSPrivacyString("myUSPrivacyString");

Kotlin

import com.fyber.inneractive.sdk.external.InneractiveAdManager
// ...

InneractiveAdManager.setUSPrivacyString("myUSPrivacyString")

Visit DT Exchange's CCPA Resource Page and their CCPA implementation guide for more details and the values that may be provided in the method.

Step 5: Add required code

No additional code is required for DT Exchange integration.

Step 6: Test your implementation

Activer les annonces tests

Veillez à enregistrer votre appareil de test pour AdMob.

Valider les annonces tests

Pour vérifier que vous recevez des annonces tests deDT Exchange, activez le test d'une source d'annonce unique dans l'inspecteur d'annonces à l'aide de DT Exchange (Waterfall) sources d'annonces.

Optional steps

Network-specific parameters

The DT Exchange adapter supports additional request parameters that can be passed to the adapter as an Android Bundle. The adapter looks for the following keys in the bundle:

Request parameters and values
InneractiveMediationDefs.KEY_AGE Integer. The age of the user
FyberMediationAdapter.KEY_MUTE_VIDEO Boolean. Mute or unmute video

Here's a code example of how to set these ad request parameters:

Java

Bundle extras = new Bundle();
extras.putInt(InneractiveMediationDefs.KEY_AGE, 10);
extras.putBoolean(FyberMediationAdapter.KEY_MUTE_VIDEO, false);

AdRequest request = new AdRequest.Builder()
       .addNetworkExtrasBundle(FyberMediationAdapter.class, extras)
       .build();

Kotlin

var extras = Bundle()
extras.putInt(InneractiveMediationDefs.KEY_AGE, 10)
extras.putBoolean(FyberMediationAdapter.KEY_MUTE_VIDEO, false)

var adrequest = AdRequest.Builder()
       .addNetworkExtrasBundle(FyberMediationAdapter::class.java, extras)
       .build()

Error codes

If the adapter fails to receive an ad from DT Exchange, you can check the underlying error from the ad response using ResponseInfo.getAdapterResponses() under the following class:

com.google.ads.mediation.fyber.FyberMediationAdapter

Here are the codes and accompanying messages thrown by the DT Exchange adapter when an ad fails to load:

Error code Reason
101 DT Exchange server parameters configured in the AdMob UI are missing/invalid.
103 The requested ad size does not match a DT Exchange supported banner size.
105 DT Exchange SDK loaded an ad but returned an unexpected controller.
106 Ad is not ready to display.
200-399 DT Exchange SDK returned an error. See code for more details.

DT Exchange Android Mediation Adapter Changelog

Next version:

  • Pass MobileAds version to DT Exchange SDK.

Version 8.2.7.0

  • Verified compatibility with DT Exchange SDK 8.2.7.

Built and tested with:

  • Google Mobile Ads SDK version 23.0.0.
  • DT Exchange SDK version 8.2.7.

Version 8.2.6.1

  • Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
  • Verified compatibility with DT Exchange SDK 8.2.6.

Built and tested with:

  • Google Mobile Ads SDK version 23.0.0.
  • DT Exchange SDK version 8.2.6.

Version 8.2.6.0

  • Verified compatibility with DT Exchange SDK 8.2.6.

Built and tested with:

  • Google Mobile Ads SDK version 22.6.0.
  • DT Exchange SDK version 8.2.6.

Version 8.2.5.0

  • Verified compatibility with DT Exchange SDK 8.2.5.

Built and tested with:

  • Google Mobile Ads SDK version 22.5.0.
  • DT Exchange SDK version 8.2.5.

Version 8.2.4.0

  • Verified compatibility with DT Exchange SDK 8.2.4.

Built and tested with:

  • Google Mobile Ads SDK version 22.3.0.
  • DT Exchange SDK version 8.2.4.

Version 8.2.3.0

  • Updated adapter to use new VersionInfo class.
  • Updated the minimum required Google Mobile Ads SDK version to 22.0.0.

Built and tested with:

  • Google Mobile Ads SDK version 22.0.0.
  • DT Exchange SDK version 8.2.3.

Version 8.2.2.1

  • Added support for passing muteVideo key in mediation extra to mute interstitial ads.

Built and tested with:

  • Google Mobile Ads SDK version 21.5.0.
  • DT Exchange SDK version 8.2.2.

Version 8.2.2.0

  • Verified compatibility with DT Exchange SDK 8.2.2.
  • Updated the minimum required Google Mobile Ads SDK version to 21.5.0.

Built and tested with:

  • Google Mobile Ads SDK version 21.5.0.
  • DT Exchange SDK version 8.2.2.

Version 8.2.1.0

  • Rebranded adapter name to "DT Exchange".
  • Verified compatibility with DT Exchange SDK 8.2.1.
  • Updated the minimum required Google Mobile Ads SDK version to 21.3.0.

Built and tested with:

  • Google Mobile Ads SDK version 21.3.0.
  • DT Exchange SDK version 8.2.1.

Version 8.2.0.0

  • Verified compatibility with Fyber SDK 8.2.0.
  • Updated the minimum required Google Mobile Ads SDK version to 21.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 21.1.0.
  • Fyber SDK version 8.2.0.

Version 8.1.5.0

  • Verified compatibility with Fyber SDK 8.1.5.

Built and tested with:

  • Google Mobile Ads SDK version 21.0.0.
  • Fyber SDK version 8.1.5.

Version 8.1.4.0

  • Verified compatibility with Fyber SDK 8.1.4.

Built and tested with:

  • Google Mobile Ads SDK version 21.0.0.
  • Fyber SDK version 8.1.4.

Version 8.1.3.1

  • Updated compileSdkVersion and targetSdkVersion to API 31.
  • Updated the minimum required Google Mobile Ads SDK version to 21.0.0.
  • Updated the minimum required Android API level to 19.

Built and tested with:

  • Google Mobile Ads SDK version 21.0.0.
  • Fyber SDK version 8.1.3.

Version 8.1.3.0

  • Verified compatibility with Fyber SDK 8.1.3.
  • Updated the minimum required Google Mobile Ads SDK version to 20.6.0.

Built and tested with:

  • Google Mobile Ads SDK version 20.6.0.
  • Fyber SDK version 8.1.3.

Version 8.1.2.0

  • Verified compatibility with Fyber SDK 8.1.2.
  • Updated the minimum required Google Mobile Ads SDK version to 20.5.0.

Built and tested with:

  • Google Mobile Ads SDK version 20.5.0.
  • Fyber SDK version 8.1.2.

Version 8.1.0.0

  • Verified compatibility with Fyber SDK 8.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 20.4.0.
  • Fyber SDK version 8.1.0.

Version 7.8.4.1

  • Fixed an issue where the adapter would not initialize if there is a duplicate or more than one unique app ID from the mediation configurations.
  • Updated the minimum required Google Mobile Ads SDK version to 20.4.0.

Built and tested with:

  • Google Mobile Ads SDK version 20.4.0.
  • Fyber SDK version 7.8.4.

Version 7.8.4.0

  • Verified compatibility with Fyber SDK 7.8.4.
  • Updated the minimum required Google Mobile Ads SDK version to 20.3.0.
  • Fixed an issue with rewarded display ads, where onVideoComplete() was not called.
  • Fyber now requires an Activity context to show ads.

Built and tested with:

  • Google Mobile Ads SDK version 20.3.0.
  • Fyber SDK version 7.8.4.

Version 7.8.3.0

  • Verified compatibility with Fyber SDK 7.8.3.
  • Added standardized adapter error codes and messages.
  • Updated the minimum required Google Mobile Ads SDK version to 20.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 20.1.0.
  • Fyber SDK version 7.8.3.

Version 7.8.2.0

  • Verified compatibility with Fyber SDK 7.8.2.
  • Updated the minimum required Google Mobile Ads SDK version to 20.0.0.

Built and tested with:

  • Google Mobile Ads SDK version 20.0.0.
  • Fyber SDK version 7.8.2.

Version 7.8.1.0

  • Verified compatibility with Fyber SDK 7.8.1.

Built and tested with:

  • Google Mobile Ads SDK version 19.7.0.
  • Fyber SDK version 7.8.1.

Version 7.8.0.0

  • Verified compatibility with Fyber SDK 7.8.0.
  • Updated the minimum required Google Mobile Ads SDK version to 19.7.0.

Built and tested with:

  • Google Mobile Ads SDK version 19.7.0.
  • Fyber SDK version 7.8.0.

Version 7.7.4.0

  • Verified compatibility with Fyber SDK 7.7.4.
  • Fixed an issue where onUserEarnedReward() is forwarded twice for rewarded ads.

Built and tested with:

  • Google Mobile Ads SDK version 19.5.0.
  • Fyber SDK version 7.7.4.

Version 7.7.3.0

  • Verified compatibility with Fyber SDK 7.7.3.

Built and tested with:

  • Google Mobile Ads SDK version 19.5.0.
  • Fyber SDK version 7.7.3.

Version 7.7.2.0

  • Verified compatibility with Fyber SDK 7.7.2.
  • Updated the minimum required Google Mobile Ads SDK version to 19.5.0.

Built and tested with:

  • Google Mobile Ads SDK version 19.5.0.
  • Fyber SDK version 7.7.2.

Version 7.7.1.0

  • Verified compatibility with Fyber SDK 7.7.1.
  • Updated the minimum required Google Mobile Ads SDK version to 19.4.0.

Built and tested with:

  • Google Mobile Ads SDK version 19.4.0.
  • Fyber SDK version 7.7.1.

Version 7.7.0.0

  • Verified compatibility with Fyber SDK 7.7.0.

Built and tested with:

  • Google Mobile Ads SDK version 19.3.0.
  • Fyber SDK version 7.7.0.

Version 7.6.1.0

  • Verified compatibility with Fyber SDK 7.6.1.

Built and tested with:

  • Google Mobile Ads SDK version 19.3.0.
  • Fyber SDK version 7.6.1.

Version 7.6.0.0

  • Verified compatibility with Fyber SDK 7.6.0.
  • Updated the adapter to support inline adaptive banner requests.
  • Updated the minimum required Google Mobile Ads SDK version to 19.3.0.
  • Fixed a bug where onAdOpened()/onAdClosed() methods were not being called for banner ads.

Built and tested with:

  • Google Mobile Ads SDK version 19.3.0.
  • Fyber SDK version 7.6.0.

Version 7.5.4.0

  • Verified compatibility with Fyber SDK 7.5.4.
  • Updated the minimum required Google Mobile Ads SDK version to 19.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 19.1.0.
  • Fyber SDK version 7.5.4.

Version 7.5.3.0

  • Verified compatibility with Fyber SDK 7.5.3.

Built and tested with:

  • Google Mobile Ads SDK version 19.0.1.
  • Fyber SDK version 7.5.3.

Version 7.5.2.0

  • Verified compatibility with Fyber SDK 7.5.2.
  • Updated the minimum required Google Mobile Ads SDK version to 19.0.1.

Built and tested with:

  • Google Mobile Ads SDK version 19.0.1.
  • Fyber SDK version 7.5.2.

Version 7.5.0.0

  • Verified compatibility with Fyber SDK 7.5.0.
  • Fixed NullPointerException crash during Fyber ad loading.

Built and tested with:

  • Google Mobile Ads SDK version 18.3.0.
  • Fyber SDK version 7.5.0.

Version 7.4.1.0

  • Verified compatibility with Fyber SDK 7.4.1.
  • Updated the minimum required Google Mobile Ads SDK version to 18.3.0.

Built and tested with:

  • Google Mobile Ads SDK version 18.3.0.
  • Fyber SDK version 7.4.1.

Version 7.3.4.0

  • Initial release!
  • Supports Banner, Interstitial and Rewarded ads.

Built and tested with:

  • Google Mobile Ads SDK version 18.2.0.
  • Fyber SDK version 7.3.4.
