Pangle را با مناقصه ادغام کنید

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an Android app.

Supported integrations and ad formats

The mediation adapter for Pangle has the following capabilities:

Integration
Bidding
Waterfall	1
Formats
App open	2
Banner
Interstitial
Rewarded
Rewarded Interstitial
Native

¹ Waterfall integration is in closed beta.

² Bidding integration for this format is in closed beta.

Requirements

• Android API level 21 or higher

• Latest Google Mobile Ads SDK

• Complete the mediation Get started guide

Step 1: Set up configurations in Pangle UI

Sign up or Log in to your Pangle account.

Add a new application

Navigate to the Applications tab and click the Add App button.

Select the Operating System you wish to create an application for and fill out the rest of the form. Then, click Submit.

Take note of your application's App ID.

Create an ad placement

Once your application has been created, click the Add button to create your ad placement.

Turn on test mode

Follow the instructions in Pangle's How to add a Test Ad guide on how to enable Pangle test ads.

Step 2: Set up Pangle demand in Ad Manager UI

به حساب Ad Manager خود وارد شوید.

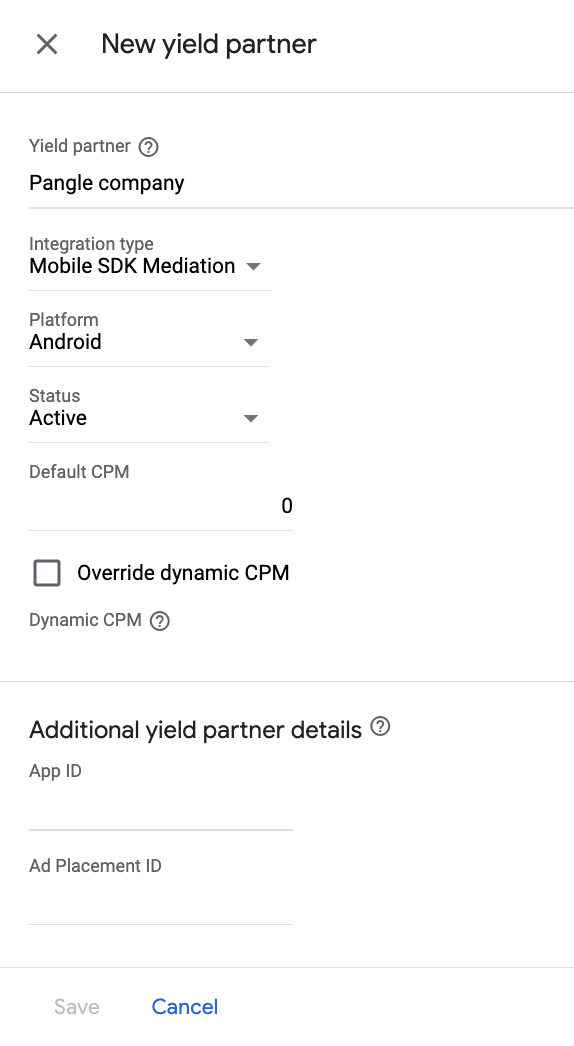

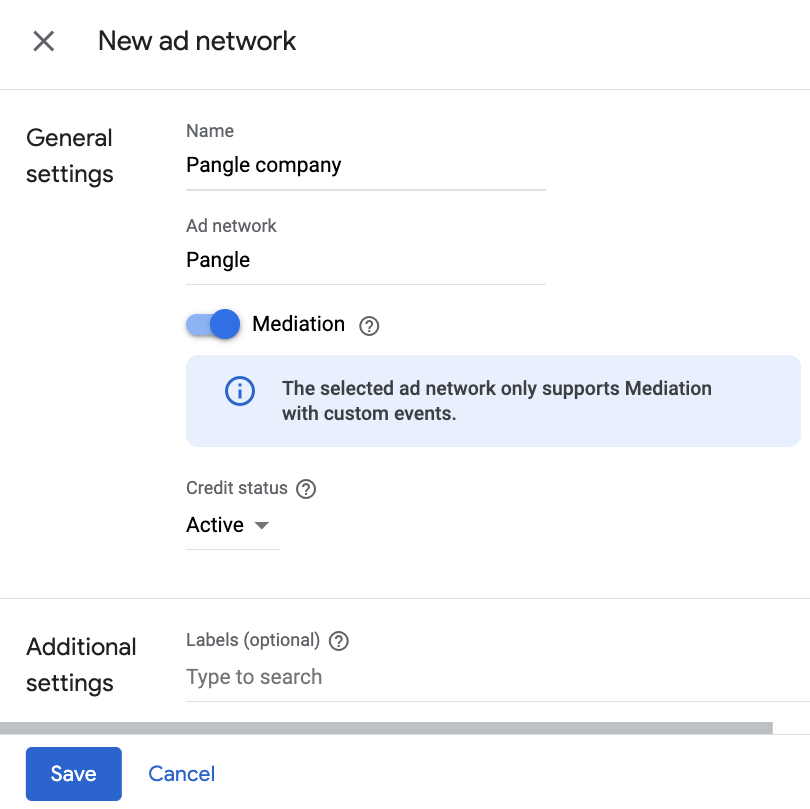

Pangle در شرکت ها اضافه کنید

اشتراک گذاری سیگنال ایمن را فعال کنید

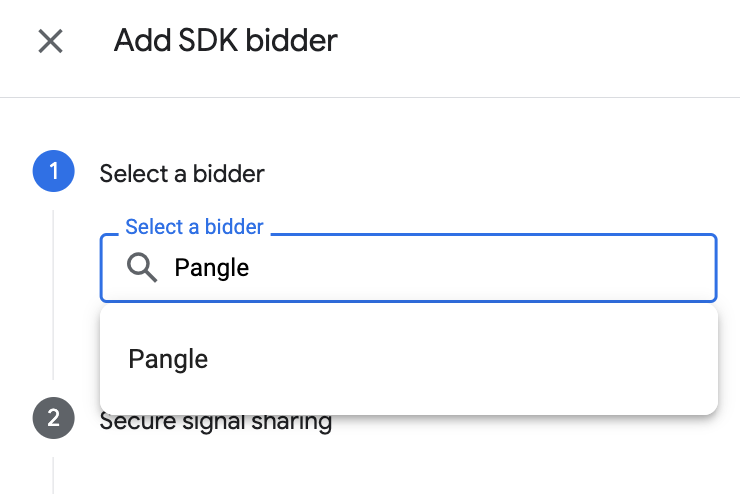

مناقصه Pangle را پیکربندی کنید

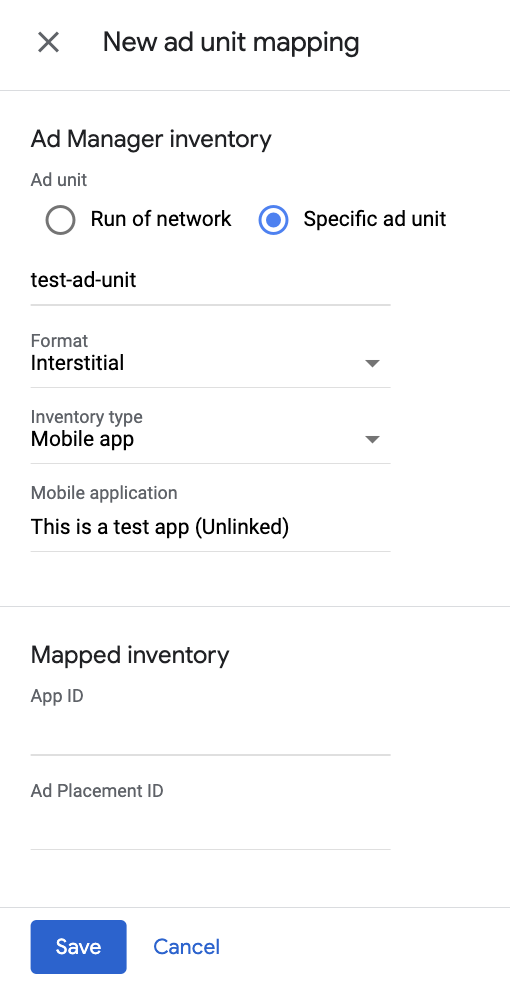

پیکربندی نقشه واحد تبلیغات

l10n

Step 3: Import the Pangle SDK and adapter

Android Studio integration (recommended)

In your project-level settings.gradle.kts file, add the following repositories:

dependencyResolutionManagement {
  repositories {
    google()
    mavenCentral()
    maven {
      url = uri("https://artifact.bytedance.com/repository/pangle/")
    }
  }
}

Then, in your app-level build.gradle.kts file, add the following implementation dependencies and configurations. Use the latest versions of the Pangle SDK and adapter:

dependencies {
    implementation("com.google.android.gms:play-services-ads:23.2.0")
    implementation("com.google.ads.mediation:pangle:6.1.0.6.0")
}

Manual integration

1. Download the latest version of the Pangle SDK for Android and extract the open_ad_sdk.aar under from the downloaded archive folder and add it to your project.

2. Navigate to the Pangle adapter artifacts on Google's Maven Repository. Select the latest version, download the Pangle adapter's .aar file, and add it to your project.

Step 4: Add required code

ProGuard obfuscation

If you use ProGuard to obfuscate Android code, follow the instructions in Pangle's documentation to ensure Pangle SDK code isn't obfuscated.

Step 5: Test your implementation

فعال کردن تبلیغات آزمایشی

مطمئن شوید که دستگاه آزمایشی خود را برایAd Manager ثبت کرده اید و حالت تست را در رابط کاربری Pangle فعال کرده اید.

تبلیغات آزمایشی را تأیید کنید

برای تأیید اینکه آگهی‌های آزمایشی را ازPangleدریافت می‌کنید، با استفاده از منبع(های) آگهی Pangle (Bidding) and Pangle (Waterfall) آزمایش منبع آگهی را در بازرس آگهی فعال کنید.

Optional Steps

Native ads

Ad rendering

The Pangle adapter returns its native ads as NativeAd objects. It populates the following fields for a NativeAd.

Field	Assets always included by Pangle adapter
Headline
Image	1
Body
Icon
Call to action
Star rating
Store
Price
Advertiser

¹ The Pangle adapter does not provide direct access to the main image asset for its native ads. Instead, the adapter populates the MediaView with a video or an image.

Error codes

If the adapter fails to receive an ad from Pangle, you can check the underlying error from the ad response using ResponseInfo.getAdapterResponses() under the following classes:

com.pangle.ads
com.google.ads.mediation.pangle.PangleMediationAdapter

Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:

Error code	Domain	Reason
101	com.google.ads.mediation.pangle	Invalid server parameters (e.g. Missing app ID or placement ID).
102	com.google.ads.mediation.pangle	The requested ad size does not match a Pangle supported banner size.
103	com.google.ads.mediation.pangle	Missing or invalid bid response.
-1-60000	com.pangle.ads	Pangle SDK returned an error. See Pangle's documentation for more details.

Pangle Android Mediation Adapter Changelog

Version 6.1.0.6.0

• Verified compatibility with Pangle SDK version 6.1.0.6.

Built and tested with:

• Google Mobile Ads SDK version 23.2.0.
• Pangle SDK version 6.1.0.6.

Version 6.0.0.8.0

• Verified compatibility with Pangle SDK version 6.0.0.8.

Built and tested with:

• Google Mobile Ads SDK version 23.1.0.
• Pangle SDK version 6.0.0.8.

Version 6.0.0.7.0

• Verified compatibility with Pangle SDK version 6.0.0.7.

Built and tested with:

• Google Mobile Ads SDK version 23.1.0.
• Pangle SDK version 6.0.0.7.

Version 6.0.0.5.0

• Verified compatibility with Pangle SDK version 6.0.0.5.

Built and tested with:

• Google Mobile Ads SDK version 23.1.0.
• Pangle SDK version 6.0.0.5.

Version 6.0.0.4.0

• Verified compatibility with Pangle SDK version 6.0.0.4.

Built and tested with:

• Google Mobile Ads SDK version 23.1.0.
• Pangle SDK version 6.0.0.4.

Version 6.0.0.3.0

• Verified compatibility with Pangle SDK version 6.0.0.3.

Built and tested with:

• Google Mobile Ads SDK version 23.1.0.
• Pangle SDK version 6.0.0.3.

Version 5.9.0.6.0

• Verified compatibility with Pangle SDK version 5.9.0.6.

Built and tested with:

• Google Mobile Ads SDK version 23.1.0.
• Pangle SDK version 5.9.0.6.

Version 5.9.0.5.0

• Verified compatibility with Pangle SDK version 5.9.0.5.

Built and tested with:

• Google Mobile Ads SDK version 23.1.0.
• Pangle SDK version 5.9.0.5.

Version 5.9.0.4.0

• Verified compatibility with Pangle SDK version 5.9.0.4.

Built and tested with:

• Google Mobile Ads SDK version 23.0.0.
• Pangle SDK version 5.9.0.4.

Version 5.9.0.2.0

• Verified compatibility with Pangle SDK version 5.9.0.2.

Built and tested with:

• Google Mobile Ads SDK version 23.0.0.
• Pangle SDK version 5.9.0.2.

Version 5.8.1.0.0

• Verified compatibility with Pangle SDK version 5.8.1.0.

Built and tested with:

• Google Mobile Ads SDK version 23.0.0.
• Pangle SDK version 5.8.1.0.

Version 5.8.0.9.0

• Verified compatibility with Pangle SDK version 5.8.0.9.
• Updated the minimum required Google Mobile Ads SDK version to 23.0.0.

Built and tested with:

• Google Mobile Ads SDK version 23.0.0.
• Pangle SDK version 5.8.0.9.

Version 5.8.0.7.0

• Verified compatibility with Pangle SDK version 5.8.0.7.

Built and tested with:

• Google Mobile Ads SDK version 22.6.0.
• Pangle SDK version 5.8.0.7.

Version 5.8.0.6.0

• Verified compatibility with Pangle SDK version 5.8.0.6.

Built and tested with:

• Google Mobile Ads SDK version 22.6.0.
• Pangle SDK version 5.8.0.6.

Version 5.7.0.3.0

• Verified compatibility with Pangle SDK version 5.7.0.3.

Built and tested with:

• Google Mobile Ads SDK version 22.6.0.
• Pangle SDK version 5.7.0.3.

Version 5.7.0.2.0

• Verified compatibility with Pangle SDK version 5.7.0.2.

Built and tested with:

• Google Mobile Ads SDK version 22.6.0.
• Pangle SDK version 5.7.0.2.

Version 5.7.0.1.0

• Verified compatibility with Pangle SDK version 5.7.0.1.

Built and tested with:

• Google Mobile Ads SDK version 22.6.0.
• Pangle SDK version 5.7.0.1.

Version 5.6.0.3.0

• Verified compatibility with Pangle SDK version 5.6.0.3.
• Updated the minimum required Google Mobile Ads SDK version to 22.6.0.

Built and tested with:

• Google Mobile Ads SDK version 22.6.0.
• Pangle SDK version 5.6.0.3.

Version 5.5.0.9.0

• Updated the minimum required Google Mobile Ads SDK version to 22.5.0.
• Verified compatibility with Pangle SDK version 5.5.0.9.

Built and tested with:

• Google Mobile Ads SDK version 22.5.0.
• Pangle SDK version 5.5.0.9.

Version 5.5.0.8.0

• Verified compatibility with Pangle SDK version 5.5.0.8.

Built and tested with:

• Google Mobile Ads SDK version 22.3.0.
• Pangle SDK version 5.5.0.8.

Version 5.5.0.7.0

• Verified compatibility with Pangle SDK version 5.5.0.7.

Built and tested with:

• Google Mobile Ads SDK version 22.3.0.
• Pangle SDK version 5.5.0.7.

Version 5.5.0.6.0

• Bidding app open ad format isn't supported in this version as this adapter version was reverted to depend on Google Mobile Ads SDK version 22.3.0.
• Verified compatibility with Pangle SDK version 5.5.0.6.

Built and tested with:

• Google Mobile Ads SDK version 22.3.0.
• Pangle SDK version 5.5.0.6.

Version 5.5.0.4.0

• Added bidding support for app open ad format.
• Added watermark support for bidding ads.
• Updated the minimum required Google Mobile Ads SDK version to 22.4.0.
• Verified compatibility with Pangle SDK version 5.5.0.4.

Built and tested with:

• Google Mobile Ads SDK version 22.4.0.
• Pangle SDK version 5.5.0.4.

Version 5.4.1.1.0

• Fixed an issue where the adapter fails to initialize.
• Verified compatibility with Pangle SDK version 5.4.1.1.

Built and tested with:

• Google Mobile Ads SDK version 22.3.0.
• Pangle SDK version 5.4.1.1.

Version 5.4.0.9.0

• Verified compatibility with Pangle SDK version 5.4.0.9.
• Updated the minimum required Google Mobile Ads SDK version to 22.3.0.

Built and tested with:

• Google Mobile Ads SDK version 22.3.0.
• Pangle SDK version 5.4.0.9.

Version 5.4.0.8.0

• Verified compatibility with Pangle SDK version 5.4.0.8.

Built and tested with:

• Google Mobile Ads SDK version 22.2.0.
• Pangle SDK version 5.4.0.8.

Version 5.3.0.6.0

• Verified compatibility with Pangle SDK version 5.3.0.6.

Built and tested with:

• Google Mobile Ads SDK version 22.2.0.
• Pangle SDK version 5.3.0.6.

Version 5.3.0.5.0

• Verified compatibility with Pangle SDK version 5.3.0.5.

Built and tested with:

• Google Mobile Ads SDK version 22.2.0.
• Pangle SDK version 5.3.0.5.

Version 5.3.0.4.0

• Verified compatibility with Pangle SDK version 5.3.0.4.

Built and tested with:

• Google Mobile Ads SDK version 22.2.0.
• Pangle SDK version 5.3.0.4.

Version 5.2.0.7.0

• Verified compatibility with Pangle SDK version 5.2.0.7.

Built and tested with:

• Google Mobile Ads SDK version 22.1.0.
• Pangle SDK version 5.2.0.7.

Version 5.2.0.6.0

• Verified compatibility with Pangle SDK version 5.2.0.6.

Built and tested with:

• Google Mobile Ads SDK version 22.1.0.
• Pangle SDK version 5.2.0.6.

Version 5.2.0.5.0

• Verified compatibility with Pangle SDK version 5.2.0.5.

Built and tested with:

• Google Mobile Ads SDK version 22.1.0.
• Pangle SDK version 5.2.0.5.

Version 5.2.0.3.0

• Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
• Verified compatibility with Pangle SDK version 5.2.0.3.

Built and tested with:

• Google Mobile Ads SDK version 22.0.0.
• Pangle SDK version 5.2.0.3.

Version 5.1.0.9.0

• Verified compatibility with Pangle SDK version 5.1.0.9.

Built and tested with:

• Google Mobile Ads SDK version 22.0.0.
• Pangle SDK version 5.1.0.9.

Version 5.1.0.8.0

• Verified compatibility with Pangle SDK version 5.1.0.8.

Built and tested with:

• Google Mobile Ads SDK version 22.0.0.
• Pangle SDK version 5.1.0.8.

Version 5.1.0.6.0

• Updated adapter to use new VersionInfo class.
• Updated the minimum required Google Mobile Ads SDK version to 22.0.0.

Built and tested with:

• Google Mobile Ads SDK version 22.0.0.
• Pangle SDK version 5.1.0.6.

Version 5.0.1.1.0

• Verified compatibility with Pangle SDK version 5.0.1.1.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• Pangle SDK version 5.0.1.1.

Version 5.0.1.0.0

• Verified compatibility with Pangle SDK version 5.0.1.0.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• Pangle SDK version 5.0.1.0.

Version 5.0.0.9.0

• Verified compatibility with Pangle SDK version 5.0.0.9.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• Pangle SDK version 5.0.0.9.

Version 5.0.0.8.0

• Verified compatibility with Pangle SDK version 5.0.0.8.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• Pangle SDK version 5.0.0.8.

Version 5.0.0.7.0

• Verified compatibility with Pangle SDK version 5.0.0.7.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• Pangle SDK version 5.0.0.7.

Version 5.0.0.6.0

• Verified compatibility with Pangle SDK version 5.0.0.6.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• Pangle SDK version 5.0.0.6.

Version 4.9.0.9.0

• Verified compatibility with Pangle SDK version 4.9.0.9.
• Updated the minimum required Google Mobile Ads SDK version to 21.5.0.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• Pangle SDK version 4.9.0.9.

Version 4.9.0.8.0

• Verified compatibility with Pangle SDK version 4.9.0.8.

Built and tested with:

• Google Mobile Ads SDK version 21.4.0.
• Pangle SDK version 4.9.0.8.

Version 4.9.0.7.0

• Verified compatibility with Pangle SDK version 4.9.0.7.

Built and tested with:

• Google Mobile Ads SDK version 21.4.0.
• Pangle SDK version 4.9.0.7.

Version 4.9.0.6.0

• Verified compatibility with Pangle SDK version 4.9.0.6.

Built and tested with:

• Google Mobile Ads SDK version 21.4.0.
• Pangle SDK version 4.9.0.6.

Version 4.8.1.0.0

• Verified compatibility with Pangle SDK version 4.8.1.0.
• Updated the minimum required Google Mobile Ads SDK version to 21.4.0.

Built and tested with:

• Google Mobile Ads SDK version 21.4.0.
• Pangle SDK version 4.8.1.0.

Version 4.8.0.9.0

• Verified compatibility with Pangle SDK version 4.8.0.9.

Built and tested with:

• Google Mobile Ads SDK version 21.3.0.
• Pangle SDK version 4.8.0.9.

Version 4.8.0.8.0

• Verified compatibility with Pangle SDK version 4.8.0.8.

Built and tested with:

• Google Mobile Ads SDK version 21.3.0.
• Pangle SDK version 4.8.0.8.

Version 4.8.0.7.0

• Verified compatibility with Pangle SDK version 4.8.0.7.

Built and tested with:

• Google Mobile Ads SDK version 21.3.0.
• Pangle SDK version 4.8.0.7.

Version 4.8.0.6.0

• Verified compatibility with Pangle SDK version 4.8.0.6.

Built and tested with:

• Google Mobile Ads SDK version 21.3.0.
• Pangle SDK version 4.8.0.6.

Version 4.7.0.7.0

• Verified compatibility with Pangle SDK version 4.7.0.7.
• Updated the minimum required Google Mobile Ads SDK version to 21.3.0.

Built and tested with:

• Google Mobile Ads SDK version 21.3.0.
• Pangle SDK version 4.7.0.7.

Version 4.7.0.6.0

• Verified compatibility with Pangle SDK version 4.7.0.6.

Built and tested with:

• Google Mobile Ads SDK version 21.2.0.
• Pangle SDK version 4.7.0.6.

Version 4.7.0.5.0

• Verified compatibility with Pangle SDK version 4.7.0.5.

Built and tested with:

• Google Mobile Ads SDK version 21.2.0.
• Pangle SDK version 4.7.0.5.

Version 4.7.0.3.0

• Verified compatibility with Pangle SDK version 4.7.0.3.
• The adapter now attempts to initialize the Pangle SDK before loading ads.

Built and tested with:

• Google Mobile Ads SDK version 21.2.0.
• Pangle SDK version 4.7.0.3.

Version 4.6.0.9.0

• Verified compatibility with Pangle SDK version 4.6.0.9.
• Updated the minimum required Google Mobile Ads SDK version to 21.2.0.

Built and tested with:

• Google Mobile Ads SDK version 21.2.0.
• Pangle SDK version 4.6.0.9.

Version 4.5.0.6.1

• Added bidding support for native ad format.
• Updated the minimum required Google Mobile Ads SDK version to 21.1.0.

Built and tested with:

• Google Mobile Ads SDK version 21.1.0.
• Pangle SDK version 4.5.0.6.

Version 4.5.0.6.0

• Verified compatibility with Pangle SDK version 4.5.0.6.

Built and tested with:

• Google Mobile Ads SDK version 21.0.0.
• Pangle SDK version 4.5.0.6.

Version 4.5.0.5.0

• Verified compatibility with Pangle SDK version 4.5.0.5.

Built and tested with:

• Google Mobile Ads SDK version 21.0.0.
• Pangle SDK version 4.5.0.5.

Version 4.5.0.4.0

• Verified compatibility with Pangle SDK version 4.5.0.4.

Built and tested with:

• Google Mobile Ads SDK version 21.0.0.
• Pangle SDK version 4.5.0.4.

Version 4.5.0.3.0

• Verified compatibility with Pangle SDK version 4.5.0.3.
• Updated compileSdkVersion and targetSdkVersion to API 31.
• Updated the minimum required Google Mobile Ads SDK version to 21.0.0.
• Updated the minimum required Android API level to 19.

Built and tested with:

• Google Mobile Ads SDK version 21.0.0.
• Pangle SDK version 4.5.0.3.

Version 4.3.0.9.0

• Verified compatibility with Pangle SDK version 4.3.0.9.

Built and tested with:

• Google Mobile Ads SDK version 20.6.0.
• Pangle SDK version 4.3.0.9.

Version 4.3.0.8.0

• Verified compatibility with Pangle SDK version 4.3.0.8.

Built and tested with:

• Google Mobile Ads SDK version 20.6.0.
• Pangle SDK version 4.3.0.8.

Version 4.3.0.7.0

• Verified compatibility with Pangle SDK version 4.3.0.7.

Built and tested with:

• Google Mobile Ads SDK version 20.6.0.
• Pangle SDK version 4.3.0.7.

Version 4.3.0.6.0

• Verified compatibility with Pangle SDK version 4.3.0.6.

Built and tested with:

• Google Mobile Ads SDK version 20.6.0.
• Pangle SDK version 4.3.0.6.

Version 4.3.0.4.0

• Verified compatibility with Pangle SDK version 4.3.0.4.

Built and tested with:

• Google Mobile Ads SDK version 20.6.0.
• Pangle SDK version 4.3.0.4.

Version 4.2.5.3.0

• Initial release!
• Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.

Built and tested with:

• Google Mobile Ads SDK version 20.6.0.
• Pangle SDK version 4.2.5.3.
