This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Mintegral using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Mintegral to an ad unit's mediation configuration, and how to integrate the Mintegral SDK and adapter into an Android app.
Supported integrations and ad formats
The mediation adapter for Mintegral has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
App Open | 1 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native | 2 |
2 Bidding and waterfall integrations for native ad format are in open beta.
Requirements
- Android API level 21 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Mintegral UI
Sign up or Log in to your Mintegral account.
Locate the App Key
Navigate to the APP Setting tab and take note of the APP Key.
Add a new application
From the APP Setting tab, click the Add APP button.
Select the Platform and fill out the rest of the form. Then, click Save.
![](https://developers-dot-devsite-v2-prod.appspot.com/admob/images/mediation/mintegral/new_application_Android.png?authuser=2&hl=ko)
Take note of your application's APP ID.
![](https://developers-dot-devsite-v2-prod.appspot.com/admob/images/mediation/mintegral/app_id_Android.png?authuser=2&hl=ko)
Create an ad placement
Once your application has been created, navigate to the Placements & Units tab and click on the Add Placement button as shown below to create your ad placement.
![](https://developers-dot-devsite-v2-prod.appspot.com/admob/images/mediation/mintegral/create_placement_Android.png?authuser=2&hl=ko)
Enter a Placement Name and AD Format.
Bidding
Select Header Bidding as the Bidding Type. Fill out the rest of the form and click Save.
Waterfall
Select Traditional as the Bidding Type. Fill out the rest of the form and click Save.
Once your ad placement is created, take note of the Placement ID.
![](https://developers-dot-devsite-v2-prod.appspot.com/admob/images/mediation/mintegral/ad_placement_id_Android.png?authuser=2&hl=ko)
Click the 1 AD Units drop down and take note of the AD Unit ID.
![](https://developers-dot-devsite-v2-prod.appspot.com/admob/images/mediation/mintegral/add_ad_unit_id_Android.png?authuser=2&hl=ko)
Locate your Mintegral Reporting API Key
Bidding
This step isn't required for bidding integrations.
Waterfall
You will need your Mintegral Reporting API Key for setting up your AdMob ad unit ID. Navigate to Account > API Tools. Take note of your Skey and Secret.
Step 2: Set up Mintegral demand in AdMob UI
광고 단위에 대한 미디에이션 설정 구성
Mintegral 를 광고 단위의 미디에이션 구성에 추가해야 합니다.
먼저 AdMob 계정에 로그인합니다. 그런 다음 미디에이션 탭으로 이동합니다. 수정할 기존 미디에이션 그룹이 있는 경우 해당 미디에이션 그룹의 이름을 클릭하여 수정한 후 Mintegral 광고 소스로 추가로 건너뜁니다.
새 미디에이션 그룹을 만들려면 미디에이션 그룹 만들기를 선택합니다.
광고 형식과 플랫폼을 입력하고 계속을 클릭합니다.
미디에이션 그룹에 이름을 지정하고 타겟팅할 위치를 선택합니다. 미디에이션 그룹 상태를 사용으로 설정한 다음 광고 단위 추가를 클릭합니다.
이 미디에이션 그룹을 하나 이상의 기존AdMob 광고 단위와 연결합니다. 그런 다음 완료를 클릭합니다.
이제 광고 단위 카드가 선택한 광고 단위로 채워진 것을 볼 수 있습니다.
광고 소스로 Mintegral 추가
입찰
광고 소스 섹션의 입찰 카드에서 광고 소스 추가를 선택합니다. 그런 다음 Mintegral을 선택합니다.
파트너십 계약을 체결하는 방법을 클릭하고Mintegral과(와) 입찰 파트너십을 설정합니다.
확인 및 동의를 클릭한 다음 계속을 클릭합니다.

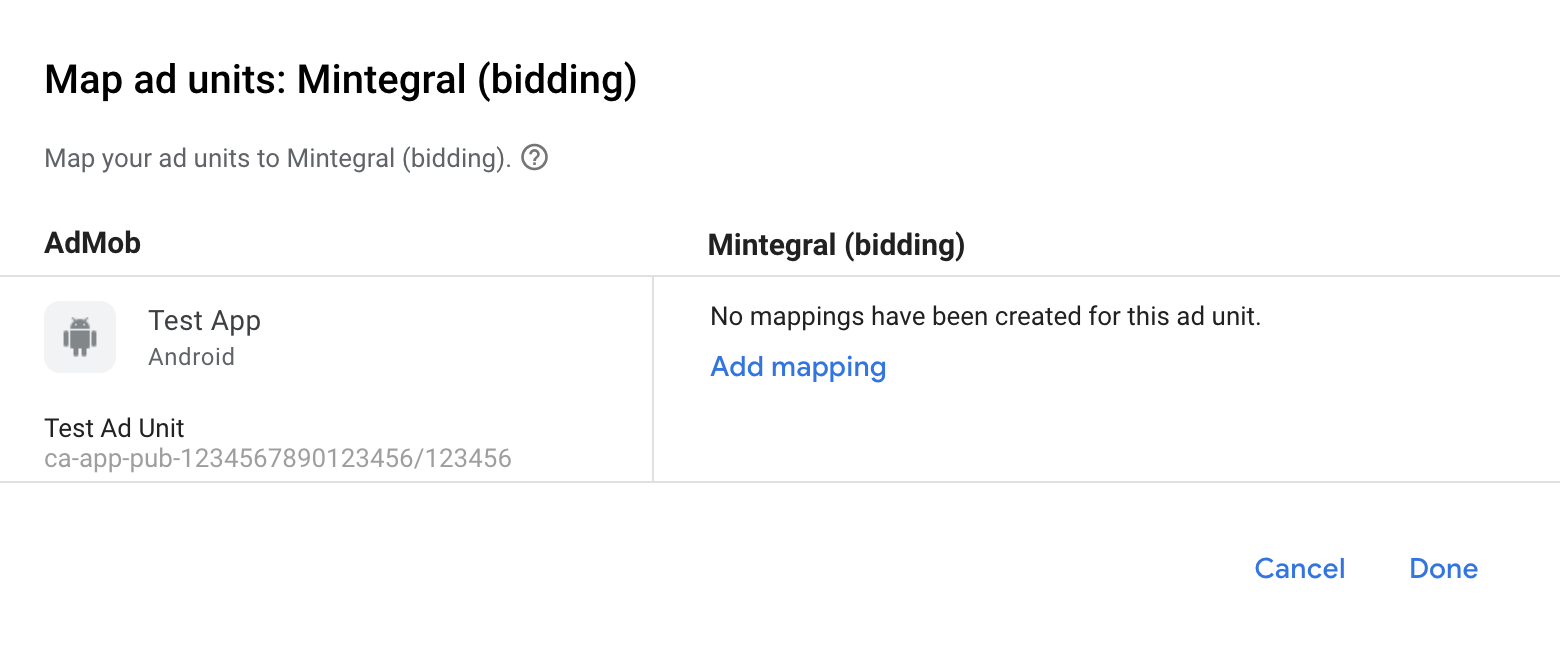

이미 Mintegral에 대한 매핑이 있는 경우 해당 매핑을 선택할 수 있습니다. 그렇지 않으면 매핑 추가를 클릭합니다.

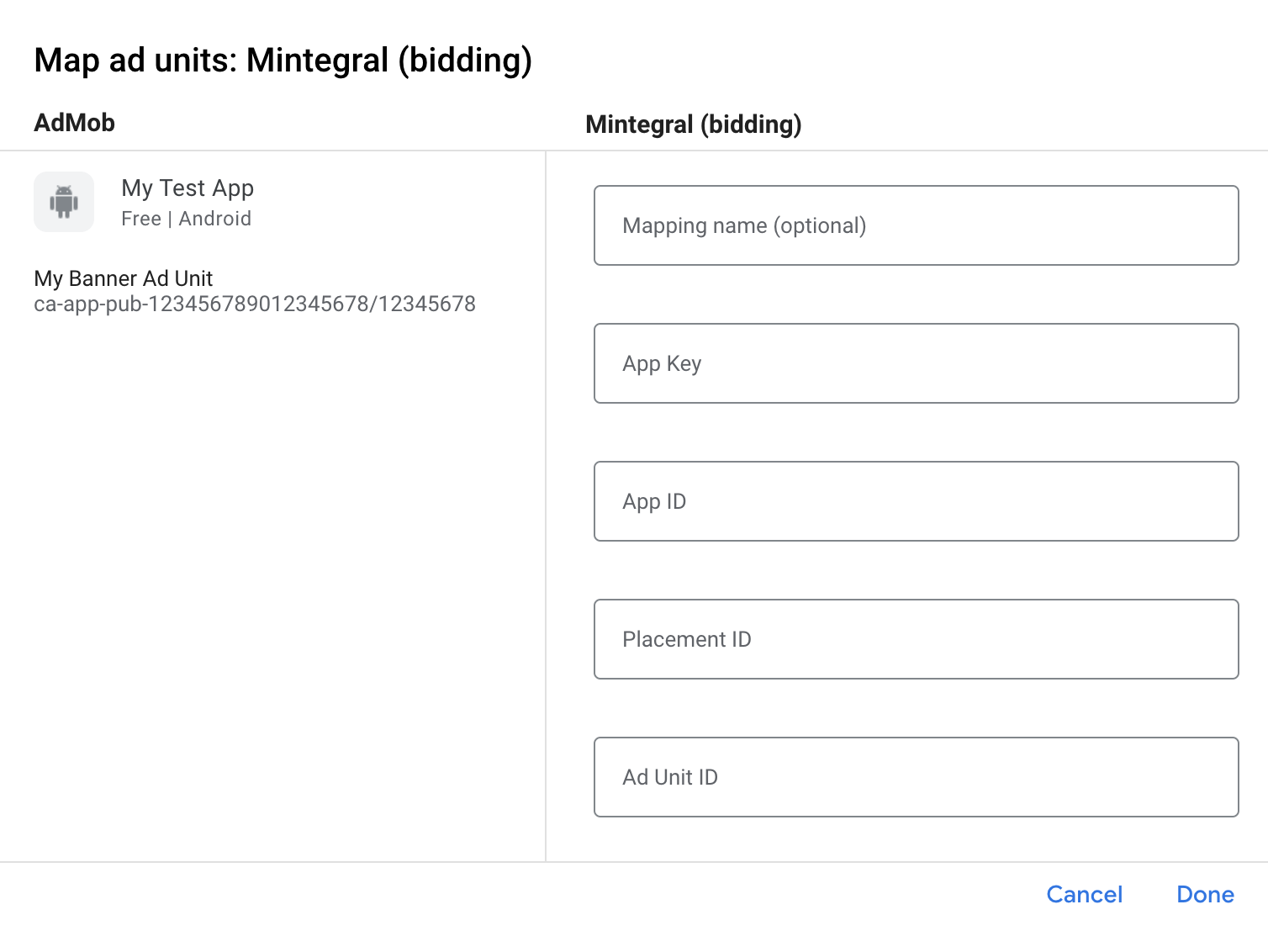

그런 다음 이전 섹션에서 얻은 App Key, App ID, Placement ID, and Ad Unit ID를 입력합니다. 그런 다음 완료를 클릭합니다.
중요: App ID and App Key 는Mintegral UI에서와 같이 타겟팅된 앱과 연결되어야 합니다.폭포
광고 소스 섹션의 폭포식 구조 카드에서 광고 소스 추가를 선택합니다. 그런 다음 Mintegral을 선택합니다.

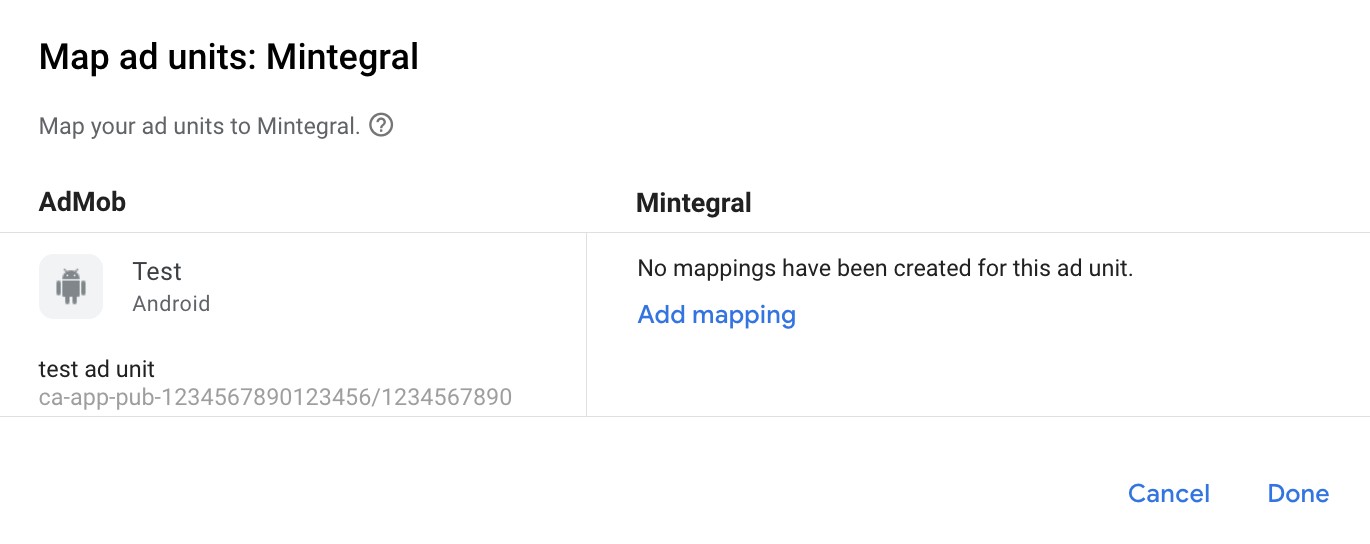

Mintegral를 선택합니다. 그런 다음Mintegral 에 eCPM 값을 입력하고 계속을 클릭합니다.이미 Mintegral에 대한 매핑이 있는 경우 해당 매핑을 선택할 수 있습니다. 그렇지 않으면 매핑 추가를 클릭합니다.

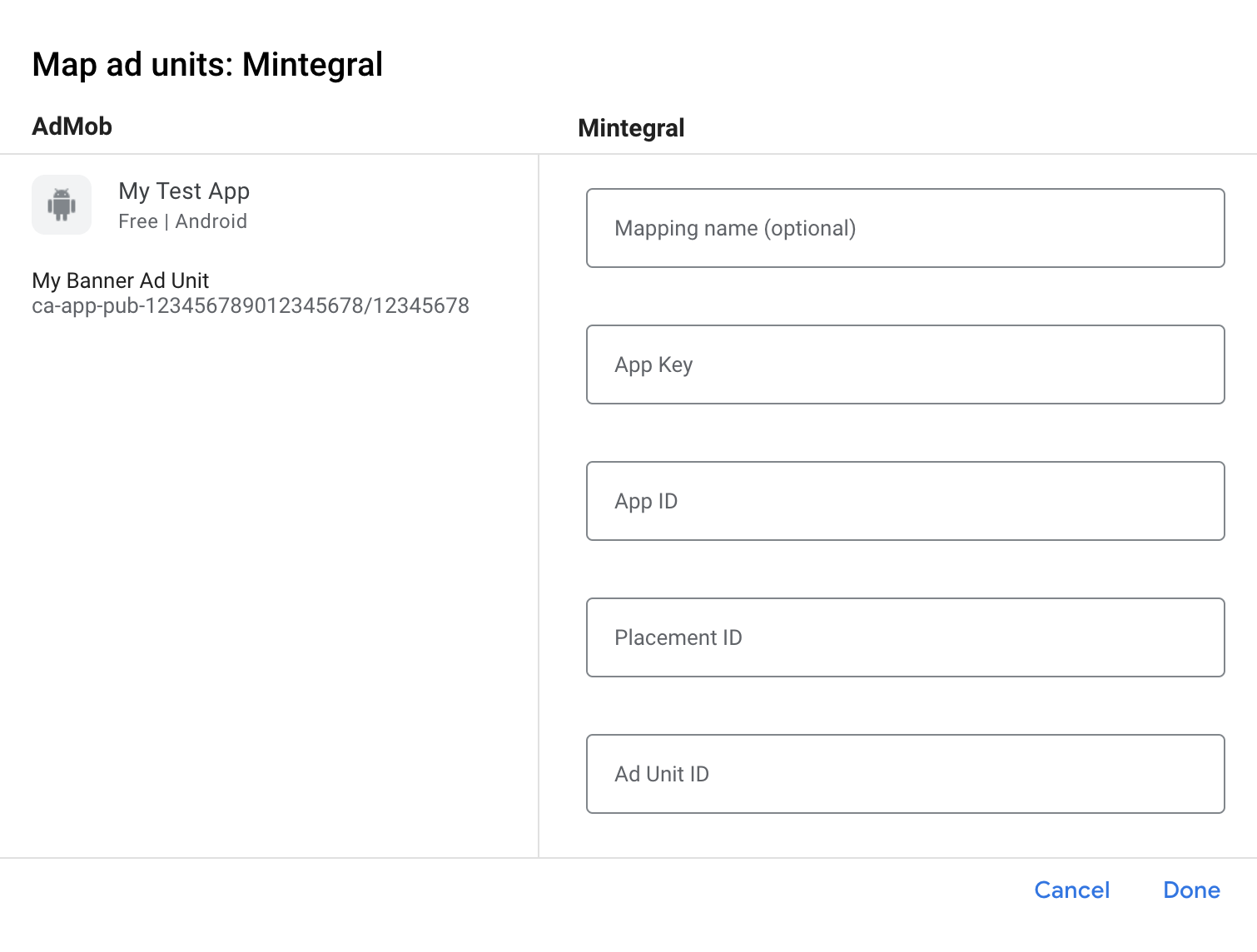

그런 다음 이전 섹션에서 얻은 App Key, App ID, Placement ID, and Ad Unit ID를 입력합니다. 그런 다음 완료를 클릭합니다.
Add Mintegral to GDPR and US state regulations ad partners list
GDPR 설정 및 미국 주 규정 설정 Mintegral 를 AdMob UI의 GDPR 및 미국 주 규정 광고 파트너 목록에 추가합니다.
Step 3: Import the Mintegral SDK and adapter
Android Studio integration (recommended)
In your project-level settings.gradle.kts
file, add the following
repositories:
dependencyResolutionManagement {
repositories {
google()
mavenCentral()
maven {
url = uri("https://dl-maven-android.mintegral.com/repository/mbridge_android_sdk_oversea")
}
}
}
Then, in your app-level build.gradle.kts
file, add the following
implementation dependencies and configurations. Use the latest versions of the
Mintegral SDK and adapter:
dependencies {
implementation("com.google.android.gms:play-services-ads:23.3.0")
implementation("com.google.ads.mediation:mintegral:16.8.11.0")
}
Manual integration
To include the Mintegral SDK, go to Mintegral SDK for Android.
Navigate to the Mintegral adapter artifacts on Google's Maven Repository. Select the latest version, download the Mintegral adapter's
.aar
file, and add it to your project.
Step 4: Implement privacy settings on Mintegral SDK
EU consent and GDPR
Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.
The Mintegral SDK includes the setConsentStatus
method to pass consent
information to the Mintegral SDK.
The following sample code shows how to pass consent information to the Mintegral SDK. These options must be set before you initialize the Google Mobile Ads SDK to ensure they get forwarded properly to the Mintegral SDK.
Java
import com.mbridge.msdk.out.MBridgeSDKFactory
// ...
MBridgeSDK sdk = MBridgeSDKFactory.getMBridgeSDK();
sdk.setConsentStatus(context, MBridgeConstans.IS_SWITCH_ON);
Kotlin
import com.mbridge.msdk.out.MBridgeSDKFactory
// ...
var sdk = MBridgeSDKFactory.getMBridgeSDK()
sdk.setConsentStatus(context, MBridgeConstans.IS_SWITCH_ON)
See Mintegral's privacy documentation for more information.
US states privacy laws
U.S. states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The U.S. states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.
The Mintegral SDK includes setDoNotTrackStatus
method to pass consent
information to the Mintegral SDK.
The following sample code shows how to pass consent information to the Mintegral SDK. If you need to call this method, call it after initializing the Google Mobile Ads SDK but before requesting ads through the Google Mobile Ads SDK.
Java
import com.mbridge.msdk.out.MBridgeSDKFactory
// ...
MBridgeSDK mBridgeSDK = MBridgeSDKFactory.getMBridgeSDK();
mBridgeSDK.setDoNotTrackStatus(false);
Kotlin
import com.mbridge.msdk.out.MBridgeSDKFactory
// ...
var mBridgeSDK = MBridgeSDKFactory.getMBridgeSDK()
mBridgeSDK.setDoNotTrackStatus(false)
See Mintegral's privacy documentation for more information.
Step 5: Add required code
No additional code is required for Mintegral integration.
Step 6: Test your implementation
테스트 광고 사용 설정
AdMob
배너, 전면 광고, 보상형 광고, 네이티브 광고 형식용 Mintegral 테스트 광고를 가져오려면 Mintegral 테스트 ID 페이지에 제공된 앱 키, 앱 ID, 게재위치 ID, 광고 단위 ID를 사용하는 것이 좋습니다.
테스트 광고 확인
Mintegral에서 테스트 광고를 수신하고 있는지 확인하려면 광고 검사기에서 Mintegral (Bidding) and Mintegral (Waterfall) 광고 소스를 사용하여 단일 광고 소스 테스트를 사용 설정하세요.
Optional steps
Add Mintegral to CCPA ad partners list
Follow the steps in CCPA settings to add Mintegral to the CCPA ad partners list in the AdMob UI.
Native ads
Ad rendering
The Mintegral adapter returns its native ads as
NativeAd
objects. It populates the following
fields
for a
NativeAd
.
Field | Assets always included by Mintegral adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Mintegral adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
MediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Mintegral, you can check the
underlying error from the ad response using
ResponseInfo.getAdapterResponses()
under the following classes:
com.mbridge.msdk
com.google.ads.mediation.mintegral.MintegralMediationAdapter
Here are the codes and accompanying messages thrown by the Mintegral adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.mintegral | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.mintegral | The requested ad size does not match a Mintegral supported banner size. |
103 | com.google.ads.mediation.mintegral | Missing or invalid bid response. |
104 | com.google.ads.mediation.mintegral | Mintegral SDK returned a no fill error. |
Mintegral Android Mediation Adapter Changelog
Version 16.8.11.0
- Verified compatibility with Mintegral SDK 16.8.11.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Mintegral SDK version 16.8.11.
Version 16.7.91.0
- Verified compatibility with Mintegral SDK 16.7.91.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Mintegral SDK version 16.7.91.
Version 16.7.81.0
- Verified compatibility with Mintegral SDK 16.7.81.
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- Mintegral SDK version 16.7.81.
Version 16.7.71.0
- Verified compatibility with Mintegral SDK 16.7.71.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Mintegral SDK version 16.7.71.
Version 16.7.61.0
- Verified compatibility with Mintegral SDK 16.7.61.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Mintegral SDK version 16.7.61.
Version 16.7.51.0
- Verified compatibility with Mintegral SDK 16.7.51.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Mintegral SDK version 16.7.51.
Version 16.7.41.0
- Verified compatibility with Mintegral SDK 16.7.41.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Mintegral SDK version 16.7.41.
Version 16.7.31.0
- Verified compatibility with Mintegral SDK 16.7.31.
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- Mintegral SDK version 16.7.31.
Version 16.7.21.0
- Verified compatibility with Mintegral SDK 16.7.21.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Mintegral SDK version 16.7.21.
Version 16.7.11.0
- Verified compatibility with Mintegral SDK 16.7.11.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Mintegral SDK version 16.7.11.
Version 16.6.71.0
- Verified compatibility with Mintegral SDK 16.6.71.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Mintegral SDK version 16.6.71.
Version 16.6.61.0
- Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
- Verified compatibility with Mintegral SDK 16.6.61.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- Mintegral SDK version 16.6.61.
Version 16.6.51.0
- Verified compatibility with Mintegral SDK 16.6.51.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Mintegral SDK version 16.6.51.
Version 16.6.41.0
- Verified compatibility with Mintegral SDK 16.6.41.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Mintegral SDK version 16.6.41.
Version 16.6.34.0
- Verified compatibility with Mintegral SDK 16.6.34.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Mintegral SDK version 16.6.34.
Version 16.6.21.0
- Verified compatibility with Mintegral SDK 16.6.21.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Mintegral SDK version 16.6.21.
Version 16.5.91.1
- Added bidding support for app open ad format.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Mintegral SDK version 16.5.91.
Version 16.5.91.0
- Verified compatibility with Mintegral SDK 16.5.91.
- Updated the minimum required Google Mobile Ads SDK version to 22.6.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- Mintegral SDK version 16.5.91.
Version 16.5.51.0
- Verified compatibility with Mintegral SDK 16.5.51.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Mintegral SDK version 16.5.51.
Version 16.5.41.0
- Verified compatibility with Mintegral SDK 16.5.41.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Mintegral SDK version 16.5.41.
Version 16.5.31.0
- Verified compatibility with Mintegral SDK 16.5.31.
- Reverted the adapter to depend on Google Mobile Ads SDK version 22.3.0.
- Added waterfall support for app open ad format.
Built and tested with:
- Google Mobile Ads SDK version 22.3.0.
- Mintegral SDK version 16.5.31.
Version 16.5.21.0
- Verified compatibility with Mintegral SDK 16.5.21.
- Updated the minimum required Google Mobile Ads SDK version to 22.4.0.
Built and tested with:
- Google Mobile Ads SDK version 22.4.0.
- Mintegral SDK version 16.5.21.
Version 16.5.11.0
- Added watermark support for bidding ads.
- Verified compatibility with Mintegral SDK 16.5.11.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Mintegral SDK version 16.5.11.
Version 16.4.91.0
- Verified compatibility with Mintegral SDK 16.4.91.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Mintegral SDK version 16.4.91.
Version 16.4.81.0
- Verified compatibility with Mintegral SDK 16.4.81.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Mintegral SDK version 16.4.81.
Version 16.4.71.0
- Verified compatibility with Mintegral SDK 16.4.71.
Built and tested with:
- Google Mobile Ads SDK version 22.2.0.
- Mintegral SDK version 16.4.71.
Version 16.4.61.0
- Verified compatibility with Mintegral SDK 16.4.61.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Mintegral SDK version 16.4.61.
Version 16.4.51.0
- Verified compatibility with Mintegral SDK 16.4.51.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- Mintegral SDK version 16.4.51.
Version 16.4.41.0
- Fixed an issue where banner ads were rendered with incorrect sizes.
- Verified compatibility with Mintegral SDK 16.4.41.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Mintegral SDK version 16.4.41.
Version 16.4.31.0
- Verified compatibility with Mintegral SDK 16.4.31.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Mintegral SDK version 16.4.31.
Version 16.4.21.0
- Updated adapter to use new
VersionInfo
class. - Updated the minimum required Google Mobile Ads SDK version to 22.0.0.
- Verified compatibility with Mintegral SDK 16.4.21.
Built and tested with:
- Google Mobile Ads SDK version 22.0.0.
- Mintegral SDK version 16.4.21.
Version 16.3.91.0
- Verified compatibility with Mintegral SDK 16.3.91.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Mintegral SDK version 16.3.91.
Version 16.3.81.0
- Verified compatibility with Mintegral SDK 16.3.81.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Mintegral SDK version 16.3.81.
Version 16.3.71.0
- Verified compatibility with Mintegral SDK 16.3.71.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Mintegral SDK version 16.3.71.
Version 16.3.61.0
- Verified compatibility with Mintegral SDK 16.3.61.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Mintegral SDK version 16.3.61.
Version 16.3.51.1
- Added waterfall support for banner (includes MREC), interstitial, rewarded and native ad formats.
- Updated the minimum required Google Mobile Ads SDK version to 21.5.0.
Built and tested with:
- Google Mobile Ads SDK version 21.5.0.
- Mintegral SDK version 16.3.51.
Version 16.3.51.0
- Verified compatibility with Mintegral SDK 16.3.51.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Mintegral SDK version 16.3.51.
Version 16.3.41.0
- Verified compatibility with Mintegral SDK 16.3.41.
- Updated the minimum required Google Mobile Ads SDK version to 21.4.0.
Built and tested with:
- Google Mobile Ads SDK version 21.4.0.
- Mintegral SDK version 16.3.41.
Version 16.3.11.0
- Verified compatibility with Mintegral SDK 16.3.11.
- Updated the adapter to forward
onUserEarnedReward()
beforeonAdClosed()
when showing rewarded ads.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Mintegral SDK version 16.3.11.
Version 16.2.61.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial, rewarded and native ad formats.
Built and tested with:
- Google Mobile Ads SDK version 21.3.0.
- Mintegral SDK version 16.2.61.
