This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Line using AdMob Mediation, covering waterfall integrations. It covers how to add Line to an ad unit's mediation configuration, and how to integrate the Line SDK and adapter into an Android app.
The dashboard interface for Line uses Japanese text for its labels, buttons, and descriptions. The screenshots in this guide have not been translated. In this guide's descriptions and instructions however, labels and buttons are translated with their English language equivalents in parentheses.
Supported integrations and ad formats
The mediation adapter for Line has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | 1 |
Formats | |
Banner | |
Interstitial | |
Rewarded | |
Native |
1 Waterfall integration is in open beta.
Requirements
- Android API level 21 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Line UI
Log in to your Line account.
Add a new application
Click 広告枠管理 (Ad Slot Management) > メディア (Media). Then, click 新規作成 (Create New).
Fill out the form and click 登録 (Register).
Take note of the Application ID.
Create an ad placement
Click the ID of the application you want to add an ad placement. Then, select 詳細 (Detail).
Click スロット 追加 (Add Slot).
Fill out the form and once done, click (登録) Register.
Take note of the Slot ID.
Step 2: Set up Line demand in AdMob UI
Configurare le impostazioni di mediazione per l'unità pubblicitaria
Devi aggiungere Line alla configurazione della mediazione per la tua unità pubblicitaria.
Innanzitutto, accedi all'account AdMob. Quindi, vai alla scheda Mediazione. Se vuoi modificare un gruppo di mediazione esistente, fai clic sul nome del gruppo per modificarlo e vai alla sezione Aggiungi Line come origine annuncio.
Per creare un nuovo gruppo di mediazione, seleziona Crea gruppo di mediazione.
Inserisci il formato dell'annuncio e la piattaforma, poi fai clic su Continua.
Assegna un nome al gruppo di mediazione e seleziona le località da scegliere come target. Imposta lo stato del gruppo di mediazione su Attivato e fai clic su Aggiungi unità pubblicitarie.
Associa questo gruppo di mediazione a una o più unità pubblicitarieAdMob esistenti. Poi, fai clic su Fine.
A questo punto, dovresti vedere la scheda delle unità pubblicitarie compilata con quelle selezionate:
Aggiungi Line come origine annuncio
Nella scheda Con struttura a cascata della sezione Origini annuncio, seleziona Aggiungi origine annuncio. Seleziona Line.

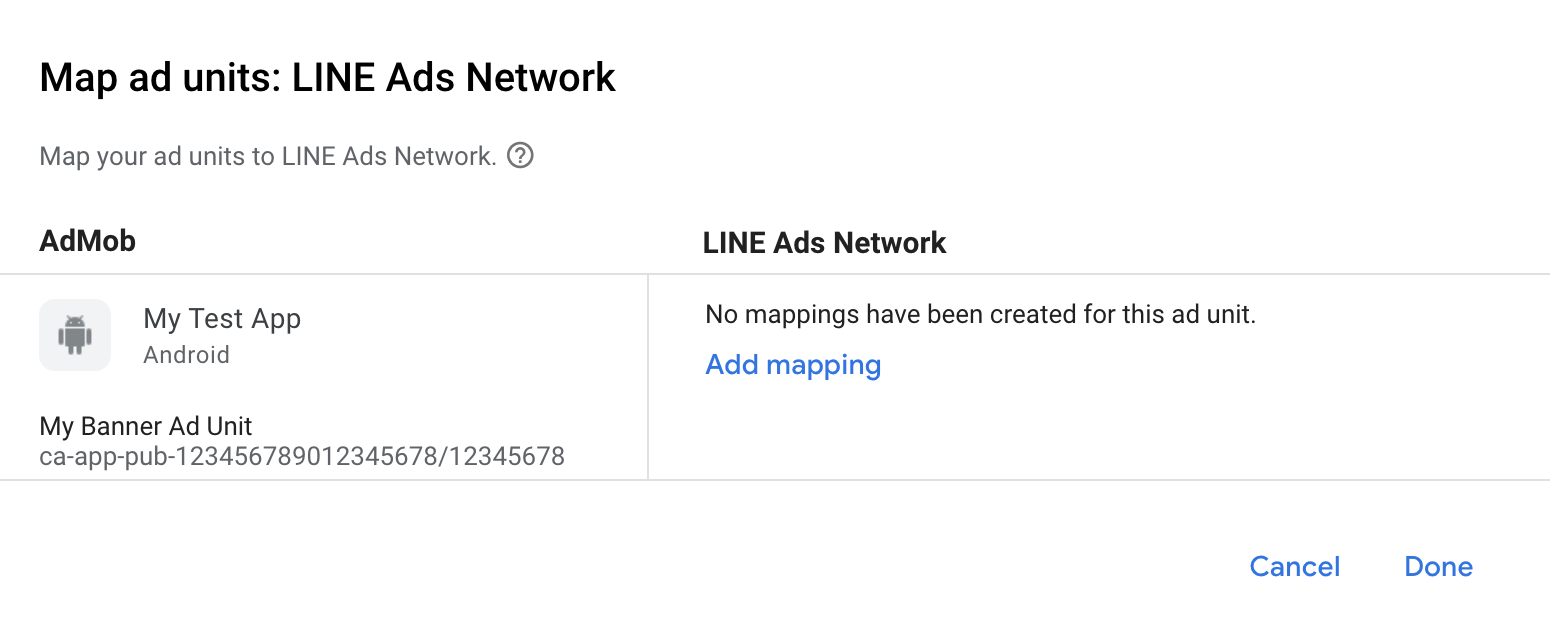

Seleziona Line. Inserisci un valore eCPM perLine e fai clic su Continua.Se hai già una mappatura per Line, puoi selezionarla. In caso contrario, fai clic su Aggiungi mappatura.

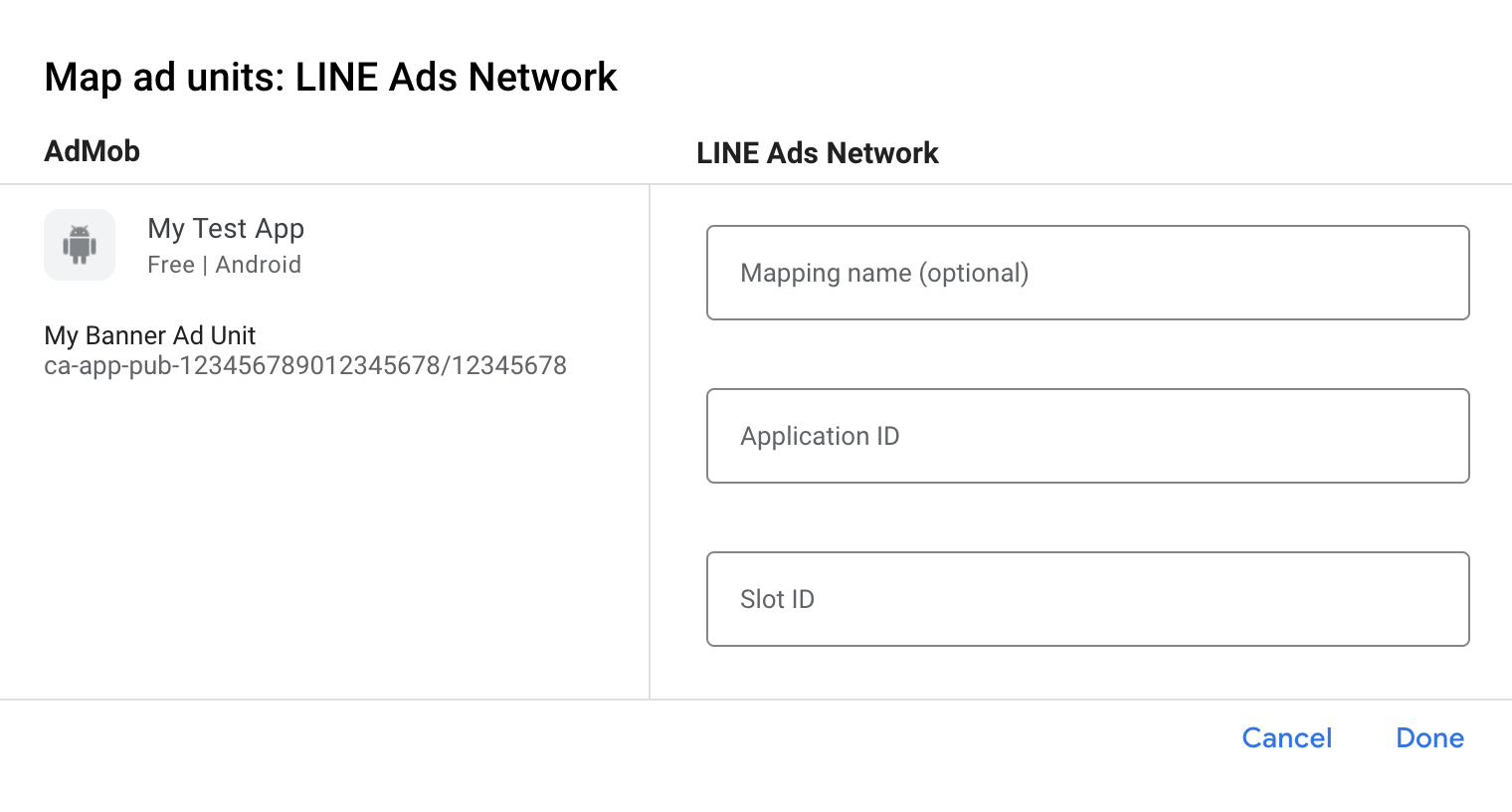

Quindi, inserisci l' Application ID and Slot ID ottenuto nella sezione precedente. Poi, fai clic su Fine.
Step 3: Import the Line SDK and Adapter
Android Studio integration (recommended)
In your app-level build.gradle.kts
file, add the following implementation
dependencies and configurations. Use the latest versions of the Line SDK
and adapter:
dependencies {
implementation("com.google.android.gms:play-services-ads:23.4.0")
implementation("com.google.ads.mediation:line:2.8.20240827.0")
}
Manual integration
Download the latest version of the Line SDK's
.aar
file and add it to your project.Navigate to the Line adapter artifacts on Google's Maven Repository. Select the latest version, download the Line adapter's
.aar
file, and add it to your project.
Step 4: Add required code
No additional code is required for Line integration.
Step 5: Test your implementation
Attiva annunci di prova
Assicurati di registrare il dispositivo di test per AdMob
Segui le istruzioni riportate nella documentazione di Line su come attivare gli annunci di prova di Line.
Verifica annunci di prova
Per verificare di ricevere annunci di prova daLine, attiva il test di una singola origine annuncio nello strumento di controllo degli annunci utilizzando le Line (Waterfall) origini annuncio.
Optional steps
Network-specific parameters
The Line adapter supports an additional request parameter which can be passed
to the adapter using the LineExtras
class. This class constructor includes
the following parameters:
enableAdSound
- A
boolean
to specify the default sound start state of banner, interstitial and rewarded ads.
Here's a code example of how to create an ad request that sets these parameters:
Java
LineExtras lineExtras = new LineExtras(true);
Bundle extras = lineExtras.build();
Richiesta di annuncio request = new Richiesta di annuncio.Builder()
.addNetworkExtrasBundle(LineMediationAdapter.class, extras)
.build();
Kotlin
val lineExtras = LineExtras(true)
val extras = lineExtras.build()
val request = Richiesta di annuncio.Builder()
.addNetworkExtrasBundle(LineMediationAdapter::class.java, extras)
.build()
Using native ads
Ad rendering
The Line adapter populates the following
Native ads advanced field descriptions
for a
NativeAd
.
Field | Assets always included by Line adapter |
---|---|
Headline | |
Image | |
Body | |
App icon | 1 |
Call to action | |
Star rating | |
Store | |
Price |
1 For native ads, the Line SDK does not provide an app icon asset. Instead, the Line adapter populates the app icon with a transparent image.
Error codes
If the adapter fails to receive an ad from Line, you can check the
underlying error from the ad response using
ResponseInfo.getAdapterResponses()
under the following classes:
com.line.ads
com.google.ads.mediation.line.LineMediationAdapter
Here are the codes and accompanying messages thrown by the Line adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
1-10 | com.five_corp.ad | Line SDK returned an SDK-specific error. See Line's documentation for more details. |
101 | com.google.ads.mediation.line | Missing or invalid Application ID. |
102 | com.google.ads.mediation.line | Missing or invalid Slot ID. |
103 | com.google.ads.mediation.line | The requested ad size does not match a Line supported banner ad size. |
104 | com.google.ads.mediation.line | Failed to load an interstitial or rewarded ad due to missing activity context. |
105 | com.google.ads.mediation.line | Line SDK failed to show an interstitial or rewarded ad. |
106 | com.google.ads.mediation.line | Failed to load a native ad due to missing assets. |
LINE Android Mediation Adapter Changelog
Next Version
- Implemented AdLoader to enable RTB for Interstitial Ads.
- Implemented AdLoader to enable RTB for Rewarded Ads.
Version 2.8.20240827.0
- Verified compatibility with FiveAd SDK version 2.8.20240827.0
Built and tested with:
- Google Mobile Ads SDK version 23.3.0.
- FiveAd SDK version 2.8.20240827.0
Version 2.8.20240808.0
- Verified compatibility with FiveAd SDK version 2.8.20240808.0
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- FiveAd SDK version 2.8.20240808.0
Version 2.8.20240722.0
- Verified compatibility with FiveAd SDK version 2.8.20240722.0
Built and tested with:
- Google Mobile Ads SDK version 23.2.0.
- FiveAd SDK version 2.8.20240722.0
Version 2.7.20240515.0
- Verified compatibility with FiveAd SDK version 2.7.20240515.0
Built and tested with:
- Google Mobile Ads SDK version 23.1.0.
- FiveAd SDK version 2.7.20240515.0
Version 2.7.20240214.1
- Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
- Verified compatibility with FiveAd SDK version 2.7.20240214.0.
Built and tested with:
- Google Mobile Ads SDK version 23.0.0.
- FiveAd SDK version 2.7.20240214.0.
Version 2.7.20240214.0
- Verified compatibility with FiveAd SDK version 2.7.20240214.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- FiveAd SDK version 2.7.20240214.0.
Version 2.7.20240126.0
- Verified compatibility with FiveAd SDK version 2.7.20240126.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- FiveAd SDK version 2.7.20240126.0.
Version 2.7.20240112.0
- Removed deprecated
FiveAdViewEventListener
in favor ofFiveAdCustomLayoutEventListener
,FiveAdVideoRewardEventListener
,FiveAdInterstitialEventListener
andFiveAdNativeEventListener
. - Verified compatibility with FiveAd SDK version 2.7.20240112.
- Updated the minimum required Google Mobile Ads SDK version to 22.6.0.
Built and tested with:
- Google Mobile Ads SDK version 22.6.0.
- FiveAd SDK version 2.7.20240112.
Version 2.6.20230607.1
- Added
LineExtras
class for publishers to define default sound settings for banner, interstitial and rewarded ad formats. - Updated the minimum required Google Mobile Ads SDK version to 22.4.0.
Built and tested with:
- Google Mobile Ads SDK version 22.4.0.
- FiveAd SDK version 2.6.20230607.
Version 2.6.20230607.0
- Initial release.
- Adds support for banner, interstitial, rewarded and native ad formats.
- Verified compatibility with FiveAd SDK version 2.6.20230607.
Built and tested with:
- Google Mobile Ads SDK version 22.1.0.
- FiveAd SDK version 2.6.20230607.
