This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Line using mediation, covering waterfall integrations. It covers how to add Line to an ad unit's mediation configuration, and how to integrate the Line SDK and adapter into a Unity app.
Supported integrations and ad formats
The AdMob mediation adapter for Line has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | 1 |
Formats | |
Banner | |
Interstitial | |
Rewarded |
1 Waterfall integration is in open beta.
Requirements
- Unity 4 or higher
- Latest Google Mobile Ads SDK
- To deploy on Android
- Android API level 21 or higher
- To deploy on iOS
- iOS deployment target of 12.0 or higher
- A working Unity project configured with Google Mobile Ads SDK. See Get Started for details.
- Complete the mediation Get started guide
Step 1: Set up configurations in Line UI
Step 2: Set up Line demand in AdMob UI
Definir as configurações de mediação para seu bloco de anúncios
Android
Para conferir instruções, consulte a etapa 2 no guia para Android.
iOS
Para instruções, consulte a etapa 2 no guia para iOS.
Step 3: Import the Line SDK and adapter
Download the latest version of Google Mobile Ads mediation plugin for Line
from the download link in the
Changelog and extract
GoogleMobileAdsLineMediation.unitypackage
from the zip file.

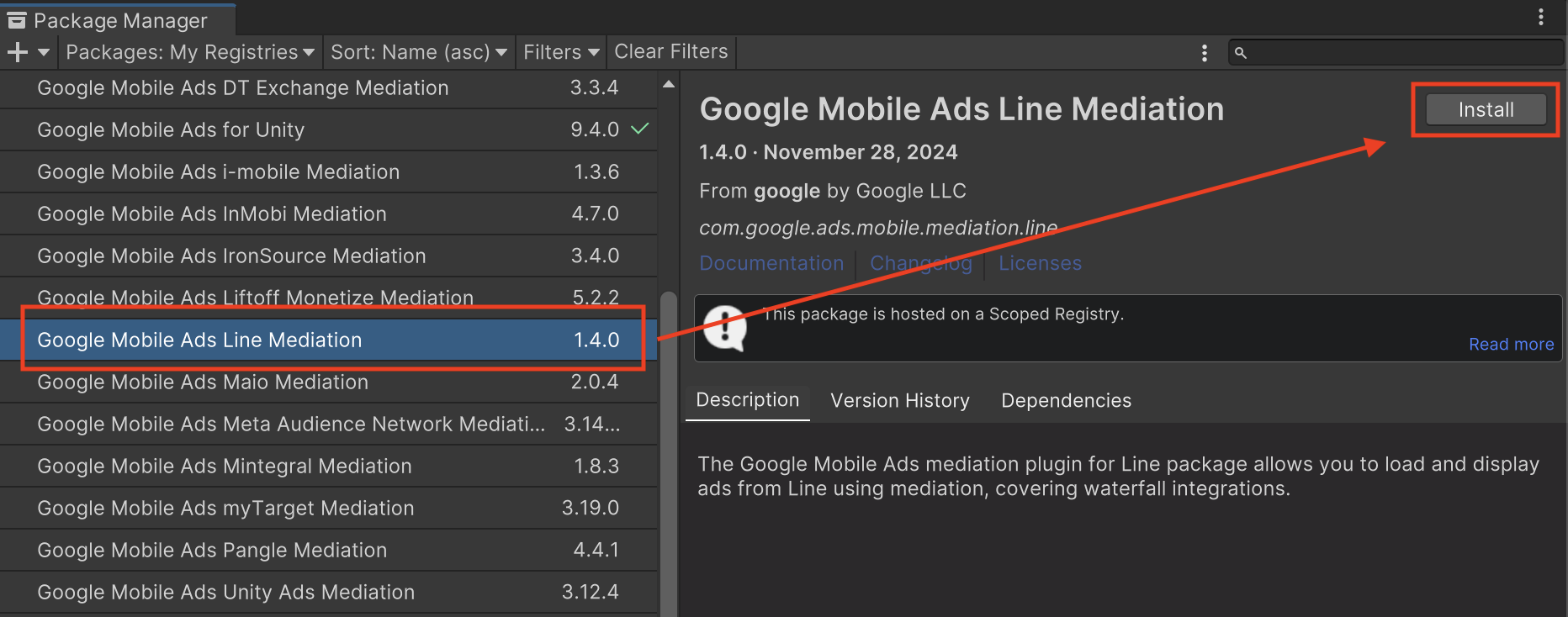

In your Unity project editor, select Assets > Import Package >
Custom Package and find the GoogleMobileAdsLineMediation.unitypackage
file you downloaded. Make sure that all the files are selected and click
Import.
Then, select Assets > Play Services Resolver > Android Resolver >
Force Resolve. The Unity Play Services Resolver library will perform
dependency resolution from scratch and copy the declared dependencies into the
Assets/Plugins/Android
directory of your Unity app.
Step 4: Add required code
Android
No additional code is required for Line integration.
iOS
SKAdNetwork integration
Follow Line's documentation
to add the SKAdNetwork identifiers to your project's Info.plist
file.
Step 5: Test your implementation
Ativar anúncios de teste
Registre seu dispositivo de teste em AdMob
Siga as instruções na Documentação do Android e iOS sobre como ativar anúncios de teste de linha.
Verificar anúncios de teste
Para verificar se você está recebendo anúncios de teste do Line, ative os testes de uma única origem no Ad Inspector usando as Line (Waterfall) origens de anúncios.
Optional steps
Network-specific parameters
The Line Unity mediation plugin supports the following additional request
parameter which can be passed to the adapter through the LineMediationExtras
class:
SetEnableAdSound(boolean)
: Specifies the default sound start state of banner, interstitial and rewarded ads.
Here's a code example of how to create an ad request that sets these parameters:
using GoogleMobileAds.Api;
using GoogleMobileAds.Mediation.Line.Api;
// ...
var adRequest = new AdRequest();
var lineExtras = new LineMediationExtras();
lineExtras.SetEnableAdSound(true);
adRequest.MediationExtras.Add(lineExtras);
Error codes
If the adapter fails to receive an ad from Line,
publishers can check the underlying error from the ad response using
ResponseInfo
under the following classes:
Android
com.line.ads
com.google.ads.mediation.line.LineMediationAdapter
iOS
GADMediationAdapterLine
Here are the codes and accompanying messages thrown by the Line adapter when an ad fails to load:
Android
Error code | Domain | Reason |
---|---|---|
1-10 | com.five_corp.ad | Line SDK returned an SDK-specific error. See Line's documentation for more details. |
101 | com.google.ads.mediation.line | Missing or invalid Application ID. |
102 | com.google.ads.mediation.line | Missing or invalid Slot ID. |
103 | com.google.ads.mediation.line | The requested ad size does not match a Line supported banner ad size. |
104 | com.google.ads.mediation.line | Failed to load an interstitial or rewarded ad due to missing activity context. |
105 | com.google.ads.mediation.line | Line SDK failed to show an interstitial or rewarded ad. |
106 | com.google.ads.mediation.line | Failed to load a native ad due to missing assets. |
iOS
Error code | Domain | Reason |
---|---|---|
1-10 | Sent by Line SDK | Line SDK returned an SDK-specific error. See Line's documentation for more details. |
101 | com.google.ads.mediation.line | Invalid server parameters (e.g. Missing Application ID or Slot ID). |
102 | com.google.ads.mediation.line | The requested ad size does not match a Line supported banner ad size. |
103 | com.google.ads.mediation.line | Failed to load an information icon image asset in native ad. |
Line Unity Mediation Plugin Changelog
Version 1.3.1
- Supports Line Android adapter version 2.8.20240808.0.
- Supports Line iOS adapter version 2.8.20240612.0.
- Built and tested with the Google Mobile Ads Unity Plugin version 9.2.0.
Version 1.3.0
- Supports Line Android adapter version 2.8.20240722.0.
- Supports Line iOS adapter version 2.8.20240612.0.
- Built and tested with the Google Mobile Ads Unity Plugin version 9.2.0.
Version 1.2.0
- Supports Line Android adapter version 2.7.20240515.0.
- Supports Line iOS adapter version 2.8.20240612.0.
- Built and tested with the Google Mobile Ads Unity Plugin version 9.1.1.
Version 1.1.2
- Supports Line Android adapter version 2.7.20240515.0.
- Supports Line iOS adapter version 2.7.20240411.0.
- Built and tested with the Google Mobile Ads Unity Plugin version 9.1.0.
Version 1.1.1
- Supports Line Android adapter version 2.7.20240214.1.
- Supports Line iOS adapter version 2.7.20240411.0.
- Built and tested with the Google Mobile Ads Unity Plugin version 9.1.0.
Version 1.1.0
- Added the
LineMediationExtras
class with the following methods to support passing mediation extras.SetEnabledAdSound(bool)
- Supports Line Android adapter version 2.7.20240214.1.
- Supports Line iOS adapter version 2.7.20240318.0.
- Built and tested with the Google Mobile Ads Unity Plugin version 9.0.0.
Version 1.0.0
- Initial Release.
- Supports Line Android adapter version 2.6.20230607.0.
- Supports Line iOS adapter version 2.6.20230609.0.
- Built and tested with the Google Mobile Ads Unity Plugin version 8.5.1.
