DT Exchange를 미디에이션과 통합

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from DT Exchange using AdMob Mediation, covering waterfall integrations. It covers how to add DT Exchange to an ad unit's mediation configuration and how to integrate the DT Exchange SDK and adapter into an iOS app.

Supported integrations and ad formats

The mediation adapter for DT Exchange has the following capabilities:

Integration
Bidding
Waterfall
Formats
Banner
Interstitial
Rewarded
Native

Requirements

  • iOS deployment target of 12.0 or higher

Step 1: Set up configurations in DT Exchange UI

새 앱 및 광고 게재위치 추가

DT Exchange 콘솔에 가입하거나 로그인합니다.

Add App 버튼을 클릭하여 앱을 추가합니다.

애플리케이션 관리

플랫폼을 선택하고 양식의 나머지 부분을 작성한 다음 게재위치 추가를 클릭합니다.

게재위치 이름 지정 입력란에 새 게재위치의 이름을 입력하고 드롭다운 목록에서 원하는 게재위치 유형을 선택합니다. 마지막으로 게재위치 저장을 클릭합니다.

설정

앱 ID 및 게재위치 ID

왼쪽 탐색 메뉴 위로 마우스를 가져가서 엽니다. 그런 다음 왼쪽 메뉴에서 앱을 클릭합니다.

메뉴

앱 관리 페이지에서 앱 옆에 있는 앱 ID를 메모합니다.

앱 ID

앱을 선택하고 게재위치 탭으로 이동한 후 게재위치 이름 옆에 있는 복사 아이콘을 클릭합니다. 게재위치 ID를 기록해 둡니다.

게재위치 ID

게시자 ID, 고객 키, 고객 비밀번호

왼쪽 메뉴에서 사용자 이름을 클릭하고 사용자 프로필을 선택합니다.

사용자 프로필 메뉴

다음 단계에서 필요하므로 게시자 ID, 고객 키, 고객 보안 비밀번호를 기록해 둡니다.

사용자 프로필

Step 2: Set up DT Exchange demand in AdMob UI

광고 단위에 대한 미디에이션 설정 구성

DT Exchange 를 광고 단위의 미디에이션 구성에 추가해야 합니다.

먼저 AdMob 계정에 로그인합니다. 그런 다음 미디에이션 탭으로 이동합니다. 수정할 기존 미디에이션 그룹이 있는 경우 해당 미디에이션 그룹의 이름을 클릭하여 수정한 후 DT Exchange 광고 소스로 추가로 건너뜁니다.

새 미디에이션 그룹을 만들려면 미디에이션 그룹 만들기를 선택합니다.

광고 형식과 플랫폼을 입력하고 계속을 클릭합니다.

미디에이션 그룹에 이름을 지정하고 타겟팅할 위치를 선택합니다. 미디에이션 그룹 상태를 사용으로 설정한 다음 광고 단위 추가를 클릭합니다.

이 미디에이션 그룹을 하나 이상의 기존AdMob 광고 단위와 연결합니다. 그런 다음 완료를 클릭합니다.

이제 광고 단위 카드가 선택한 광고 단위로 채워진 것을 볼 수 있습니다.

광고 소스로 DT Exchange 추가

광고 소스 섹션의 폭포식 구조 카드에서 광고 소스 추가를 선택합니다. 그런 다음 DT Exchange을 선택합니다.

DT Exchange를 선택하고 최적화 스위치를 사용 설정합니다. 이전 섹션에서 가져온 Publisher ID, Consumer Secret and Consumer Key을 입력하여DT Exchange에 대해 광고 소스 최적화를 설정합니다. 그런 다음DT Exchange 에 eCPM 값을 입력하고 계속을 클릭합니다.

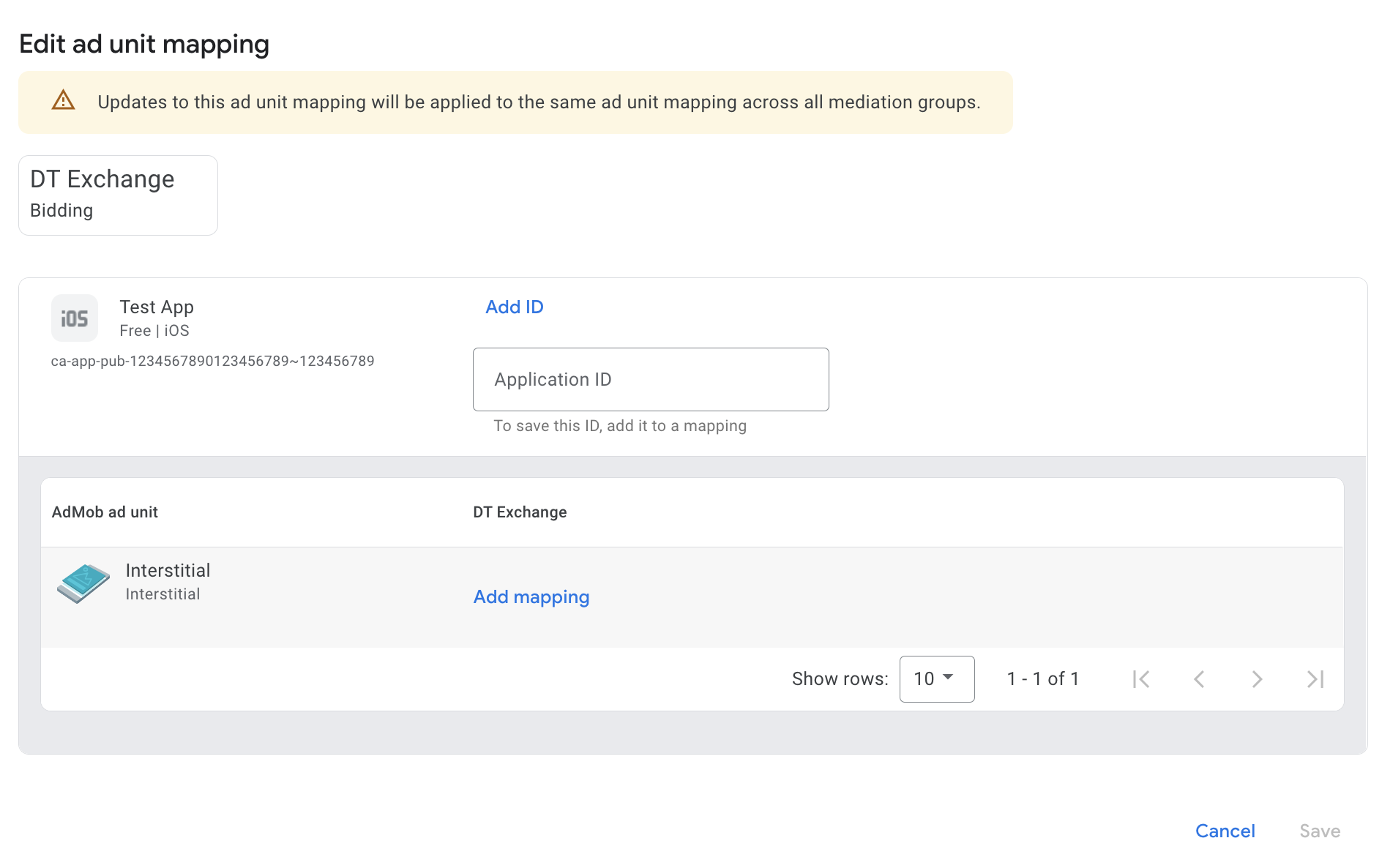

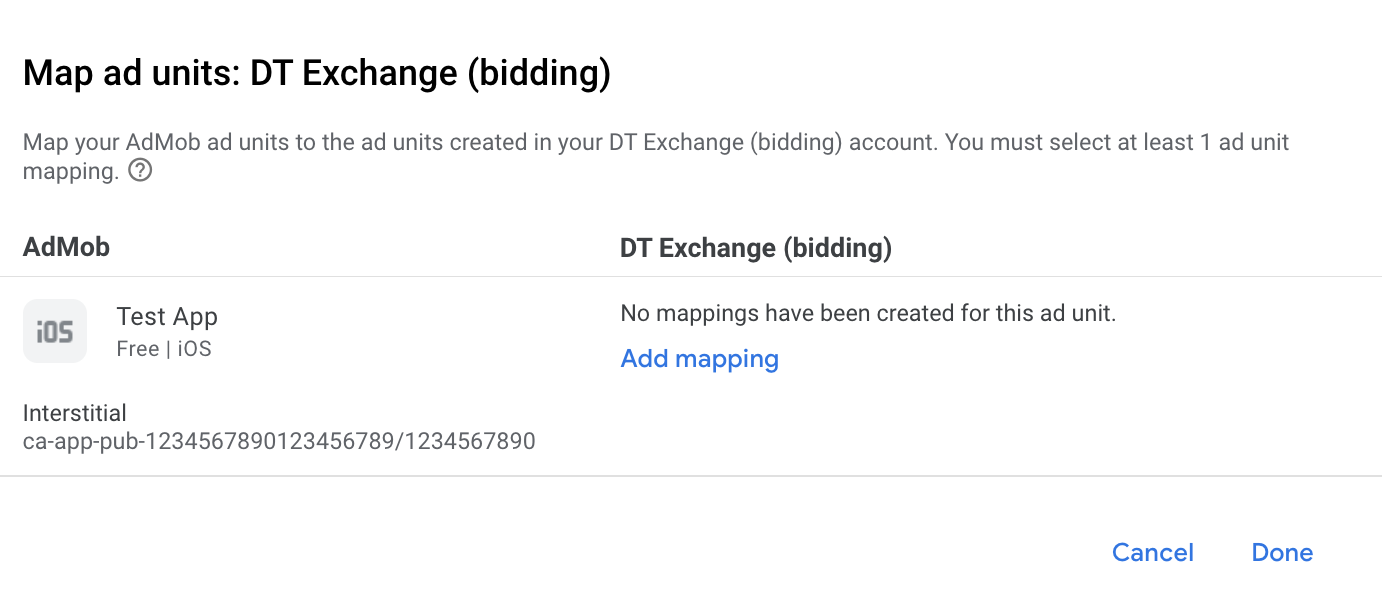

이미 DT Exchange에 대한 매핑이 있는 경우 해당 매핑을 선택할 수 있습니다. 그렇지 않으면 매핑 추가를 클릭합니다.

그런 다음 이전 섹션에서 얻은 Application ID and Placement ID를 입력합니다. 그런 다음 완료를 클릭합니다.

Add Fyber to GDPR and US state regulations ad partners list

GDPR 설정 및 미국 주 규정 설정 Fyber 를 AdMob UI의 GDPR 및 미국 주 규정 광고 파트너 목록에 추가합니다.

Step 3: Import the DT Exchange SDK and adapter

Add the following line to your project's Podfile:

pod 'GoogleMobileAdsMediationFyber'

From the command line run:

pod install --repo-update

Manual integration

  • Download the latest version of the DT Exchange SDK for iOS and link the following frameworks to your project:
    • IASDKCore.framework
    • IASDKMRAID.framework
    • IASDKVideo.framework
  • Download the latest version of the DT Exchange adapter from the download link in Changelog and link FyberAdapter.framework in your project.
  • Add the following frameworks to your project:
    • libxml2.2.tbd

Step 4: Implement privacy settings on DT Exchange SDK

Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.

DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.

Swift

import IASDKCore
// ...

IASDKCore.sharedInstance().gdprConsent = IAGDPRConsentType.given
IASDKCore.sharedInstance().gdprConsentString = "myGdprConsentString"

Objective-C

#import <IASDKCore/IASDKCore.h>
// ...

[IASDKCore.sharedInstance setGDPRConsent:YES];
[IASDKCore.sharedInstance setGDPRConsentString:@"myGdprConsentString"];

Visit DT Exchange's GDPR Resource Page and their GDPR implementation guide for more details and the values that may be provided in the method.

US states privacy laws

U.S. states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The U.S. states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.

DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.

Swift

import IASDKCore
// ...

IASDKCore.sharedInstance().ccpaString = "myCCPAConsentString"

Objective-C

#import <IASDKCore/IASDKCore.h>
// ...

[IASDKCore.sharedInstance setCCPAString:@"myCCPAConsentString"];

Visit DT Exchange's CCPA Resource Page and their CCPA implementation guide for more details and the values that may be provided in the method.

Step 5: Add required code

SKAdNetwork integration

Follow DT Exchange's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 6: Test your implementation

테스트 광고 사용 설정

AdMob

테스트 광고 확인

DT Exchange에서 테스트 광고를 수신하고 있는지 확인하려면 광고 검사기에서 DT Exchange (Waterfall) 광고 소스를 사용하여 단일 광고 소스 테스트를 사용 설정하세요.

Optional steps

Network-specific parameters

The DT Exchange adapter supports additional request parameters that can be passed to the adapter using the GADMAdapterFyberExtras(). The adapter looks for the following keys in the bundle:

Request parameters and values
setUserData
The age, gender and zip code of the user.		 IAUserData
setMuteAudio Boolean. Mute or unmute video

Here's a code example of how to set these ad request parameters:

Swift

let userData = IAUserData.build({ builder in
  builder.age = 23
  builder.gender = IAUserGenderType.male
  builder.zipCode = "1234"
}];

let request = GADRequest()
let extras = GADMAdapterFyberExtras()
extras.userData = userData
extras.muteAudio = true
request.register(extras)

Objective-C

IAUserData *userData = [IAUserData build:^(id<IAUserDataBuilder> _Nonnull builder) {
    builder.age = 23;
    builder.gender = IAUserGenderTypeMale;
    builder.zipCode = @"1234";
}];

GADRequest *request = [GADRequest request];
GADMAdapterFyberExtras *extras = [[GADMAdapterFyberExtras alloc] init];
extras.userData = userData;
extras.muteAudio = YES;
[request registerAdNetworkExtras:extras];

Consult the DT Exchange integration guide for more information.

Error codes

If the adapter fails to receive an ad from DT Exchange, you can check the underlying error from the ad response using GADResponseInfo.adNetworkInfoArray under the following class:

GADMediationAdapterFyber

Here are the codes and accompanying messages thrown by the DT Exchange adapter when an ad fails to load:

Error code Reason
0-10 DT Exchange SDK returned an error. See documentation for more details.
101 DT Exchange server parameters configured in the AdMob UI are missing/invalid.
102 The requested ad size does not match a DT Exchange supported banner size.
103 Failed to show ad because ad object has already been used.
104 Failed to show DT Exchange ads due to ad not ready.
105 DT Exchange SDK returned an initialization error.

DT Exchange iOS Mediation Adapter Changelog

Version 8.3.1.0

  • Verified compatibility with DT Exchange SDK version 8.3.1.

Built and tested with:

  • Google Mobile Ads SDK version 11.6.0.
  • DT Exchange SDK version 8.3.1.

Version 8.3.0.0

  • Verified compatibility with DT Exchange SDK version 8.3.0.

Built and tested with:

  • Google Mobile Ads SDK version 11.5.0.
  • DT Exchange SDK version 8.3.0.

Version 8.2.8.0

  • Verified compatibility with DT Exchange SDK version 8.2.8.

Built and tested with:

  • Google Mobile Ads SDK version 11.3.0.
  • DT Exchange SDK version 8.2.8.

Version 8.2.7.0

  • Verified compatibility with DT Exchange SDK version 8.2.7.

Built and tested with:

  • Google Mobile Ads SDK version 11.2.0.
  • DT Exchange SDK version 8.2.7.

Version 8.2.6.1

  • Added didFailToPresentWithError callbacks in rewarded ad.
  • Added IAAdDidExpire delegate method in interstitial and rewarded ads.
  • Now requires minimum iOS version 12.0.
  • Now requires Google Mobile Ads SDK version 11.0 or higher.
  • Included Info.plist in the frameworks within DTExchangeAdapter.xcframework.

Built and tested with:

  • Google Mobile Ads SDK version 11.0.1.
  • DT Exchange SDK version 8.2.6.

Version 8.2.6.0

  • Verified compatibility with DT Exchange SDK version 8.2.6.
  • Removed the deprecated willBackgroundApplication delegate methods from the banner and interstitial ad implementations.

Built and tested with:

  • Google Mobile Ads SDK version 10.14.0.
  • DT Exchange SDK version 8.2.6.

Version 8.2.5.0

  • Verified compatibility with DT Exchange SDK version 8.2.5.

Built and tested with:

  • Google Mobile Ads SDK version 10.14.0.
  • DT Exchange SDK version 8.2.5.

Version 8.2.4.0

  • Verified compatibility with DT Exchange SDK version 8.2.4.

Built and tested with:

  • Google Mobile Ads SDK version 10.9.0.
  • DT Exchange SDK version 8.2.4.

Version 8.2.3.0

  • Verified compatibility with DT Exchange SDK version 8.2.3.

Built and tested with:

  • Google Mobile Ads SDK version 10.7.0.
  • DT Exchange SDK version 8.2.3.

Version 8.2.2.0

  • Verified compatibility with DT Exchange SDK version 8.2.2.

Built and tested with:

  • Google Mobile Ads SDK version 10.5.0.
  • DT Exchange SDK version 8.2.2.

Version 8.2.1.0

  • Verified compatibility with DT Exchange SDK version 8.2.1.
  • Removed support of the armv7 architecture.
  • Now requires minimum iOS version 11.0.
  • Now requires Google Mobile Ads SDK version 10.4.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 10.4.0.
  • DT Exchange SDK version 8.2.1.

Version 8.2.0.0

  • Verified compatibility with DT Exchange SDK version 8.2.0.

Built and tested with:

  • Google Mobile Ads SDK version 10.2.0.
  • DT Exchange SDK version 8.2.0.

Version 8.1.9.1

  • Now requires Google Mobile Ads SDK version 10.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 10.0.0.
  • DT Exchange SDK version 8.1.9.

Version 8.1.9.0

  • Removed use of deprecated gender, birthday and location mediation APIs.
  • Verified compatibility with DT Exchange SDK version 8.1.9.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • DT Exchange SDK version 8.1.9.

Version 8.1.7.0

  • Verified compatibility with DT Exchange SDK version 8.1.7.
  • Adapter is rebranded to "DT Exchange".

Built and tested with:

  • Google Mobile Ads SDK version 9.13.0.
  • DT Exchange SDK version 8.1.7.

Version 8.1.6.0

  • Added support for passing muteAudio extra in GADMAdapterFyberExtras class.
  • Updated the adapter to use the didRewardUser API.
  • Now requires Google Mobile Ads SDK version 9.8.0 or higher.
  • Verified compatibility with Fyber Marketplace SDK version 8.1.6.

Built and tested with:

  • Google Mobile Ads SDK version 9.11.0.
  • Fyber Marketplace SDK version 8.1.6.

Version 8.1.5.0

  • Verified compatibility with Fyber Marketplace SDK version 8.1.5.

Built and tested with:

  • Google Mobile Ads SDK version 9.5.0.
  • Fyber Marketplace SDK version 8.1.5.

Version 8.1.4.0

  • Verified compatibility with Fyber Marketplace SDK version 8.1.4.
  • Added support for the arm64 simulator architecture.

Built and tested with:

  • Google Mobile Ads SDK version 9.1.0.
  • Fyber Marketplace SDK version 8.1.4.

Version 8.1.3.1

  • Verified compatibility with Google Mobile Ads SDK version 9.0.0.
  • Now requires Google Mobile Ads SDK version 9.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 9.0.0.
  • Fyber Marketplace SDK version 8.1.3.

Version 8.1.3.0

  • Verified compatibility with Fyber Marketplace SDK version 8.1.3.

Built and tested with:

  • Google Mobile Ads SDK version 8.13.0.
  • Fyber Marketplace SDK version 8.1.3.

Version 8.1.2.0

  • Verified compatibility with Fyber Marketplace SDK version 8.1.2.

Built and tested with:

  • Google Mobile Ads SDK version 8.13.0.
  • Fyber Marketplace SDK version 8.1.2.

Version 8.1.1.0

  • Verified compatibility with Fyber Marketplace SDK version 8.1.1.

Built and tested with:

  • Google Mobile Ads SDK version 8.12.0.
  • Fyber Marketplace SDK version 8.1.1.

Version 8.1.0.0

  • Verified compatibility with Fyber Marketplace SDK version 8.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 8.12.0.
  • Fyber Marketplace SDK version 8.1.0.

Version 8.0.0.0

  • Verified compatibility with Fyber Marketplace SDK version 8.0.0.

Built and tested with:

  • Google Mobile Ads SDK version 8.12.0.
  • Fyber Marketplace SDK version 8.0.0.

Version 7.9.0.0

  • Verified compatibility with Fyber Marketplace SDK version 7.9.0.

Built and tested with:

  • Google Mobile Ads SDK version 8.11.0.
  • Fyber Marketplace SDK version 7.9.0.

Version 7.8.9.0

  • Verified compatibility with Fyber Marketplace SDK version 7.8.9.

Built and tested with:

  • Google Mobile Ads SDK version 8.10.0.
  • Fyber Marketplace SDK version 7.8.9.

Version 7.8.8.1

  • Moved ad event didEndVideo to rewarded ad callback IAAdDidReward.

Built and tested with:

  • Google Mobile Ads SDK version 8.9.0.
  • Fyber Marketplace SDK version 7.8.8.

Version 7.8.8.0

  • Now requires minimum iOS version 10.0.
  • Verified compatibility with Fyber Marketplace SDK version 7.8.8.

Built and tested with:

  • Google Mobile Ads SDK version 8.9.0.
  • Fyber Marketplace SDK version 7.8.8.

Version 7.8.7.0

  • Verified compatibility with Fyber Marketplace SDK version 7.8.7.

Built and tested with:

  • Google Mobile Ads SDK version 8.8.0.
  • Fyber Marketplace SDK version 7.8.7.

Version 7.8.6.0

  • Verified compatibility with Fyber Marketplace SDK version 7.8.6.

Built and tested with:

  • Google Mobile Ads SDK version 8.5.0.
  • Fyber Marketplace SDK version 7.8.6.

Version 7.8.5.0

  • Verified compatibility with Fyber Marketplace SDK version 7.8.5.
  • Now requires building against Xcode 12.5 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 8.5.0.
  • Fyber Marketplace SDK version 7.8.5.

Version 7.8.1.0

  • Verified compatibility with Fyber Marketplace SDK version 7.8.1.
  • Relaxed dependency to Google Mobile Ads SDK version 8.0.0 or higher.
  • Added standardized adapter error codes and messages.
  • Updated the adapter to use the .xcframework format.

Built and tested with:

  • Google Mobile Ads SDK version 8.0.0.
  • Fyber Marketplace SDK version 7.8.1.

Version 7.8.0.0

  • Verified compatibility with Fyber Marketplace SDK version 7.8.0.

Built and tested with:

  • Google Mobile Ads SDK version 7.69.0.
  • Fyber Marketplace SDK version 7.8.0.

Version 7.7.3.0

  • Verified compatibility with Fyber Marketplace SDK version 7.7.3.
  • Now requires Google Mobile Ads SDK version 7.69.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.69.0.
  • Fyber Marketplace SDK version 7.7.3.

Version 7.7.2.0

  • Verified compatibility with Fyber Marketplace SDK version 7.7.2.
  • Now requires Google Mobile Ads SDK version 7.67.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.67.0.
  • Fyber Marketplace SDK version 7.7.2.

Version 7.7.1.0

  • Verified compatibility with Fyber Marketplace SDK version 7.7.1.
  • Now requires Google Mobile Ads SDK version 7.66.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.66.0.
  • Fyber Marketplace SDK version 7.7.1.

Version 7.6.4.0

  • Verified compatibility with Fyber Marketplace SDK version 7.6.4.
  • Now requires Google Mobile Ads SDK version 7.65.0 or higher.
  • Added GADMAdapterFyberExtras class, enabling publishers to pass keywords and userData to Fyber Marketplace SDK.

Built and tested with:

  • Google Mobile Ads SDK version 7.65.0.
  • Fyber Marketplace SDK version 7.6.4.

Version 7.6.3.0

  • Verified compatibility with Fyber Marketplace SDK version 7.6.3.

Built and tested with:

  • Google Mobile Ads SDK version 7.64.0.
  • Fyber Marketplace SDK version 7.6.3.

Version 7.6.2.0

  • Verified compatibility with Fyber Marketplace SDK version 7.6.2.
  • Now requires Google Mobile Ads SDK version 7.64.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.64.0.
  • Fyber Marketplace SDK version 7.6.2.

Version 7.6.0.0

  • Verified compatibility with Fyber Marketplace SDK version 7.6.0.
  • Now requires Google Mobile Ads SDK version 7.62.0 or higher.
  • Updated the adapter to support inline adaptive banner requests.
  • Added support for rewarded HTML.
  • Added new reward callback: IAAdDidReward (for both rewarded video and rewarded HTML). IAVideoCompleted is no longer used for rewarding.

Built and tested with:

  • Google Mobile Ads SDK version 7.62.0.
  • Fyber Marketplace SDK version 7.6.0.

Version 7.5.6.1

  • Temporarily removed Fyber Marketplace SDK-specific logging.

Built and tested with:

  • Google Mobile Ads SDK version 7.60.0.
  • Fyber Marketplace SDK version 7.5.6.

Version 7.5.6.0

  • Verified compatibility with Fyber Marketplace SDK version 7.5.6.
  • Updated the minimum required Google Mobile Ads SDK version to 7.60.0.

Built and tested with:

  • Google Mobile Ads SDK version 7.60.0.
  • Fyber Marketplace SDK version 7.5.6.

Version 7.5.5.0

  • Verified compatibility with Fyber Marketplace SDK version 7.5.5.
  • Updated the minimum required Google Mobile Ads SDK version to 7.59.0.

Built and tested with:

  • Google Mobile Ads SDK version 7.59.0.
  • Fyber Marketplace SDK version 7.5.5 .

Version 7.5.4.0

  • Verified compatibility with Fyber Marketplace SDK version 7.5.4.
  • Removed support for the i386 architecture.

Built and tested with:

  • Google Mobile Ads SDK version 7.57.0.
  • Fyber Marketplace SDK version 7.5.4.

Version 7.5.3.0

  • Verified compatibility with Fyber Marketplace SDK version 7.5.3.

Built and tested with:

  • Google Mobile Ads SDK version 7.55.0.
  • Fyber Marketplace SDK version 7.5.3.

Version 7.5.1.0

  • Verified compatibility with Fyber Marketplace SDK version 7.5.1.
  • Fixed a crash that occurred when initializing the Fyber SDK.

Built and tested with:

  • Google Mobile Ads SDK version 7.55.0.
  • Fyber Marketplace SDK version 7.5.1.

Version 7.5.0.0 (Deprecated)

  • This version has been removed. Please use version 7.5.1.0 or higher.
  • Verified compatibility with Fyber Marketplace SDK version 7.5.0.
  • Adapter will now initialize the Fyber SDK before making an ad request if the Fyber SDK has not been initialized yet.

Built and tested with:

  • Google Mobile Ads SDK version 7.53.0.
  • Fyber Marketplace SDK version 7.5.0.

Version 7.4.0.0

  • Initial release!
  • Added support for banner, interstitial and rewarded ad formats.

Built and tested with:

  • Google Mobile Ads SDK version 7.52.0.
  • Fyber Marketplace SDK version 7.4.0.
