Integrate PubMatic with bidding

AI-generated Key Takeaways

outlined_flag

• This guide explains how to integrate PubMatic ads into your iOS app using the Google Mobile Ads SDK mediation for bidding integrations.

• The PubMatic mediation adapter supports bidding and waterfall integrations for various ad formats including app open, banner, interstitial, rewarded, rewarded interstitial, and native ads.

• Implementing PubMatic mediation requires setting up configurations in the PubMatic UI, setting up PubMatic demand in the Ad Manager UI, and importing the PubMatic SDK and adapter into your iOS project.

• Proper implementation of privacy settings according to GDPR and US state regulations is necessary when using the PubMatic SDK.

• Testing your implementation with test ads and verifying them through single ad source testing is recommended before releasing your app.

This guide shows you how to use Google Mobile Ads SDK to load and display ads from PubMatic using mediation, covering bidding integrations. It covers how to add PubMatic OpenWrap SDK to an ad unit's mediation configuration, and how to integrate the PubMatic OpenWrap SDK and adapter into an iOS app.

Supported integrations and ad formats

The mediation adapter for PubMatic has the following capabilities:

¹ Bidding integration is in closed beta, reach out to your account manager to request access.

² All other supported ad formats besides banners are in alpha.

Requirements

• iOS deployment target of 12.0 or higher

• Latest Google Mobile Ads SDK.

• Complete the mediation Get started guide.

Step 1: Set up configurations in PubMatic UI

Log in to your PubMatic account and select the OpenWrap SDK card.

Add a new application

Navigate to the Apps tab and click the Add App button.

Select the Platform, as well as the App Store URL and App Name for your app.

Under Integration Path, select iOS (Objective-C / Swift) and select AdMob - SDK Bidding as the Sub-integration Path. Then, click the Add App button.

Update your app-ads.txt

Authorized Sellers for Apps app-ads.txt is an IAB Tech Lab initiative that helps ensure your app ad inventory is only sold through channels you've identified as authorized. To prevent a significant loss in ad revenue, you'll need to implement an app-ads.txt file. If you haven't done so already, create an app-ads.txt file for Ad Manager.

Before your app is finalized, you will be presented the appropriate entries to add to your app-ads.txt.

For additional information on how to implement app-ads.txt for PubMatic, see How to Implement app-ads.txt.

Profile ID

Once your app is created, navigate to the Apps tab and take note of your newly created application's Profile ID.

Create an ad unit

Under the Ad Units tab, select the app you created on the previous section and click the Create Ad Unit button.

Fill out the form with the details of your ad unit and click Save.

Take note of your newly created OpenWrap Ad Unit ID.

Obtain your Publisher ID

Navigate to the Analytics Dashboard. Hover over the profile icon and take note of your ID.

Step 2: Set up PubMatic demand in Ad Manager UI

Sign in to your Ad Manager account.

Enable secure signal sharing

Navigate to Admin > Global settings. Go to the Ad Exchange account settings tab and review and toggle on Secure signal sharing. Click Save.

Share secure signal on bid requests

Navigate to Inventory > Secure Signals. Under Secure signals, search for PubMatic OpenWrap SDK and toggle on Enable app integration.

Click Save.

Allow secure signal sharing for SDK Bidding

Navigate to Delivery > Demand channel settings. In the Default settings tab, toggle on Allow secure signal sharing for SDK Bidding.

Click Save.

Configure PubMatic bidding

Navigate to Delivery > Bidders, and click Go to SDK Bidding.

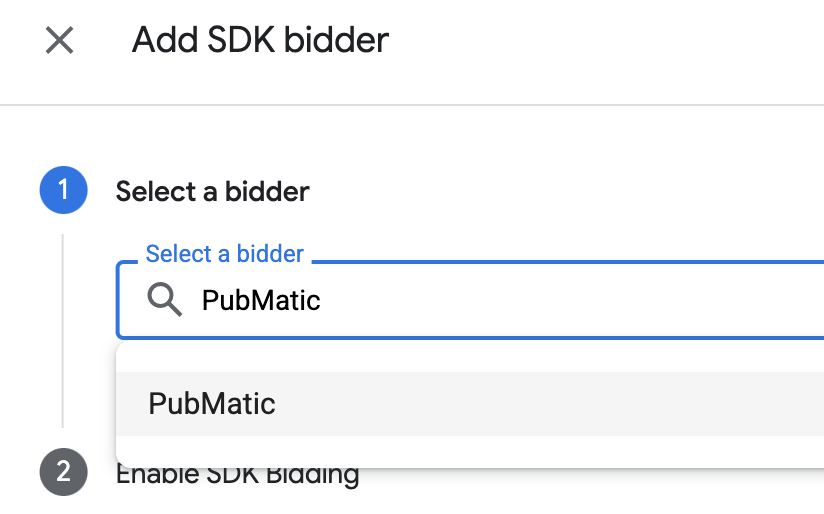

Click New bidder.

Select PubMatic OpenWrap SDK as the bidder.

Click Continue to enable SDK Bidding for this bidder.

Click Done.

Configure ad unit mapping

Navigate to Delivery > Bidders, and click Go to SDK Bidding.

Select the company for PubMatic OpenWrap SDK.

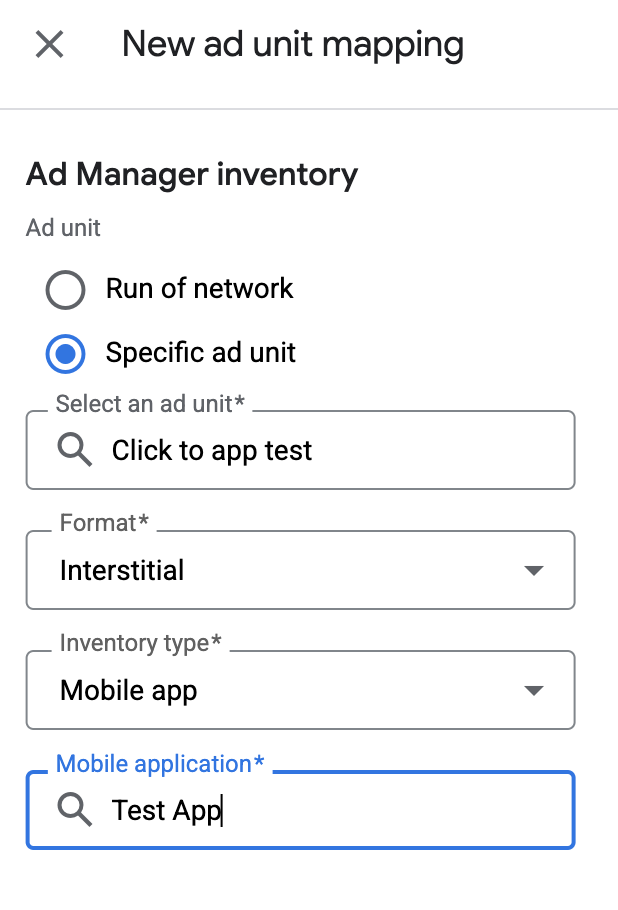

Go to the Ad unit mapping tab and click New ad unit mapping.

Choose Specific ad unit. Select an ad unit and format, Mobile app as the Inventory type, and your Mobile application. Then, enter OpenWrap Ad Unit ID obtained in the previous section.

If you are configuring ad unit mapping for a rewarded interstitial ad within the Ad Manager UI, choose the Rewarded format and use the rewarded interstitial placement ID.

Finally, click Save.

Add PubMatic to GDPR and US state regulations ad partners list

Follow the steps in European regulations settings and US state regulations settings to add PubMatic to the European and US state regulations ad partners list in the Ad Manager UI.

Step 3: Import the PubMatic OpenWrap SDK and adapter

CocoaPods (recommended)

• Add the following line to your project's Podfile:

  pod 'GoogleMobileAdsMediationPubMatic'


• From the command line run:

  pod install --repo-update

Manual integration

1. Download the latest version of the PubMatic OpenWrap SDK for iOS and link all the .xcframework files and bundles in your project.

2. Download the latest version of the PubMatic adapter from the download link in the Changelog and link PubMaticAdapter.xcframework in your project.

Step 4: Implement privacy settings on PubMatic

To comply with Google EU User Consent Policy, you must make certain disclosures to your users in the European Economic Area (EEA), the UK, and Switzerland, and obtain their consent for the use of cookies or other local storage where legally required, and for the collection, sharing, and use of personal data for ads personalization. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). You are responsible for verifying consent is propagated to each ad source in your mediation chain.

PubMatic automatically reads GDPR consent set by consent management platforms that support Google's Additional Consent specification, including the UMP SDK. For more information, see Pass GDPR and GDPR consent.

US states privacy laws

US states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered through a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The US states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.

PubMatic automatically reads GPP consent set by consent management platforms that support Google's Additional Consent specification, including the UMP SDK. For more information, see Pass GPP consent.

Step 5: Add required code

SKAdNetwork integration

Follow PubMatic's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 6: Test your implementation

Enable test ads

Make sure you register your test device for Ad Manager.

Verify test ads

To verify that you are receiving test ads from PubMatic OpenWrap SDK, enable single ad source testing in ad inspector using the PubMatic (Bidding) ad source(s).

Optional Steps

Native ads

Ad rendering

The PubMatic adapter returns its native ads as GADNativeAd objects. It populates the following fields for a GADNativeAd.

Error codes

If the adapter fails to receive an ad from PubMatic, you can check the underlying error from the ad response using GADResponseInfo.adNetworkInfoArray under the following classes:

GADMediationAdapterPubMatic

Here are the codes and accompanying messages thrown by the PubMatic adapter when an ad fails to load:

PubMatic iOS Mediation Adapter Changelog

Version 4.10.0.0 (In progress)

Version 4.9.0.0

• Added waterfall support for banner, interstitial, rewarded and native ad formats.
• Fixed a bug where native ad delegates were not correctly set.
• Add a test mode property in the GADMediationAdapterPubMaticExtras class.
• Verified compatibility with PubMatic OpenWrap SDK version 4.9.0.

Built and tested with:

• Google Mobile Ads SDK version 12.12.0.
• PubMatic OpenWrap SDK version 4.9.0.

Version 4.8.1.0

• Verified compatibility with PubMatic OpenWrap SDK version 4.8.1.

Built and tested with:

• Google Mobile Ads SDK version 12.9.0.
• PubMatic OpenWrap SDK version 4.8.1.

Version 4.8.0.0

• Verified compatibility with PubMatic OpenWrap SDK version 4.8.0.

Built and tested with:

• Google Mobile Ads SDK version 12.8.0.
• PubMatic OpenWrap SDK version 4.8.0.

Version 4.7.0.0

• Initial release.
• Supports bidding for banner, interstitial, rewarded and native ad formats.
• Verified compatibility with PubMatic OpenWrap SDK version 4.7.0.

Built and tested with:

• Google Mobile Ads SDK version 12.6.0.
• PubMatic OpenWrap SDK version 4.7.0.
