Mengintegrasikan Pangle dengan mediasi

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an iOS app.

Supported integrations and ad formats

The mediation adapter for Pangle has the following capabilities:

Integration
Bidding
Waterfall
Formats
App open  1
Banner
Interstitial
Rewarded
Rewarded Interstitial
Native
1 Bidding integration for this format is in closed beta.

Requirements

  • iOS deployment target of 10.0 or higher

Step 1: Set up configurations in Pangle UI

Sign up or Log in to your Pangle account.

Add a new application

Navigate to the Applications tab and click the Add App button.

Select the Operating System you wish to create an application for and fill out the rest of the form. Then, click Submit.

Android

iOS

Take note of your application's App ID.

Android

iOS

Create an ad placement

Once your application has been created, click the Add button to create your ad placement.

Android

iOS

Bidding

Select your Ad Format and Ad Placement Name, and select In-App Bidding as the Pricing Type. Fill out the rest of the form and click Submit.

Once your ad placement is created, take note of the Ad Placement ID.

Android

iOS

Waterfall

Select your Ad Format and Ad Placement Name, and Global CPM as the Pricing Type. Fill out the rest of the form and click Submit.

Once your ad placement is created, take note of the Ad Placement ID.

Android

iOS

Locate Pangle Reporting API key

Bidding

This step isn't required for bidding integrations.

Waterfall

Take note of the User ID at the bottom left corner of the page.

Click Integrations > SDK & API > Pangle Reporting API 2.0. Take note of Role ID and Security Key.

Turn on test mode

Follow the instructions in Pangle's How to add a Test Ad guide on how to enable Pangle test ads.

Step 2: Set up Pangle demand in AdMob UI

Mengonfigurasi setelan mediasi untuk unit iklan

Anda harus menambahkan Pangle ke konfigurasi mediasi untuk unit iklan Anda.

Pertama, login ke akun AdMob Anda. Selanjutnya, buka tab Mediasi. Jika Anda sudah memiliki grup mediasi yang ingin diubah, klik nama grup mediasi tersebut untuk mengeditnya, lalu lanjutkan ke bagian Tambahkan Pangle sebagai sumber iklan.

Untuk membuat grup mediasi baru, pilih Buat Grup Mediasi.

Masukkan platform dan format iklan Anda, lalu klik Lanjutkan.

Berikan nama pada grup mediasi Anda, lalu pilih lokasi yang akan ditarget. Selanjutnya, tetapkan status grup mediasi ke Diaktifkan, lalu klik Tambahkan Unit Iklan.

Kaitkan grup mediasi ini dengan satu atau beberapa AdMob unit iklan Anda yang ada. Kemudian, klik Done.

Sekarang Anda akan melihat kartu unit iklan diisi dengan unit iklan yang dipilih:

Tambahkan Pangle sebagai sumber iklan

Bidding

Pada kartu Bidding di bagian Sumber Iklan, pilih Tambahkan Sumber Iklan. Lalu, pilih Pangle.

Klik Cara menandatangani perjanjian kemitraan dan menyiapkan bidding kemitraan dengan Pangle.

Klik Konfirmasi & setuju, lalu klik Lanjutkan.

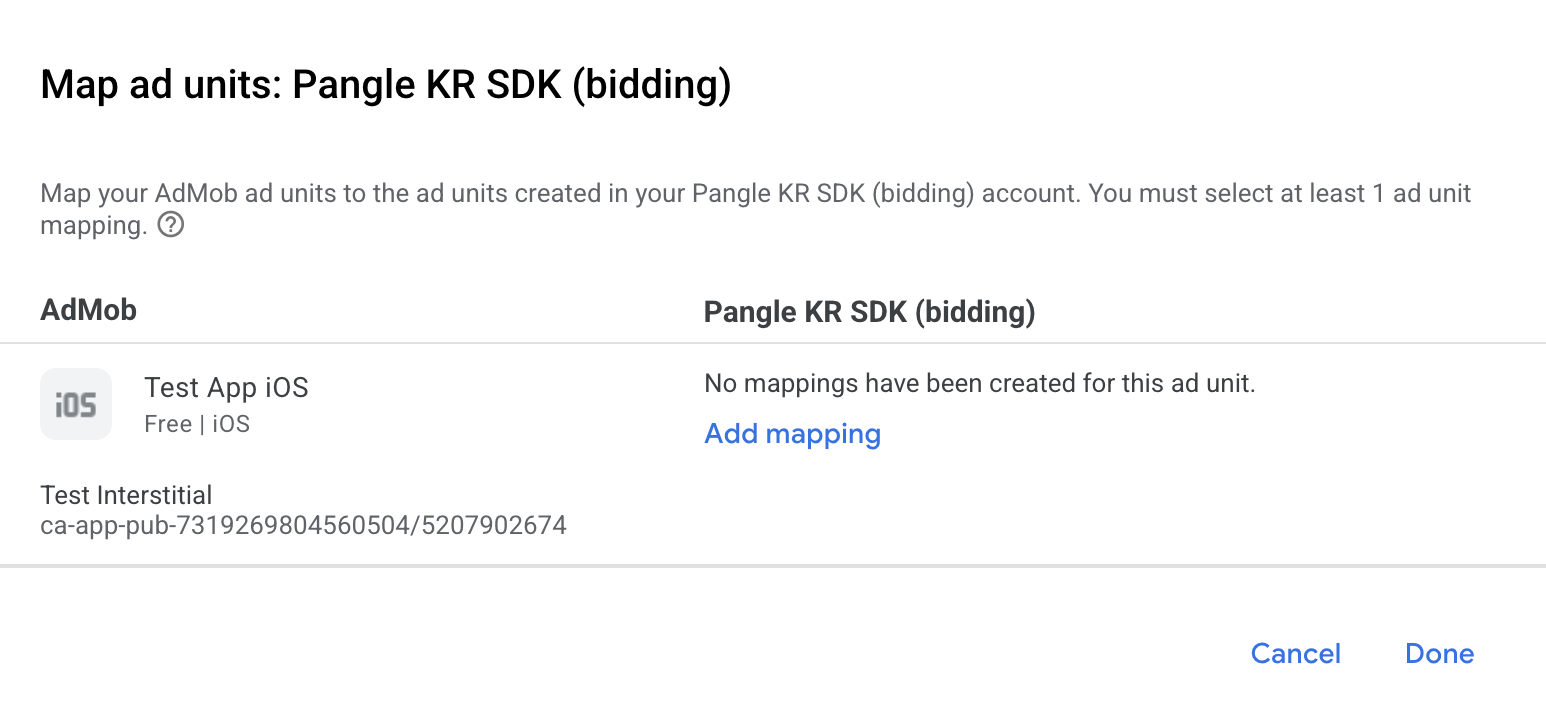

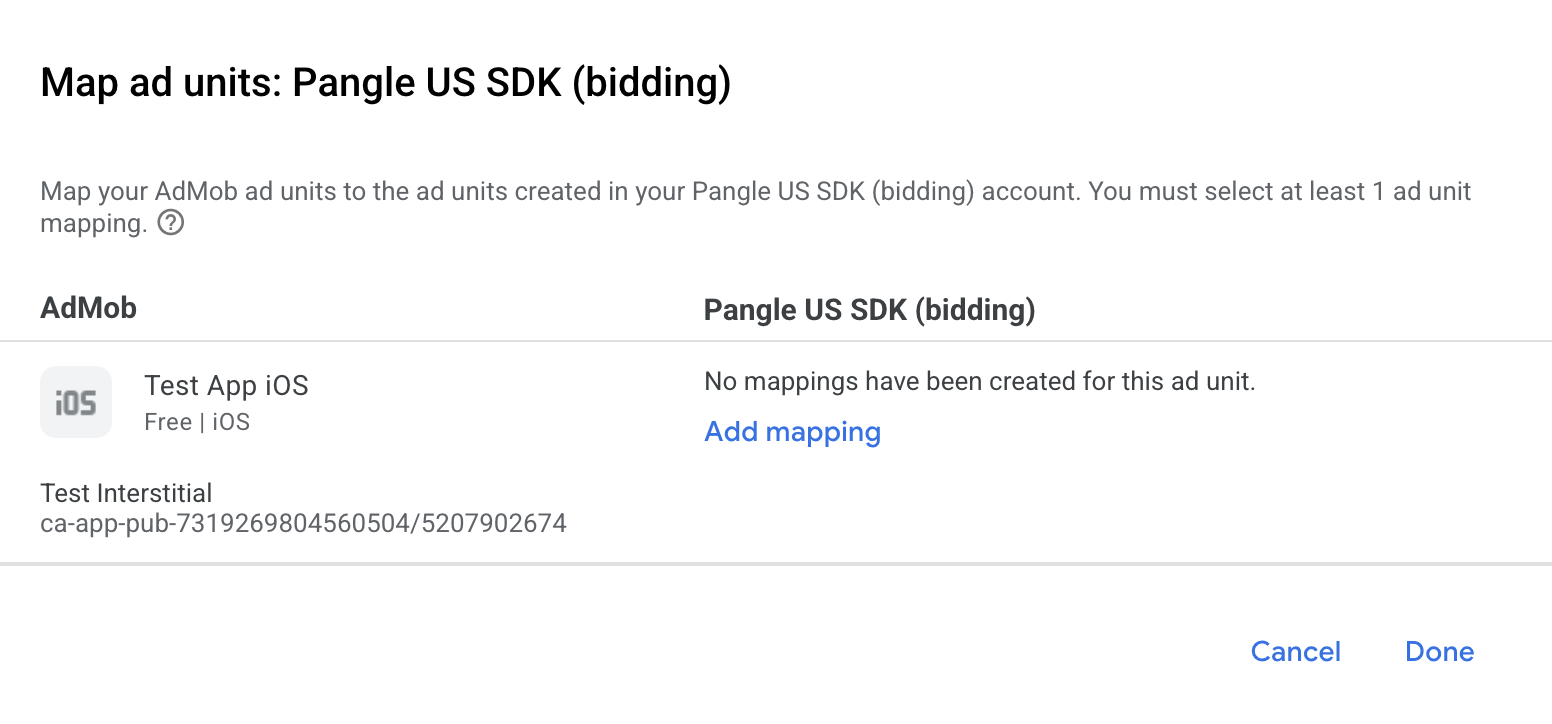

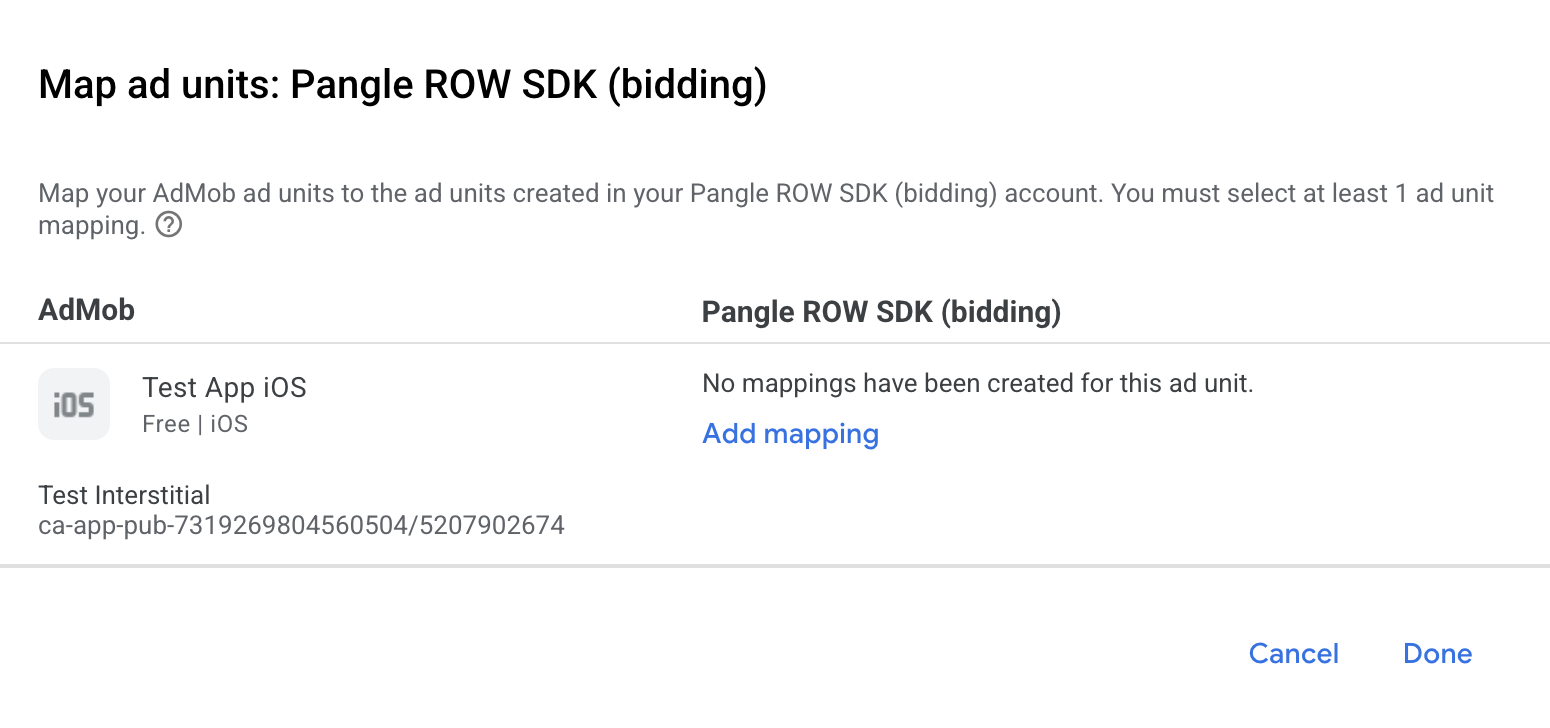

Jika sudah memiliki pemetaan untuk Pangle, Anda dapat memilihnya. Atau, klik Tambahkan pemetaan.

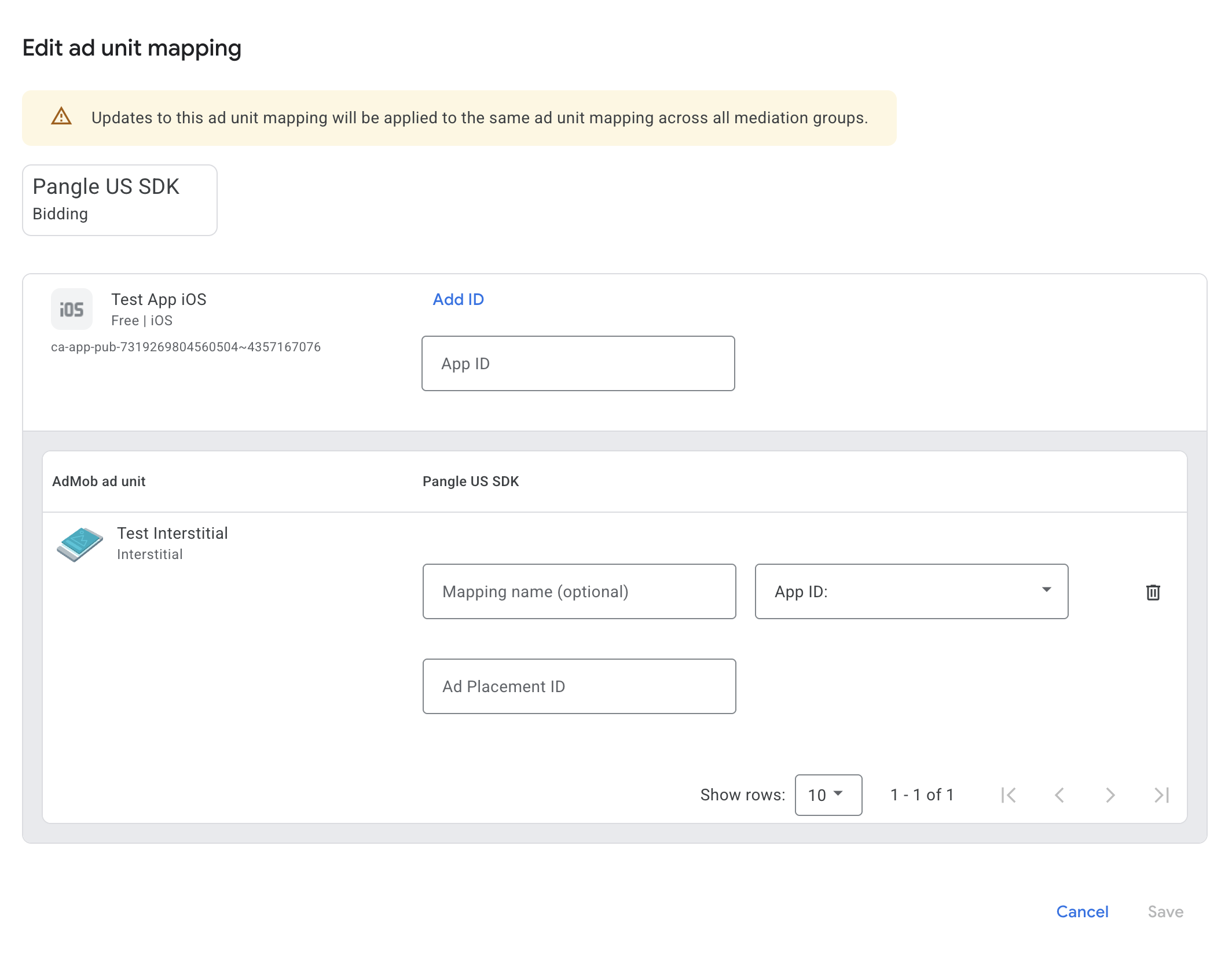

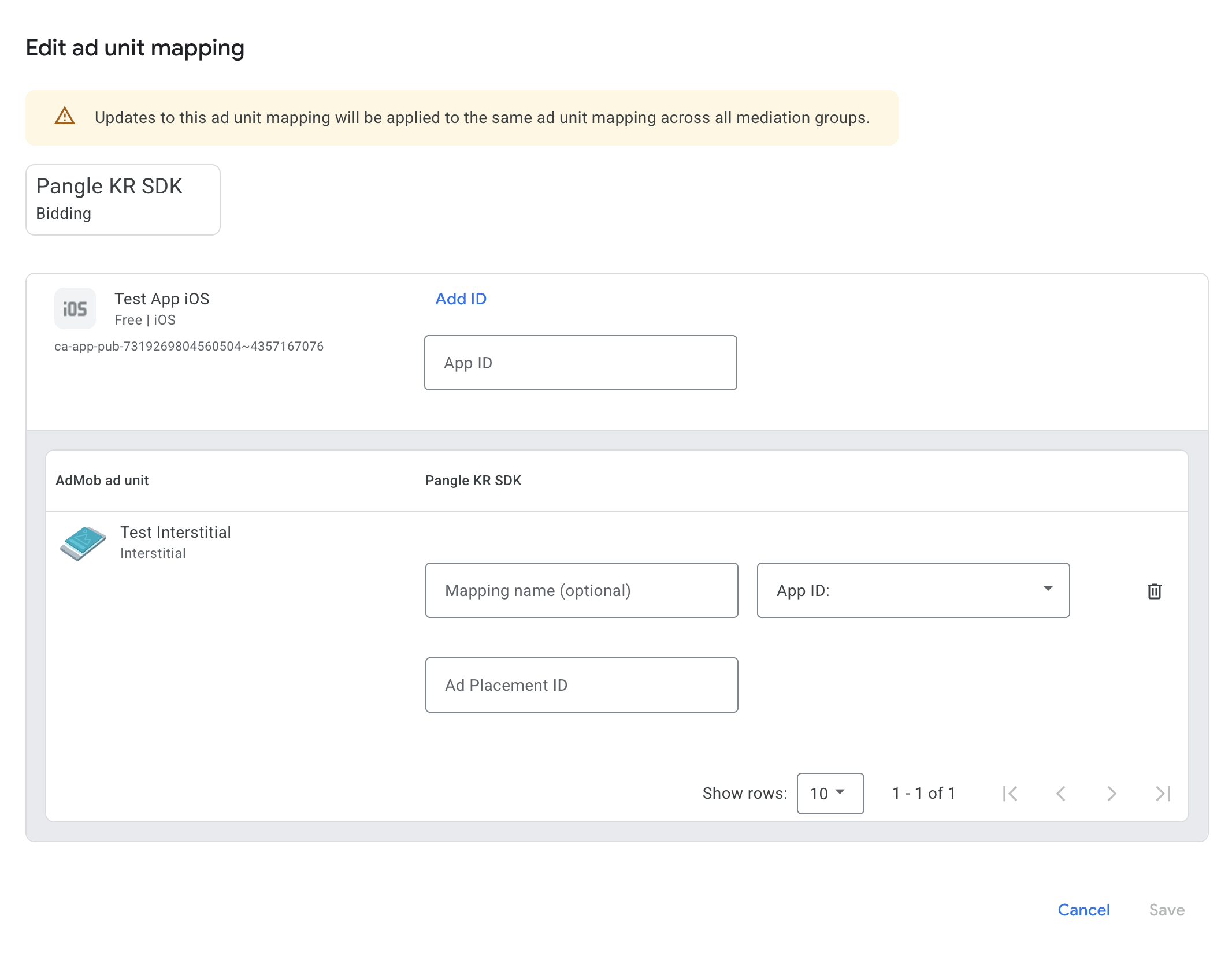

Berikutnya, masukkan App ID and Ad Placement ID yang diperoleh di bagian sebelumnya. Kemudian, klik Done.

Waterfall

Pada kartu Waterfall di bagian Sumber Iklan, pilih Tambahkan Sumber Iklan. Selanjutnya, pilih Pangle.

Pilih Pangle. Kemudian, masukkan nilai eCPM untuk Pangle dan klik Lanjutkan.

Jika sudah memiliki pemetaan untuk Pangle, Anda dapat memilihnya. Jika tidak, klik Tambahkan pemetaan.

Selanjutnya, masukkan App ID and Ad Placement ID yang diperoleh di bagian sebelumnya. Kemudian, klik Done.

Step 3: Import the Pangle SDK and adapter

  • Add the following line to your project's Podfile:

    pod 'GoogleMobileAdsMediationPangle'

  • From the command line run:

    pod install --repo-update

Manual integration

  • Download the latest version of the Pangle SDK for iOS and link all the .framework files and bundles in your project.
  • Download the latest version of the Pangle adapter from the download link in the Changelog and link PangleAdapter.xcframework in your project.

Step 4: Add required code

SKAdNetwork integration

Follow Pangle's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 5: Test your implementation

Aktifkan iklan percobaan

Pastikan Anda mendaftarkan perangkat pengujian Anda untuk AdMob dan mengaktifkan mode pengujian di Pangle UI.

Memverifikasi iklan percobaan

Untuk memverifikasi bahwa Anda menerima iklan pengujian dari Pangle, aktifkan pengujian sumber iklan tunggal di pemeriksa iklan menggunakan Pangle (Bidding) and Pangle (Waterfall) sumber iklan.

Optional Steps

Native ads

Ad rendering

The Pangle adapter returns its native ads as GADNativeAd objects. It populates the following fields for a GADNativeAd.

Field Assets always included by Pangle adapter
Headline
Image 1
Body
Icon
Call to action
Star rating
Store
Price
Advertiser

1 The Pangle adapter does not provide direct access to the main image asset for its native ads. Instead, the adapter populates the GADMediaView with a video or an image.

Error codes

If the adapter fails to receive an ad from Pangle, you can check the underlying error from the ad response using GADResponseInfo.adNetworkInfoArray under the following classes:

GADMediationAdapterPangle

Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:

Error code Domain Reason
101 com.google.ads.mediation.pangle Invalid server parameters (e.g. Missing app ID or placement ID).
102 com.google.ads.mediation.pangle The requested ad size does not match a Pangle supported banner size.
-1-60000 Sent by Pangle SDK Pangle SDK returned an error. See Pangle's documentation for more details.

Pangle iOS Mediation Adapter Changelog

Version 6.2.0.8.0

  • Verified compatibility with Pangle SDK version 6.2.0.8.

Built and tested with:

  • Google Mobile Ads SDK version 11.10.0.
  • Pangle SDK version 6.2.0.8.

Version 6.2.0.7.0

  • Verified compatibility with Pangle SDK version 6.2.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 11.8.0.
  • Pangle SDK version 6.2.0.7.

Version 6.2.0.6.0

  • Verified compatibility with Pangle SDK version 6.2.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 11.8.0.
  • Pangle SDK version 6.2.0.6.

Version 6.2.0.5.0

  • Verified compatibility with Pangle SDK version 6.2.0.5.

Built and tested with:

  • Google Mobile Ads SDK version 11.8.0.
  • Pangle SDK version 6.2.0.5.

Version 6.1.0.6.0

  • Verified compatibility with Pangle SDK version 6.1.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 11.7.0.
  • Pangle SDK version 6.1.0.6.

Version 6.1.0.5.0

  • Verified compatibility with Pangle SDK version 6.1.0.5.

Built and tested with:

  • Google Mobile Ads SDK version 11.6.0.
  • Pangle SDK version 6.1.0.5.

Version 6.1.0.4.0

  • Verified compatibility with Pangle SDK version 6.1.0.4.

Built and tested with:

  • Google Mobile Ads SDK version 11.6.0.
  • Pangle SDK version 6.1.0.4.

Version 6.0.0.6.0

  • Verified compatibility with Pangle SDK version 6.0.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 11.6.0.
  • Pangle SDK version 6.0.0.6.

Version 6.0.0.5.0

  • Verified compatibility with Pangle SDK version 6.0.0.5.

Built and tested with:

  • Google Mobile Ads SDK version 11.5.0.
  • Pangle SDK version 6.0.0.5.

Version 6.0.0.4.0

  • Verified compatibility with Pangle SDK version 6.0.0.4.

Built and tested with:

  • Google Mobile Ads SDK version 11.5.0.
  • Pangle SDK version 6.0.0.4.

Version 5.9.0.9.0

  • Verified compatibility with Pangle SDK version 5.9.0.9.

Built and tested with:

  • Google Mobile Ads SDK version 11.5.0.
  • Pangle SDK version 5.9.0.9.

Version 5.9.0.8.0

  • Verified compatibility with Pangle SDK version 5.9.0.8.

Built and tested with:

  • Google Mobile Ads SDK version 11.4.0.
  • Pangle SDK version 5.9.0.8.

Version 5.9.0.7.0

  • Verified compatibility with Pangle SDK version 5.9.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 11.3.0.
  • Pangle SDK version 5.9.0.7.

Version 5.8.0.8.0

  • Verified compatibility with Pangle SDK version 5.8.0.8.
  • Updated adapter to use new Pangle SDK signal collection API.

Built and tested with:

  • Google Mobile Ads SDK version 11.2.0.
  • Pangle SDK version 5.8.0.8.

Version 5.8.0.7.0

  • Verified compatibility with Pangle SDK version 5.8.0.7.
  • Now requires minimum iOS version 12.0.
  • Now requires Google Mobile Ads SDK version 11.0 or higher.
  • Included Info.plist in the frameworks within PangleAdapter.xcframework.

Built and tested with:

  • Google Mobile Ads SDK version 11.0.1.
  • Pangle SDK version 5.8.0.7.

Version 5.7.0.7.0

  • Verified compatibility with Pangle SDK version 5.7.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 10.14.0.
  • Pangle SDK version 5.7.0.7.

Version 5.7.0.6.0

  • Verified compatibility with Pangle SDK version 5.7.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 10.14.0.
  • Pangle SDK version 5.7.0.6.

Version 5.6.0.8.0

  • Verified compatibility with Pangle SDK version 5.6.0.8.
  • Refactored the +setCOPPA method by replacing the deprecated adConfiguration.childDirectedTreatment property with the new GADMobileAds.sharedInstance.requestConfiguration.tagForChildDirectedTreatment property.

Built and tested with:

  • Google Mobile Ads SDK version 10.14.0.
  • Pangle SDK version 5.6.0.8.

Version 5.5.0.9.0

  • Verified compatibility with Pangle SDK version 5.5.0.9.

Built and tested with:

  • Google Mobile Ads SDK version 10.13.0.
  • Pangle SDK version 5.5.0.9.

Version 5.5.0.7.0

  • Verified compatibility with Pangle SDK version 5.5.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 10.12.0.
  • Pangle SDK version 5.5.0.7.

Version 5.5.0.5.0

  • Verified compatibility with Pangle SDK version 5.5.0.5.

Built and tested with:

  • Google Mobile Ads SDK version 10.11.0.
  • Pangle SDK version 5.5.0.5.

Version 5.4.1.1.0

  • Added bidding support for app open ad format.
  • Verified compatibility with Pangle SDK version 5.4.1.1.

Built and tested with:

  • Google Mobile Ads SDK version 10.10.0.
  • Pangle SDK version 5.4.1.1.

Version 5.4.0.9.0

  • Verified compatibility with Pangle SDK version 5.4.0.9.

Built and tested with:

  • Google Mobile Ads SDK version 10.9.0.
  • Pangle SDK version 5.4.0.9.

Version 5.4.0.8.0

  • Fixed an issue where GADPangleNetworkExtras did not conform to GADAdNetworkExtras protocol.
  • Implemented adDidShowFail protocol method in interstitial, rewarded, and app open ads.
  • Verified compatibility with Pangle SDK version 5.4.0.8.

Built and tested with:

  • Google Mobile Ads SDK version 10.9.0.
  • Pangle SDK version 5.4.0.8.

Version 5.3.1.2.0

  • Verified compatibility with Pangle SDK version 5.3.1.2.

Built and tested with:

  • Google Mobile Ads SDK version 10.8.0.
  • Pangle SDK version 5.3.1.2.

Version 5.3.1.0.0

  • Verified compatibility with Pangle SDK version 5.3.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 10.8.0.
  • Pangle SDK version 5.3.1.0.

Version 5.2.1.1.0

  • Verified compatibility with Pangle SDK version 5.2.1.1.

Built and tested with:

  • Google Mobile Ads SDK version 10.7.0.
  • Pangle SDK version 5.2.1.1.

Version 5.2.0.9.0

  • Verified compatibility with Pangle SDK version 5.2.0.9.

Built and tested with:

  • Google Mobile Ads SDK version 10.5.0.
  • Pangle SDK version 5.2.0.9.

Version 5.2.0.8.0

  • Verified compatibility with Pangle SDK version 5.2.0.8.

Built and tested with:

  • Google Mobile Ads SDK version 10.5.0.
  • Pangle SDK version 5.2.0.8.

Version 5.2.0.7.0

  • Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
  • Verified compatibility with Pangle SDK version 5.2.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 10.5.0.
  • Pangle SDK version 5.2.0.7.

Version 5.2.0.6.0

  • Verified compatibility with Pangle SDK version 5.2.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 10.5.0.
  • Pangle SDK version 5.2.0.6.

Version 5.1.1.0.0

  • Verified compatibility with Pangle SDK version 5.1.1.0.
  • Added support for the arm64 simulator architecture.
  • Now requires Google Mobile Ads SDK version 10.4.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 10.4.0.
  • Pangle SDK version 5.1.1.0.

Version 5.1.0.6.0

  • Verified compatibility with Pangle SDK version 5.1.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 10.3.0.
  • Pangle SDK version 5.1.0.6.

Version 5.0.1.0.0

  • Verified compatibility with Pangle SDK version 5.0.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 10.2.0.
  • Pangle SDK version 5.0.1.0.

Version 5.0.0.8.0

  • Verified compatibility with Pangle SDK version 5.0.0.8.

Built and tested with:

  • Google Mobile Ads SDK version 10.2.0.
  • Pangle SDK version 5.0.0.8.

Version 5.0.0.7.0

  • Verified compatibility with Pangle SDK version 5.0.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 10.1.0.
  • Pangle SDK version 5.0.0.7.

Version 5.0.0.6.0

  • Verified compatibility with Pangle SDK version 5.0.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 10.1.0.
  • Pangle SDK version 5.0.0.6.

Version 4.9.1.0.0

  • Removed support for the armv7 architecture.
  • Verified compatibility with Pangle SDK version 4.9.1.0.
  • Now requires minimum iOS version of 12.0.
  • Now requires Google Mobile Ads SDK version 10.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 10.0.0.
  • Pangle SDK version 4.9.1.0.

Version 4.9.0.8.0

  • Verified compatibility with Pangle SDK version 4.9.0.8.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • Pangle SDK version 4.9.0.8.

Version 4.9.0.7.0

  • Verified compatibility with Pangle SDK version 4.9.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • Pangle SDK version 4.9.0.7.

Version 4.9.0.6.0

  • Verified compatibility with Pangle SDK version 4.9.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • Pangle SDK version 4.9.0.6.

Version 4.8.1.0.0

  • Verified compatibility with Pangle SDK version 4.8.1.0.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • Pangle SDK version 4.8.1.0.

Version 4.8.0.9.0

  • Verified compatibility with Pangle SDK version 4.8.0.9.

Built and tested with:

  • Google Mobile Ads SDK version 9.13.0.
  • Pangle SDK version 4.8.0.9.

Version 4.8.0.7.0

  • Verified compatibility with Pangle SDK version 4.8.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 9.13.0.
  • Pangle SDK version 4.8.0.7.

Version 4.8.0.6.0

  • Verified compatibility with Pangle SDK version 4.8.0.6.
  • Fixed an issue where the main thread was blocked when loading native ad icon image.

Built and tested with:

  • Google Mobile Ads SDK version 9.13.0.
  • Pangle SDK version 4.8.0.6.

Version 4.7.0.7.0

  • Verified compatibility with Pangle SDK version 4.7.0.7.

Built and tested with:

  • Google Mobile Ads SDK version 9.11.0.
  • Pangle SDK version 4.7.0.7.

Version 4.7.0.6.0

  • Verified compatibility with Pangle SDK version 4.7.0.6.

Built and tested with:

  • Google Mobile Ads SDK version 9.11.0.
  • Pangle SDK version 4.7.0.6.

Version 4.7.0.5.0

  • Verified compatibility with Pangle SDK version 4.7.0.5.

Built and tested with:

  • Google Mobile Ads SDK version 9.11.0.
  • Pangle SDK version 4.7.0.5.

Version 4.7.0.4.0

  • Verified compatibility with Pangle SDK version 4.7.0.4.

Built and tested with:

  • Google Mobile Ads SDK version 9.10.0.
  • Pangle SDK version 4.7.0.4.

Version 4.6.2.2.0

  • Renamed the setGDPR() and setCCPA() methods from the GADMediationAdapterPangle class to setGDPRConsent() and setDoNotSell respectively.
  • Verified compatibility with Pangle SDK version 4.6.2.2.

Built and tested with:

  • Google Mobile Ads SDK version 9.10.0.
  • Pangle SDK version 4.6.2.2.

Version 4.6.1.8.0

  • Verified compatibility with Pangle SDK version 4.6.1.8.
  • Added bidding support for native ad format.
  • Updated the adapter to use the didRewardUser API.
  • Now requires Google Mobile Ads SDK version 9.8.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 9.9.0.
  • Pangle SDK version 4.6.1.8.

Version 4.5.2.8.0

  • Verified compatibility with Pangle SDK version 4.5.2.8.

Built and tested with:

  • Google Mobile Ads SDK version 9.7.0.
  • Pangle SDK version 4.5.2.8.

Version 4.5.2.7.0

  • Verified compatibility with Pangle SDK version 4.5.2.7.

Built and tested with:

  • Google Mobile Ads SDK version 9.7.0.
  • Pangle SDK version 4.5.2.7.

Version 4.5.2.5.0

  • Verified compatibility with Pangle SDK version 4.5.2.5.

Built and tested with:

  • Google Mobile Ads SDK version 9.6.0.
  • Pangle SDK version 4.5.2.5.

Version 4.5.2.4.0

  • Verified compatibility with Pangle SDK version 4.5.2.4.

Built and tested with:

  • Google Mobile Ads SDK version 9.6.0.
  • Pangle SDK version 4.5.2.4.

Version 4.5.2.3.0

  • Verified compatibility with Pangle SDK version 4.5.2.3.

Built and tested with:

  • Google Mobile Ads SDK version 9.6.0.
  • Pangle SDK version 4.5.2.3.

Version 4.5.1.3.0

  • Verified compatibility with Pangle SDK version 4.5.1.3.

Built and tested with:

  • Google Mobile Ads SDK version 9.5.0.
  • Pangle SDK version 4.5.1.3.

Version 4.3.1.9.0

  • Verified compatibility with Pangle SDK version 4.3.1.9.

Built and tested with:

  • Google Mobile Ads SDK version 9.3.0.
  • Pangle SDK version 4.3.1.9.

Version 4.3.0.5.0

  • Verified compatibility with Pangle SDK version 4.3.0.5.

Built and tested with:

  • Google Mobile Ads SDK version 9.2.0.
  • Pangle SDK version 4.3.0.5.

Version 4.3.0.4.0

  • Initial release!
  • Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.

Built and tested with:

  • Google Mobile Ads SDK version 9.1.0.
  • Pangle SDK version 4.3.0.4.
