This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an iOS app.
Supported integrations and ad formats
The mediation adapter for Pangle has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
App open | 1 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
Requirements
- iOS deployment target of 10.0 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Pangle UI
Sign up or Log in to your Pangle account.
Add a new application
Navigate to the Applications tab and click the Add App button.
Select the Operating System you wish to create an application for and fill out the rest of the form. Then, click Submit.
Take note of your application's App ID.
Create an ad placement
Once your application has been created, click the Add button to create your ad placement.
Bidding
Select your Ad Format and Ad Placement Name, and select In-App Bidding as the Pricing Type. Fill out the rest of the form and click Submit.
Once your ad placement is created, take note of the Ad Placement ID.
Waterfall
Select your Ad Format and Ad Placement Name, and Global CPM as the Pricing Type. Fill out the rest of the form and click Submit.
Once your ad placement is created, take note of the Ad Placement ID.
Locate Pangle Reporting API key
Bidding
This step isn't required for bidding integrations.
Waterfall
Take note of the User ID at the bottom left corner of the page.
Click Integrations > SDK & API > Pangle Reporting API 2.0. Take note of Role ID and Security Key.
Turn on test mode
Follow the instructions in Pangle's How to add a Test Ad guide on how to enable Pangle test ads.
Step 2: Set up Pangle demand in AdMob UI
अपनी विज्ञापन यूनिट के लिए मीडिएशन सेटिंग कॉन्फ़िगर करना
आपको अपनी विज्ञापन यूनिट के मीडिएशन कॉन्फ़िगरेशन में Pangle जोड़ना होगा.
सबसे पहले, अपने AdMob खाते में साइन इन करें. इसके बाद, मीडिएशन टैब पर जाएं. अगर किसी मौजूदा मीडिएशन ग्रुप में बदलाव करना है, तो उस मीडिएशन ग्रुप के नाम पर क्लिक करके उसमें बदलाव करें. इसके बाद, सीधे विज्ञापन स्रोत Pangle के तौर पर जोड़ें पर जाएं.
नया मीडिएशन ग्रुप बनाने के लिए, मीडिएशन ग्रुप बनाएं को चुनें.
अपना विज्ञापन फ़ॉर्मैट और प्लैटफ़ॉर्म डालें. इसके बाद, जारी रखें पर क्लिक करें.
अपने मीडिएशन ग्रुप को कोई नाम दें और टारगेट करने के लिए जगहें चुनें. इसके बाद, मीडिएशन ग्रुप के स्टेटस को चालू किया गया पर सेट करें. इसके बाद, विज्ञापन यूनिट जोड़ें पर क्लिक करें.
इस मीडिएशन ग्रुप को अपनी एक या उससे ज़्यादा मौजूदा AdMob विज्ञापन यूनिट से जोड़ें. इसके बाद, हो गया पर क्लिक करें.
अब आपको विज्ञापन यूनिट कार्ड दिखेगा, जिसमें आपकी चुनी गई विज्ञापन यूनिट होंगी:
विज्ञापन स्रोत के तौर पर Pangle जोड़ें
बिडिंग
विज्ञापन स्रोत सेक्शन में, बिडिंग कार्ड में जाकर, विज्ञापन स्रोत जोड़ें चुनें. इसके बाद, Pangle चुनें.
पार्टनरशिप के कानूनी समझौते पर हस्ताक्षर करने का तरीका पर क्लिक करें. इसके बाद,Pangleके साथ बिडिंग पार्टनरशिप सेट अप करें.
स्वीकार करें और सहमति दें पर क्लिक करें. इसके बाद, जारी रखें पर क्लिक करें.

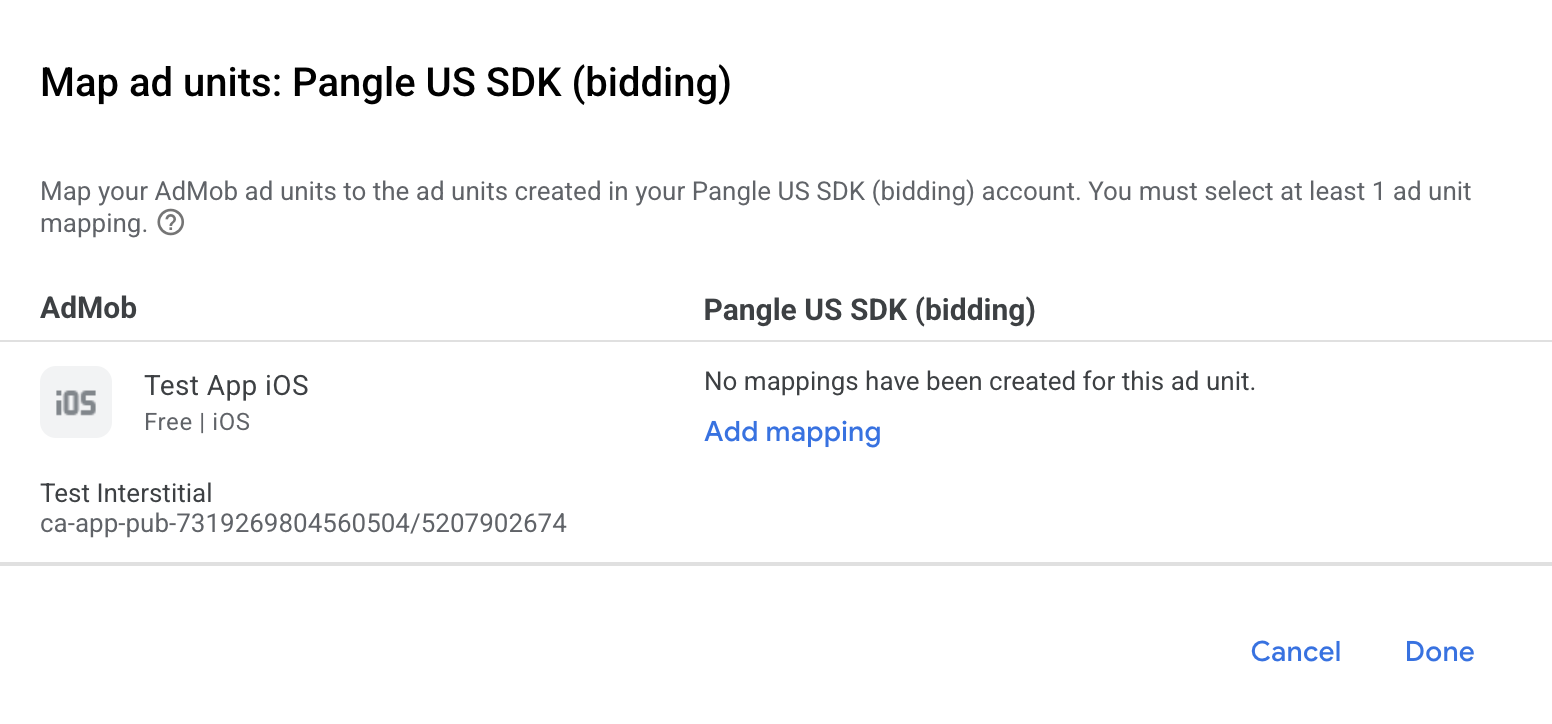

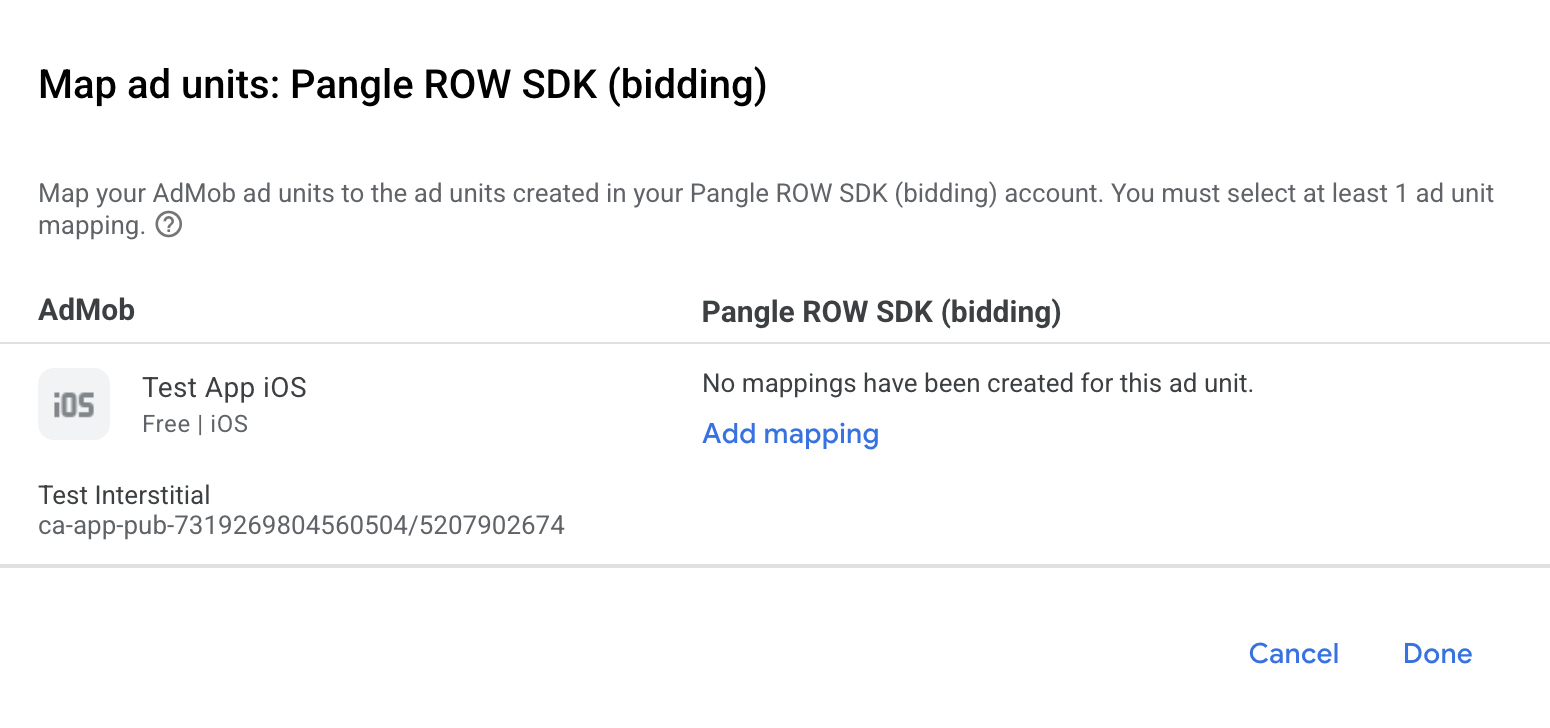

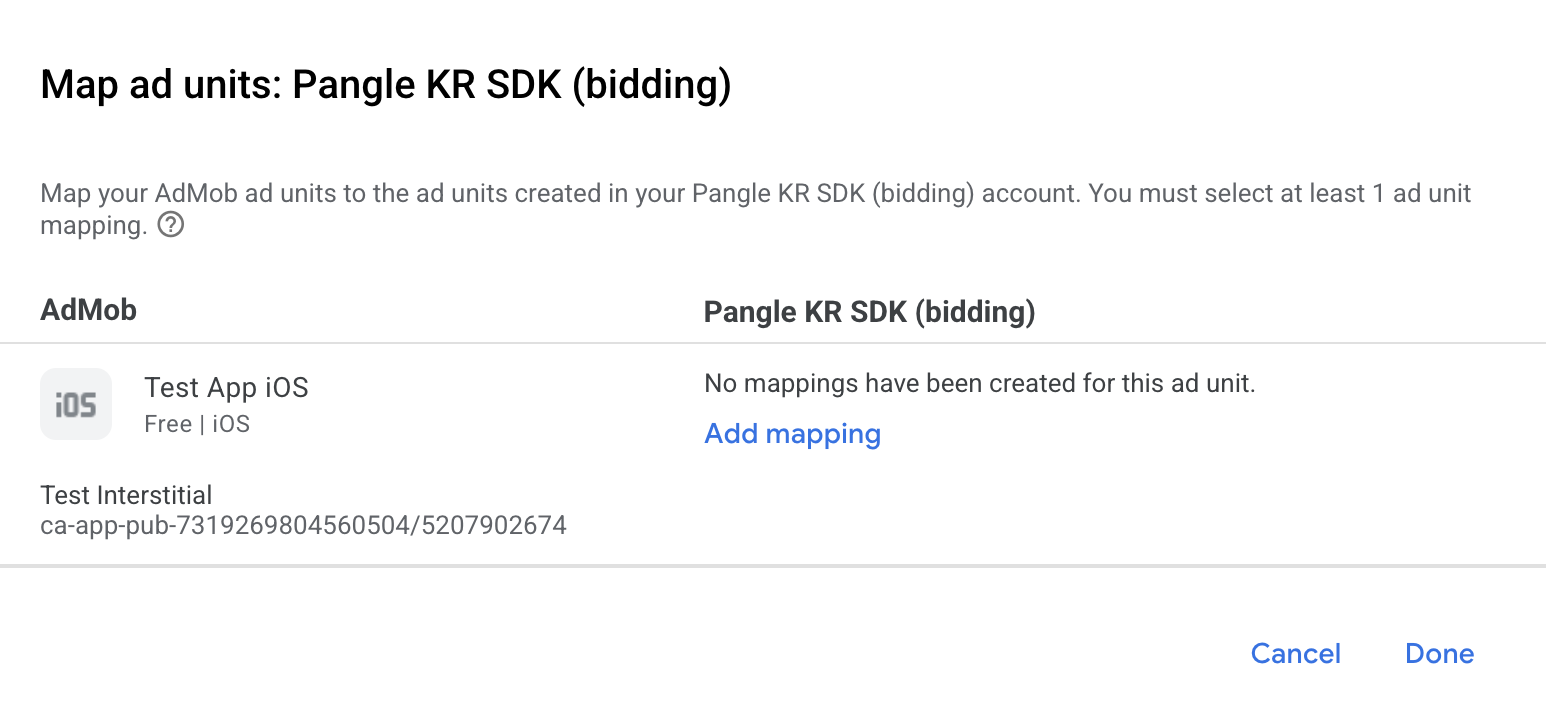

अगर आपके पास पहले से ही Pangleके लिए मैपिंग है, तो इसे चुना जा सकता है. इसके अलावा, मैपिंग जोड़ें पर क्लिक करें.

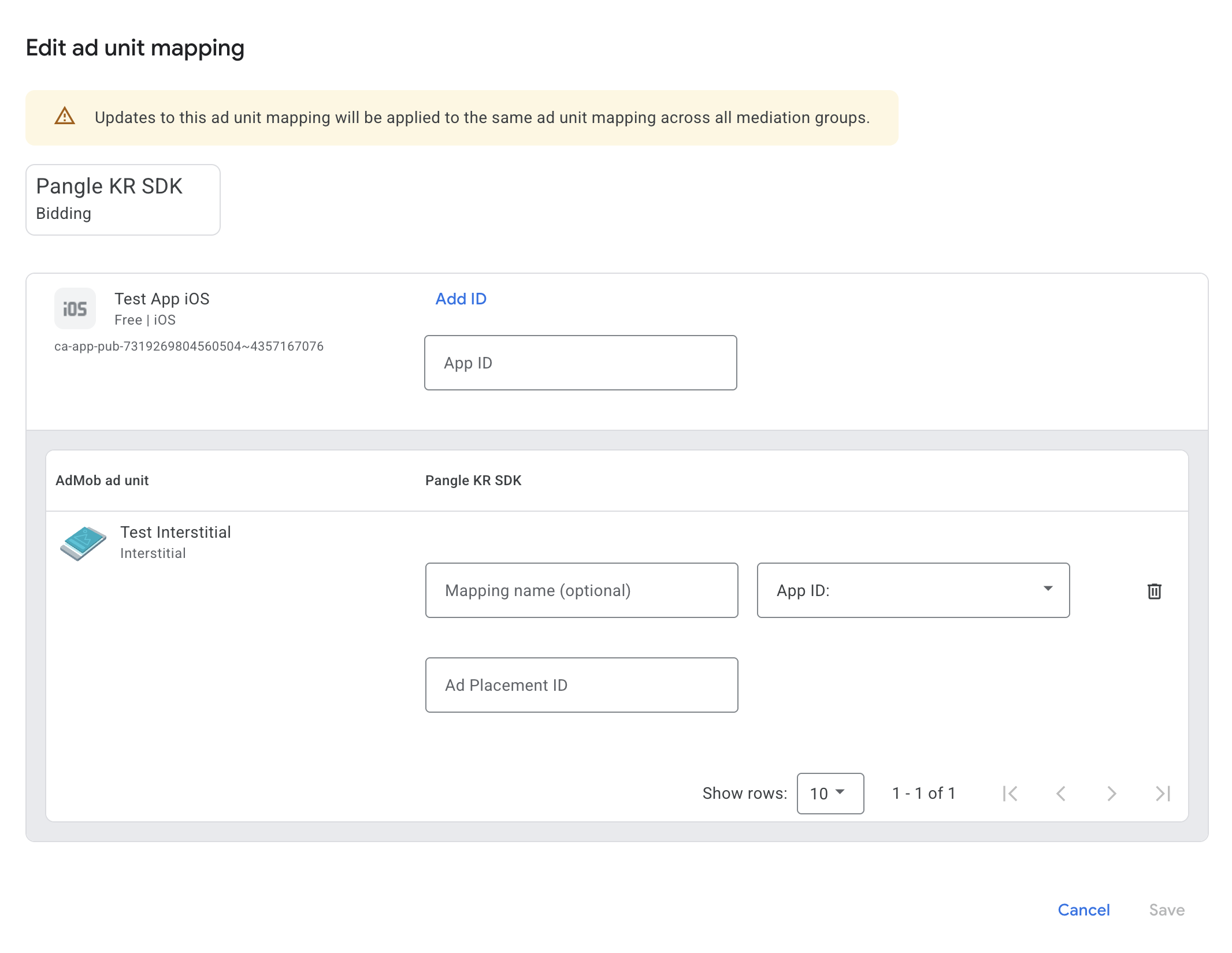

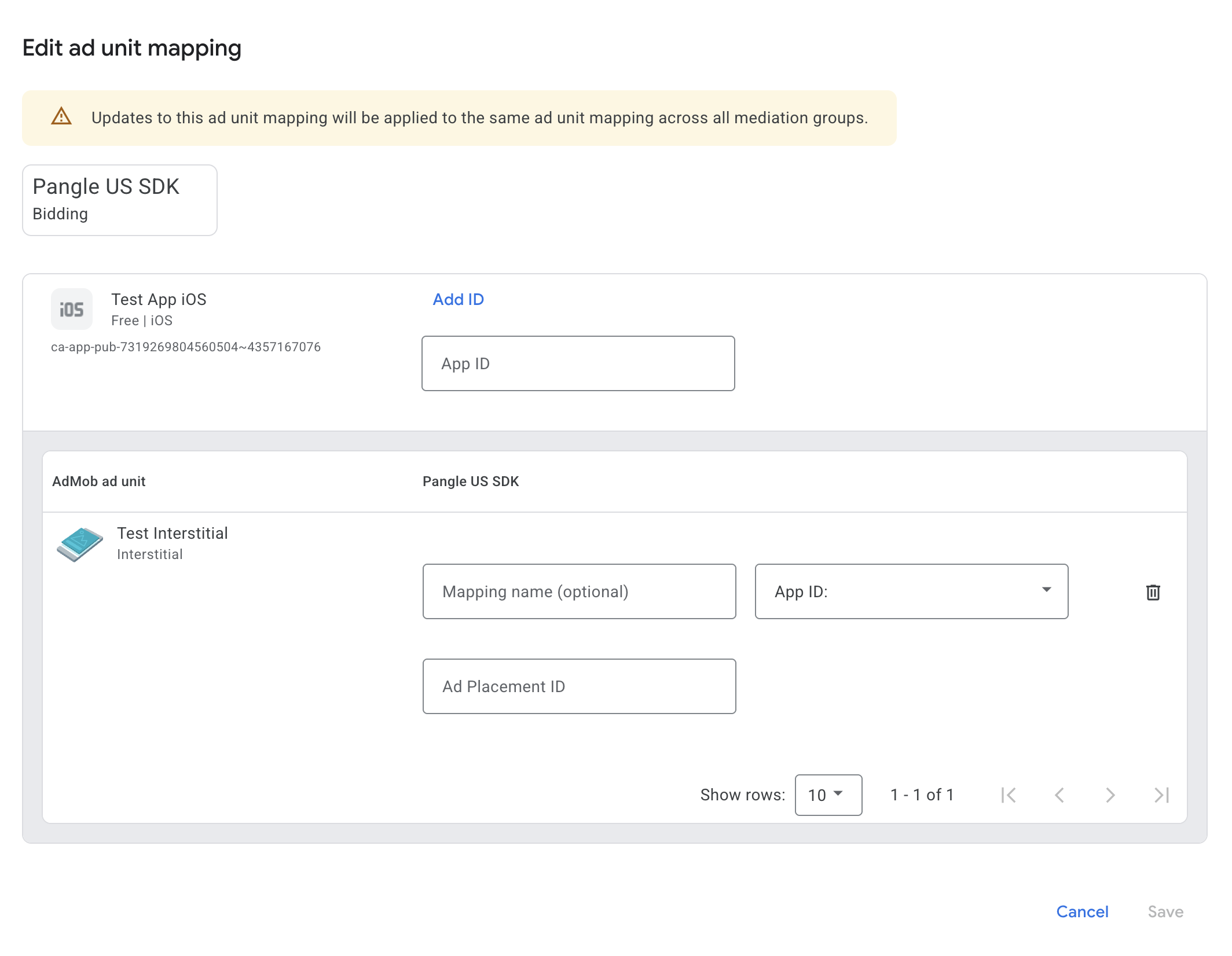

इसके बाद, पिछले सेक्शन में दिया गया App ID and Ad Placement IDडालें. इसके बाद, हो गया पर क्लिक करें.
अहम जानकारी: टारगेट किए गए ऐप्लिकेशन App ID उससे जुड़ा होना चाहिए, जैसा किPangle यूज़र इंटरफ़ेस में बताया गया है.झरना
विज्ञापन सोर्स सेक्शन में जाकर, वॉटरफ़ॉल कार्ड में जाकर, विज्ञापन का सोर्स जोड़ें चुनें. इसके बाद, Pangle चुनें.
Pangle चुनें. इसके बाद,Pangle के लिए eCPM वैल्यू डालें और जारी रखें पर क्लिक करें.अगर आपके पास पहले से ही Pangleके लिए मैपिंग है, तो इसे चुना जा सकता है. इसके अलावा, मैपिंग जोड़ें पर क्लिक करें.
इसके बाद, पिछले सेक्शन में दिया गया App ID and Ad Placement IDडालें. इसके बाद, हो गया पर क्लिक करें.
में बताया गया है.Step 3: Import the Pangle SDK and adapter
Using CocoaPods (recommended)
Add the following line to your project's Podfile:
pod 'GoogleMobileAdsMediationPangle'
From the command line run:
pod install --repo-update
Manual integration
- Download the latest version of the
Pangle SDK for iOS
and link all the
.framework
files and bundles in your project. - Download the latest version of the Pangle adapter from the download link in
the Changelog and link
PangleAdapter.xcframework
in your project.
Step 4: Add required code
SKAdNetwork integration
Follow Pangle's documentation
to add the SKAdNetwork identifiers to your project's Info.plist
file.
Step 5: Test your implementation
टेस्ट विज्ञापनों को चालू करें
पक्का करें कि आपनेके लिए अपना टेस्ट डिवाइस रजिस्टर किया हो और Pangle यूज़र इंटरफ़ेस (यूआई) में टेस्ट मोड चालू किया हो. AdMob
टेस्ट विज्ञापनों की पुष्टि करें
यह पुष्टि करने के लिए कि Pangleसे आपको टेस्ट विज्ञापन मिल रहे हैं, विज्ञापन जांचने वाले टूल में विज्ञापन के एक सोर्स को टेस्ट करने की सुविधा चालू करें. इसके लिए, Pangle (Bidding) and Pangle (Waterfall) विज्ञापन सोर्स का इस्तेमाल करें.
Optional Steps
Native ads
Ad rendering
The Pangle adapter returns its native ads as
GADNativeAd
objects. It populates the following
fields
for a
GADNativeAd
.
Field | Assets always included by Pangle adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Pangle adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
GADMediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Pangle, you can check the
underlying error from the ad response using
GADResponseInfo.adNetworkInfoArray
under the following classes:
GADMediationAdapterPangle
Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.pangle | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.pangle | The requested ad size does not match a Pangle supported banner size. |
-1-60000 | Sent by Pangle SDK | Pangle SDK returned an error. See Pangle's documentation for more details. |
Pangle iOS Mediation Adapter Changelog
Version 6.1.0.6.0
- Verified compatibility with Pangle SDK version 6.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 11.7.0.
- Pangle SDK version 6.1.0.6.
Version 6.1.0.5.0
- Verified compatibility with Pangle SDK version 6.1.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.5.
Version 6.1.0.4.0
- Verified compatibility with Pangle SDK version 6.1.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.4.
Version 6.0.0.6.0
- Verified compatibility with Pangle SDK version 6.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.0.0.6.
Version 6.0.0.5.0
- Verified compatibility with Pangle SDK version 6.0.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.5.
Version 6.0.0.4.0
- Verified compatibility with Pangle SDK version 6.0.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.4.
Version 5.9.0.9.0
- Verified compatibility with Pangle SDK version 5.9.0.9.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 5.9.0.9.
Version 5.9.0.8.0
- Verified compatibility with Pangle SDK version 5.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 11.4.0.
- Pangle SDK version 5.9.0.8.
Version 5.9.0.7.0
- Verified compatibility with Pangle SDK version 5.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 11.3.0.
- Pangle SDK version 5.9.0.7.
Version 5.8.0.8.0
- Verified compatibility with Pangle SDK version 5.8.0.8.
- Updated adapter to use new Pangle SDK signal collection API.
Built and tested with:
- Google Mobile Ads SDK version 11.2.0.
- Pangle SDK version 5.8.0.8.
Version 5.8.0.7.0
- Verified compatibility with Pangle SDK version 5.8.0.7.
- Now requires minimum iOS version 12.0.
- Now requires Google Mobile Ads SDK version 11.0 or higher.
- Included
Info.plist
in the frameworks withinPangleAdapter.xcframework
.
Built and tested with:
- Google Mobile Ads SDK version 11.0.1.
- Pangle SDK version 5.8.0.7.
Version 5.7.0.7.0
- Verified compatibility with Pangle SDK version 5.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.7.
Version 5.7.0.6.0
- Verified compatibility with Pangle SDK version 5.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.6.
Version 5.6.0.8.0
- Verified compatibility with Pangle SDK version 5.6.0.8.
- Refactored the
+setCOPPA
method by replacing the deprecatedadConfiguration.childDirectedTreatment
property with the newGADMobileAds.sharedInstance.requestConfiguration.tagForChildDirectedTreatment
property.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.6.0.8.
Version 5.5.0.9.0
- Verified compatibility with Pangle SDK version 5.5.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.13.0.
- Pangle SDK version 5.5.0.9.
Version 5.5.0.7.0
- Verified compatibility with Pangle SDK version 5.5.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.12.0.
- Pangle SDK version 5.5.0.7.
Version 5.5.0.5.0
- Verified compatibility with Pangle SDK version 5.5.0.5.
Built and tested with:
- Google Mobile Ads SDK version 10.11.0.
- Pangle SDK version 5.5.0.5.
Version 5.4.1.1.0
- Added bidding support for app open ad format.
- Verified compatibility with Pangle SDK version 5.4.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.10.0.
- Pangle SDK version 5.4.1.1.
Version 5.4.0.9.0
- Verified compatibility with Pangle SDK version 5.4.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.9.
Version 5.4.0.8.0
- Fixed an issue where
GADPangleNetworkExtras
did not conform toGADAdNetworkExtras
protocol. - Implemented
adDidShowFail
protocol method in interstitial, rewarded, and app open ads. - Verified compatibility with Pangle SDK version 5.4.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.8.
Version 5.3.1.2.0
- Verified compatibility with Pangle SDK version 5.3.1.2.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.2.
Version 5.3.1.0.0
- Verified compatibility with Pangle SDK version 5.3.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.0.
Version 5.2.1.1.0
- Verified compatibility with Pangle SDK version 5.2.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.7.0.
- Pangle SDK version 5.2.1.1.
Version 5.2.0.9.0
- Verified compatibility with Pangle SDK version 5.2.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.9.
Version 5.2.0.8.0
- Verified compatibility with Pangle SDK version 5.2.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.8.
Version 5.2.0.7.0
- Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
- Verified compatibility with Pangle SDK version 5.2.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.7.
Version 5.2.0.6.0
- Verified compatibility with Pangle SDK version 5.2.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.6.
Version 5.1.1.0.0
- Verified compatibility with Pangle SDK version 5.1.1.0.
- Added support for the
arm64
simulator architecture. - Now requires Google Mobile Ads SDK version 10.4.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.4.0.
- Pangle SDK version 5.1.1.0.
Version 5.1.0.6.0
- Verified compatibility with Pangle SDK version 5.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.3.0.
- Pangle SDK version 5.1.0.6.
Version 5.0.1.0.0
- Verified compatibility with Pangle SDK version 5.0.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.1.0.
Version 5.0.0.8.0
- Verified compatibility with Pangle SDK version 5.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.0.8.
Version 5.0.0.7.0
- Verified compatibility with Pangle SDK version 5.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.7.
Version 5.0.0.6.0
- Verified compatibility with Pangle SDK version 5.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.6.
Version 4.9.1.0.0
- Removed support for the
armv7
architecture. - Verified compatibility with Pangle SDK version 4.9.1.0.
- Now requires minimum iOS version of 12.0.
- Now requires Google Mobile Ads SDK version 10.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- Pangle SDK version 4.9.1.0.
Version 4.9.0.8.0
- Verified compatibility with Pangle SDK version 4.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.8.
Version 4.9.0.7.0
- Verified compatibility with Pangle SDK version 4.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.7.
Version 4.9.0.6.0
- Verified compatibility with Pangle SDK version 4.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.6.
Version 4.8.1.0.0
- Verified compatibility with Pangle SDK version 4.8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.8.1.0.
Version 4.8.0.9.0
- Verified compatibility with Pangle SDK version 4.8.0.9.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.9.
Version 4.8.0.7.0
- Verified compatibility with Pangle SDK version 4.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.7.
Version 4.8.0.6.0
- Verified compatibility with Pangle SDK version 4.8.0.6.
- Fixed an issue where the main thread was blocked when loading native ad icon image.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.6.
Version 4.7.0.7.0
- Verified compatibility with Pangle SDK version 4.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.7.
Version 4.7.0.6.0
- Verified compatibility with Pangle SDK version 4.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.6.
Version 4.7.0.5.0
- Verified compatibility with Pangle SDK version 4.7.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.5.
Version 4.7.0.4.0
- Verified compatibility with Pangle SDK version 4.7.0.4.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.7.0.4.
Version 4.6.2.2.0
- Renamed the
setGDPR()
andsetCCPA()
methods from theGADMediationAdapterPangle
class tosetGDPRConsent()
andsetDoNotSell
respectively. - Verified compatibility with Pangle SDK version 4.6.2.2.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.6.2.2.
Version 4.6.1.8.0
- Verified compatibility with Pangle SDK version 4.6.1.8.
- Added bidding support for native ad format.
- Updated the adapter to use the
didRewardUser
API. - Now requires Google Mobile Ads SDK version 9.8.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.9.0.
- Pangle SDK version 4.6.1.8.
Version 4.5.2.8.0
- Verified compatibility with Pangle SDK version 4.5.2.8.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.8.
Version 4.5.2.7.0
- Verified compatibility with Pangle SDK version 4.5.2.7.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.7.
Version 4.5.2.5.0
- Verified compatibility with Pangle SDK version 4.5.2.5.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.5.
Version 4.5.2.4.0
- Verified compatibility with Pangle SDK version 4.5.2.4.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.4.
Version 4.5.2.3.0
- Verified compatibility with Pangle SDK version 4.5.2.3.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.3.
Version 4.5.1.3.0
- Verified compatibility with Pangle SDK version 4.5.1.3.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- Pangle SDK version 4.5.1.3.
Version 4.3.1.9.0
- Verified compatibility with Pangle SDK version 4.3.1.9.
Built and tested with:
- Google Mobile Ads SDK version 9.3.0.
- Pangle SDK version 4.3.1.9.
Version 4.3.0.5.0
- Verified compatibility with Pangle SDK version 4.3.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.2.0.
- Pangle SDK version 4.3.0.5.
Version 4.3.0.4.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 9.1.0.
- Pangle SDK version 4.3.0.4.
