Intégrer une ligne à la médiation (bêta)

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Line using AdMob Mediation, covering waterfall integrations. It covers how to add Line to an ad unit's mediation configuration, and how to integrate the Line SDK and adapter into an iOS app.

The dashboard interface for Line uses Japanese text for its labels, buttons, and descriptions. The screenshots in this guide have not been translated. In this guide's descriptions and instructions however, labels and buttons are translated with their English language equivalents in parentheses.

Supported integrations and ad formats

The mediation adapter for Line has the following capabilities:

¹ Waterfall integration is in open beta.

Requirements

• iOS deployment target of 12.0 or higher

• Latest Google Mobile Ads SDK

• Complete the mediation Get started guide

Step 1: Set up configurations in Line UI

Log in to your Line account.

Add a new application

Click 広告枠管理 (Ad Slot Management) > メディア (Media). Then, click 新規作成 (Create New).

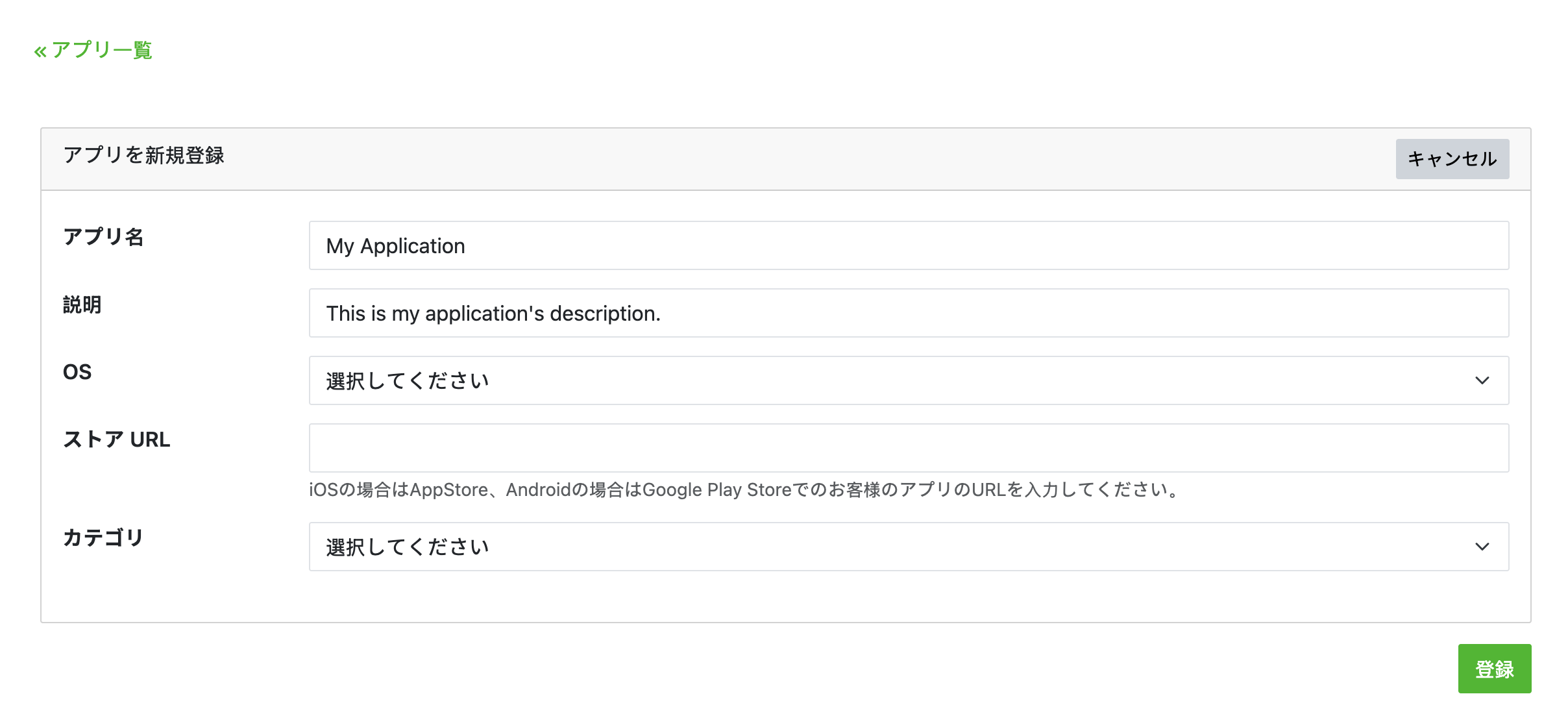

Fill out the form and click 登録 (Register).

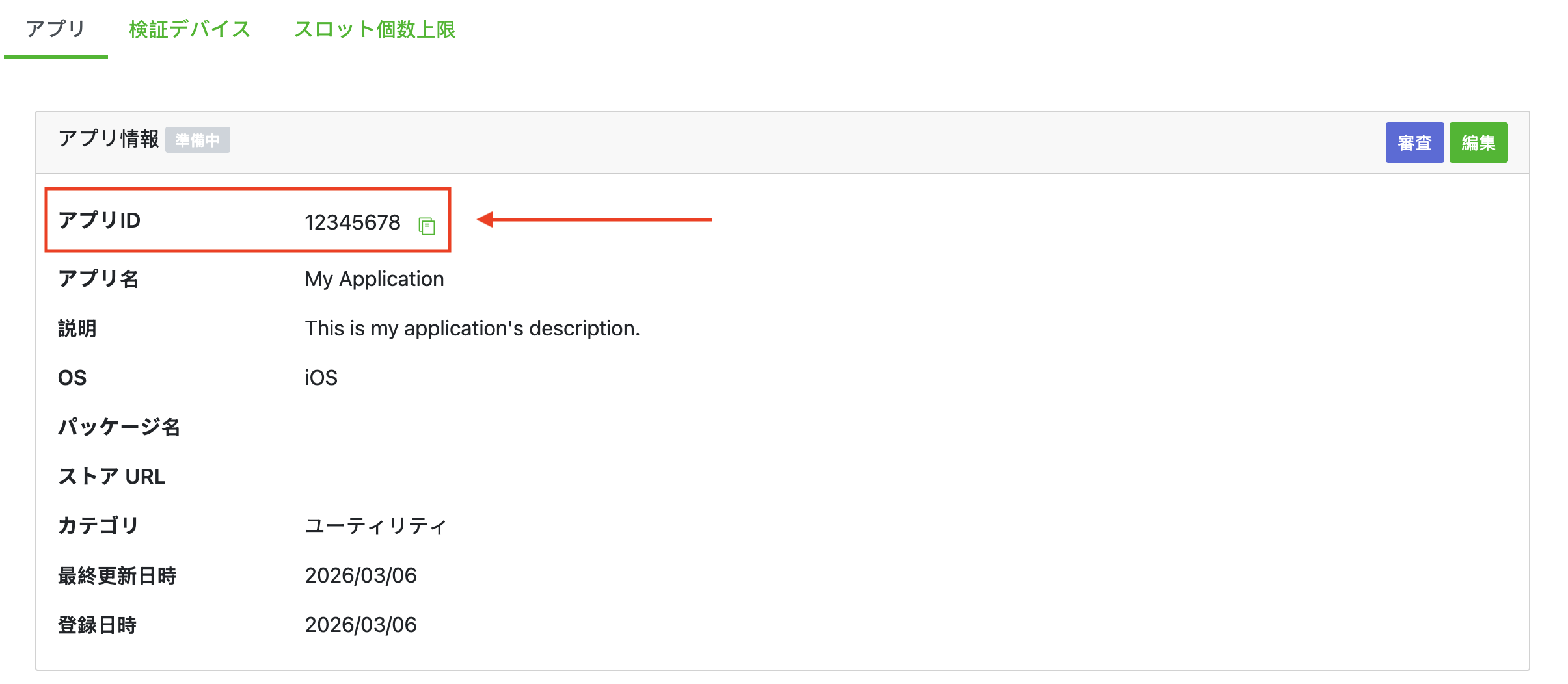

Take note of the Application ID.

Create an ad placement

Click the ID of the application you want to add an ad placement. Then, select 詳細 (Detail).

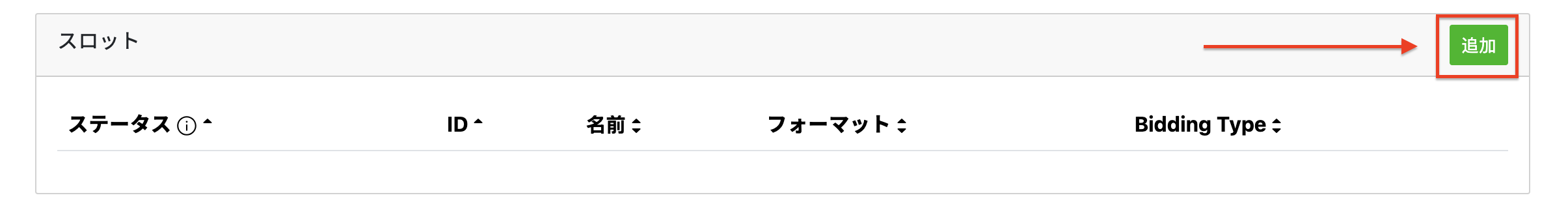

Click スロット 追加 (Add Slot).

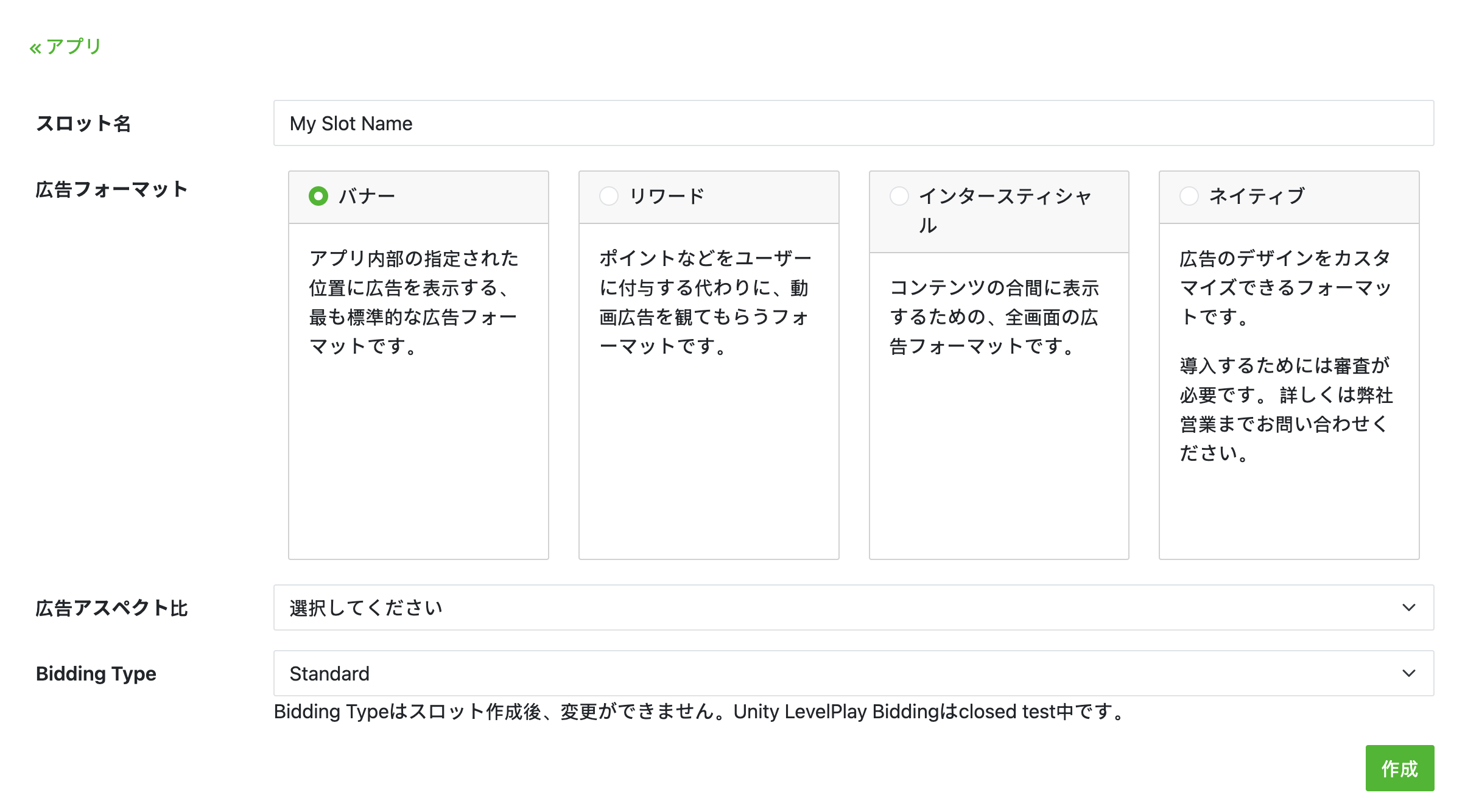

Fill out the form and once done, click (登録) Register.

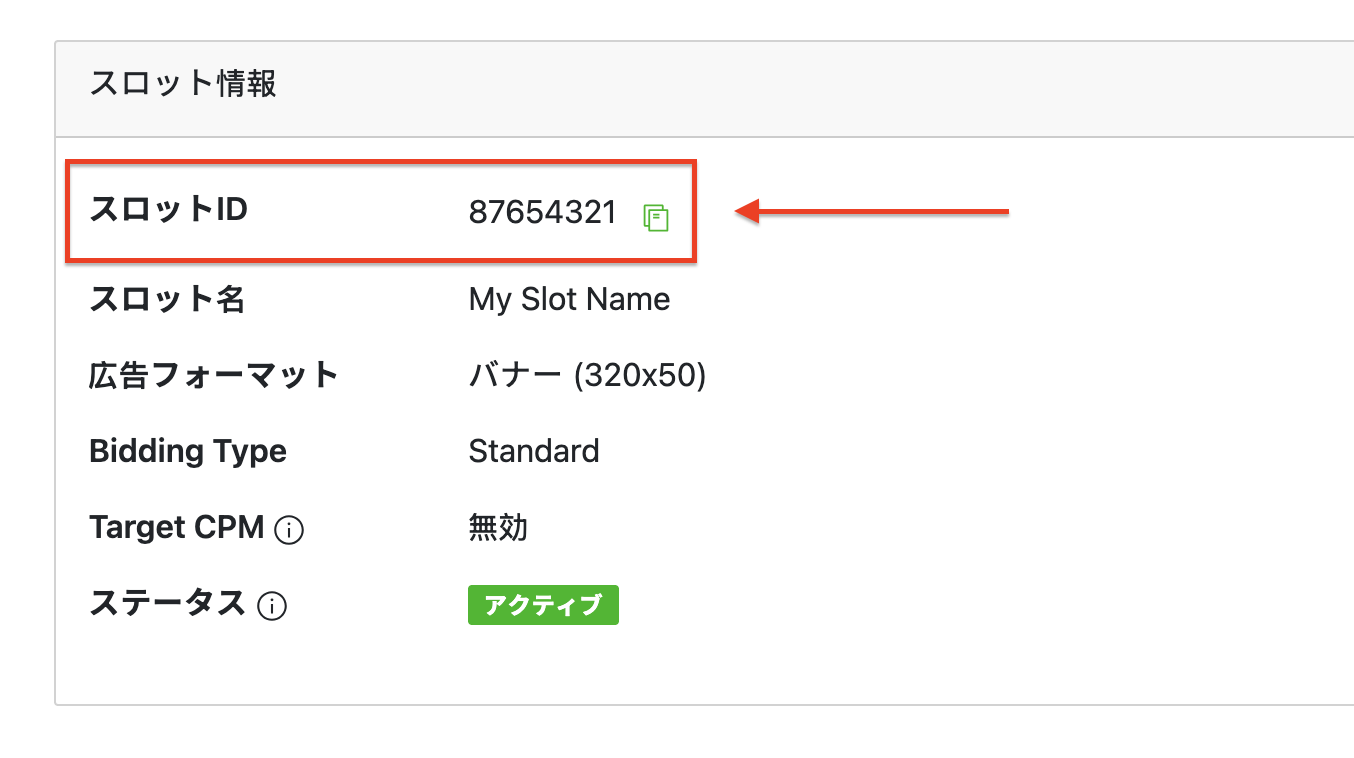

Take note of the Slot ID.

Step 2: Set up Line demand in AdMob UI

Configurer les paramètres de médiation pour votre bloc d'annonces

Vous devez ajouter Line à la configuration de la médiation pour votre bloc d'annonces.

Connectez-vous à votre compte AdMob. Accédez ensuite à l'onglet Médiation. Si vous souhaitez modifier un groupe de médiation existant, cliquez sur son nom pour le modifier, puis passez à l'étape Ajouter Line comme source d'annonces.

Pour créer un groupe de médiation, sélectionnez Créer un groupe de médiation.

Saisissez le format de votre annonce et votre plate-forme, puis cliquez sur Continuer.

Attribuez un nom à votre groupe de médiation, puis sélectionnez les zones géographiques à cibler. Définissez ensuite l'état du groupe de médiation sur Activé, puis cliquez sur Ajouter des blocs d'annonces.

Associez ce groupe de médiation à un ou plusieurs de vos blocs d'annoncesAdMob existants. Cliquez ensuite sur Done (OK).

Vous devriez maintenant voir la fiche des blocs d'annonces que vous avez sélectionnés:

Ajouter Line comme source d'annonces

Sous la fiche Waterfall (Cascade d'annonces) de la section Ad Sources (Sources d'annonces), sélectionnez Add Ad Source (Ajouter une source d'annonces). Sélectionnez ensuite Line.

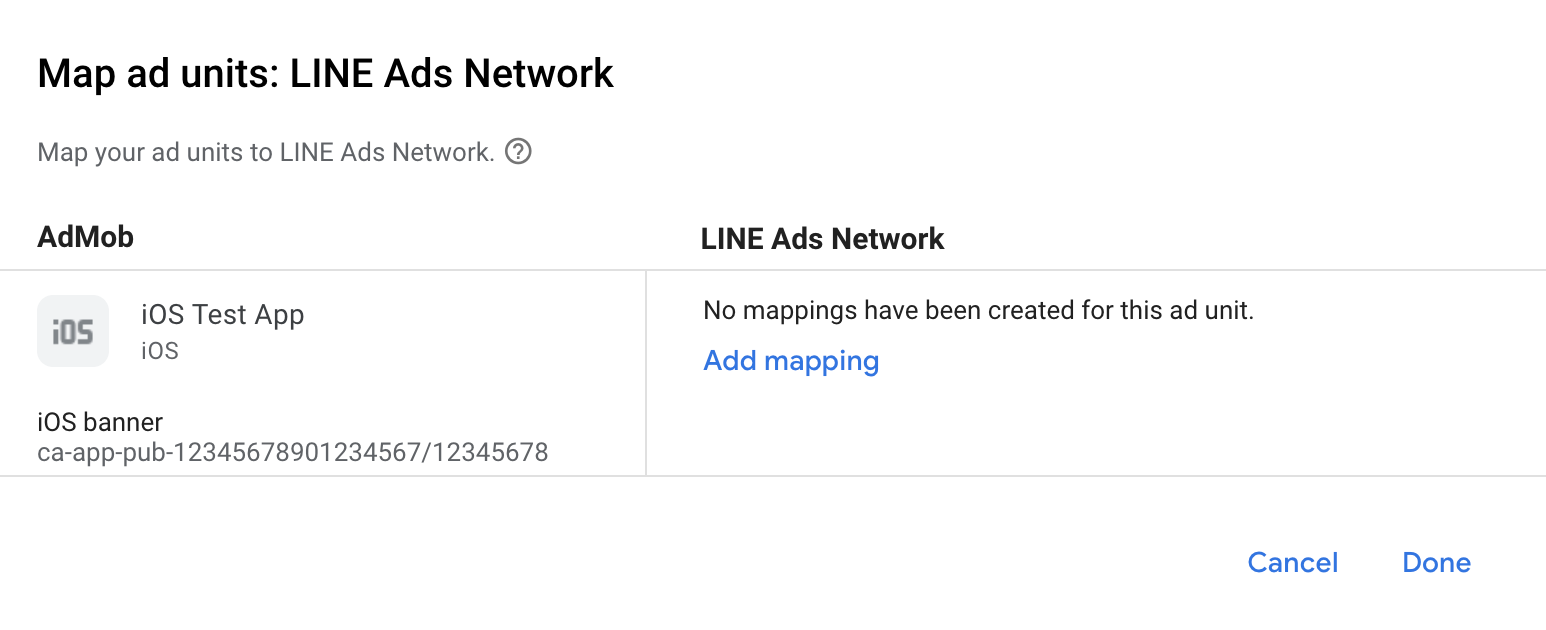

Si vous disposez déjà d'un mappage pour Line, vous pouvez le sélectionner. Sinon, cliquez sur Ajouter un mappage.

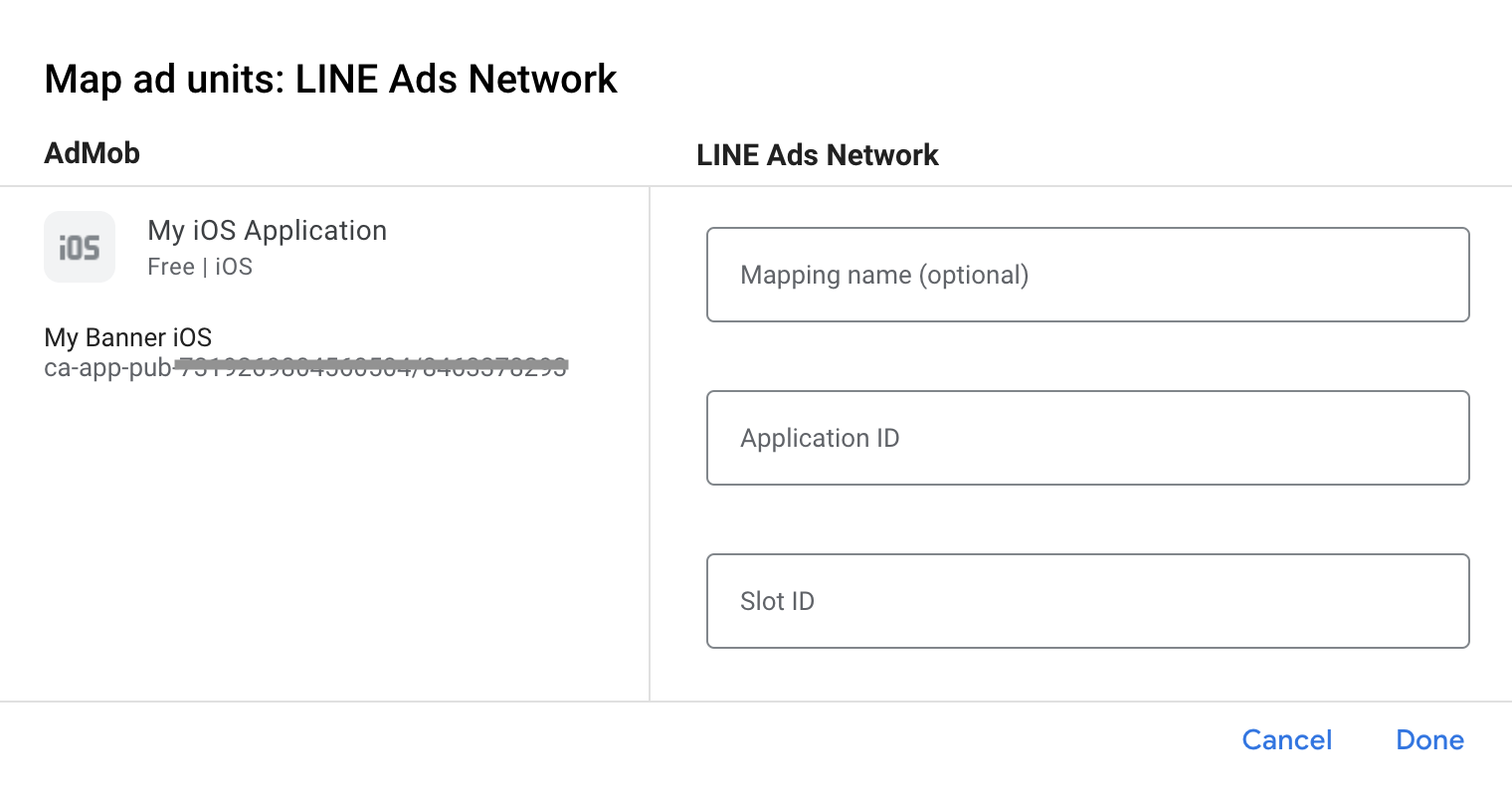

Saisissez ensuite les Application ID and Slot IDobtenus à la section précédente. Cliquez ensuite sur Done (OK).

Step 3: Import the Line SDK and Adapter

Using CocoaPods (recommended)

Add the following line to your project's Podfile:

pod 'GoogleMobileAdsMediationLine'

From the command line run:

pod install --repo-update

Manual integration

• Download the latest version of the Line SDK and link FiveAd.framework in your project.
• Download the latest version of the Line adapter from the download link in Changelog and link LineAdapter.framework in your project.

Step 4: Add required code

SKAdNetwork integration

Follow Line's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 5: Test your implementation

Activer les annonces tests

Veillez à enregistrer votre appareil de test pour AdMob.

Suivez les instructions dans Documentation de Line pour savoir comment activer les annonces de test de ligne.

Valider les annonces tests

Pour vérifier que vous recevez des annonces tests deLine, activez le test d'une source d'annonce unique dans l'inspecteur d'annonces à l'aide de Line (Waterfall) sources d'annonces.

Optional steps

Network-specific parameters

The Line adapter supports an additional request parameter which can be passed to the adapter using the GADMediationAdapterLineExtras class. This class includes the following properties:

adAudio

Specifies the default sound start state of banner, interstitial and rewarded ads.

Here's a code example of how to create an ad request that sets these parameters:

import LineAdapter
// ...

let request = GADRequest()
let extras = GADMediationAdapterLineExtras()
extras.adAudio = GADMediationAdapterLineAdAudio.unmuted
// ...
request.register(extras)

#import <LineAdapter/LineAdapter.h>
// ...

GADRequest *request = [GADRequest request];
GADMediationAdapterLineExtras *extras = [[GADMediationAdapterLineExtras alloc] init];
extras.adAudio = GADMediationAdapterLineAdAudioUnmuted;
// ...
[request registerAdNetworkExtras:extras];

Using native ads

Ad rendering

The Line adapter populates the following Native ads advanced field descriptions for a GADNativeAd.

¹ For native ads, the Line SDK does not provide an app icon asset. Instead, the Line adapter populates the app icon with a transparent image.

Error codes

If the adapter fails to receive an ad from Line, you can check the underlying error from the ad response using GADResponseInfo.adNetworkInfoArray under the following classes:

GADMediationAdapterLine

Here are the codes and accompanying messages thrown by the Line adapter when an ad fails to load:

LINE iOS Mediation Adapter Changelog

Version 2.8.20240612.0

• Added audio control for native ad via GADVideoOptions.
• Verified compatibility with FiveAd SDK version 2.8.20240612.

Built and tested with:

• Google Mobile Ads SDK version 11.5.0.
• FiveAd SDK version 2.8.20240612.

Version 2.7.20240411.0

• Verified compatibility with FiveAd SDK version 2.7.20240411.

Built and tested with:

• Google Mobile Ads SDK version 11.3.0.
• FiveAd SDK version 2.7.20240411.

Version 2.7.20240318.0

• Verified compatibility with FiveAd SDK version 2.7.20240318.

Built and tested with:

• Google Mobile Ads SDK version 11.2.0.
• FiveAd SDK version 2.7.20240318.

Version 2.7.20240214.1

• Now requires minimum iOS version 12.0.
• Now requires Google Mobile Ads SDK version 11.0 or higher.
• Included Info.plist in the frameworks within LineAdapter.xcframework.

Built and tested with:

• Google Mobile Ads SDK version 11.0.1.
• FiveAd SDK version 2.7.20240214.

Version 2.7.20240214.0

• Verified compatibility with FiveAd SDK version 2.7.20240214.

Built and tested with:

• Google Mobile Ads SDK version 11.0.1.
• FiveAd SDK version 2.7.20240214.

Version 2.7.20240126.0

• Verified compatibility with FiveAd SDK version 2.7.20240126.
• Updated the adapter implementation with FiveAd SDK new delegate protocols.

Built and tested with:

• Google Mobile Ads SDK version 10.14.0.
• FiveAd SDK version 2.7.20240126.

Version 2.7.20231115.0

• Verified compatibility with FiveAd SDK version 2.7.20231115.
• Included GADMediationAdapterLineExtras header in the modulemap.

Built and tested with:

• Google Mobile Ads SDK version 10.14.0.
• FiveAd SDK version 2.7.20231115.

Version 2.6.20230609.1

• Added GADMediationAdapterLineAudioState to manage the initial audio state of the banner, interstitial, and rewarded ad when it is first displayed.

Built and tested with:

• Google Mobile Ads SDK version 10.14.0.
• FiveAd SDK version 2.6.20230609.

Version 2.6.20230609.0

• Initial release!
• Added waterfall support for banner, interstitial, rewarded, and native ad formats.
• Verified compatibility with FiveAd SDK version 2.6.20230609.

Built and tested with:

• Google Mobile Ads SDK version 10.9.0.
• FiveAd SDK version 2.6.20230609.
