This guide shows you how to use the Google Mobile Ads SDK to load and display ads from DT Exchange using AdMob Mediation, covering waterfall integrations. It covers how to add DT Exchange to an ad unit's mediation configuration and how to integrate the DT Exchange SDK and adapter into an iOS app.
Supported integrations and ad formats
The mediation adapter for DT Exchange has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
Banner | |
Interstitial | |
Rewarded | |
Native |
Requirements
- iOS deployment target of 12.0 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in DT Exchange UI
Add new app and ad placement
Sign up or log in to DT Exchange Console.
Click on the Add App button to add your app.
Select your Platform, fill out the rest of the form, and click Add Placements.
Enter a name for the new placement in the field labeled Name your Placement and select your desired Placement Type from the dropdown list. Finally, click Save Placement.
App ID and Placement ID
Open the left navigation bar by hovering your mouse over it. Then click Apps from the left menu.
On the App Management page, take note of the App ID next to your app.
Select your app, navigate to the Placements tab, and click on the copy icon next to Placement Name. Take note of the Placement ID.
Publisher ID, Consumer Key and Consumer Secret
Click on your username from the left menu and select User Profile.
Take note of the Publisher ID, Consumer Key, and Consumer Secret as these are needed in the next step.
Step 2: Set up DT Exchange demand in AdMob UI
Configure mediation settings for your ad unit
You need to add DT Exchange to the mediation configuration for your ad unit.
First, sign in to your AdMob account. Next, navigate to the Mediation tab. If you have an existing mediation group you'd like to modify, click the name of that mediation group to edit it, and skip ahead to Add DT Exchange as an ad source.
To create a new mediation group, select Create Mediation Group.
Enter your ad format and platform, then click Continue.
Give your mediation group a name, and select locations to target. Next, set the mediation group status to Enabled, and then click Add Ad Units.
Associate this mediation group with one or more of your existing AdMob ad units. Then click Done.
You should now see the ad units card populated with the ad units you selected:

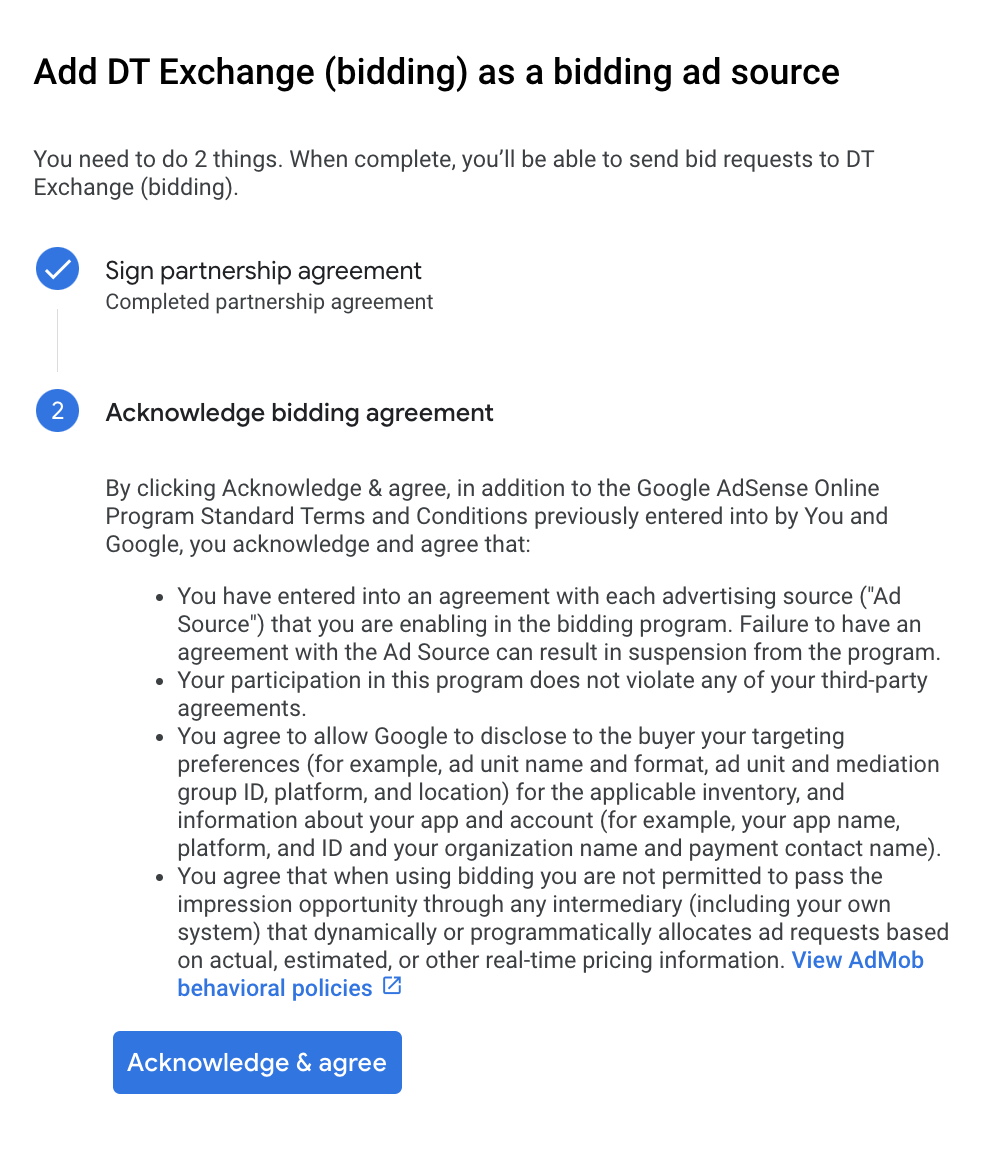

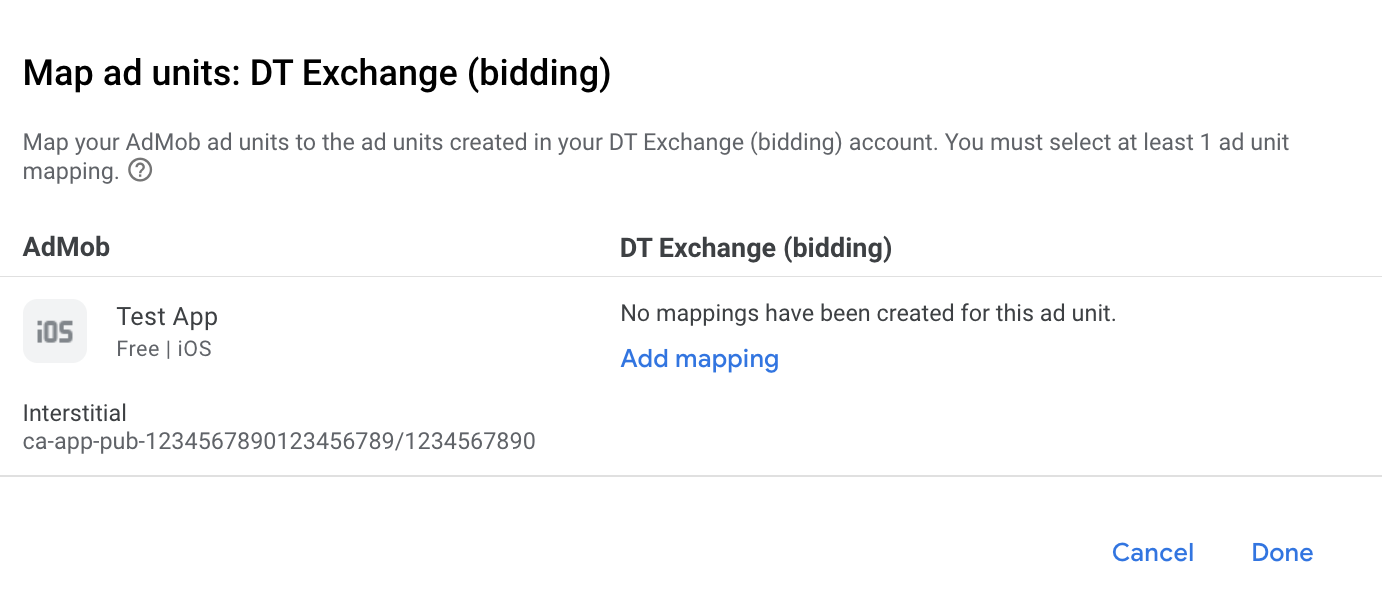

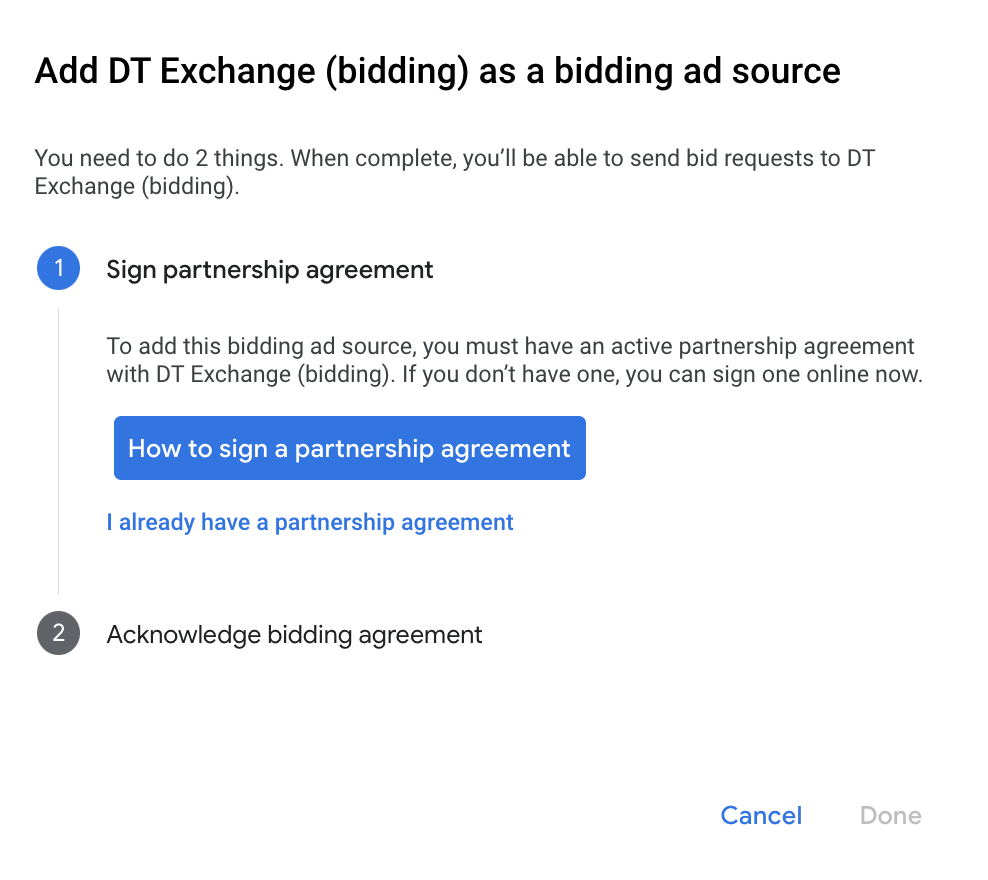

Add DT Exchange as an ad source
Reklam Kaynakları bölümündeki Şelale kartının altından Reklam Kaynağı Ekle'yi seçin. Ardından DT Exchange simgesini seçin.
DT Exchange'i seçin ve Optimize et anahtarını etkinleştirin.DT Exchangeiçin reklam kaynağı optimizasyonunu ayarlamak üzere önceki bölümde belirtilen Publisher ID, Consumer Secret and Consumer Keydeğerini girin. ArdındanDT Exchange için bir eBGBM değeri girip Devam'ı tıklayın.DT Exchangeiçin zaten bir eşlemeniz varsa bunu seçebilirsiniz. Aksi takdirde, Eşleme ekle'yi tıklayın.

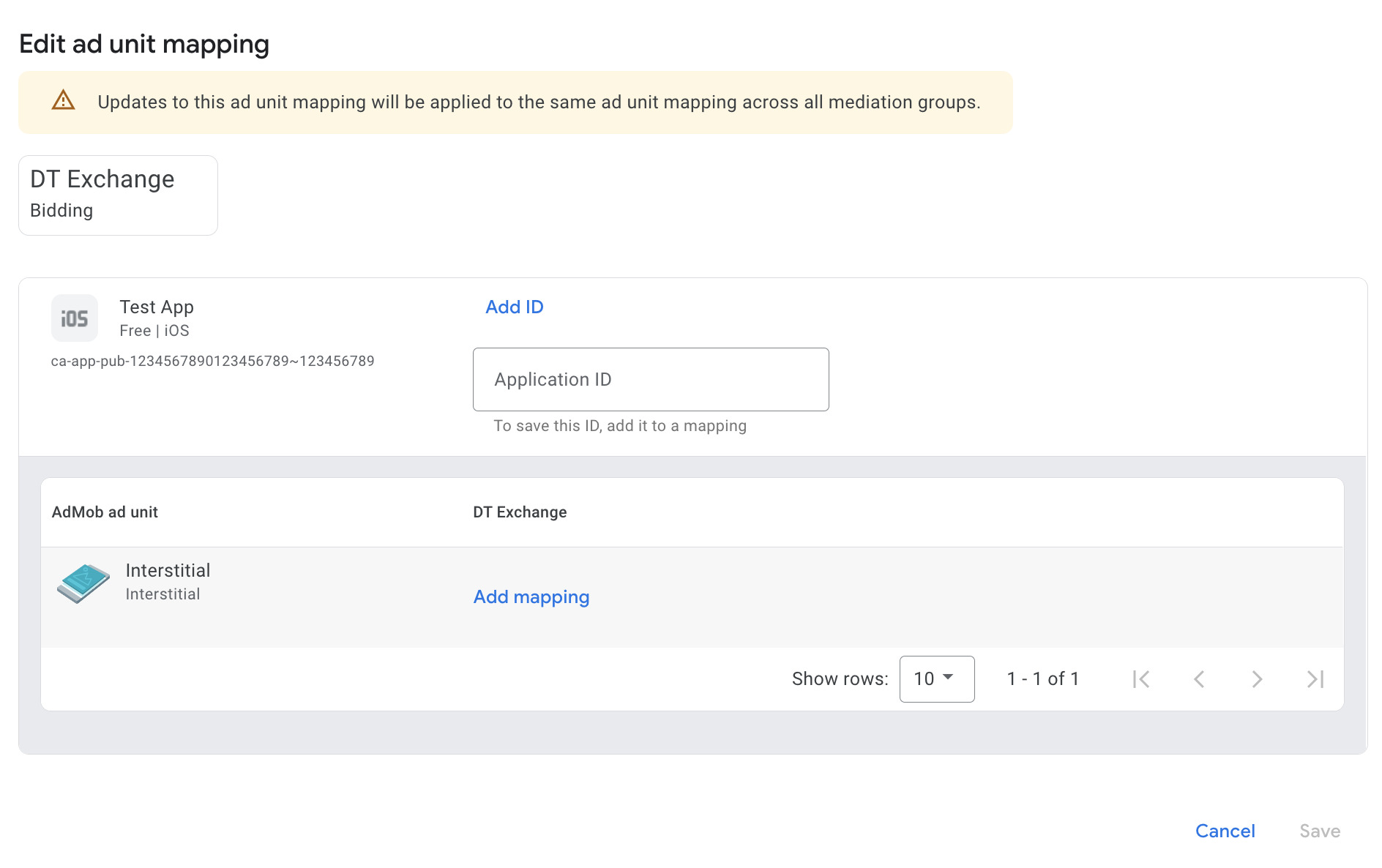

Sonra, önceki bölümde aldığınız Application ID and Placement ID kodunu girin. Ardından Bitti'yi tıklayın.
Add Fyber to GDPR and US state regulations ad partners list
GDPR ayarları ve ABD eyalet düzenlemeleri ayarları bölümündeki adımları uygulayarak AdMob kullanıcı arayüzünde GDPR ve ABD eyalet düzenlemeleri reklam iş ortakları listesine Fyber ekleyin.
Step 3: Import the DT Exchange SDK and adapter
Using CocoaPods (recommended)
Add the following line to your project's Podfile:
pod 'GoogleMobileAdsMediationFyber'
From the command line run:
pod install --repo-update
Manual integration
- Download the latest version of the
DT Exchange SDK for iOS
and link the following frameworks to your project:
IASDKCore.framework
IASDKMRAID.framework
IASDKVideo.framework
- Download the latest version of the DT Exchange adapter from the download
link in Changelog and link
FyberAdapter.framework
in your project. - Add the following frameworks to your project:
libxml2.2.tbd
Step 4: Implement privacy settings on DT Exchange SDK
EU consent and GDPR
Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.
DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.
Swift
import IASDKCore
// ...
IASDKCore.sharedInstance().gdprConsent = IAGDPRConsentType.given
IASDKCore.sharedInstance().gdprConsentString = "myGdprConsentString"
Objective-C
#import <IASDKCore/IASDKCore.h>
// ...
[IASDKCore.sharedInstance setGDPRConsent:YES];
[IASDKCore.sharedInstance setGDPRConsentString:@"myGdprConsentString"];
Visit DT Exchange's GDPR Resource Page and their GDPR implementation guide for more details and the values that may be provided in the method.
US states privacy laws
U.S. states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The U.S. states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.
DT Exchange contains an API that lets you forward user consent to their SDK. The following sample code shows how to pass consent information to the DT Exchange SDK manually. Should you choose to pass consent information to the DT Exchange SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.
Swift
import IASDKCore
// ...
IASDKCore.sharedInstance().ccpaString = "myCCPAConsentString"
Objective-C
#import <IASDKCore/IASDKCore.h>
// ...
[IASDKCore.sharedInstance setCCPAString:@"myCCPAConsentString"];
Visit DT Exchange's CCPA Resource Page and their CCPA implementation guide for more details and the values that may be provided in the method.
Step 5: Add required code
SKAdNetwork integration
Follow DT Exchange's documentation
to add the SKAdNetwork identifiers to your project's Info.plist
file.
Step 6: Test your implementation
Enable test ads
Make sure you register your test device for AdMob.
Verify test ads
To verify that you are receiving test ads from DT Exchange, enable single ad source testing in ad inspector using the DT Exchange (Waterfall) ad source(s).
Optional steps
Network-specific parameters
The DT Exchange adapter supports additional request parameters that can be
passed to the adapter using the GADMAdapterFyberExtras()
. The adapter looks
for the following keys in the bundle:
Request parameters and values | |
---|---|
setUserData The age, gender and zip code of the user. |
IAUserData |
setMuteAudio
|
Boolean. Mute or unmute video |
Here's a code example of how to set these ad request parameters:
Swift
let userData = IAUserData.build({ builder in
builder.age = 23
builder.gender = IAUserGenderType.male
builder.zipCode = "1234"
}];
let request = GADRequest()
let extras = GADMAdapterFyberExtras()
extras.userData = userData
extras.muteAudio = true
request.register(extras)
Objective-C
IAUserData *userData = [IAUserData build:^(id<IAUserDataBuilder> _Nonnull builder) {
builder.age = 23;
builder.gender = IAUserGenderTypeMale;
builder.zipCode = @"1234";
}];
GADRequest *request = [GADRequest request];
GADMAdapterFyberExtras *extras = [[GADMAdapterFyberExtras alloc] init];
extras.userData = userData;
extras.muteAudio = YES;
[request registerAdNetworkExtras:extras];
Consult the DT Exchange integration guide for more information.
Error codes
If the adapter fails to receive an ad from DT Exchange, you can check the
underlying error from the ad response using
GADResponseInfo.adNetworkInfoArray
under the following class:
GADMediationAdapterFyber
Here are the codes and accompanying messages thrown by the DT Exchange adapter when an ad fails to load:
Error code | Reason |
---|---|
0-10 | DT Exchange SDK returned an error. See documentation for more details. |
101 | DT Exchange server parameters configured in the AdMob UI are missing/invalid. |
102 | The requested ad size does not match a DT Exchange supported banner size. |
103 | Failed to show ad because ad object has already been used. |
104 | Failed to show DT Exchange ads due to ad not ready. |
105 | DT Exchange SDK returned an initialization error. |
DT Exchange iOS Mediation Adapter Changelog
Version 8.3.1.0
- Verified compatibility with DT Exchange SDK version 8.3.1.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- DT Exchange SDK version 8.3.1.
Version 8.3.0.0
- Verified compatibility with DT Exchange SDK version 8.3.0.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- DT Exchange SDK version 8.3.0.
Version 8.2.8.0
- Verified compatibility with DT Exchange SDK version 8.2.8.
Built and tested with:
- Google Mobile Ads SDK version 11.3.0.
- DT Exchange SDK version 8.2.8.
Version 8.2.7.0
- Verified compatibility with DT Exchange SDK version 8.2.7.
Built and tested with:
- Google Mobile Ads SDK version 11.2.0.
- DT Exchange SDK version 8.2.7.
Version 8.2.6.1
- Added
didFailToPresentWithError
callbacks in rewarded ad. - Added
IAAdDidExpire
delegate method in interstitial and rewarded ads. - Now requires minimum iOS version 12.0.
- Now requires Google Mobile Ads SDK version 11.0 or higher.
- Included
Info.plist
in the frameworks withinDTExchangeAdapter.xcframework
.
Built and tested with:
- Google Mobile Ads SDK version 11.0.1.
- DT Exchange SDK version 8.2.6.
Version 8.2.6.0
- Verified compatibility with DT Exchange SDK version 8.2.6.
- Removed the deprecated
willBackgroundApplication
delegate methods from the banner and interstitial ad implementations.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- DT Exchange SDK version 8.2.6.
Version 8.2.5.0
- Verified compatibility with DT Exchange SDK version 8.2.5.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- DT Exchange SDK version 8.2.5.
Version 8.2.4.0
- Verified compatibility with DT Exchange SDK version 8.2.4.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- DT Exchange SDK version 8.2.4.
Version 8.2.3.0
- Verified compatibility with DT Exchange SDK version 8.2.3.
Built and tested with:
- Google Mobile Ads SDK version 10.7.0.
- DT Exchange SDK version 8.2.3.
Version 8.2.2.0
- Verified compatibility with DT Exchange SDK version 8.2.2.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- DT Exchange SDK version 8.2.2.
Version 8.2.1.0
- Verified compatibility with DT Exchange SDK version 8.2.1.
- Removed support of the
armv7
architecture. - Now requires minimum iOS version 11.0.
- Now requires Google Mobile Ads SDK version 10.4.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.4.0.
- DT Exchange SDK version 8.2.1.
Version 8.2.0.0
- Verified compatibility with DT Exchange SDK version 8.2.0.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- DT Exchange SDK version 8.2.0.
Version 8.1.9.1
- Now requires Google Mobile Ads SDK version 10.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- DT Exchange SDK version 8.1.9.
Version 8.1.9.0
- Removed use of deprecated gender, birthday and location mediation APIs.
- Verified compatibility with DT Exchange SDK version 8.1.9.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- DT Exchange SDK version 8.1.9.
Version 8.1.7.0
- Verified compatibility with DT Exchange SDK version 8.1.7.
- Adapter is rebranded to "DT Exchange".
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- DT Exchange SDK version 8.1.7.
Version 8.1.6.0
- Added support for passing
muteAudio
extra inGADMAdapterFyberExtras
class. - Updated the adapter to use the
didRewardUser
API. - Now requires Google Mobile Ads SDK version 9.8.0 or higher.
- Verified compatibility with Fyber Marketplace SDK version 8.1.6.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Fyber Marketplace SDK version 8.1.6.
Version 8.1.5.0
- Verified compatibility with Fyber Marketplace SDK version 8.1.5.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- Fyber Marketplace SDK version 8.1.5.
Version 8.1.4.0
- Verified compatibility with Fyber Marketplace SDK version 8.1.4.
- Added support for the arm64 simulator architecture.
Built and tested with:
- Google Mobile Ads SDK version 9.1.0.
- Fyber Marketplace SDK version 8.1.4.
Version 8.1.3.1
- Verified compatibility with Google Mobile Ads SDK version 9.0.0.
- Now requires Google Mobile Ads SDK version 9.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.0.0.
- Fyber Marketplace SDK version 8.1.3.
Version 8.1.3.0
- Verified compatibility with Fyber Marketplace SDK version 8.1.3.
Built and tested with:
- Google Mobile Ads SDK version 8.13.0.
- Fyber Marketplace SDK version 8.1.3.
Version 8.1.2.0
- Verified compatibility with Fyber Marketplace SDK version 8.1.2.
Built and tested with:
- Google Mobile Ads SDK version 8.13.0.
- Fyber Marketplace SDK version 8.1.2.
Version 8.1.1.0
- Verified compatibility with Fyber Marketplace SDK version 8.1.1.
Built and tested with:
- Google Mobile Ads SDK version 8.12.0.
- Fyber Marketplace SDK version 8.1.1.
Version 8.1.0.0
- Verified compatibility with Fyber Marketplace SDK version 8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 8.12.0.
- Fyber Marketplace SDK version 8.1.0.
Version 8.0.0.0
- Verified compatibility with Fyber Marketplace SDK version 8.0.0.
Built and tested with:
- Google Mobile Ads SDK version 8.12.0.
- Fyber Marketplace SDK version 8.0.0.
Version 7.9.0.0
- Verified compatibility with Fyber Marketplace SDK version 7.9.0.
Built and tested with:
- Google Mobile Ads SDK version 8.11.0.
- Fyber Marketplace SDK version 7.9.0.
Version 7.8.9.0
- Verified compatibility with Fyber Marketplace SDK version 7.8.9.
Built and tested with:
- Google Mobile Ads SDK version 8.10.0.
- Fyber Marketplace SDK version 7.8.9.
Version 7.8.8.1
- Moved ad event
didEndVideo
to rewarded ad callbackIAAdDidReward
.
Built and tested with:
- Google Mobile Ads SDK version 8.9.0.
- Fyber Marketplace SDK version 7.8.8.
Version 7.8.8.0
- Now requires minimum iOS version 10.0.
- Verified compatibility with Fyber Marketplace SDK version 7.8.8.
Built and tested with:
- Google Mobile Ads SDK version 8.9.0.
- Fyber Marketplace SDK version 7.8.8.
Version 7.8.7.0
- Verified compatibility with Fyber Marketplace SDK version 7.8.7.
Built and tested with:
- Google Mobile Ads SDK version 8.8.0.
- Fyber Marketplace SDK version 7.8.7.
Version 7.8.6.0
- Verified compatibility with Fyber Marketplace SDK version 7.8.6.
Built and tested with:
- Google Mobile Ads SDK version 8.5.0.
- Fyber Marketplace SDK version 7.8.6.
Version 7.8.5.0
- Verified compatibility with Fyber Marketplace SDK version 7.8.5.
- Now requires building against Xcode 12.5 or higher.
Built and tested with:
- Google Mobile Ads SDK version 8.5.0.
- Fyber Marketplace SDK version 7.8.5.
Version 7.8.1.0
- Verified compatibility with Fyber Marketplace SDK version 7.8.1.
- Relaxed dependency to Google Mobile Ads SDK version 8.0.0 or higher.
- Added standardized adapter error codes and messages.
- Updated the adapter to use the
.xcframework
format.
Built and tested with:
- Google Mobile Ads SDK version 8.0.0.
- Fyber Marketplace SDK version 7.8.1.
Version 7.8.0.0
- Verified compatibility with Fyber Marketplace SDK version 7.8.0.
Built and tested with:
- Google Mobile Ads SDK version 7.69.0.
- Fyber Marketplace SDK version 7.8.0.
Version 7.7.3.0
- Verified compatibility with Fyber Marketplace SDK version 7.7.3.
- Now requires Google Mobile Ads SDK version 7.69.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.69.0.
- Fyber Marketplace SDK version 7.7.3.
Version 7.7.2.0
- Verified compatibility with Fyber Marketplace SDK version 7.7.2.
- Now requires Google Mobile Ads SDK version 7.67.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.67.0.
- Fyber Marketplace SDK version 7.7.2.
Version 7.7.1.0
- Verified compatibility with Fyber Marketplace SDK version 7.7.1.
- Now requires Google Mobile Ads SDK version 7.66.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.66.0.
- Fyber Marketplace SDK version 7.7.1.
Version 7.6.4.0
- Verified compatibility with Fyber Marketplace SDK version 7.6.4.
- Now requires Google Mobile Ads SDK version 7.65.0 or higher.
- Added GADMAdapterFyberExtras class, enabling publishers to pass keywords and userData to Fyber Marketplace SDK.
Built and tested with:
- Google Mobile Ads SDK version 7.65.0.
- Fyber Marketplace SDK version 7.6.4.
Version 7.6.3.0
- Verified compatibility with Fyber Marketplace SDK version 7.6.3.
Built and tested with:
- Google Mobile Ads SDK version 7.64.0.
- Fyber Marketplace SDK version 7.6.3.
Version 7.6.2.0
- Verified compatibility with Fyber Marketplace SDK version 7.6.2.
- Now requires Google Mobile Ads SDK version 7.64.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.64.0.
- Fyber Marketplace SDK version 7.6.2.
Version 7.6.0.0
- Verified compatibility with Fyber Marketplace SDK version 7.6.0.
- Now requires Google Mobile Ads SDK version 7.62.0 or higher.
- Updated the adapter to support inline adaptive banner requests.
- Added support for rewarded HTML.
- Added new reward callback: IAAdDidReward (for both rewarded video and rewarded HTML). IAVideoCompleted is no longer used for rewarding.
Built and tested with:
- Google Mobile Ads SDK version 7.62.0.
- Fyber Marketplace SDK version 7.6.0.
Version 7.5.6.1
- Temporarily removed Fyber Marketplace SDK-specific logging.
Built and tested with:
- Google Mobile Ads SDK version 7.60.0.
- Fyber Marketplace SDK version 7.5.6.
Version 7.5.6.0
- Verified compatibility with Fyber Marketplace SDK version 7.5.6.
- Updated the minimum required Google Mobile Ads SDK version to 7.60.0.
Built and tested with:
- Google Mobile Ads SDK version 7.60.0.
- Fyber Marketplace SDK version 7.5.6.
Version 7.5.5.0
- Verified compatibility with Fyber Marketplace SDK version 7.5.5.
- Updated the minimum required Google Mobile Ads SDK version to 7.59.0.
Built and tested with:
- Google Mobile Ads SDK version 7.59.0.
- Fyber Marketplace SDK version 7.5.5 .
Version 7.5.4.0
- Verified compatibility with Fyber Marketplace SDK version 7.5.4.
- Removed support for the i386 architecture.
Built and tested with:
- Google Mobile Ads SDK version 7.57.0.
- Fyber Marketplace SDK version 7.5.4.
Version 7.5.3.0
- Verified compatibility with Fyber Marketplace SDK version 7.5.3.
Built and tested with:
- Google Mobile Ads SDK version 7.55.0.
- Fyber Marketplace SDK version 7.5.3.
Version 7.5.1.0
- Verified compatibility with Fyber Marketplace SDK version 7.5.1.
- Fixed a crash that occurred when initializing the Fyber SDK.
Built and tested with:
- Google Mobile Ads SDK version 7.55.0.
- Fyber Marketplace SDK version 7.5.1.
Version 7.5.0.0 (Deprecated)
- This version has been removed. Please use version 7.5.1.0 or higher.
- Verified compatibility with Fyber Marketplace SDK version 7.5.0.
- Adapter will now initialize the Fyber SDK before making an ad request if the Fyber SDK has not been initialized yet.
Built and tested with:
- Google Mobile Ads SDK version 7.53.0.
- Fyber Marketplace SDK version 7.5.0.
Version 7.4.0.0
- Initial release!
- Added support for banner, interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 7.52.0.
- Fyber Marketplace SDK version 7.4.0.
