Aperçu

POST https://analyticsdata.googleapis.com/v1alpha/properties/GA_PROPERTY_ID:runFunnelReport
{
  "dateRanges": [
    {
      "startDate": "30daysAgo",
      "endDate": "today"
    }
  ],
  "funnelBreakdown": {
    "breakdownDimension": {
      "name": "deviceCategory"
    }
  },
  "funnel": {
    "steps": [
      {
        "name": "First open/visit",
        "filterExpression": {
          "orGroup": {
            "expressions": [
              {
                "funnelEventFilter": {
                  "eventName": "first_open"
                }
              },
              {
                "funnelEventFilter": {
                  "eventName": "first_visit"
                }
              }
            ]
          }
        }
      },
      {
        "name": "Organic visitors",
        "filterExpression": {
          "funnelFieldFilter": {
            "fieldName": "firstUserMedium",
            "stringFilter": {
              "matchType": "CONTAINS",
              "caseSensitive": false,
              "value": "organic"
            }
          }
        }
      },
      {
        "name": "Session start",
        "filterExpression": {
          "funnelEventFilter": {
            "eventName": "session_start"
          }
        }
      },
      {
        "name": "Screen/Page view",
        "filterExpression": {
          "orGroup": {
            "expressions": [
              {
                "funnelEventFilter": {
                  "eventName": "screen_view"
                }
              },
              {
                "funnelEventFilter": {
                  "eventName": "page_view"
                }
              }
            ]
          }
        }
      },
      {
        "name": "Purchase",
        "filterExpression": {
          "orGroup": {
            "expressions": [
              {
                "funnelEventFilter": {
                  "eventName": "purchase"
                }
              },
              {
                "funnelEventFilter": {
                  "eventName": "in_app_purchase"
                }
              }
            ]
          }
        }
      }
    ]
  }
}

import com.google.analytics.data.v1alpha.AlphaAnalyticsDataClient;
import com.google.analytics.data.v1alpha.DateRange;
import com.google.analytics.data.v1alpha.Dimension;
import com.google.analytics.data.v1alpha.DimensionHeader;
import com.google.analytics.data.v1alpha.FunnelBreakdown;
import com.google.analytics.data.v1alpha.FunnelEventFilter;
import com.google.analytics.data.v1alpha.FunnelFieldFilter;
import com.google.analytics.data.v1alpha.FunnelFilterExpression;
import com.google.analytics.data.v1alpha.FunnelFilterExpressionList;
import com.google.analytics.data.v1alpha.FunnelStep;
import com.google.analytics.data.v1alpha.FunnelSubReport;
import com.google.analytics.data.v1alpha.MetricHeader;
import com.google.analytics.data.v1alpha.Row;
import com.google.analytics.data.v1alpha.RunFunnelReportRequest;
import com.google.analytics.data.v1alpha.RunFunnelReportResponse;
import com.google.analytics.data.v1alpha.SamplingMetadata;
import com.google.analytics.data.v1alpha.StringFilter;
import com.google.analytics.data.v1alpha.StringFilter.MatchType;

/**
 * Google Analytics Data API sample application demonstrating the creation of a funnel report.
 *
 * <p>See
 * https://developers.google.com/analytics/devguides/reporting/data/v1/rest/v1alpha/properties/runFunnelReport
 * for more information.
 *
 * <p>Before you start the application, please review the comments starting with "TODO(developer)"
 * and update the code to use correct values.
 *
 * <p>To run this sample using Maven:
 *
 * <pre>{@code
 * cd google-analytics-data
 * mvn compile exec:java -Dexec.mainClass="com.google.analytics.data.samples.RunFunnelReportSample"
 * }</pre>
 */
public class RunFunnelReportSample {

  public static void main(String... args) throws Exception {
    /**
     * TODO(developer): Replace this variable with your Google Analytics 4 property ID before
     * running the sample.
     */
    String propertyId = "YOUR-GA4-PROPERTY-ID";
    sampleRunFunnelReport(propertyId);
  }

  /**

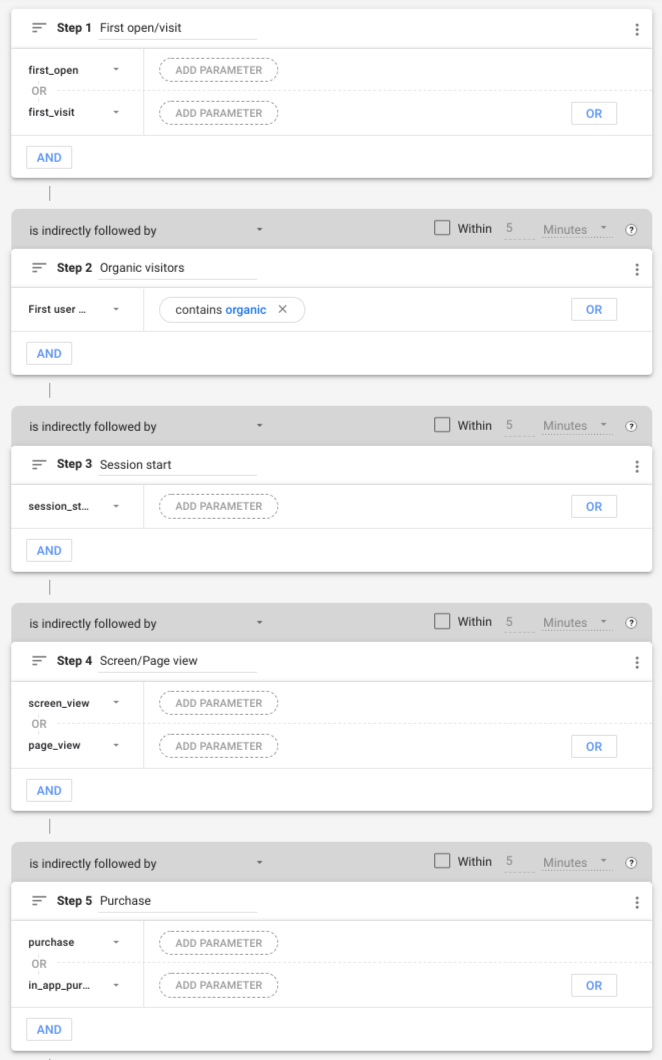

   * Runs a funnel query to build a report with 5 funnel steps.
   *
   * <ol>
   *   <li>First open/visit (event name is `first_open` or `first_visit`).
   *   <li>Organic visitors (`firstUserMedium` dimension contains the term "organic").
   *   <li>Session start (event name is `session_start`).
   *   <li>Screen/Page view (event name is `screen_view` or `page_view`).
   *   <li>Purchase (event name is `purchase` or `in_app_purchase`).
   * </ol>
   *
   * The report configuration reproduces the default funnel report provided in the Funnel
   * Exploration template of the Google Analytics UI. See more at
   * https://support.google.com/analytics/answer/9327974
   */
  static void sampleRunFunnelReport(String propertyId) throws Exception {

    // Using a default constructor instructs the client to use the credentials
    // specified in GOOGLE_APPLICATION_CREDENTIALS environment variable.
    try (AlphaAnalyticsDataClient analyticsData = AlphaAnalyticsDataClient.create()) {
      RunFunnelReportRequest.Builder requestBuilder =
          RunFunnelReportRequest.newBuilder()
              .setProperty("properties/" + propertyId)
              .addDateRanges(DateRange.newBuilder().setStartDate("30daysAgo").setEndDate("today"))
              .setFunnelBreakdown(
                  FunnelBreakdown.newBuilder()
                      .setBreakdownDimension(Dimension.newBuilder().setName("deviceCategory")));

      // Adds each step of the funnel.
      requestBuilder
          .getFunnelBuilder()
          .addSteps(
              FunnelStep.newBuilder()
                  .setName("First open/visit")
                  .setFilterExpression(
                      FunnelFilterExpression.newBuilder()
                          .setOrGroup(
                              FunnelFilterExpressionList.newBuilder()
                                  .addExpressions(
                                      FunnelFilterExpression.newBuilder()
                                          .setFunnelEventFilter(
                                              FunnelEventFilter.newBuilder()
                                                  .setEventName("first_open")))
                                  .addExpressions(
                                      FunnelFilterExpression.newBuilder()
                                          .setFunnelEventFilter(
                                              FunnelEventFilter.newBuilder()
                                                  .setEventName("first_visit"))))));
      requestBuilder
          .getFunnelBuilder()
          .addSteps(
              FunnelStep.newBuilder()
                  .setName("Organic visitors")
                  .setFilterExpression(
                      FunnelFilterExpression.newBuilder()
                          .setFunnelFieldFilter(
                              FunnelFieldFilter.newBuilder()
                                  .setFieldName("firstUserMedium")
                                  .setStringFilter(
                                      StringFilter.newBuilder()
                                          .setMatchType(MatchType.CONTAINS)
                                          .setCaseSensitive(false)
                                          .setValue("organic")))));
      requestBuilder
          .getFunnelBuilder()
          .addSteps(
              FunnelStep.newBuilder()
                  .setName("Session start")
                  .setFilterExpression(
                      FunnelFilterExpression.newBuilder()
                          .setFunnelEventFilter(
                              FunnelEventFilter.newBuilder().setEventName("session_start"))));

      requestBuilder
          .getFunnelBuilder()
          .addSteps(
              FunnelStep.newBuilder()
                  .setName("Screen/Page view")
                  .setFilterExpression(
                      FunnelFilterExpression.newBuilder()
                          .setOrGroup(
                              FunnelFilterExpressionList.newBuilder()
                                  .addExpressions(
                                      FunnelFilterExpression.newBuilder()
                                          .setFunnelEventFilter(
                                              FunnelEventFilter.newBuilder()
                                                  .setEventName("screen_view")))
                                  .addExpressions(
                                      FunnelFilterExpression.newBuilder()
                                          .setFunnelEventFilter(
                                              FunnelEventFilter.newBuilder()
                                                  .setEventName("page_view"))))));
      requestBuilder
          .getFunnelBuilder()
          .addSteps(
              FunnelStep.newBuilder()
                  .setName("Purchase")
                  .setFilterExpression(
                      FunnelFilterExpression.newBuilder()
                          .setOrGroup(
                              FunnelFilterExpressionList.newBuilder()
                                  .addExpressions(
                                      FunnelFilterExpression.newBuilder()
                                          .setFunnelEventFilter(
                                              FunnelEventFilter.newBuilder()
                                                  .setEventName("purchase")))
                                  .addExpressions(
                                      FunnelFilterExpression.newBuilder()
                                          .setFunnelEventFilter(
                                              FunnelEventFilter.newBuilder()
                                                  .setEventName("in_app_purchase"))))));

      // Make the request.
      RunFunnelReportResponse response = analyticsData.runFunnelReport(requestBuilder.build());
      printRunFunnelReportResponse(response);
    }
  }

  /** Prints results of a runFunnelReport call. */
  static void printRunFunnelReportResponse(RunFunnelReportResponse response) {
    System.out.println("Report result:");

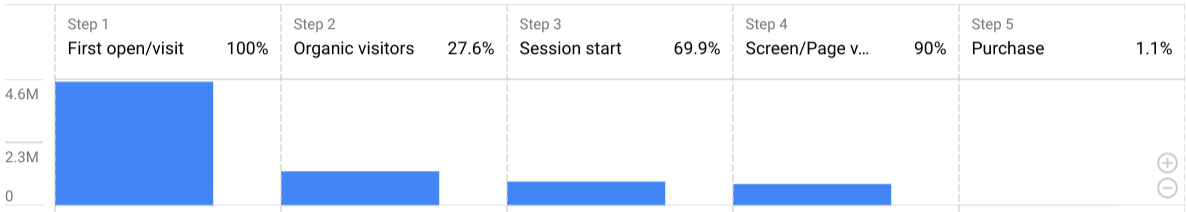

    System.out.println("=== FUNNEL VISUALIZATION ===");
    printFunnelSubReport(response.getFunnelVisualization());

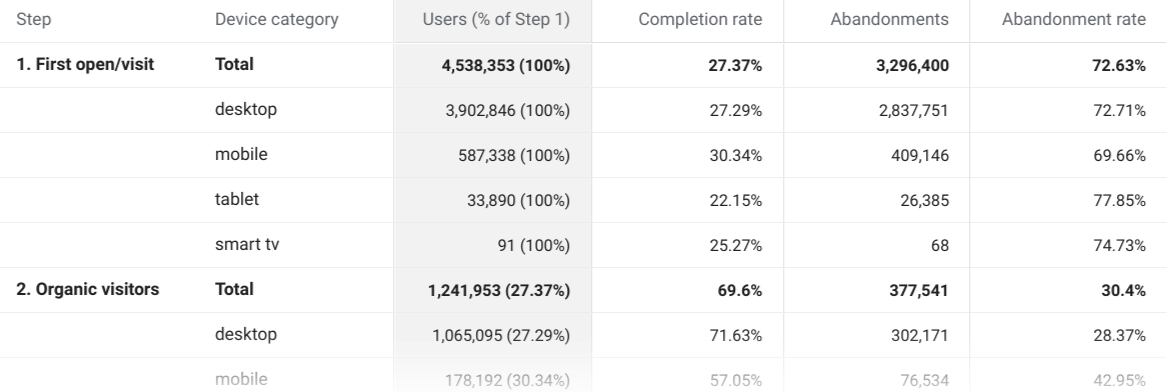

    System.out.println("=== FUNNEL TABLE ===");
    printFunnelSubReport(response.getFunnelTable());
  }

  /** Prints the contents of a FunnelSubReport object. */
  private static void printFunnelSubReport(FunnelSubReport funnelSubReport) {
    System.out.println("Dimension headers:");
    for (DimensionHeader dimensionHeader : funnelSubReport.getDimensionHeadersList()) {
      System.out.println(dimensionHeader.getName());
    }
    System.out.println();

    System.out.println("Metric headers:");
    for (MetricHeader metricHeader : funnelSubReport.getMetricHeadersList()) {
      System.out.println(metricHeader.getName());
    }
    System.out.println();

    System.out.println("Dimension and metric values for each row in the report:");
    for (int rowIndex = 0; rowIndex < funnelSubReport.getRowsCount(); rowIndex++) {
      Row row = funnelSubReport.getRows(rowIndex);
      for (int fieldIndex = 0; fieldIndex < row.getDimensionValuesCount(); fieldIndex++) {
        System.out.printf(
            "%s: '%s'%n",
            funnelSubReport.getDimensionHeaders(fieldIndex).getName(),
            row.getDimensionValues(fieldIndex).getValue());
      }
      for (int fieldIndex = 0; fieldIndex < row.getMetricValuesCount(); fieldIndex++) {
        System.out.printf(
            "%s: '%s'%n",
            funnelSubReport.getMetricHeaders(fieldIndex).getName(),
            row.getMetricValues(fieldIndex).getValue());
      }
    }
    System.out.println();

    System.out.println("Sampling metadata for each date range:");
    for (int metadataIndex = 0;
        metadataIndex < funnelSubReport.getMetadata().getSamplingMetadatasCount();
        metadataIndex++) {
      SamplingMetadata samplingMetadata =
          funnelSubReport.getMetadata().getSamplingMetadatas(metadataIndex);
      System.out.printf(
          "Sampling metadata for date range #%d: samplesReadCount=%d, samplingSpaceSize=%d%n",
          metadataIndex,
          samplingMetadata.getSamplesReadCount(),
          samplingMetadata.getSamplingSpaceSize());
    }
  }
}
RunFunnelReportSample.java

use Google\Analytics\Data\V1alpha\Client\AlphaAnalyticsDataClient;
use Google\Analytics\Data\V1alpha\DateRange;
use Google\Analytics\Data\V1alpha\Dimension;
use Google\Analytics\Data\V1alpha\FunnelBreakdown;
use Google\Analytics\Data\V1alpha\FunnelEventFilter;
use Google\Analytics\Data\V1alpha\FunnelFieldFilter;
use Google\Analytics\Data\V1alpha\FunnelFilterExpression;
use Google\Analytics\Data\V1alpha\FunnelFilterExpressionList;
use Google\Analytics\Data\V1alpha\FunnelStep;
use Google\Analytics\Data\V1alpha\Funnel;
use Google\Analytics\Data\V1alpha\FunnelSubReport;
use Google\Analytics\Data\V1alpha\RunFunnelReportRequest;
use Google\Analytics\Data\V1alpha\RunFunnelReportResponse;
use Google\Analytics\Data\V1alpha\StringFilter;
use Google\Analytics\Data\V1alpha\StringFilter\MatchType;

/**
 * Runs a funnel query to build a report with 5 funnel steps.
 *
 * Step 1: First open/visit (event name is `first_open` or `first_visit`).
 * Step 2: Organic visitors (`firstUserMedium` dimension contains the term "organic").
 * Step 3: Session start (event name is `session_start`).
 * Step 4: Screen/Page view (event name is `screen_view` or `page_view`).
 * Step 5: Purchase (event name is `purchase` or `in_app_purchase`).
 *
 * The report configuration reproduces the default funnel report provided in the Funnel
 * Exploration template of the Google Analytics UI. See more at
 * https://support.google.com/analytics/answer/9327974
 *
 * @param string $propertyId Your GA-4 Property ID
 */
function run_funnel_report(string $propertyId)
{
    // Create an instance of the Google Analytics Data API client library.
    $client = new AlphaAnalyticsDataClient();

    // Create the funnel report request.
    $request = (new RunFunnelReportRequest())
        ->setProperty('properties/' . $propertyId)
        ->setDateRanges([
            new DateRange([
                'start_date' => '30daysAgo',
                'end_date' => 'today',
            ]),
        ])
        ->setFunnelBreakdown(
            new FunnelBreakdown([
                'breakdown_dimension' =>
                    new Dimension([
                        'name' => 'deviceCategory'
                    ])
            ])
        )
        ->setFunnel(new Funnel());

    // Add funnel steps to the funnel.

    // 1. Add first open/visit step.
    $request->getFunnel()->getSteps()[] = new FunnelStep([
        'name' => 'First open/visit',
        'filter_expression' => new FunnelFilterExpression([
            'or_group' => new FunnelFilterExpressionList([
                'expressions' => [
                    new FunnelFilterExpression([
                        'funnel_event_filter' => new FunnelEventFilter([
                            'event_name' => 'first_open',
                        ])
                    ]),
                    new FunnelFilterExpression([
                        'funnel_event_filter' => new FunnelEventFilter([
                            'event_name' => 'first_visit'
                        ])
                    ])
                ]
            ])
        ])
    ]);

    // 2. Add organic visitors step.
    $request->getFunnel()->getSteps()[] = new FunnelStep([
        'name' => 'Organic visitors',
        'filter_expression' => new FunnelFilterExpression([
            'funnel_field_filter' => new FunnelFieldFilter([
                'field_name' => 'firstUserMedium',
                'string_filter' => new StringFilter([
                    'match_type' => MatchType::CONTAINS,
                    'case_sensitive' => false,
                    'value' => 'organic',
                ])
            ])
        ])
    ]);

    // 3. Add session start step.
    $request->getFunnel()->getSteps()[] = new FunnelStep([
        'name' => 'Session start',
        'filter_expression' => new FunnelFilterExpression([
            'funnel_event_filter' => new FunnelEventFilter([
                'event_name' => 'session_start',
            ])
        ])
    ]);

    // 4. Add screen/page view step.
    $request->getFunnel()->getSteps()[] = new FunnelStep([
        'name' => 'Screen/Page view',
        'filter_expression' => new FunnelFilterExpression([
            'or_group' => new FunnelFilterExpressionList([
                'expressions' => [
                    new FunnelFilterExpression([
                        'funnel_event_filter' => new FunnelEventFilter([
                            'event_name' => 'screen_view',
                        ])
                    ]),
                    new FunnelFilterExpression([
                        'funnel_event_filter' => new FunnelEventFilter([
                            'event_name' => 'page_view'
                        ])
                    ])
                ]
            ])
        ])
    ]);

    // 5. Add purchase step.
    $request->getFunnel()->getSteps()[] = new FunnelStep([
        'name' => 'Purchase',
        'filter_expression' => new FunnelFilterExpression([
            'or_group' => new FunnelFilterExpressionList([
                'expressions' => [
                    new FunnelFilterExpression([
                        'funnel_event_filter' => new FunnelEventFilter([
                            'event_name' => 'purchase',
                        ])
                    ]),
                    new FunnelFilterExpression([
                        'funnel_event_filter' => new FunnelEventFilter([
                            'event_name' => 'in_app_purchase'
                        ])
                    ])
                ]
            ])
        ])
    ]);

    // Make an API call.
    $response = $client->runFunnelReport($request);

    printRunFunnelReportResponse($response);
}

/**
 * Print results of a runFunnelReport call.
 * @param RunFunnelReportResponse $response
 */
function printRunFunnelReportResponse(RunFunnelReportResponse $response)
{
    print 'Report result: ' . PHP_EOL;
    print '=== FUNNEL VISUALIZATION ===' . PHP_EOL;
    printFunnelSubReport($response->getFunnelVisualization());

    print '=== FUNNEL TABLE ===' . PHP_EOL;
    printFunnelSubReport($response->getFunnelTable());
}

/**
 * Print the contents of a FunnelSubReport object.
 * @param FunnelSubReport $subReport
 */
function printFunnelSubReport(FunnelSubReport $subReport)
{
    print 'Dimension headers:' . PHP_EOL;
    foreach ($subReport->getDimensionHeaders() as $dimensionHeader) {
        print $dimensionHeader->getName() . PHP_EOL;
    }

    print PHP_EOL . 'Metric headers:' . PHP_EOL;
    foreach ($subReport->getMetricHeaders() as $metricHeader) {
        print $metricHeader->getName() . PHP_EOL;
    }

    print PHP_EOL . 'Dimension and metric values for each row in the report:';
    foreach ($subReport->getRows() as $rowIndex => $row) {
        print PHP_EOL . 'Row #' . $rowIndex . PHP_EOL;
        foreach ($row->getDimensionValues() as $dimIndex => $dimValue) {
            $dimName = $subReport->getDimensionHeaders()[$dimIndex]->getName();
            print $dimName . ": '" . $dimValue->getValue() . "'" . PHP_EOL;
        }
        foreach ($row->getMetricValues() as $metricIndex => $metricValue) {
            $metricName = $subReport->getMetricHeaders()[$metricIndex]->getName();
            print $metricName . ": '" . $metricValue->getValue() . "'" . PHP_EOL;
        }
    }

    print PHP_EOL . 'Sampling metadata for each date range:' . PHP_EOL;
    foreach ($subReport->getMetadata()->getSamplingMetadatas() as $metadataIndex => $metadata) {
        printf('Sampling metadata for date range #%d: samplesReadCount=%d' .
            'samplingSpaceSize=%d%s',
            $metadataIndex, $metadata->getSamplesReadCount(), $metadata->getSamplingSpaceSize(), PHP_EOL);
    }
}
run_funnel_report.php

from google.analytics.data_v1alpha import AlphaAnalyticsDataClient
from google.analytics.data_v1alpha.types import (
    DateRange,
    Dimension,
    Funnel,
    FunnelBreakdown,
    FunnelEventFilter,
    FunnelFieldFilter,
    FunnelFilterExpression,
    FunnelFilterExpressionList,
    FunnelStep,
    RunFunnelReportRequest,
    StringFilter,
)


def run_sample():
    """Runs the sample."""
    # TODO(developer): Replace this variable with your Google Analytics 4
    #  property ID before running the sample.
    property_id = "YOUR-GA4-PROPERTY-ID"
    run_funnel_report(property_id)


def run_funnel_report(property_id="YOUR-GA4-PROPERTY-ID"):
    """Runs a funnel query to build a report with 5 funnel steps.
      Step 1: First open/visit (event name is `first_open` or `first_visit`).
      Step 2: Organic visitors (`firstUserMedium` dimension contains the term
      "organic").
      Step 3: Session start (event name is `session_start`).
      Step 4: Screen/Page view (event name is `screen_view` or `page_view`).
      Step 5: Purchase (event name is `purchase` or `in_app_purchase`).

    The report configuration reproduces the default funnel report provided in
    the Funnel Exploration template of the Google Analytics UI.
    See more at https://support.google.com/analytics/answer/9327974
    """
    client = AlphaAnalyticsDataClient()

    request = RunFunnelReportRequest(
        property=f"properties/{property_id}",
        date_ranges=[DateRange(start_date="30daysAgo", end_date="today")],
        funnel_breakdown=FunnelBreakdown(
            breakdown_dimension=Dimension(name="deviceCategory")
        ),
        funnel=Funnel(
            steps=[
                FunnelStep(
                    name="First open/visit",
                    filter_expression=FunnelFilterExpression(
                        or_group=FunnelFilterExpressionList(
                            expressions=[
                                FunnelFilterExpression(
                                    funnel_event_filter=FunnelEventFilter(
                                        event_name="first_open"
                                    )
                                ),
                                FunnelFilterExpression(
                                    funnel_event_filter=FunnelEventFilter(
                                        event_name="first_visit"
                                    )
                                ),
                            ]
                        )
                    ),
                ),
                FunnelStep(
                    name="Organic visitors",
                    filter_expression=FunnelFilterExpression(
                        funnel_field_filter=FunnelFieldFilter(
                            field_name="firstUserMedium",
                            string_filter=StringFilter(
                                match_type=StringFilter.MatchType.CONTAINS,
                                case_sensitive=False,
                                value="organic",
                            ),
                        )
                    ),
                ),
                FunnelStep(
                    name="Session start",
                    filter_expression=FunnelFilterExpression(
                        funnel_event_filter=FunnelEventFilter(
                            event_name="session_start"
                        )
                    ),
                ),
                FunnelStep(
                    name="Screen/Page view",
                    filter_expression=FunnelFilterExpression(
                        or_group=FunnelFilterExpressionList(
                            expressions=[
                                FunnelFilterExpression(
                                    funnel_event_filter=FunnelEventFilter(
                                        event_name="screen_view"
                                    )
                                ),
                                FunnelFilterExpression(
                                    funnel_event_filter=FunnelEventFilter(
                                        event_name="page_view"
                                    )
                                ),
                            ]
                        )
                    ),
                ),
                FunnelStep(
                    name="Purchase",
                    filter_expression=FunnelFilterExpression(
                        or_group=FunnelFilterExpressionList(
                            expressions=[
                                FunnelFilterExpression(
                                    funnel_event_filter=FunnelEventFilter(
                                        event_name="purchase"
                                    )
                                ),
                                FunnelFilterExpression(
                                    funnel_event_filter=FunnelEventFilter(
                                        event_name="in_app_purchase"
                                    )
                                ),
                            ]
                        )
                    ),
                ),
            ]
        ),
    )
    response = client.run_funnel_report(request)
    print_run_funnel_report_response(response)


def print_funnel_sub_report(funnel_sub_report):
    """Prints the contents of a FunnelSubReport object."""
    print("Dimension headers:")
    for dimension_header in funnel_sub_report.dimension_headers:
        print(dimension_header.name)

    print("\nMetric headers:")
    for metric_header in funnel_sub_report.metric_headers:
        print(metric_header.name)

    print("\nDimensions and metric values for each row in the report:")
    for row_idx, row in enumerate(funnel_sub_report.rows):
        print("\nRow #{}".format(row_idx))
        for field_idx, dimension_value in enumerate(row.dimension_values):
            dimension_name = funnel_sub_report.dimension_headers[field_idx].name
            print("{}: '{}'".format(dimension_name, dimension_value.value))

        for field_idx, metric_value in enumerate(row.metric_values):
            metric_name = funnel_sub_report.metric_headers[field_idx].name
            print("{}: '{}'".format(metric_name, metric_value.value))

    print("\nSampling metadata for each date range:")
    for metadata_idx, metadata in enumerate(
        funnel_sub_report.metadata.sampling_metadatas
    ):
        print(
            "Sampling metadata for date range #{}: samplesReadCount={}, "
            "samplingSpaceSize={}".format(
                metadata_idx, metadata.samples_read_count, metadata.sampling_space_size
            )
        )


def print_run_funnel_report_response(response):
    """Prints results of a runFunnelReport call."""
    print("Report result:")
    print("=== FUNNEL VISUALIZATION ===")
    print_funnel_sub_report(response.funnel_visualization)

    print("=== FUNNEL TABLE ===")
    print_funnel_sub_report(response.funnel_table)



run_funnel_report.py
