This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using AdMob Mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an iOS app.
Supported integrations and ad formats
The mediation adapter for Pangle has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
App open | 1 |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
Requirements
- iOS deployment target of 10.0 or higher
Latest Google Mobile Ads SDK
Complete the mediation Get started guide
Step 1: Set up configurations in Pangle UI
ثبت نام کنید یا به حساب Pangle خود وارد شوید .
یک برنامه جدید اضافه کنید

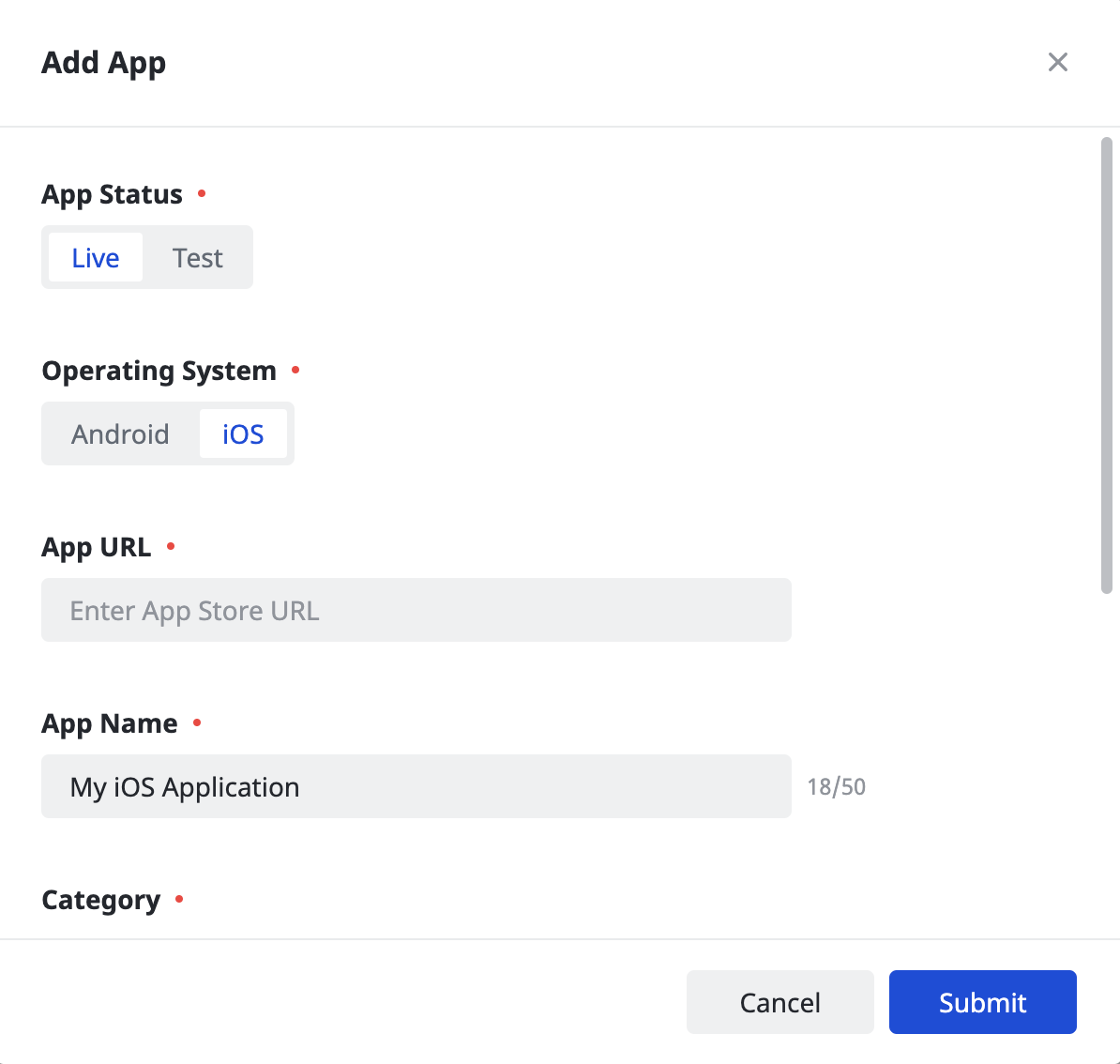

به تب Applications رفته و روی دکمه Add App کلیک کنید.
سیستم عاملی را که می خواهید برای آن برنامه ایجاد کنید انتخاب کنید و بقیه فرم را پر کنید. سپس، روی ارسال کلیک کنید.

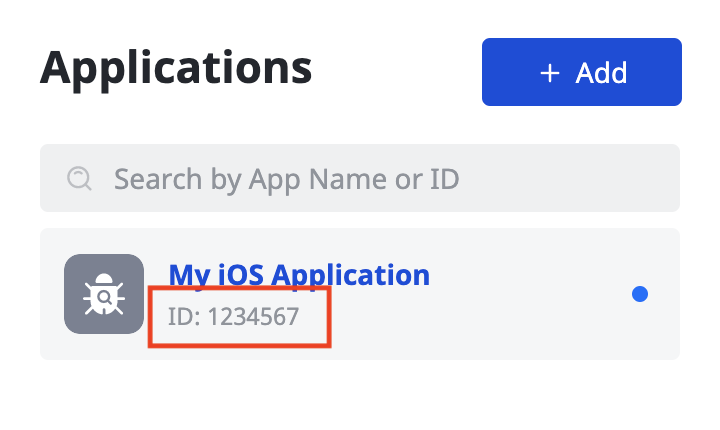

شناسه برنامه برنامه خود را یادداشت کنید.
یک مکان تبلیغاتی ایجاد کنید

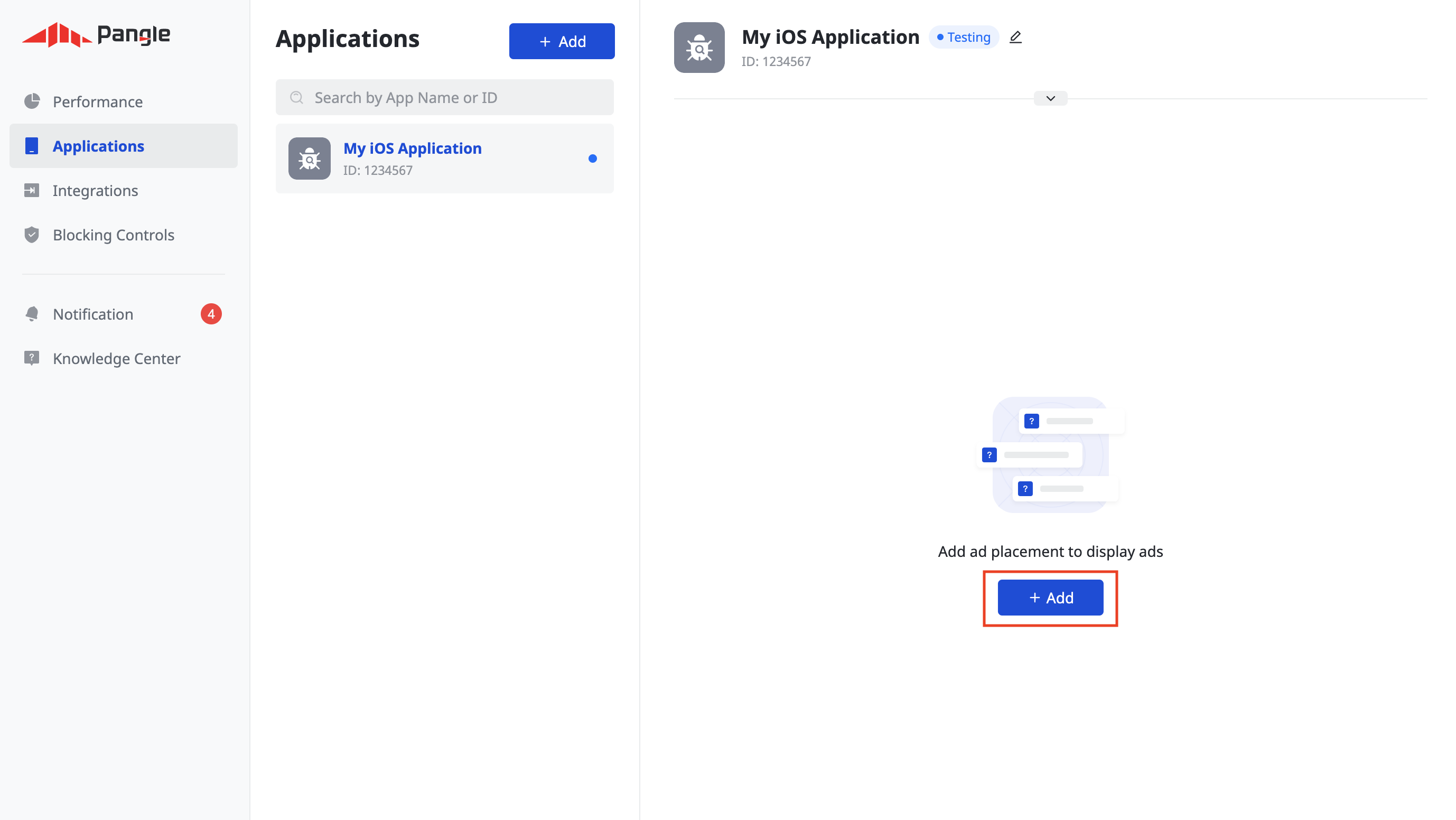

هنگامی که برنامه شما ایجاد شد، روی دکمه افزودن کلیک کنید تا مکان تبلیغات شما ایجاد شود.
مناقصه
قالب تبلیغ و نام مکان تبلیغ خود را انتخاب کنید و مناقصه درون برنامه ای را به عنوان نوع قیمت گذاری انتخاب کنید. بقیه فرم را پر کنید و روی ارسال کلیک کنید.

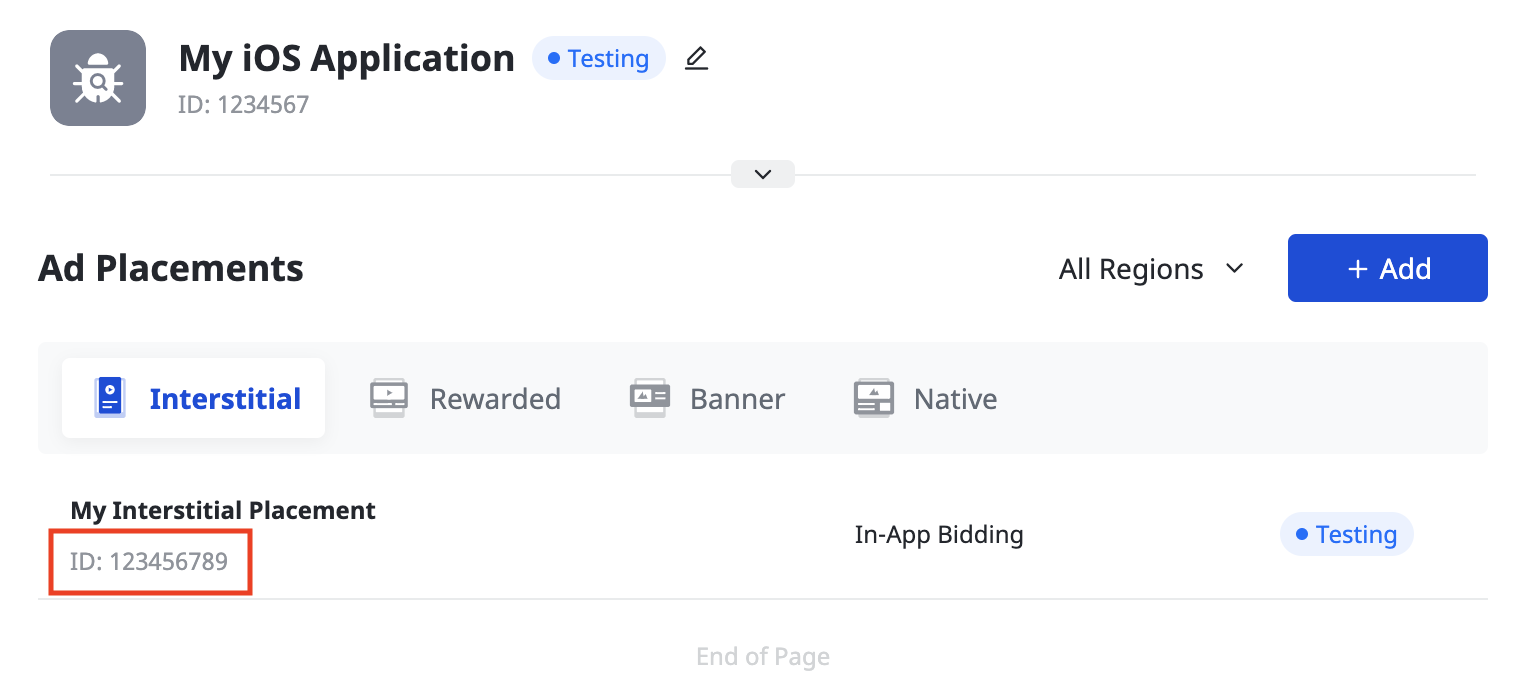

پس از ایجاد آگهی شما، شناسه قرار دادن آگهی را یادداشت کنید.
آبشار
قالب تبلیغ و نام مکان تبلیغ و CPM جهانی خود را به عنوان نوع قیمت گذاری انتخاب کنید. بقیه فرم را پر کنید و روی ارسال کلیک کنید.
پس از ایجاد آگهی شما، شناسه قرار دادن آگهی را یادداشت کنید.
کلید API گزارش Pangle را پیدا کنید
مناقصه
این مرحله برای ادغام پیشنهادها لازم نیست.
آبشار
شناسه کاربری در گوشه سمت چپ پایین صفحه را یادداشت کنید.
روی Integrations > SDK & API > Pangle Reporting API 2.0 کلیک کنید. شناسه نقش و کلید امنیتی را یادداشت کنید.
حالت تست را روشن کنید
دستورالعملهای Pangle's How to add a Test Ad Guide را در مورد نحوه فعال کردن تبلیغات آزمایشی Pangle دنبال کنید.
Step 2: Set up Pangle demand in AdMob UI
تنظیمات میانجی را برای واحد تبلیغات خود پیکربندی کنید
باید Pangle به پیکربندی میانجی واحد تبلیغاتی خود اضافه کنید.
ابتدا وارد حساب AdMob خود شوید. سپس به تب Mediation بروید. اگر گروه میانجی موجودی دارید که میخواهید آن را تغییر دهید، روی نام آن گروه میانجی کلیک کنید تا آن را ویرایش کنید، و به افزودن Pangle به عنوان منبع آگهی بروید.
برای ایجاد یک گروه میانجی جدید، Create Mediation Group را انتخاب کنید.
قالب و پلتفرم تبلیغ خود را وارد کنید، سپس روی Continue کلیک کنید.
به گروه میانجی خود یک نام بدهید و مکانهایی را برای هدف انتخاب کنید. سپس، وضعیت گروه میانجی را روی Enabled تنظیم کنید و سپس روی Add Units Ad Units کلیک کنید.
این گروه میانجی را با یک یا چند واحد تبلیغاتی موجودAdMob مرتبط کنید. سپس روی Done کلیک کنید.
اکنون باید کارت واحدهای تبلیغاتی را با واحدهای تبلیغاتی که انتخاب کردهاید مشاهده کنید:
Pangle به عنوان منبع آگهی اضافه کنید
مناقصه
در زیر کارت مناقصه در بخش منابع آگهی ، افزودن منبع آگهی را انتخاب کنید. سپس Pangle انتخاب کنید.

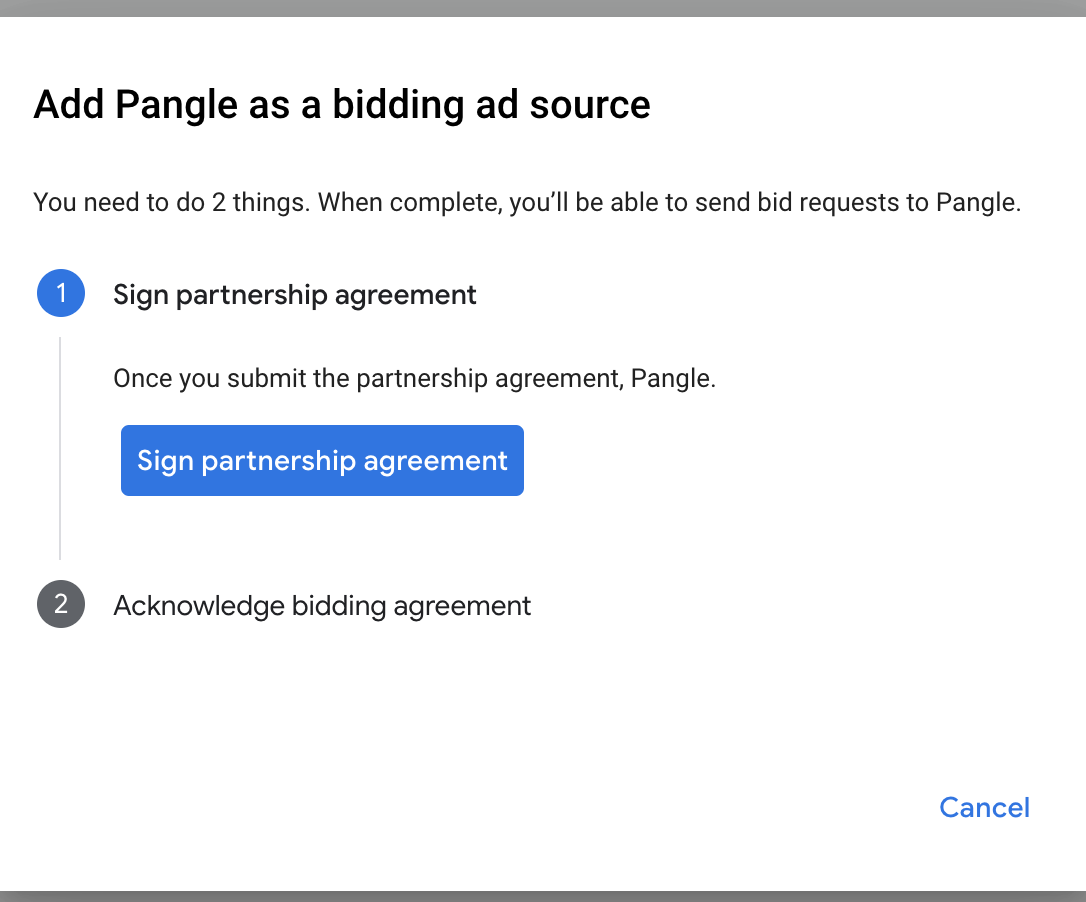

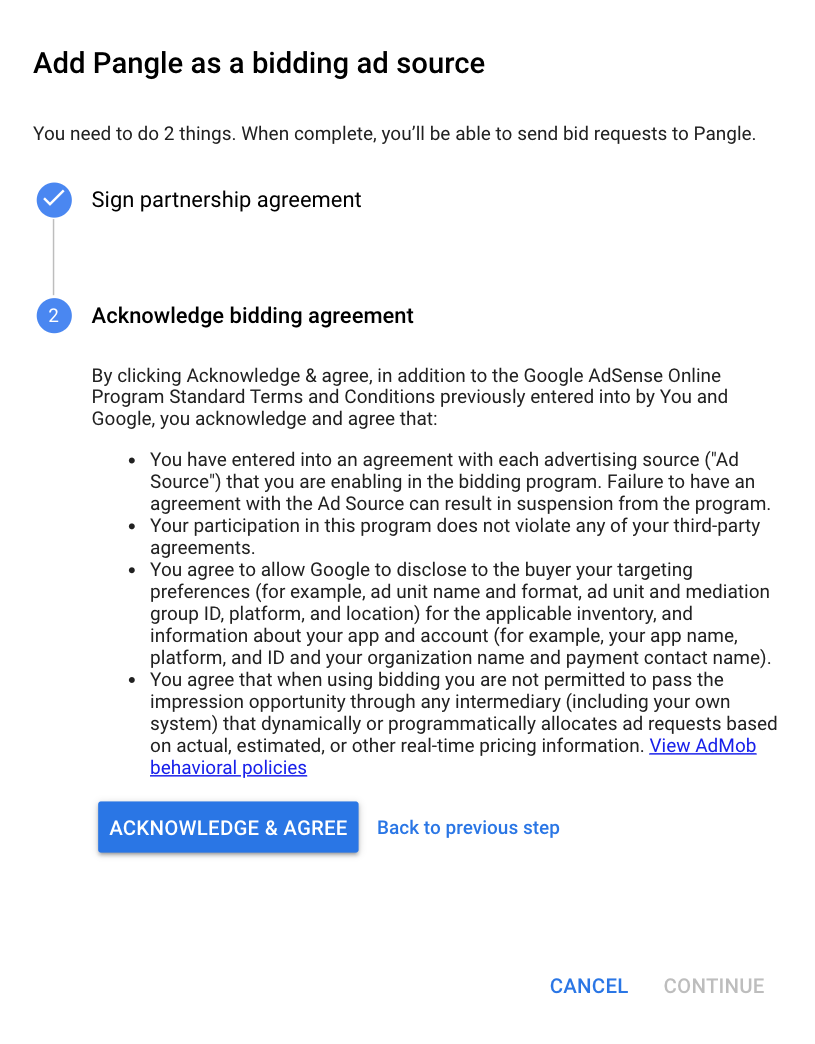

روی نحوه امضای قرارداد مشارکت و تنظیم شراکت در مناقصه باPangleکلیک کنید.
روی تأیید و موافقت کلیک کنید، سپس روی ادامه کلیک کنید.

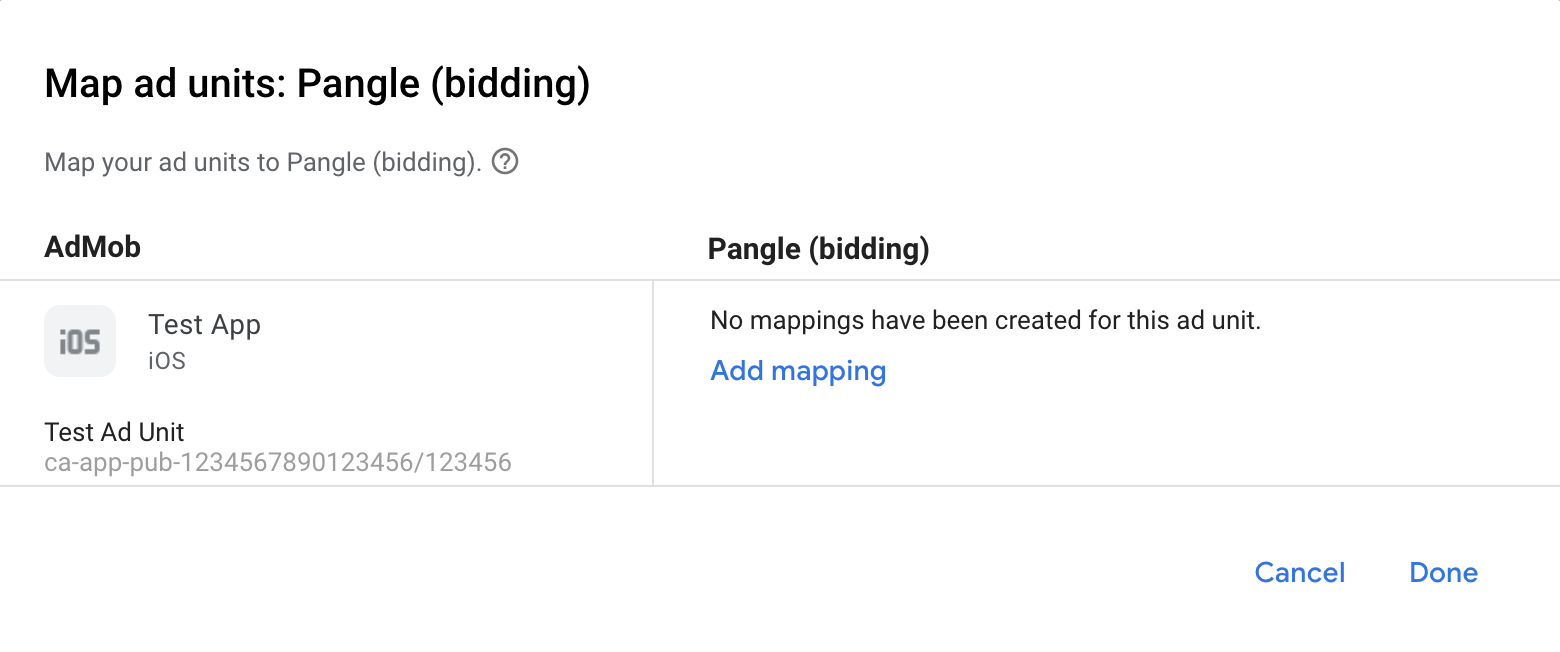

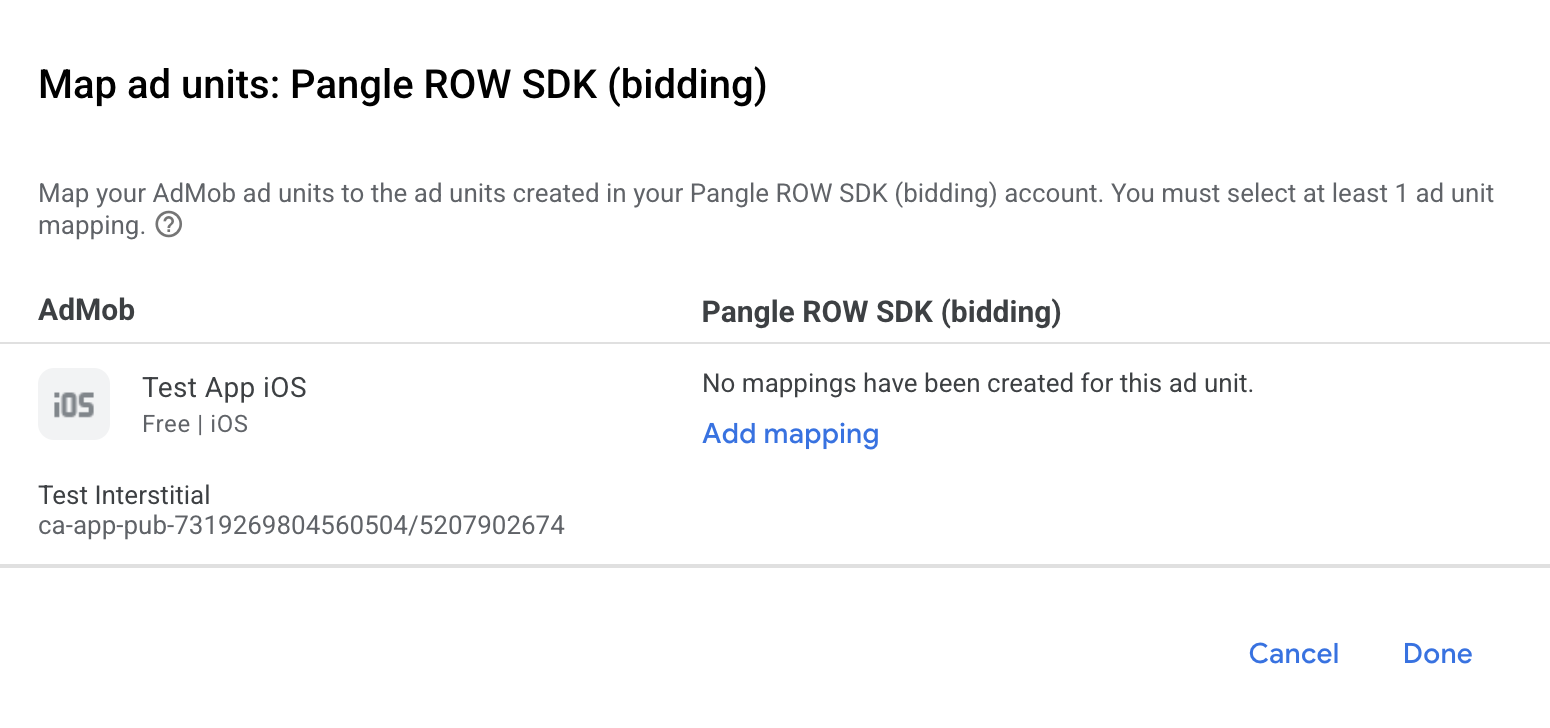

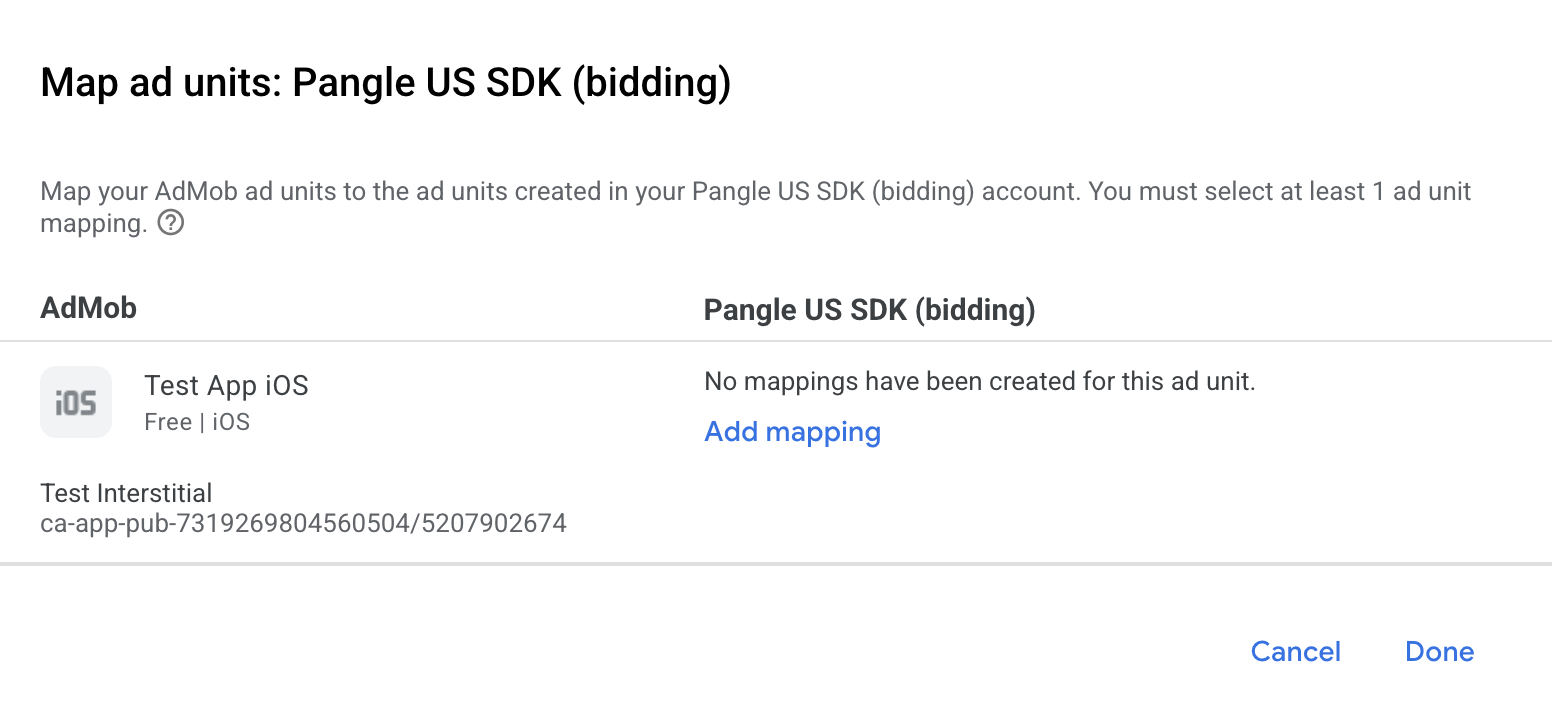

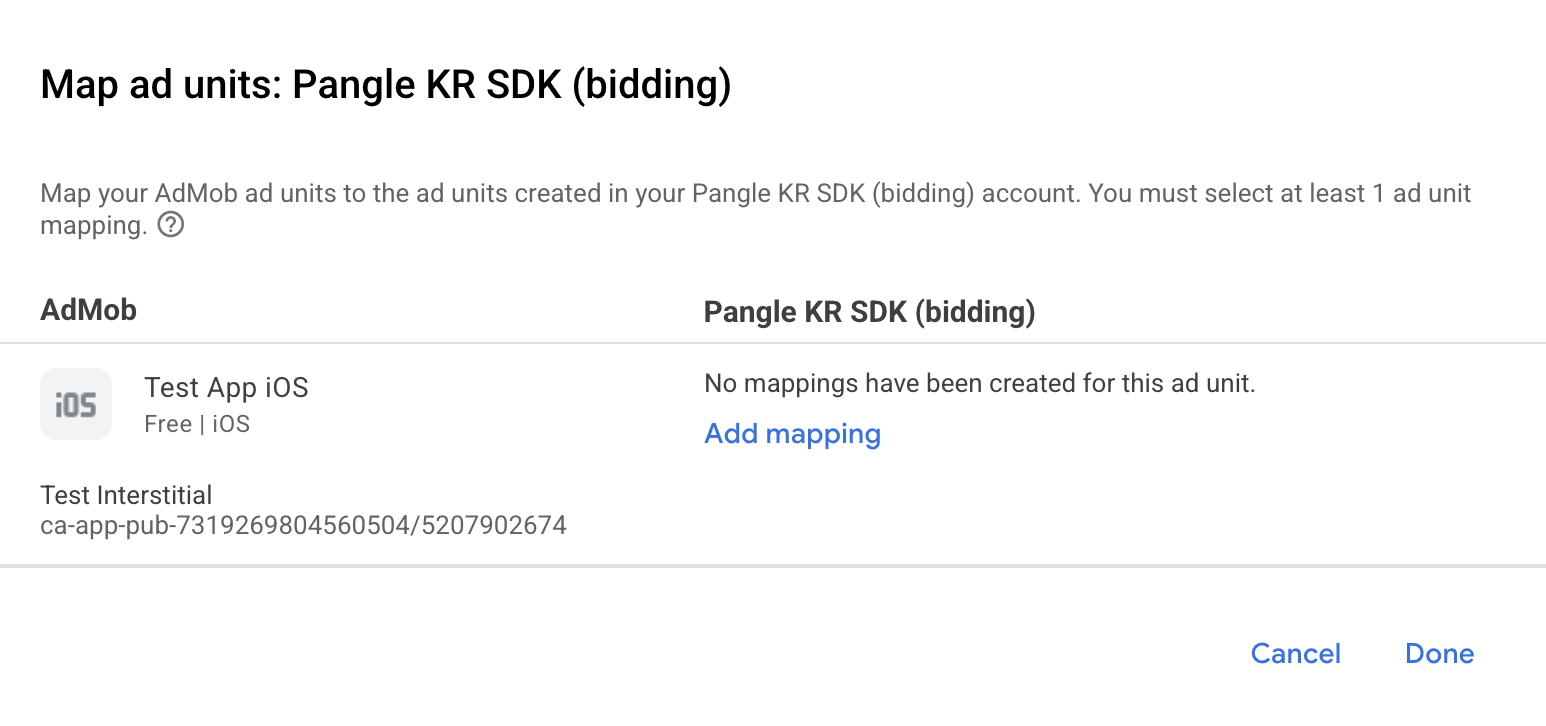

اگر قبلاً نقشهای برای Pangleدارید، میتوانید آن را انتخاب کنید. در غیر این صورت، روی افزودن نقشه کلیک کنید.

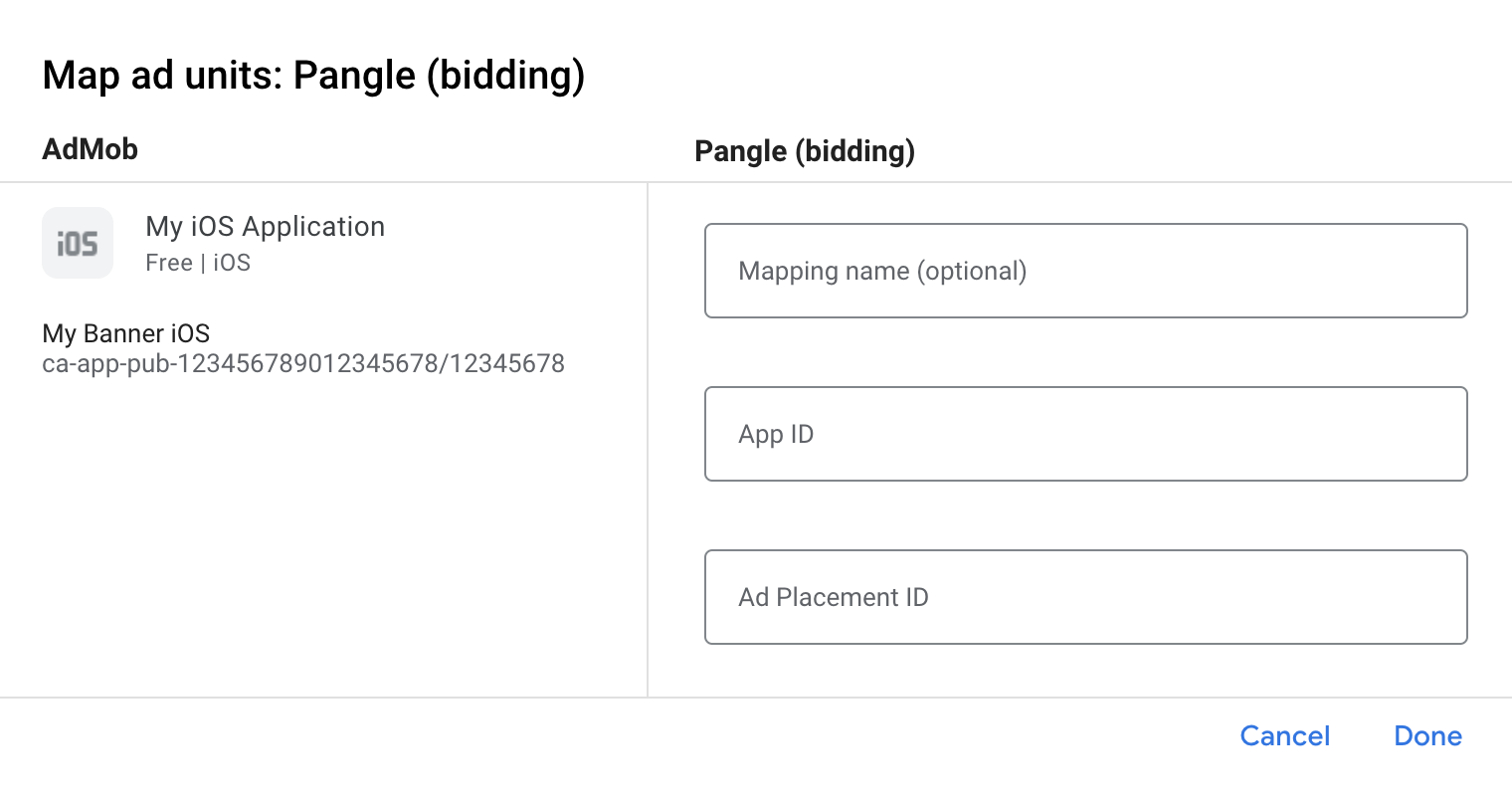

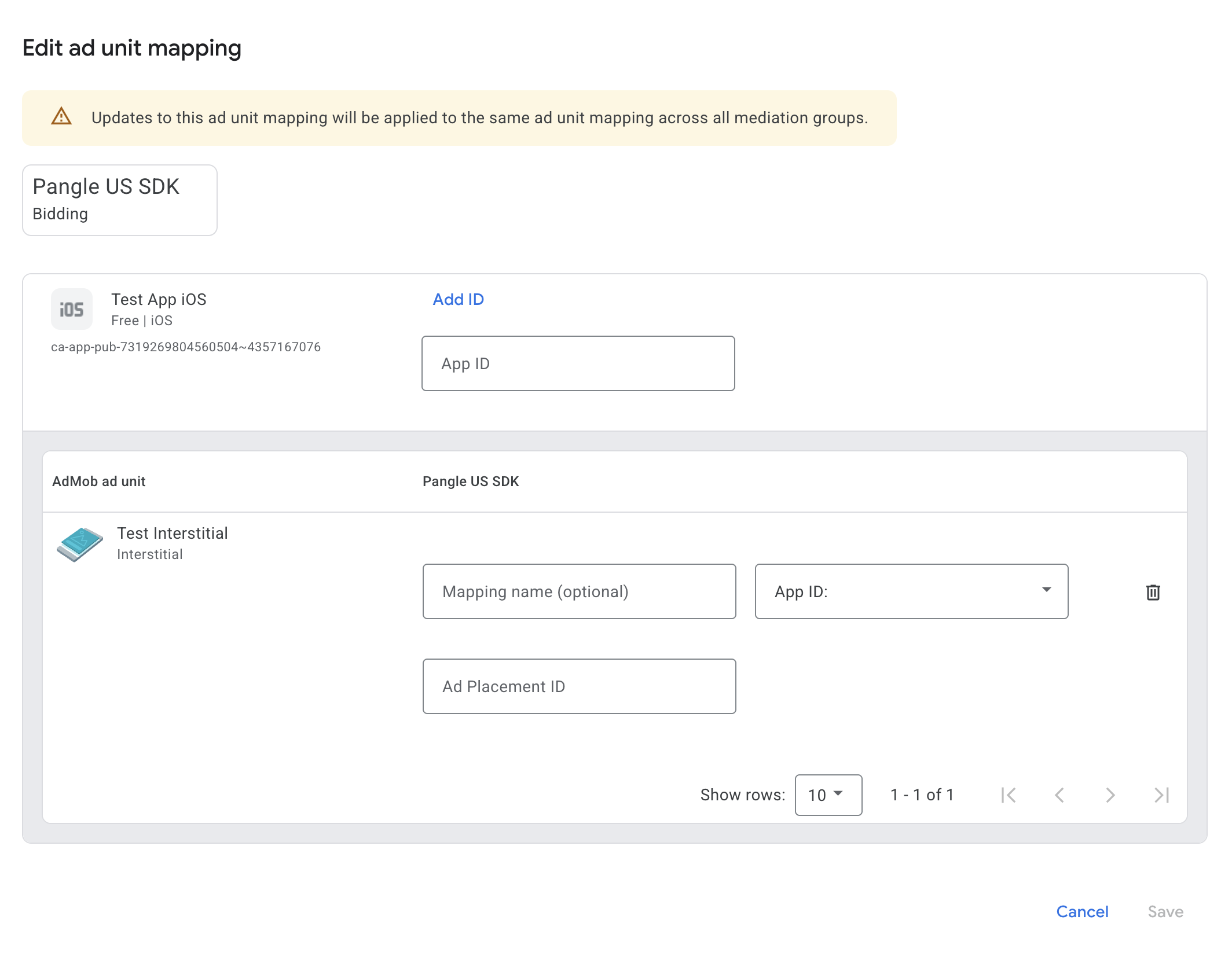

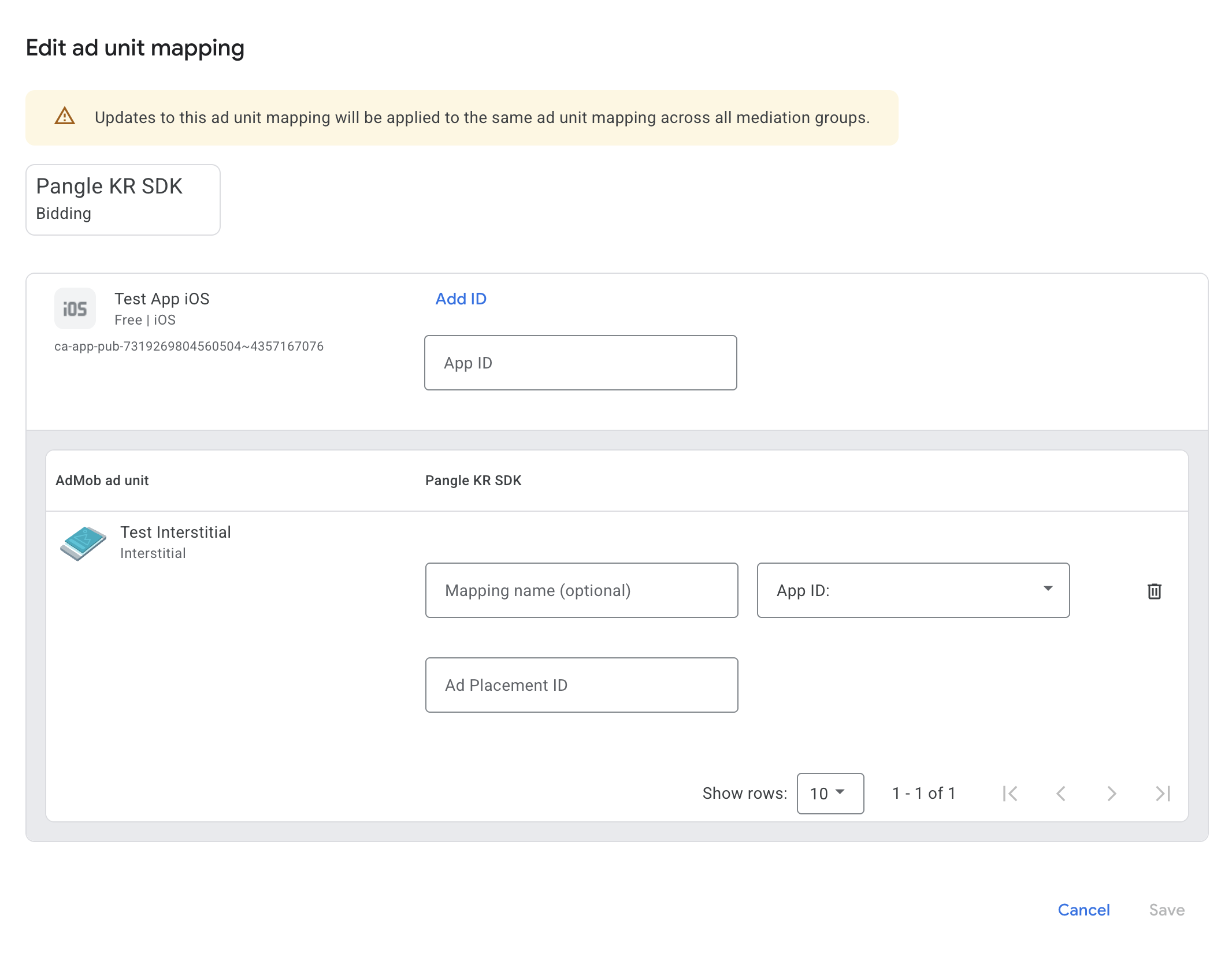

در مرحله بعد، App ID and Ad Placement IDکه در قسمت قبل به دست آمد، وارد کنید. سپس روی Done کلیک کنید.
مهم: App ID باید مانند رابط کاربریPangle با برنامه مورد نظر مرتبط باشد. ،در زیر کارت مناقصه در بخش منابع آگهی ، افزودن منبع آگهی را انتخاب کنید. سپس Pangle انتخاب کنید.
روی نحوه امضای قرارداد مشارکت و تنظیم شراکت در مناقصه باPangleکلیک کنید.
روی تأیید و موافقت کلیک کنید، سپس روی ادامه کلیک کنید.
اگر قبلاً نقشهای برای Pangleدارید، میتوانید آن را انتخاب کنید. در غیر این صورت، روی افزودن نقشه کلیک کنید.
در مرحله بعد، App ID and Ad Placement IDکه در قسمت قبل به دست آمد، وارد کنید. سپس روی Done کلیک کنید.
مهم: App ID باید مانند رابط کاربریPangle با برنامه مورد نظر مرتبط باشد.آبشار
در زیر کارت Waterfall در بخش Ad Sources ، Add Source Ad را انتخاب کنید. سپس Pangle انتخاب کنید.

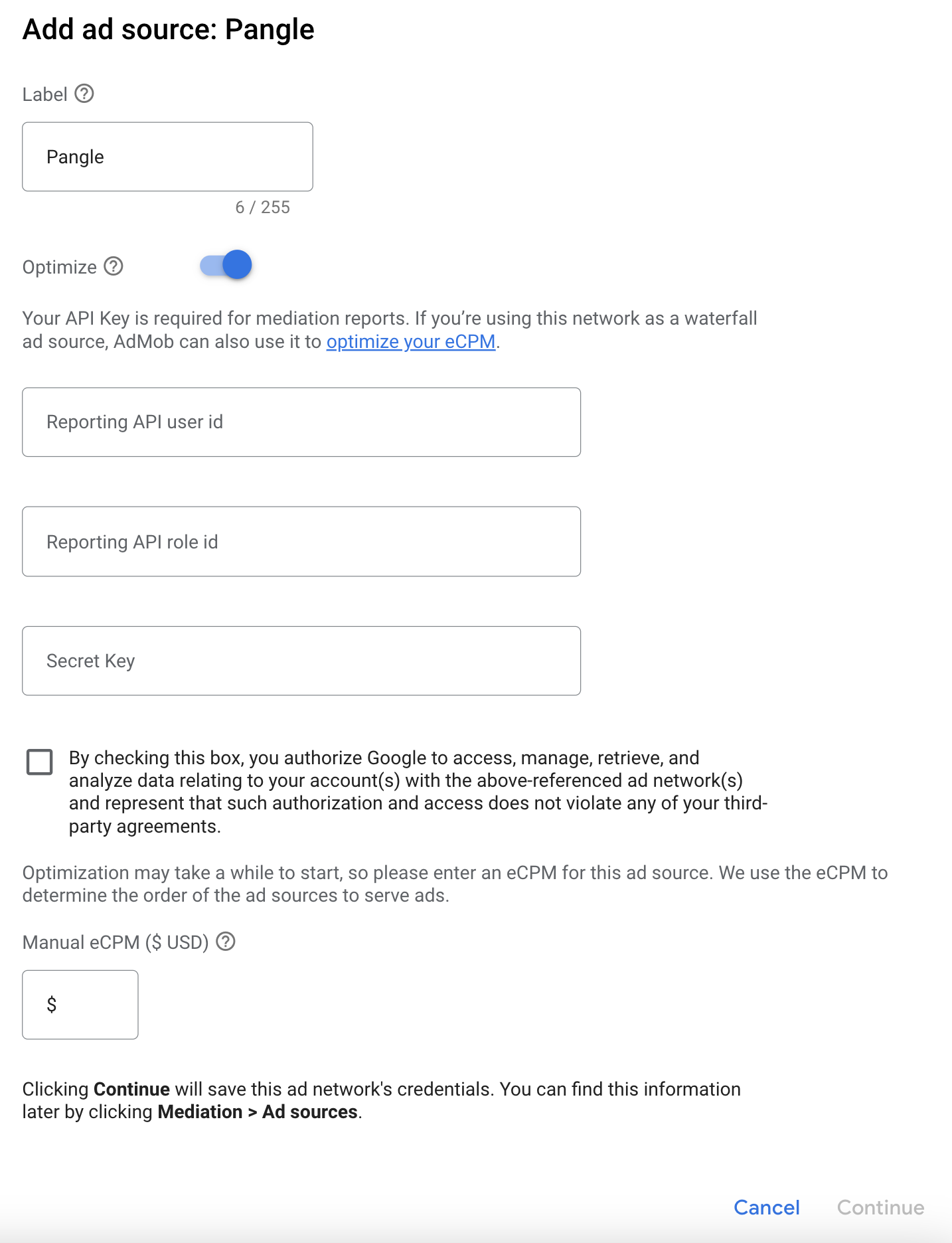

Pangle را انتخاب کنید.سپس یک مقدار eCPM برایPangle وارد کنید و روی Continue کلیک کنید.اگر قبلاً نقشهای برای Pangleدارید، میتوانید آن را انتخاب کنید. در غیر این صورت، روی افزودن نقشه کلیک کنید.

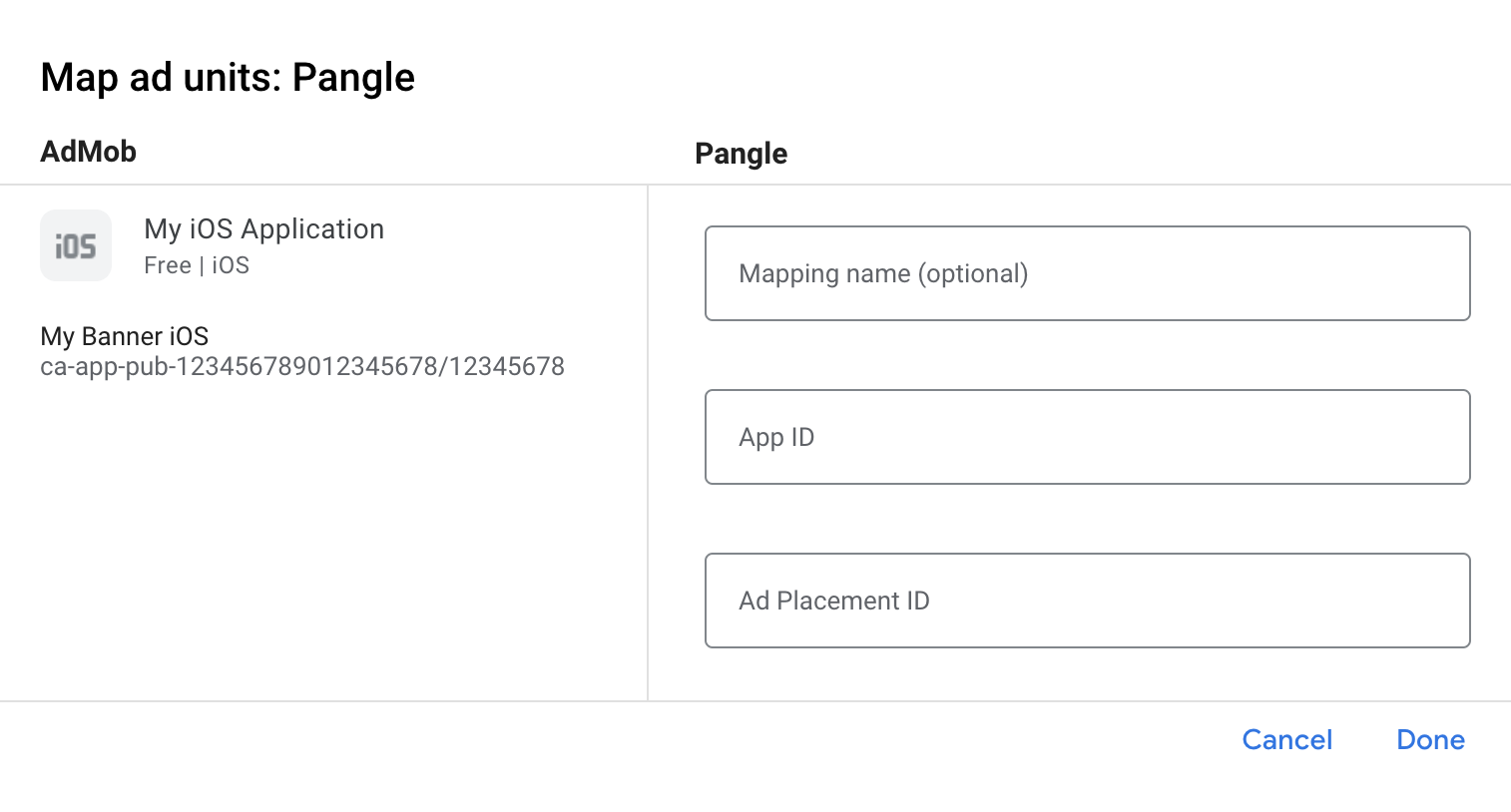

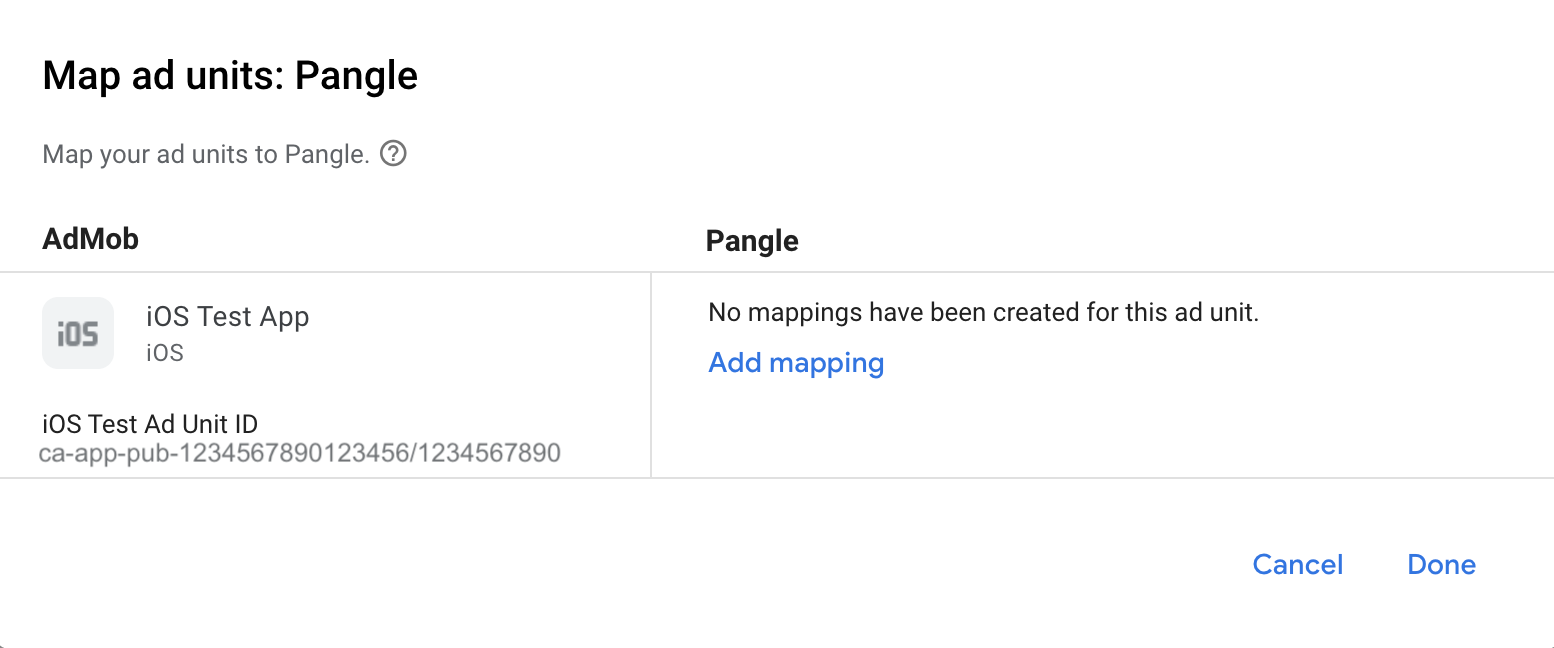

در مرحله بعد، App ID and Ad Placement IDکه در بخش قبل به دست آمد، وارد کنید. سپس روی Done کلیک کنید.
Step 3: Import the Pangle SDK and adapter
Using CocoaPods (recommended)
Add the following line to your project's Podfile:
pod 'GoogleMobileAdsMediationPangle'
From the command line run:
pod install --repo-update
Manual integration
- Download the latest version of the
Pangle SDK for iOS
and link all the
.framework
files and bundles in your project. - Download the latest version of the Pangle adapter from the download link in
the Changelog and link
PangleAdapter.xcframework
in your project.
Step 4: Add required code
SKAdNetwork integration
Follow Pangle's documentation
to add the SKAdNetwork identifiers to your project's Info.plist
file.
Step 5: Test your implementation
فعال کردن تبلیغات آزمایشی
مطمئن شوید که دستگاه آزمایشی خود را برایAdMob ثبت کرده اید و حالت تست را در رابط کاربری Pangle فعال کرده اید.
تبلیغات آزمایشی را تأیید کنید
برای تأیید اینکه آگهیهای آزمایشی را ازPangleدریافت میکنید، با استفاده از منبع(های) آگهی Pangle (Bidding) and Pangle (Waterfall) آزمایش منبع آگهی را در بازرس آگهی فعال کنید.
Optional Steps
Native ads
Ad rendering
The Pangle adapter returns its native ads as
GADNativeAd
objects. It populates the following
fields
for a
GADNativeAd
.
Field | Assets always included by Pangle adapter |
---|---|
Headline | |
Image | 1 |
Body | |
Icon | |
Call to action | |
Star rating | |
Store | |
Price | |
Advertiser |
1 The Pangle adapter does not
provide direct access to the main image asset for its native ads. Instead, the
adapter populates the
GADMediaView
with a video or an image.
Error codes
If the adapter fails to receive an ad from Pangle, you can check the
underlying error from the ad response using
GADResponseInfo.adNetworkInfoArray
under the following classes:
GADMediationAdapterPangle
Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:
Error code | Domain | Reason |
---|---|---|
101 | com.google.ads.mediation.pangle | Invalid server parameters (e.g. Missing app ID or placement ID). |
102 | com.google.ads.mediation.pangle | The requested ad size does not match a Pangle supported banner size. |
-1-60000 | Sent by Pangle SDK | Pangle SDK returned an error. See Pangle's documentation for more details. |
Pangle iOS Mediation Adapter Changelog
Version 6.1.0.5.0
- Verified compatibility with Pangle SDK version 6.1.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.5.
Version 6.1.0.4.0
- Verified compatibility with Pangle SDK version 6.1.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.1.0.4.
Version 6.0.0.6.0
- Verified compatibility with Pangle SDK version 6.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 11.6.0.
- Pangle SDK version 6.0.0.6.
Version 6.0.0.5.0
- Verified compatibility with Pangle SDK version 6.0.0.5.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.5.
Version 6.0.0.4.0
- Verified compatibility with Pangle SDK version 6.0.0.4.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 6.0.0.4.
Version 5.9.0.9.0
- Verified compatibility with Pangle SDK version 5.9.0.9.
Built and tested with:
- Google Mobile Ads SDK version 11.5.0.
- Pangle SDK version 5.9.0.9.
Version 5.9.0.8.0
- Verified compatibility with Pangle SDK version 5.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 11.4.0.
- Pangle SDK version 5.9.0.8.
Version 5.9.0.7.0
- Verified compatibility with Pangle SDK version 5.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 11.3.0.
- Pangle SDK version 5.9.0.7.
Version 5.8.0.8.0
- Verified compatibility with Pangle SDK version 5.8.0.8.
- Updated adapter to use new Pangle SDK signal collection API.
Built and tested with:
- Google Mobile Ads SDK version 11.2.0.
- Pangle SDK version 5.8.0.8.
Version 5.8.0.7.0
- Verified compatibility with Pangle SDK version 5.8.0.7.
- Now requires minimum iOS version 12.0.
- Now requires Google Mobile Ads SDK version 11.0 or higher.
- Included
Info.plist
in the frameworks withinPangleAdapter.xcframework
.
Built and tested with:
- Google Mobile Ads SDK version 11.0.1.
- Pangle SDK version 5.8.0.7.
Version 5.7.0.7.0
- Verified compatibility with Pangle SDK version 5.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.7.
Version 5.7.0.6.0
- Verified compatibility with Pangle SDK version 5.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.7.0.6.
Version 5.6.0.8.0
- Verified compatibility with Pangle SDK version 5.6.0.8.
- Refactored the
+setCOPPA
method by replacing the deprecatedadConfiguration.childDirectedTreatment
property with the newGADMobileAds.sharedInstance.requestConfiguration.tagForChildDirectedTreatment
property.
Built and tested with:
- Google Mobile Ads SDK version 10.14.0.
- Pangle SDK version 5.6.0.8.
Version 5.5.0.9.0
- Verified compatibility with Pangle SDK version 5.5.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.13.0.
- Pangle SDK version 5.5.0.9.
Version 5.5.0.7.0
- Verified compatibility with Pangle SDK version 5.5.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.12.0.
- Pangle SDK version 5.5.0.7.
Version 5.5.0.5.0
- Verified compatibility with Pangle SDK version 5.5.0.5.
Built and tested with:
- Google Mobile Ads SDK version 10.11.0.
- Pangle SDK version 5.5.0.5.
Version 5.4.1.1.0
- Added bidding support for app open ad format.
- Verified compatibility with Pangle SDK version 5.4.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.10.0.
- Pangle SDK version 5.4.1.1.
Version 5.4.0.9.0
- Verified compatibility with Pangle SDK version 5.4.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.9.
Version 5.4.0.8.0
- Fixed an issue where
GADPangleNetworkExtras
did not conform toGADAdNetworkExtras
protocol. - Implemented
adDidShowFail
protocol method in interstitial, rewarded, and app open ads. - Verified compatibility with Pangle SDK version 5.4.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.9.0.
- Pangle SDK version 5.4.0.8.
Version 5.3.1.2.0
- Verified compatibility with Pangle SDK version 5.3.1.2.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.2.
Version 5.3.1.0.0
- Verified compatibility with Pangle SDK version 5.3.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.8.0.
- Pangle SDK version 5.3.1.0.
Version 5.2.1.1.0
- Verified compatibility with Pangle SDK version 5.2.1.1.
Built and tested with:
- Google Mobile Ads SDK version 10.7.0.
- Pangle SDK version 5.2.1.1.
Version 5.2.0.9.0
- Verified compatibility with Pangle SDK version 5.2.0.9.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.9.
Version 5.2.0.8.0
- Verified compatibility with Pangle SDK version 5.2.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.8.
Version 5.2.0.7.0
- Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
- Verified compatibility with Pangle SDK version 5.2.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.7.
Version 5.2.0.6.0
- Verified compatibility with Pangle SDK version 5.2.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.5.0.
- Pangle SDK version 5.2.0.6.
Version 5.1.1.0.0
- Verified compatibility with Pangle SDK version 5.1.1.0.
- Added support for the
arm64
simulator architecture. - Now requires Google Mobile Ads SDK version 10.4.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.4.0.
- Pangle SDK version 5.1.1.0.
Version 5.1.0.6.0
- Verified compatibility with Pangle SDK version 5.1.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.3.0.
- Pangle SDK version 5.1.0.6.
Version 5.0.1.0.0
- Verified compatibility with Pangle SDK version 5.0.1.0.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.1.0.
Version 5.0.0.8.0
- Verified compatibility with Pangle SDK version 5.0.0.8.
Built and tested with:
- Google Mobile Ads SDK version 10.2.0.
- Pangle SDK version 5.0.0.8.
Version 5.0.0.7.0
- Verified compatibility with Pangle SDK version 5.0.0.7.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.7.
Version 5.0.0.6.0
- Verified compatibility with Pangle SDK version 5.0.0.6.
Built and tested with:
- Google Mobile Ads SDK version 10.1.0.
- Pangle SDK version 5.0.0.6.
Version 4.9.1.0.0
- Removed support for the
armv7
architecture. - Verified compatibility with Pangle SDK version 4.9.1.0.
- Now requires minimum iOS version of 12.0.
- Now requires Google Mobile Ads SDK version 10.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- Pangle SDK version 4.9.1.0.
Version 4.9.0.8.0
- Verified compatibility with Pangle SDK version 4.9.0.8.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.8.
Version 4.9.0.7.0
- Verified compatibility with Pangle SDK version 4.9.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.7.
Version 4.9.0.6.0
- Verified compatibility with Pangle SDK version 4.9.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.9.0.6.
Version 4.8.1.0.0
- Verified compatibility with Pangle SDK version 4.8.1.0.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- Pangle SDK version 4.8.1.0.
Version 4.8.0.9.0
- Verified compatibility with Pangle SDK version 4.8.0.9.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.9.
Version 4.8.0.7.0
- Verified compatibility with Pangle SDK version 4.8.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.7.
Version 4.8.0.6.0
- Verified compatibility with Pangle SDK version 4.8.0.6.
- Fixed an issue where the main thread was blocked when loading native ad icon image.
Built and tested with:
- Google Mobile Ads SDK version 9.13.0.
- Pangle SDK version 4.8.0.6.
Version 4.7.0.7.0
- Verified compatibility with Pangle SDK version 4.7.0.7.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.7.
Version 4.7.0.6.0
- Verified compatibility with Pangle SDK version 4.7.0.6.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.6.
Version 4.7.0.5.0
- Verified compatibility with Pangle SDK version 4.7.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- Pangle SDK version 4.7.0.5.
Version 4.7.0.4.0
- Verified compatibility with Pangle SDK version 4.7.0.4.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.7.0.4.
Version 4.6.2.2.0
- Renamed the
setGDPR()
andsetCCPA()
methods from theGADMediationAdapterPangle
class tosetGDPRConsent()
andsetDoNotSell
respectively. - Verified compatibility with Pangle SDK version 4.6.2.2.
Built and tested with:
- Google Mobile Ads SDK version 9.10.0.
- Pangle SDK version 4.6.2.2.
Version 4.6.1.8.0
- Verified compatibility with Pangle SDK version 4.6.1.8.
- Added bidding support for native ad format.
- Updated the adapter to use the
didRewardUser
API. - Now requires Google Mobile Ads SDK version 9.8.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.9.0.
- Pangle SDK version 4.6.1.8.
Version 4.5.2.8.0
- Verified compatibility with Pangle SDK version 4.5.2.8.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.8.
Version 4.5.2.7.0
- Verified compatibility with Pangle SDK version 4.5.2.7.
Built and tested with:
- Google Mobile Ads SDK version 9.7.0.
- Pangle SDK version 4.5.2.7.
Version 4.5.2.5.0
- Verified compatibility with Pangle SDK version 4.5.2.5.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.5.
Version 4.5.2.4.0
- Verified compatibility with Pangle SDK version 4.5.2.4.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.4.
Version 4.5.2.3.0
- Verified compatibility with Pangle SDK version 4.5.2.3.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- Pangle SDK version 4.5.2.3.
Version 4.5.1.3.0
- Verified compatibility with Pangle SDK version 4.5.1.3.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- Pangle SDK version 4.5.1.3.
Version 4.3.1.9.0
- Verified compatibility with Pangle SDK version 4.3.1.9.
Built and tested with:
- Google Mobile Ads SDK version 9.3.0.
- Pangle SDK version 4.3.1.9.
Version 4.3.0.5.0
- Verified compatibility with Pangle SDK version 4.3.0.5.
Built and tested with:
- Google Mobile Ads SDK version 9.2.0.
- Pangle SDK version 4.3.0.5.
Version 4.3.0.4.0
- Initial release!
- Added bidding support for banner (includes MREC), interstitial and rewarded ad formats.
Built and tested with:
- Google Mobile Ads SDK version 9.1.0.
- Pangle SDK version 4.3.0.4.
