透過 OAuth (Dialogflow) 連結帳戶

OAuth 連結類型支援兩種業界標準 OAuth 2.0 流程，為隱含 及授權代碼流程

In the implicit code flow, Google opens your authorization endpoint in the user's browser. After successful sign in, you return a long-lived access token to Google. This access token is now included in every request sent from the Assistant to your Action.

In the authorization code flow, you need two endpoints:

• The authorization endpoint, which is responsible for presenting the sign-in UI to your users that aren't already signed in and recording consent to the requested access in the form of a short-lived authorization code.
• The token exchange endpoint, which is responsible for two types of exchanges:
  1. Exchanges an authorization code for a long-lived refresh token and a short-lived access token. This exchange happens when the user goes through the account linking flow.
  2. Exchanges a long-lived refresh token for a short-lived access token. This exchange happens when Google needs a new access token because the one it had expired.

Although the implicit code flow is simpler to implement, Google recommends that access tokens issued using the implicit flow never expire, because using token expiration with the implicit flow forces the user to link their account again. If you need token expiration for security reasons, you should strongly consider using the auth code flow instead.

導入 OAuth 帳戶連結

設定專案

如要設定專案使用 OAuth 帳戶連結功能，請按照下列步驟操作：

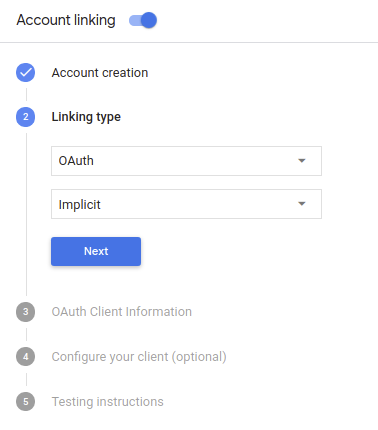

1. 開啟 Actions Console 並選取要使用的專案。
2. 按一下「開發」分頁標籤，然後選擇「帳戶連結」。
3. 啟用「帳戶連結」旁的切換鈕。
4. 在「建立帳戶」部分中，選取「否，我只想允許在我的網站上建立帳戶」。

5. 在「連結類型」中，選取「OAuth」OAuth和「隱含」OAuth。



6. 在「客戶資訊」中：

   • 指派值給「Actions to Google」核發的用戶端 ID，用來識別用戶端 ID 以及來自 Google 的要求
   • 插入授權和權杖交換端點的網址。

6. 按一下 [儲存]。

實作 OAuth 伺服器

To support the OAuth 2.0 implicit flow, your service makes an authorization endpoint available by HTTPS. This endpoint is responsible for authenticating and obtaining consent from users for data access. The authorization endpoint presents a sign-in UI to your users that aren't already signed in and records consent to the requested access.

When your Action needs to call one of your service's authorized APIs, Google uses this endpoint to get permission from your users to call these APIs on their behalf.

A typical OAuth 2.0 implicit flow session initiated by Google has the following flow:

1. Google opens your authorization endpoint in the user's browser. The user signs in if not signed in already, and grants Google permission to access their data with your API if they haven't already granted permission.
2. Your service creates an access token and returns it to Google by redirecting the user's browser back to Google with the access token attached to the request.
3. Google calls your service's APIs, and attaches the access token with each request. Your service verifies that the access token grants Google authorization to access the API and then completes the API call.

Handle authorization requests

When your Action needs to perform account linking via an OAuth2 implicit flow, Google sends the user to your authorization endpoint with a request that includes the following parameters:

For example, if your authorization endpoint is available at https://myservice.example.com/auth, a request might look like:

GET https://myservice.example.com/auth?client_id=GOOGLE_CLIENT_ID&redirect_uri=REDIRECT_URI&state=STATE_STRING&response_type=token

For your authorization endpoint to handle sign-in requests, do the following steps:

1. Verify the client_id and redirect_uri values to prevent granting access to unintended or misconfigured client apps:

   • Confirm that the client_id matches the client ID you assigned to Google.
   • Confirm that the URL specified by the redirect_uri parameter has the following form:

     https://oauth-redirect.googleusercontent.com/r/YOUR_PROJECT_ID

     YOUR_PROJECT_ID is the ID found on the Project settings page of the Actions Console.

2. Check if the user is signed in to your service. If the user isn't signed in, complete your service's sign-in or sign-up flow.

3. Generate an access token that Google will use to access your API. The access token can be any string value, but it must uniquely represent the user and the client the token is for and must not be guessable.

4. Send an HTTP response that redirects the user's browser to the URL specified by the redirect_uri parameter. Include all of the following parameters in the URL fragment:

   • access_token: the access token you just generated
   • token_type: the string bearer
   • state: the unmodified state value from the original request The following is an example of the resulting URL:

     https://oauth-redirect.googleusercontent.com/r/YOUR_PROJECT_ID#access_token=ACCESS_TOKEN&token_type=bearer&state=STATE_STRING

Google's OAuth 2.0 redirect handler will receive the access token and confirm that the state value hasn't changed. After Google has obtained an access token for your service, Google will attach the token to subsequent calls to your Action as part of the AppRequest.

啟動驗證流程

使用帳戶登入輔助意圖 以啟動驗證流程下列程式碼片段說明如何 在 Dialogflow 和 Actions SDK 中傳送回覆，即可使用這個輔助程式。

Dialogflow：

const {dialogflow, SignIn} = require('actions-on-google');
const app = dialogflow({
  // REPLACE THE PLACEHOLDER WITH THE CLIENT_ID OF YOUR ACTIONS PROJECT
  clientId: CLIENT_ID,
});
// Intent that starts the account linking flow.
app.intent('Start Signin', (conv) => {
  conv.ask(new SignIn('To get your account details'));
});

@ForIntent("Start Signin")
public ActionResponse text(ActionRequest request) {
  ResponseBuilder rb = getResponseBuilder(request);
  return rb.add(new SignIn().setContext("To get your account details")).build();
}

{
  "payload": {
    "google": {
      "expectUserResponse": true,
      "richResponse": {
        "items": [
          {
            "simpleResponse": {
              "textToSpeech": "PLACEHOLDER"
            }
          }
        ]
      },
      "userStorage": "{\"data\":{}}",
      "systemIntent": {
        "intent": "actions.intent.SIGN_IN",
        "data": {
          "@type": "type.googleapis.com/google.actions.v2.SignInValueSpec",
          "optContext": "To get your account details"
        }
      }
    }
  },
  "outputContexts": [
    {
      "name": "/contexts/_actions_on_google",
      "lifespanCount": 99,
      "parameters": {
        "data": "{}"
      }
    }
  ]
}

Actions SDK：

const {actionssdk, SignIn} = require('actions-on-google');
const app = actionssdk({
  // REPLACE THE PLACEHOLDER WITH THE CLIENT_ID OF YOUR ACTIONS PROJECT
  clientId: CLIENT_ID,
});
// Intent that starts the account linking flow.
app.intent('actions.intent.TEXT', (conv) => {
  conv.ask(new SignIn('To get your account details'));
});

@ForIntent("actions.intent.TEXT")
public ActionResponse text(ActionRequest request) {
  ResponseBuilder rb = getResponseBuilder(request);
  return rb.add(new SignIn().setContext("To get your account details")).build();
}

{
  "expectUserResponse": true,
  "expectedInputs": [
    {
      "inputPrompt": {
        "richInitialPrompt": {
          "items": [
            {
              "simpleResponse": {
                "textToSpeech": "PLACEHOLDER"
              }
            }
          ]
        }
      },
      "possibleIntents": [
        {
          "intent": "actions.intent.SIGN_IN",
          "inputValueData": {
            "@type": "type.googleapis.com/google.actions.v2.SignInValueSpec",
            "optContext": "To get your account details"
          }
        }
      ]
    }
  ],
  "conversationToken": "{\"data\":{}}",
  "userStorage": "{\"data\":{}}"
}

處理資料存取要求

如果 Google 助理要求包含存取權杖， 請先檢查存取權杖是否有效 (且尚未過期)，然後從資料庫擷取相關聯的使用者帳戶。
