Android Enterprise 的 Device Trust - 整合指南

本文是使用 AMAPI SDK 接收裝置信任訊號的主要指南。

AMAPI SDK 可讓應用程式 (有時也稱為「隨附」應用程式) 存取 ADP (Android 裝置政策) 應用程式的裝置信任信號。應用程式隨後可使用這些信號計算裝置的信任狀態，並根據所選項目執行業務邏輯。

必要條件

為防止未經授權的使用行為，裝置信任訊號的存取權受到限制。如要瞭解如何申請，請前往「裝置信任訊號存取權」頁面。
Android Enterprise 建議您將 Play Integrity API 套件整合至用戶端應用程式，並在讀取及依據裝置信任信號前，先參閱結果。如果裝置未通過 Play Integrity API 檢查，就不應信任該裝置，也不應信任用來判斷信任狀態的任何裝置衍生信號。詳情請參閱 Play Integrity 說明文件。

在應用程式中整合 AMAPI SDK

如要存取裝置信任訊號，應用程式必須整合 AMAPI SDK。如要進一步瞭解這個程式庫，以及如何將其新增至應用程式，請參閱 AMAPI SDK 整合指南。

新增必要權限

Android Enterprise API 傳回的裝置信任度信號中，有幾項需要應用程式宣告與存取這類資訊時相同的權限，特別是：

信號	必要權限
網路狀態	`ACCESS_NETWORK_STATE`
螢幕鎖定複雜度	`REQUEST_PASSWORD_COMPLEXITY`

如果應用程式的 AndroidManifest.xml未包含這些權限，Android Enterprise API 的裝置信任機制會在相關信號的中繼資料中傳回 PERMISSION_ISSUE：

internalDeviceSettings=DeviceSettings{
  screenLockComplexity=COMPLEXITY_UNSPECIFIED,
  internalScreenLockComplexityMetadata=Metadata{
    dataIssues=[
      DataIssue{
        issueType=PERMISSION_ISSUE,
        issueLevel=WARNING,
        issueDetails=IssueDetailsCase{none}
      }
    ]
  },

詳情請參閱可用的裝置信任信號清單。

存取裝置信任信號的步驟

如要存取裝置信任訊號，應用程式必須驗證用戶端環境是否為最新版本，並視需要更新。

如要存取裝置信任信號，請按照下列步驟操作：

驗證用戶端環境
準備用戶端環境
存取裝置信任信號

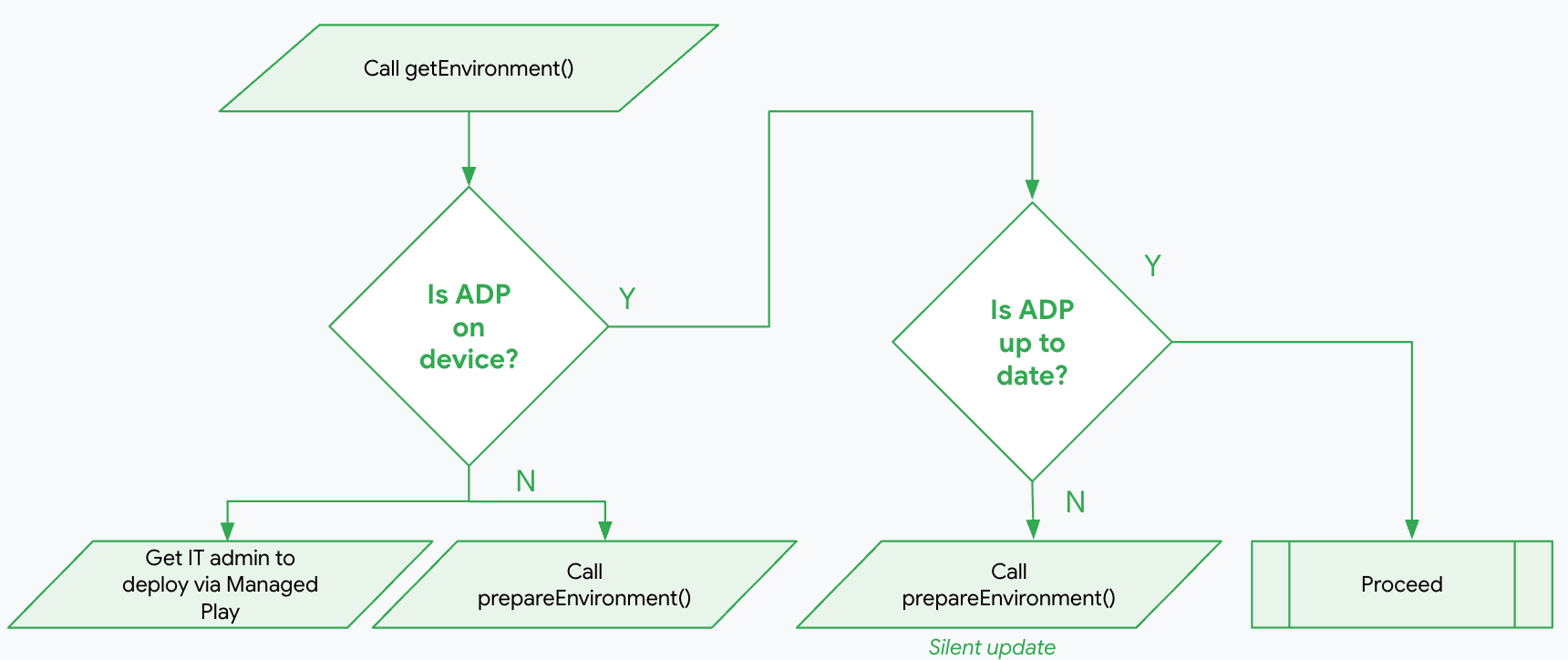

存取裝置信任信號的步驟

驗證用戶端環境

下列程式碼範例說明如何使用 getEnvironment 讀取 ADP 應用程式的目前狀態。如果環境已準備就緒且為最新版本，您的應用程式隨後可以建立 deviceClient 來存取裝置信任訊號 (請參閱「存取裝置信任訊號」)。

Kotlin

import com.google.android.managementapi.common.model.Role
import com.google.android.managementapi.device.DeviceClient
import com.google.android.managementapi.device.DeviceClientFactory
import com.google.android.managementapi.device.model.GetDeviceRequest
import com.google.android.managementapi.environment.EnvironmentClient
import com.google.android.managementapi.environment.EnvironmentClientFactory
import com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.State.INSTALLED
import com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.State.NOT_INSTALLED
import com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.State.READY
import com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.Version.UP_TO_DATE
import com.google.android.managementapi.environment.model.GetEnvironmentRequest
import com.google.android.managementapi.environment.model.PrepareEnvironmentRequest

try {
    val context = applicationContext

    val roles = listOf(Role.builder().setRoleType(Role.RoleType.IDENTITY_PROVIDER).build())
    val request = GetEnvironmentRequest.builder().setRoles(roles).build()
    val environmentClient = EnvironmentClientFactory.create(context)
    val environmentResponse = environmentClient.getEnvironment(request)

    if (environmentResponse.hasAndroidDevicePolicyEnvironment()) {
        val adpEnvironment = environmentResponse.androidDevicePolicyEnvironment

        if (adpEnvironment.state == READY && adpEnvironment.version == UP_TO_DATE) {
            // AMAPI Environment State OK, Version OK.  Requesting Device signals..
            checkDevice(deviceClient = DeviceClientFactory.create(context))
        } else if (adpEnvironment.state == INSTALLED) {
            // prepareEnvironment should be called, calling
            // prepareEnvironment won't show the UI
            prepareEnvironment(context, environmentClient)
        } else if (adpEnvironment.state == NOT_INSTALLED) {
            // prepareEnvironment should be called, calling
            // prepareEnvironment will show the UI
            prepareEnvironment(context, environmentClient)
        }
    }
} catch (e: Exception) {
    Log.e(TAG, "Exception", e)
}

Java

import static com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.State.INSTALLED;
import static com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.State.NOT_INSTALLED;
import static com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.State.READY;
import static com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment.Version.UP_TO_DATE;

import com.google.android.managementapi.common.model.Role;
import com.google.android.managementapi.device.DeviceClient;
import com.google.android.managementapi.device.DeviceClientFactory;
import com.google.android.managementapi.device.model.Device;
import com.google.android.managementapi.device.model.GetDeviceRequest;
import com.google.android.managementapi.environment.EnvironmentClient;
import com.google.android.managementapi.environment.EnvironmentClientFactory;
import com.google.android.managementapi.environment.model.Environment;
import com.google.android.managementapi.environment.model.Environment.AndroidDevicePolicyEnvironment;
import com.google.android.managementapi.environment.model.GetEnvironmentRequest;
import com.google.android.managementapi.environment.model.PrepareEnvironmentRequest;
import com.google.android.managementapi.environment.model.PrepareEnvironmentResponse;

try {
    Context context = getApplicationContext();

    ImmutableList roles = new ImmutableList.Builder()
            .add(Role.builder()
                    .setRoleType(Role.RoleType.IDENTITY_PROVIDER)
                    .build())
            .build();

    EnvironmentClient environmentClient = EnvironmentClientFactory.create(context);
    GetEnvironmentRequest request = GetEnvironmentRequest.builder()
            .setRoles(roles)
            .build();

    ListenableFuture getEnvironmentFuture = environmentClient.getEnvironmentAsync(request);
    Futures.addCallback(getEnvironmentFuture, new FutureCallback<>() {
        @Override
        public void onSuccess(Environment environment) {
            AndroidDevicePolicyEnvironment adpEnvironment = environment.getAndroidDevicePolicyEnvironment();

            AndroidDevicePolicyEnvironment.State state = adpEnvironment.getState();
            AndroidDevicePolicyEnvironment.Version version = adpEnvironment.getVersion();
            if (state == READY && version == UP_TO_DATE) {
                // AMAPI Environment State OK, Version OK.  Requesting Device signals..
                DeviceClient deviceClient = DeviceClientFactory.create(context);
                checkDevice(deviceClient);
            } else if (state == INSTALLED) {
                // prepareEnvironment should be called, calling
                // prepareEnvironment won't show the UI
                prepareEnvironment(context, environmentClient);
            } else if (state == NOT_INSTALLED) {
                // prepareEnvironment should be called, calling
                // prepareEnvironment will show the UI
                prepareEnvironment(context, environmentClient);
            }
        }

        @Override
        public void onFailure(Throwable t) {
            Log.d(TAG, t.toString());
        }
    }, MoreExecutors.directExecutor());
} catch (Exception e) {
    Log.d(TAG, e.toString());
}

如果已安裝 ADP 應用程式，但不是最新版本，您的應用程式應呼叫 prepareEnvironment，在使用者未介入的情況下自動更新 ADP 應用程式。

如果未安裝 ADP 應用程式，您的應用程式可以呼叫 prepareEnvironment，提示使用者安裝 ADP 應用程式。請參閱「準備用戶端環境」。

準備用戶端環境

如果已安裝 ADP 應用程式，API 會自動更新，不需使用者介入。

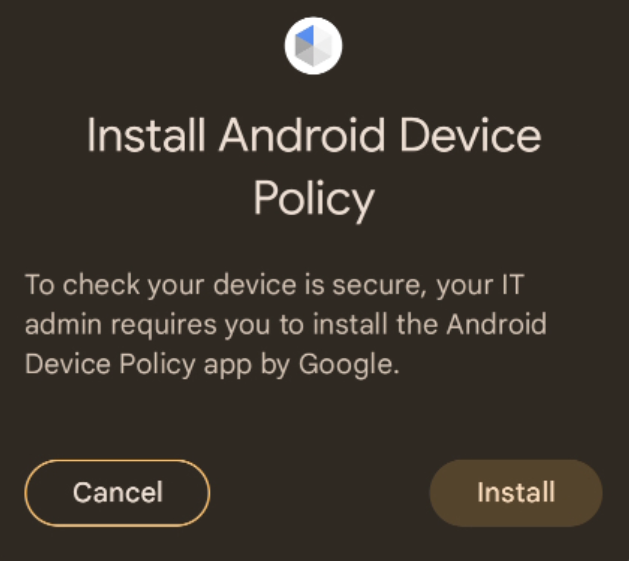

如果未安裝 ADP 應用程式，API 會提示使用者接受安裝 ADP 應用程式。

安裝 Android Device Policy

您可以註冊回呼來監控使用者選擇。詳情請參閱「在 ADP 應用程式安裝期間追蹤使用者互動」。

建議在新手上路 UX 流程中，從前景程序執行 prepareEnvironment 呼叫，以免 Install Android Device Policy 模態對話方塊突然出現，造成使用者困擾。如果無法從前景程序呼叫 (因為這是 Web 流程，且 Android 元件沒有 UI)，則允許從背景呼叫，但必須在新手上路 UX 流程中進行。

環境設定完成後，即可存取裝置信任訊號。請參閱「存取裝置信任信號」。

Kotlin

try {
    val myNotificationReceiverService = ComponentName(
        context, MyNotificationReceiverService::class.java
    )

    val roles = listOf(Role.builder().setRoleType(Role.RoleType.IDENTITY_PROVIDER).build())
    val request = PrepareEnvironmentRequest.builder().setRoles(roles).build()

    val response =
        environmentClient.prepareEnvironment(request, myNotificationReceiverService)

    val environment = response.environment
    val adpEnvironment = environment.androidDevicePolicyEnvironment

    val state = adpEnvironment.state
    val version = adpEnvironment.version
    if (state == READY && version == UP_TO_DATE) {
        // Environment is prepared, access device posture signals using
        // DeviceClient.
        checkDevice(deviceClient = DeviceClientFactory.create(context))
    } else {
        // The prepareEnvironment call failed to prepare
        Log.w(
            TAG, "AMAPI environment was not ready: " + state + " - " + version
        )
    }

} catch (e: java.lang.Exception) {
    Log.d(TAG, e.toString())
}

Java

try {
    ComponentName myNotificationReceiverService = new ComponentName(
            context,
            MyNotificationReceiverService.class
    );

    ImmutableList roles = new ImmutableList.Builder()
            .add(Role.builder()
                    .setRoleType(Role.RoleType.IDENTITY_PROVIDER)
                    .build())
            .build();


    PrepareEnvironmentRequest request = PrepareEnvironmentRequest.builder()
            .setRoles(roles)
            .build();

    ListenableFuture environmentFuture =
            environmentClient.prepareEnvironmentAsync(
                    request,
                    myNotificationReceiverService
            );

    Futures.addCallback(environmentFuture, new FutureCallback<>() {
        @Override
        public void onSuccess(PrepareEnvironmentResponse response) {
            Environment environment = response.getEnvironment();
            AndroidDevicePolicyEnvironment adpEnvironment = environment.getAndroidDevicePolicyEnvironment();

            AndroidDevicePolicyEnvironment.State state = adpEnvironment.getState();
            AndroidDevicePolicyEnvironment.Version version = adpEnvironment.getVersion();
            if (state == READY && version == UP_TO_DATE) {
                // AMAPI Environment State OK, Version OK.  Requesting Device signals..
                DeviceClient deviceClient = DeviceClientFactory.create(context);
                checkDevice(deviceClient);
            } else {
                // The prepareEnvironment call failed to prepare
                Log.w(
                        TAG, "AMAPI environment was not ready: "
                        + adpEnvironment.getState() + " - " + adpEnvironment.getVersion()
                );
            }
        }

        @Override
        public void onFailure(@NonNull Throwable t) {
            // Handle the error
            Log.d(TAG, "AMAPI response did not contain an ADP environment");
        }
    }, MoreExecutors.directExecutor());
} catch (Exception e) {
    Log.d(TAG, e.toString());
}

存取裝置信任信號

如要存取感興趣的裝置信任信號，可以使用上一步中看到的 deviceClient 例項，要求 Device 物件。

Kotlin

try {
    kotlin.runCatching {
        deviceClient.getDeviceAwait(GetDeviceRequest.getDefaultInstance())
    }.onFailure { t ->
        Log.d(TAG, t.toString())
    }.onSuccess { device ->
        // Access device posture signals available in device
        val deviceString = device.toString()
        Log.d(TAG, deviceString)
    }
} catch (e: java.lang.Exception) {
    Log.d(TAG, e.toString())
}

Java

try {
    ListenableFuture deviceFuture =
            deviceClient.getDevice(GetDeviceRequest.getDefaultInstance());

    Futures.addCallback(deviceFuture, new FutureCallback() {
        @Override
        public void onSuccess(Device device) {
            // Access device posture signals available in device
            String deviceString = device.toString();
            Log.d(TAG, deviceString);
        }

        @Override
        public void onFailure(Throwable t) {
            Log.d(TAG, Log.d(TAG, t.toString());
        }
    }, MoreExecutors.directExecutor());
} catch (Exception e) {
    Log.d(TAG, e.toString());
}

處理錯誤

如果應用程式發出裝置信任要求，但呼叫失敗，應用程式會收到例外狀況。發生這些例外狀況的原因有很多，例如：

SecurityException - 您的應用程式未註冊存取裝置信任訊號。請參閱裝置信任信號存取權。
AmapiSdkException 的子類別 - ADP 不存在或尚未準備就緒。這可能是暫時性狀況，請重試呼叫。

重試策略

如果例外狀況是由暫時性情況所致，請採用指數輪詢策略實作重試機制。首次失敗後，請等待 5 秒的初始延遲時間，然後再重試。

實作重試策略，並以最大重試次數做為結束條件，每次重試的延遲時間依指數遞增 (10 秒、20 秒等)。

追蹤使用者在 ADP 應用程式安裝期間的互動

如果裝置需要在 prepareEnvironment 期間安裝 ADP 應用程式，您的應用程式可以實作 NotificationReceiverService，追蹤使用者互動並接收通知，覆寫 getPrepareEnvironmentListener：

Kotlin

import android.util.Log
import com.google.android.managementapi.environment.EnvironmentListener
import com.google.android.managementapi.environment.model.EnvironmentEvent.EventCase.Kind.ANDROID_DEVICE_POLICY_INSTALL_CONSENT_ACCEPTED
import com.google.android.managementapi.environment.model.EnvironmentEvent
import com.google.android.managementapi.notification.NotificationReceiverService

class MyNotificationReceiverService : NotificationReceiverService() {
    override fun getPrepareEnvironmentListener(): EnvironmentListener {
        return MyEnvironmentListener()
    }
}

class MyEnvironmentListener : EnvironmentListener {
    override fun onEnvironmentEvent(
        event: EnvironmentEvent
    ) {
        if (event.event.kind == ANDROID_DEVICE_POLICY_INSTALL_CONSENT_ACCEPTED) {
            Log.d(TAG, "User provided install consent")
        } else {
            Log.d(TAG, "User rejected install consent")
        }
    }

    companion object {
        private val TAG: String = MyEnvironmentListener::class.java.simpleName
    }
}

Java

import static com.google.android.managementapi.environment.model.EnvironmentEvent.EventCase.Kind.ANDROID_DEVICE_POLICY_INSTALL_CONSENT_ACCEPTED;

import android.util.Log;
import androidx.annotation.NonNull;
import com.google.android.managementapi.environment.EnvironmentListener;
import com.google.android.managementapi.environment.model.EnvironmentEvent;
import com.google.android.managementapi.notification.NotificationReceiverService;

class MyNotificationReceiverService extends NotificationReceiverService {
    @NonNull
    @Override
    protected EnvironmentListener getPrepareEnvironmentListener() {
        return new MyEnvironmentListener();
    }
}
class MyEnvironmentListener implements EnvironmentListener {
    final private String TAG = MyEnvironmentListener.class.getSimpleName();

    @Override
    public void onEnvironmentEvent(EnvironmentEvent event) {
        if (event.getEvent().getKind() == ANDROID_DEVICE_POLICY_INSTALL_CONSENT_ACCEPTED)
        {
            Log.d(TAG, "User provided install consent");
        } else {
            Log.d(TAG, "User rejected install consent");
        }
    }
}

已知問題

目前沒有已知問題。

Android Enterprise 的 Device Trust - 整合指南 透過集合功能整理內容 你可以依據偏好儲存及分類內容。

必要條件

在應用程式中整合 AMAPI SDK

新增必要權限

存取裝置信任信號的步驟

驗證用戶端環境

Kotlin

Java

準備用戶端環境

Kotlin

Java

存取裝置信任信號

Kotlin

Java

處理錯誤

重試策略

追蹤使用者在 ADP 應用程式安裝期間的互動

Kotlin

Java

已知問題

Android Enterprise 的 Device Trust - 整合指南
