识别实体类型之间的关系

对于某些实体类型，您需要在 Feed 中的内容之间建立关系。这些信息有助于 Google 向用户显示内容的正确顺序和结构，并在用户的查询含糊不清时识别正确的内容。

选择您提供的内容类型：

电视节目

如果您是电视节目提供商，则需要在媒体目录 Feed 中添加 TVEpisode、TVSeason 和 TVSeries 实体类型。您可以通过过滤这些类型，在了解可用的实体类型部分中找到这些实体的定义。

确定关系

确保在它们之间建立以下关系：

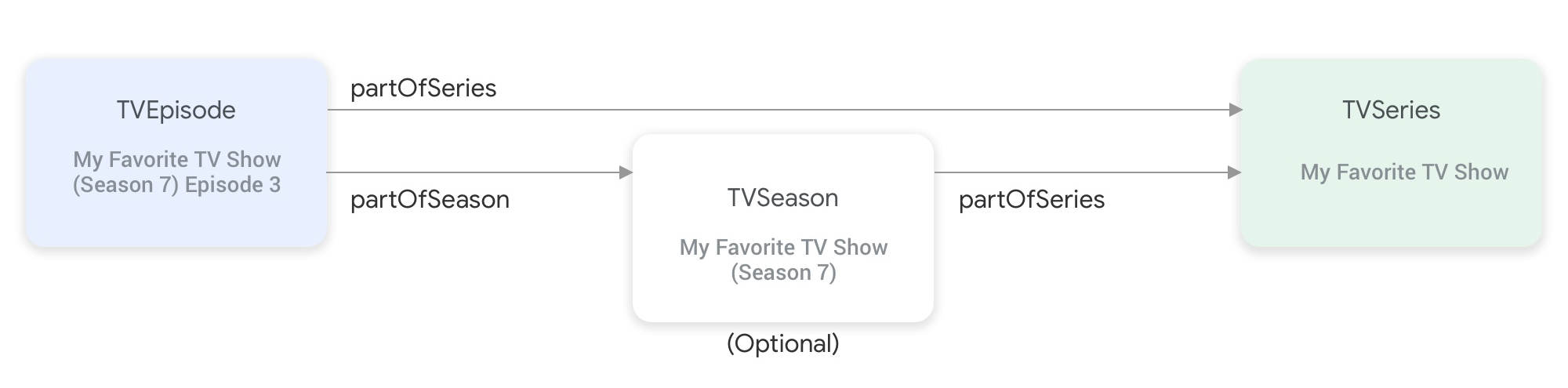

图: `partOfSeries` 和 `partOfSeason` 属性将电视节目实体类型连接在一起。

TVEpisode 实体要求您提供 partOfSeries 属性，该属性用于指定剧集 TVSeries 实体的 @id 和 name。

"partOfSeries": {
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
},

如果您的 Feed 包含电视节目季，则 TVSeason 实体还需要您在 partOfSeries 属性中指定其 TVSeries 实体。

注意：提供 TVSeason 作为顶级实体是可选的。但是，如果您选择为电视节目提供 TVSeason 实体，则这些 TVSeason 实体必须涵盖目录中电视连续剧的所有剧集。例如，如果 我最喜欢的电视节目 有 8 剧季，每剧季有 5 剧集。您的 Feed 应包含“我最喜欢的电视节目”的所有 40 集。如果您为该节目提供 TVSeason 实体，则您的 Feed 必须包含所有 8 个 TVSeason 实体。
TVEpisode 实体要求您提供 partOfSeason 属性，该属性用于指定剧集 TVSeason 实体的 @id 和 seasonNumber。
```
"partOfSeason": {
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "seasonNumber": 7
},
```
如果 TVEpisode 实体在 Feed 中没有对应的 TVSeason 实体，请按以下步骤为 TVEpisode 实体提供 partOfSeason.@id 和 partOfSeason.seasonNumber 属性：
- 获取其 partofSeries.@id 并附加占位符查询字段（例如 ?season1），以创建唯一的 partOfSeason.@id（例如 http://www.example.com/my_favorite_tv_show?season1）。
- 将 partOfSeason.seasonNumber 设置为 1。
之后，如果您决定在 Feed 中提供电视节目季，则可以为相应的 TVSeason 实体重复使用现有的 partOfSeason.@id，也可以将此占位符 partOfSeason.@id 替换为 TVSeason 实体的实际 @id。

示例

TVSeries

我最喜欢的电视节目

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "url": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
  "potentialAction":{ … },
  ...
}

TVSeason

我最喜欢的电视节目（第 7 季）

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "url": "http://www.example.com/my_favorite_tv_show/s7",
  "name": "My Favorite TV Show, Season 7",
  "seasonNumber": 7,
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

TVEpisode

我最喜欢的电视节目（第 7 剧季）的第 3 剧集

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVEpisode",
  "@id": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "url": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "name": "John Doe returns at night",
  "episodeNumber": 3,
  "partOfSeason": {
    "@type": "TVSeason",
    "@id": "http://www.example.com/my_favorite_tv_show/s7",
    "seasonNumber": 7
  },
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

电台

如果您是广播电台提供商，则需要在媒体目录 Feed 中添加 RadioBroadcastService 实体类型。您可以通过在了解可用的实体类型部分中过滤此类型，找到这些实体的定义。

确定关系

由于此类集成只有一种实体类型，并且不需要建立任何显式关系，因此请务必为 RadioBroadcastService 实体收集以下信息：

description：电台的说明。
broadcastDisplayName：电台的显示名称。
areaServed：电台的服务区域。
callSign：政府签发的无线电台官方呼号。对于北美洲的广播电台，此属性为必需属性。
broadcastFrequency：电台的频率规范。
- 对于地面 AM/FM 电台，此属性为必填属性。
- 对于仅限在线播放的内容，此值设为 INTERNET_STREAM。
broadcastAffiliateOf：此电台提供节目的网络。如果相应电台不属于任何联属机构，则无需此属性。
broadcaster：拥有和运营相应电台的组织。
parentService：父级电台。如果电台是其他电台的转播器或转换器，则必须提供此属性。

示例

{
  "@context": "http://schema.googleapis.com",
  "@type": "RadioBroadcastService",
  "@id": "https://www.example.com/stations?id=1",
  "url": "https://www.example.com/stations?id=1",
  "name": "KABC",
  "callSign": "KABC-FM",
  "broadcastDisplayName": "KABC",
  "description": "Local News & Information",
  "broadcastFrequency": {
    "@type": "BroadcastFrequencySpecification",
    "broadcastFrequencyValue": "89.5",
    "broadcastSignalModulation": "FM",
    "broadcastSubChannel": "HD1"
  },
  "areaServed": {
    "@type": "City",
    "name": "San Francisco, CA"
  },
  "broadcastAffiliateOf": [
    {
      "@id": "https://www.example.com/networks/xyz",
      "@type": "Organization",
      "name": "XYZ",
      "sameAs": "https://en.wikipedia.org/wiki/XYZ"
    },
    {
      "@id": "https://www.example.com/networks/efg",
      "@type": "Organization",
      "name": "EFG",
      "sameAs": "https://www.example.com/"
    }
  ],
  "broadcaster": [
    {
      "@type": "Organization",
      "name": "California Local Public Broadcasting",
      "sameAs": "https://www.example.org/w/clpb/"
    },
    {
      "@type": "Organization",
      "sameAs": "https://www.example.org/kabc",
      "name": "KABC Inc"
    }
  ],
  "potentialAction": { … },
  …
}

音乐

If you're a music provider, you need to add the MusicGroup, MusicAlbum, and MusicRecording entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

MusicGroup, MusicAlbum, and MusicRecording let your app or platform play more content from a playlist (MusicPlaylist) once all the content from the seed entity is played. Check out the following scenario:

A MusicAlbum entity contains a list of songs from Album XYZ (a seed entity).
A MusicPlaylist entity contains a playlist of songs that are similar to the songs from Album XYZ.
The MusicAlbum entity includes the MusicPlaylist entity as an Entity-seeded Action.

In this setup, once all the songs from Album XYZ are played, your app can continue to play songs from the playlist provided by the MusicPlaylist entity.

Entity Action and Entity-seeded Action

Listen Actions support two types of Actions:

Entity Action: Plays a specific artist, album, or song (a seed entity). It includes MusicGroup, MusicAlbum, MusicRecording.
Entity-seeded Action: Plays content similar to the seed entity. It includes MusicPlaylist.
- After completing an Entity Action, your app or platform may initiate an Entity-seeded Action.
- An Entity-seeded Action can include playback of the content from the seed entity.

We recommend you include an Entity-seeded Action in every Entity Action.

Identify the relationships

For MusicGroup, if you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicAlbum and MusicRecording, you need to identify which MusicGroup they belong to.
- Identify @id and name of its MusicGroup.
- If you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicPlaylist,
- If applicable, identify genre that best represents the content in the playlist.
- If the playlist is hand curated, identify numTracks.
  - The absence of numTracks tells Google that the playlist is an auto-generated, endless playlist.

Example

MusicGroup

Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicGroup",
  "@id":"http://www.example.com/artist/my_favorite_artist/",
  "url":"http://www.example.com/artist/my_favorite_artist/",
  "name":"My Favorite Artist",
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/artist_mix/my_favorite_artist/",
    "url":"http://www.example.com/artist_mix/my_favorite_artist/",
    "name":"My Favorite Artist Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicAlbum

Album: My Favorite Album
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicAlbum",
  "@id":"http://www.example.com/album/my_favorite_album",
  "url":"http://www.example.com/album/my_favorite_album",
  "name":"My Favorite Album",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/album_mix/my_favorite_album",
    "url":"http://www.example.com/album_mix/my_favorite_album",
    "name":"My Favorite Album Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicRecording

Song: My Favorite Song
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicRecording",
  "@id":"http://www.example.com/track/my_favorite_song",
  "url":"http://www.example.com/track/my_favorite_song",
  "name":"My Favorite Song",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/track_mix/my_favorite_song",
    "url":"http://www.example.com/track_mix/my_favorite_song",
    "name":"My Favorite Song Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicPlaylist

A custom playlist: "Top Pop Songs of the 2010s"

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicPlaylist",
  "@id":"http://www.example.com/playlist/top_pop_songs/",
  "url":"http://www.example.com/playlist/top_pop_songs/",
  "name":"Top Pop Songs of the 2010s",
  "genre": [
     "pop",
     "2010s"
  ],
  "numTracks":"46",
  "potentialAction":{ … },
  ...
}

电视直播

如果您是直播电视提供商，则需要在媒体目录 Feed 中添加 Organization、BroadcastService、CableOrSatelliteService 和 TelevisionChannel 实体类型，以表示您的频道阵容。您可能还需要提供 BroadcastEvent、TVSeries、TVEpisode、Movie 和 SportsEvent 实体来表示关联的 EPG（电子节目单）。您可以在了解可用的实体类型部分中找到这些实体的定义，只需按这些类型进行过滤即可。如需更详细的说明，您可以访问直播电视频道页面。

表示直播电视频道的实体之间的关系

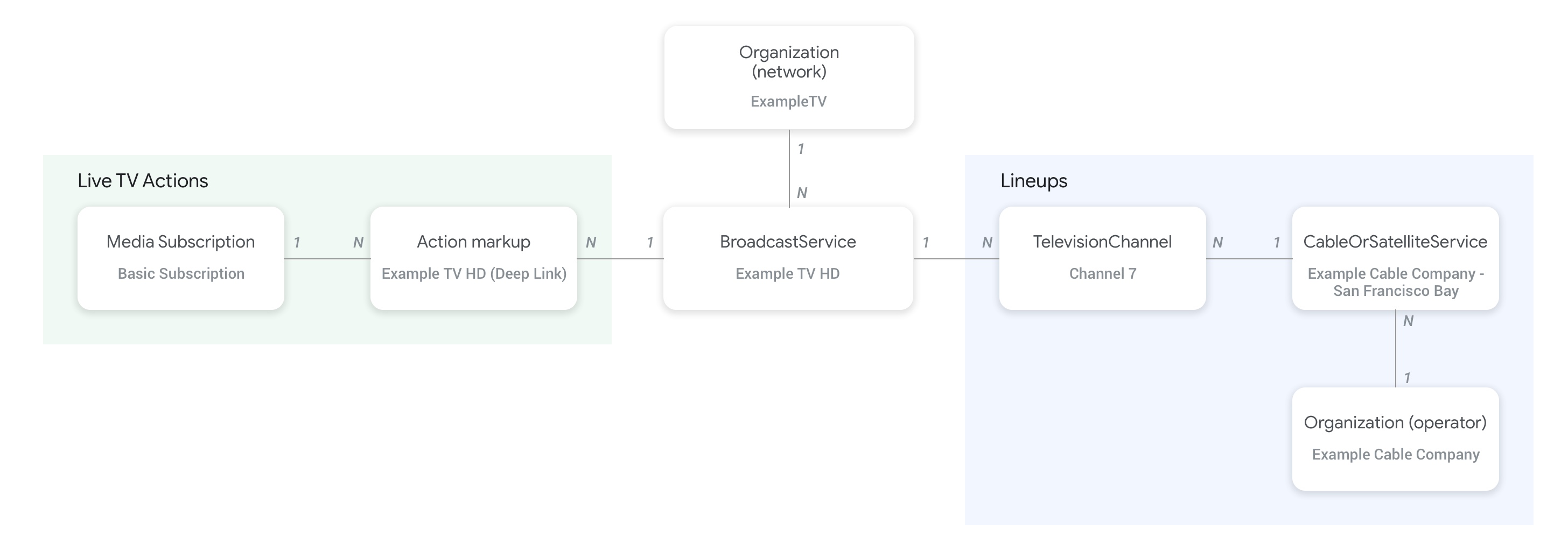

下图显示了 Organization、BroadcastService、CableOrSatelliteService 和 TelevisionChannel 实体的关系：

表示 Feed 提供方的 Organization（运营商）实体与 CableOrSatelliteService 服务的父组织通过 CableOrSatelliteService 实体上的 provider 属性相关联。
与 BroadcastService 实体对应的 Organization 实体通过 BroadcastService 实体上的 broadcastAffiliateOf 属性进行连接。
TelevisionChannel 实体使用 inBroadcastLineup 属性与 CableOrSatelliteService 实体（表示其所属的影音内容系列）相关联。
TelevisionChannel 实体通过 providesBroadcastService 属性与 BroadcastService 实体（即相应频道提供的节目）相关联。

强烈建议您浏览直播电视频道概念页面，了解如何建立 BroadcastService 与 Organization 实体之间的关系的具体示例。

频道与其节目指南 (EPG) 之间的关系

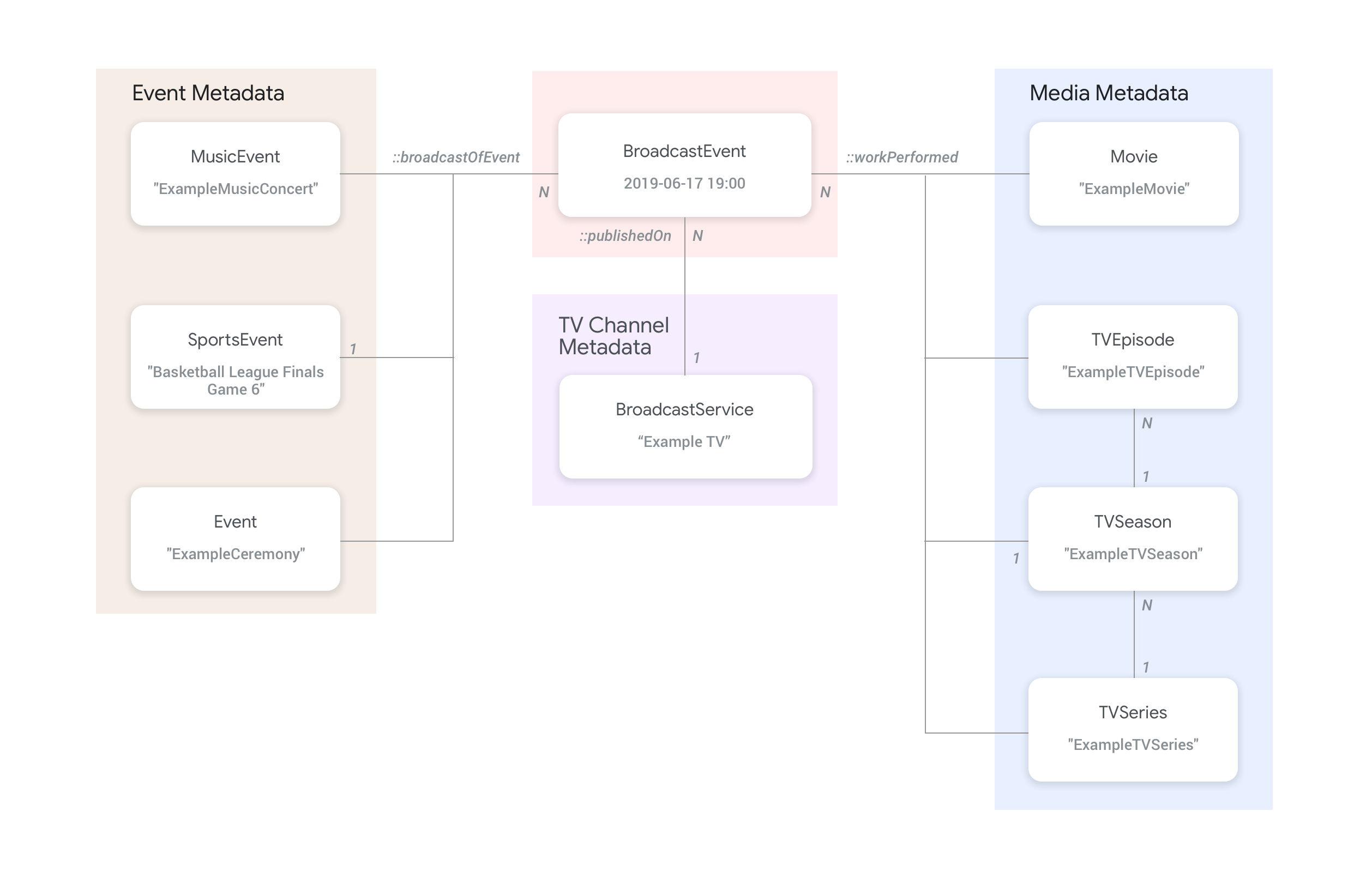

下图显示了 BroadcastEvent 实体如何与 Feed 中的其余实体相关联。

表示 BroadcastService 的节目指南 (EPG) 的 BroadcastEvent 实体通过 BroadcastEvent 实体上的 publishedOn 属性与 BroadcastService 实体相关联。
BroadcastEvent 实体还可以使用 workPerformed 属性连接到顶层 TVEpisode、TVSeries、Movie 实体。
BroadcastEvent 实体还可以使用 broadcastOfEvent 属性连接到顶级 SportsEvent 实体。
对于在线直播的无频道活动，BroadcastEvent 实体使用 workPerformed 或 broadcastOfEvent 属性（具体取决于直播内容）与表示直播活动的实体相关联。在这种情况下，由于不需要连接到频道，因此不需要 publishedOn 属性。

示例

以下部分提供了各种观看操作使用情形的示例和代码段。

互联网上的全国性电视服务提供商

组织

一家虚构的互联网协议电视服务提供商 ExampleTV Digital Service (Organization) 通过互联网提供直播电视服务，其中包含以下两个频道：ExampleTV-Movie (Organization) 和 ExampleTV-Comedy (Organization)：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/digital",
  "name":"ExampleTV Digital Service",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_digital_service"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/movie",
  "name":"ExampleTV Movie",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_movie"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/comedy",
  "name":"ExampleTV Comedy",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_comedy"
}

BroadcastService

以下两个 BroadcastService 实体提供了虚构频道 ExampleTV-Movie 和 ExampleTV-Comedy 的深层链接和访问要求详情：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/movie",
  "name": "ExampleTV-Movie",
  "alternateName": [
    "Example Television Movie",
    "Example TV Movie"
  ],
  "description": "A fictional Internet Protocol TV movie channel.",
  "broadcastDisplayName":"ExampleTV-Movie",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/movie"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/movie?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "12345"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-movie-33345"
    }
  ]
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/comedy",
  "name": "ExampleTV-Comedy",
  "alternateName": [
    "Example Television Comedy",
    "Example TV Comedy"
  ],
  "description": "A fictional Internet Protocol TV comedy channel.",
  "broadcastDisplayName":"ExampleTV-Comedy",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/comedy"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/comedy?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "15555"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-comedy-12323"
    }
  ]
}

CableOrSatelliteService

此 CableOrSatelliteService 描述了覆盖范围为全国的服务提供商 ExampleTV Digital Service：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"CableOrSatelliteService",
  "@id":"http://example.com/example_iptv/us",
  "name":"Example TV Digital Service - US",
  "provider": {
    "@type": "Organization",
    "@id": "http://example.com/exampletv/digital",
  },
  "areaServed":[
    {
      "@type":"Country",
      "name": "US",
    }
  ]
}

TelevisionChannel

以下 TelevisionChannel 实体表示 ExampleTV Digital Service IPTV 在频道 ExTV-Movie 上有 ExampleTV Movie 节目，在频道 ExTV-Comedy 上有 ExampleTV Comedy 节目：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-movie",
  "broadcastChannelId":"ExTV-Movie",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/movie"
  }
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-comedy",
  "broadcastChannelId":"ExTV-Comedy",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/comedy"
  }
}

如需查看更多示例，请参阅直播电视示例部分。

电视频道上播放的电影

某部电影于 2019 年 7 月 12 日下午 5 点至 7 点在电视网络 Example TV (BroadcastService) 上播出。

BroadcastEvent

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live/movie/new_release",
  "name": "My Favorite Movie",
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "startDate": "2019-07-12T17:00-08:00",
  "endDate": "2019-07-12T19:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "publishedOn": {
    "@type": "BroadcastService",
    "@id": "http://example.com/stations/example_tv"
  },
  "workPerformed": {
    "@type": "Movie",
    "@id": "http://www.example.com/my_favorite_movie"
  }
}

BroadcastService

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"http://example.com/stations/example_tv",
  "name":"EXAMPLE-TV",
  "broadcastDisplayName":"ABCD",
  "callSign": "EXA-TV",
  "videoFormat":"SD",
  "broadcastTimezone":"America/Los_Angeles",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://example.com/networks/abcd-network",
  }
  "identifier": [
   {
     "@type": "PropertyValue",
     "propertyID": "TMS_ID",
     "value": "12258"
   },
   {
     "@type": "PropertyValue",
     "propertyID": "_PARTNER_ID_",
     "value": "exampletv-123456"
   }
  ],
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://example.com/livestream",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast",
        "http://schema.org/AndroidTVPlatform"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "externalsubscription",
      "availabilityStarts": "2018-07-21T10:35:29Z",
      "availabilityEnds": "2019-10-21T10:35:29Z",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://example.com/subscription",
        "name": "ABCD",
        "sameAs": "http://example.com/subscription",
        "authenticator": {
          "@type": "Organization",
          "name": "TVE"
        }
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  }
}

电影

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "Movie",
  "@id": "http://www.example.com/my_favorite_movie",
  "url": "http://www.example.com/my_favorite_movie",
  "name": "My Favorite Movie",
  "sameAs": "https://en.wikipedia.org/wiki/my_favorite_movie",
  "releasedEvent": {
    "@type": "PublicationEvent",
    "startDate": "2008-01-20",
    "location": {
      "@type": "Country",
      "name": "US"
    }
  },
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "actor": [
    {
      "@type": "Person",
      "name": "John Doe",
      "sameAs": "https://en.wikipedia.org/wiki/John_Doe"
    },
    {
      "@type": "Person",
      "name": "Jane Doe",
      "sameAs": "https://en.wikipedia.org/wiki/Jane_Doe"
    }
  ],
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "IMDB_ID",
      "value":  "tt0123456"
    }
  ]
}

如需查看更多示例，请参阅直播电视活动示例部分。

在线直播的体育赛事

广播活动


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live_eevent/basketball/professional/final_game_6",
  "name": "2019 Professional Basketball Finals, Game 6: Team A at Team B",
  "description": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B.",
  "startDate": "2018-09-16T10:00-08:00",
  "endDate": "2018-09-16T13:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/pbl_semis_game?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "availabilityStarts": "2018-09-16T10:00-08:00",
      "availabilityEnds": "2018-09-16T10:00-08:00",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "name": "Example Package",
        "commonTier": true,
        "@id": "http://www.example.com/example_package"
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "broadcastOfEvent": {
    "@type": "SportsEvent",
    "@id": "http://example.com/basketball/professional/final_game_6"
  }
}

体育赛事


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"SportsEvent",
  "@id": "http://example.com/basketball/professional/final_game_6",
  "name":"2019 Professional Basketball Finals, Game 6: Team A vs Team B",
  "sport":"https://en.wikipedia.org/wiki/Basketball",
  "description": {
      "@language": "en",
      "@value": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B."
    },
  "startDate": "2019-09-16T10:00-08:00",
  "endDate": "2019-09-16T13:00-08:00",
  "homeTeam":{
    "@type":"SportsTeam",
    "name":"Team B",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "parentOrganization":{
      "@type":"SportsOrganization",
      "name":"Professional Basketball League",
      "sameAs":"http://www.example.com/professional_basketball_league"
    },
    "athlete":[
      {
        "@type":"Person",
        "name":"John doe"
      }
    ]
  },
  "awayTeam":{
    "@type":"SportsTeam",
    "name":"Team A",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "athlete":[
      {
        "@type":"Person",
        "name":"Jane Doe"
      }
    ]
  },
  "location":{
    "@type":"Place",
    "name":"Example Stadium",
    "address":{
      "@type":"PostalAddress",
      "streetAddress":"1600 Amphitheatre Pkwy",
      "addressLocality":"Mountain View",
      "addressRegion":"CA",
      "postalCode":"94043",
      "addressCountry":"US"
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value":  "TMS ID of this game"
    }
  ]
}

如需查看更多示例，请参阅体育示例部分。

收集 ID、网址和名称

收集元数据

识别实体类型之间的关系 使用集合让一切井井有条 根据您的偏好保存内容并对其进行分类。

电视节目

确定关系

示例

TVSeries

TVSeason

TVEpisode

电台

确定关系

示例

音乐

Entity Action and Entity-seeded Action

Identify the relationships

Example

MusicGroup

MusicAlbum

MusicRecording

MusicPlaylist

电视直播

表示直播电视频道的实体之间的关系

频道与其节目指南 (EPG) 之间的关系

示例

互联网上的全国性电视服务提供商

组织

BroadcastService

CableOrSatelliteService

TelevisionChannel

电视频道上播放的电影

BroadcastEvent

BroadcastService

电影

在线直播的体育赛事

广播活动

体育赛事

识别实体类型之间的关系
