Mengidentifikasi hubungan antara jenis entity

Beberapa jenis entity mengharuskan Anda untuk membuat hubungan antara konten dalam feed. Informasi ini membantu Google menampilkan urutan dan struktur konten Anda yang tepat kepada pengguna serta mengidentifikasi konten yang benar saat kueri pengguna bersifat ambigu.

Pilih jenis konten yang Anda berikan:

Acara TV

If you're a TV show provider, you need to add the TVEpisode, TVSeason, and TVSeries entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

Identify the relationships

Ensure the following relationships are established among them:

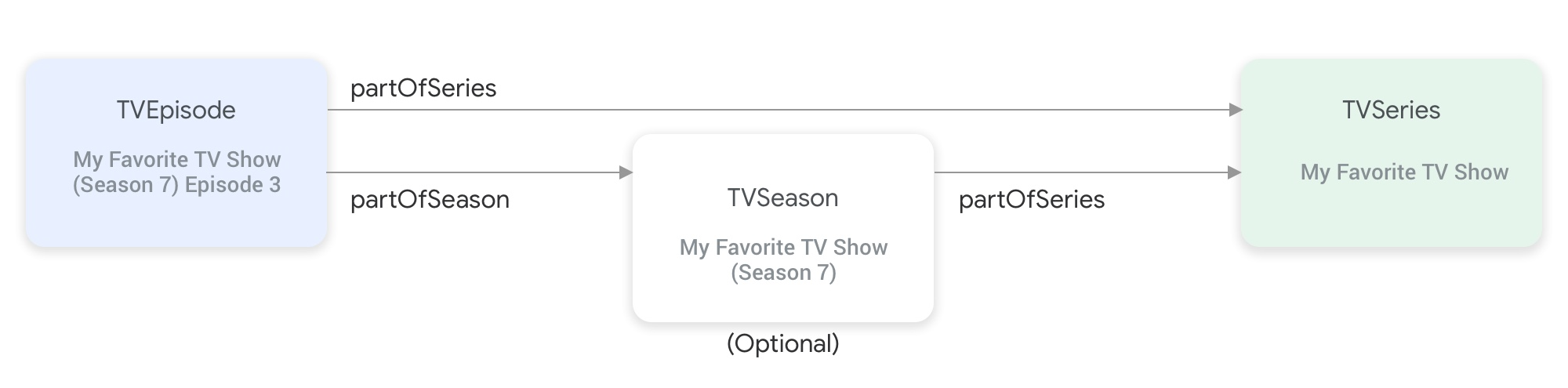

**Figure**: The `partOfSeries` and `partOfSeason` properties connect the TV show entity types together.

A TVEpisode entity requires you to provide the partOfSeries property, which specifies the @id and name of the episode's TVSeries entity.

"partOfSeries": {
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
},

If your feed contains TV seasons, a TVSeason entity also requires you to specify its TVSeries entity in the partOfSeries property.

Note: Providing TVSeason as a top level entity is optional. However, if you choose to provide TVSeason entities for a TV show, those TVSeason entities must cover all the episodes of the TV series in your catalog. For instance, if My Favorite TV Show has 8 seasons and each season has 5 episodes. Your feed should contain all 40 episodes of My Favorite TV Show. If you provide TVSeason entities for the show, then your feed must include all 8 TVSeason entities.
A TVEpisode entity requires you to provide the partOfSeason property, which specifies the @id and seasonNumber of the episode's TVSeason entity.
```
"partOfSeason": {
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "seasonNumber": 7
},
```
If a TVEpisode entity doesn't have a corresponding TVSeason entity in the feed, take the following steps to provide the partOfSeason.@id and partOfSeason.seasonNumber properties for the TVEpisode entity:
- Take its partofSeries.@id and attach a placeholder query field (for example, ?season1) to create a unique partOfSeason.@id (for example, http://www.example.com/my_favorite_tv_show?season1).
- Set partOfSeason.seasonNumber to 1.
Later, if you decide to provide TV seasons in the feed, you can either reuse the existing partOfSeason.@id for the corresponding TVSeason entity or replace this placeholder partOfSeason.@id with the actual @id of the TVSeason entity.

Example

TVSeries

My Favorite TV Show

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "url": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
  "potentialAction":{ … },
  ...
}

TVSeason

My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "url": "http://www.example.com/my_favorite_tv_show/s7",
  "name": "My Favorite TV Show, Season 7",
  "seasonNumber": 7,
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

TVEpisode

Episode 3 of My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVEpisode",
  "@id": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "url": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "name": "John Doe returns at night",
  "episodeNumber": 3,
  "partOfSeason": {
    "@type": "TVSeason",
    "@id": "http://www.example.com/my_favorite_tv_show/s7",
    "seasonNumber": 7
  },
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

Radio

If you're a radio provider, you need to add the RadioBroadcastService entity type in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for this type.

Identify the relationships

Since there is only one entity type for such integrations, while there are no explicit relationships that need to be established, ensure that you collect the following information for the RadioBroadcastService entities:

description: The description of the radio station.
broadcastDisplayName: The display name of the radio station.
areaServed: The area where the radio station is available.
callSign: The official government-issued callsign of the radio station. For North America radio stations, this property is required.
broadcastFrequency: The frequency specification of the radio station.
- For terrestrial AM/FM radio stations, this property is required.
- For online streaming-only content, the value is set to INTERNET_STREAM.
broadcastAffiliateOf: The network of which this radio station provides programming. If the radio station is not part of any affiliation, this property is not required.
broadcaster: The organization who owns and operates the radio station.
parentService: The parent radio station. If the radio station is a repeater or translator of another radio station, this property is required.

Example

{
  "@context": "http://schema.googleapis.com",
  "@type": "RadioBroadcastService",
  "@id": "https://www.example.com/stations?id=1",
  "url": "https://www.example.com/stations?id=1",
  "name": "KABC",
  "callSign": "KABC-FM",
  "broadcastDisplayName": "KABC",
  "description": "Local News & Information",
  "broadcastFrequency": {
    "@type": "BroadcastFrequencySpecification",
    "broadcastFrequencyValue": "89.5",
    "broadcastSignalModulation": "FM",
    "broadcastSubChannel": "HD1"
  },
  "areaServed": {
    "@type": "City",
    "name": "San Francisco, CA"
  },
  "broadcastAffiliateOf": [
    {
      "@id": "https://www.example.com/networks/xyz",
      "@type": "Organization",
      "name": "XYZ",
      "sameAs": "https://en.wikipedia.org/wiki/XYZ"
    },
    {
      "@id": "https://www.example.com/networks/efg",
      "@type": "Organization",
      "name": "EFG",
      "sameAs": "https://www.example.com/"
    }
  ],
  "broadcaster": [
    {
      "@type": "Organization",
      "name": "California Local Public Broadcasting",
      "sameAs": "https://www.example.org/w/clpb/"
    },
    {
      "@type": "Organization",
      "sameAs": "https://www.example.org/kabc",
      "name": "KABC Inc"
    }
  ],
  "potentialAction": { … },
  …
}

Musik

If you're a music provider, you need to add the MusicGroup, MusicAlbum, and MusicRecording entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

MusicGroup, MusicAlbum, and MusicRecording let your app or platform play more content from a playlist (MusicPlaylist) once all the content from the seed entity is played. Check out the following scenario:

A MusicAlbum entity contains a list of songs from Album XYZ (a seed entity).
A MusicPlaylist entity contains a playlist of songs that are similar to the songs from Album XYZ.
The MusicAlbum entity includes the MusicPlaylist entity as an Entity-seeded Action.

In this setup, once all the songs from Album XYZ are played, your app can continue to play songs from the playlist provided by the MusicPlaylist entity.

Entity Action and Entity-seeded Action

Listen Actions support two types of Actions:

Entity Action: Plays a specific artist, album, or song (a seed entity). It includes MusicGroup, MusicAlbum, MusicRecording.
Entity-seeded Action: Plays content similar to the seed entity. It includes MusicPlaylist.
- After completing an Entity Action, your app or platform may initiate an Entity-seeded Action.
- An Entity-seeded Action can include playback of the content from the seed entity.

We recommend you include an Entity-seeded Action in every Entity Action.

Identify the relationships

For MusicGroup, if you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicAlbum and MusicRecording, you need to identify which MusicGroup they belong to.
- Identify @id and name of its MusicGroup.
- If you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicPlaylist,
- If applicable, identify genre that best represents the content in the playlist.
- If the playlist is hand curated, identify numTracks.
  - The absence of numTracks tells Google that the playlist is an auto-generated, endless playlist.

Example

MusicGroup

Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicGroup",
  "@id":"http://www.example.com/artist/my_favorite_artist/",
  "url":"http://www.example.com/artist/my_favorite_artist/",
  "name":"My Favorite Artist",
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/artist_mix/my_favorite_artist/",
    "url":"http://www.example.com/artist_mix/my_favorite_artist/",
    "name":"My Favorite Artist Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicAlbum

Album: My Favorite Album
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicAlbum",
  "@id":"http://www.example.com/album/my_favorite_album",
  "url":"http://www.example.com/album/my_favorite_album",
  "name":"My Favorite Album",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/album_mix/my_favorite_album",
    "url":"http://www.example.com/album_mix/my_favorite_album",
    "name":"My Favorite Album Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicRecording

Song: My Favorite Song
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicRecording",
  "@id":"http://www.example.com/track/my_favorite_song",
  "url":"http://www.example.com/track/my_favorite_song",
  "name":"My Favorite Song",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/track_mix/my_favorite_song",
    "url":"http://www.example.com/track_mix/my_favorite_song",
    "name":"My Favorite Song Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicPlaylist

A custom playlist: "Top Pop Songs of the 2010s"

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicPlaylist",
  "@id":"http://www.example.com/playlist/top_pop_songs/",
  "url":"http://www.example.com/playlist/top_pop_songs/",
  "name":"Top Pop Songs of the 2010s",
  "genre": [
     "pop",
     "2010s"
  ],
  "numTracks":"46",
  "potentialAction":{ … },
  ...
}

TV live

Jika Anda adalah penyedia TV Live, Anda harus menambahkan jenis entitas Organization, BroadcastService, CableOrSatelliteService, dan TelevisionChannel di feed katalog media untuk merepresentasikan daftar saluran Anda. Anda mungkin juga perlu memberikan entitas BroadcastEvent, TVSeries, TVEpisode, Movie, dan SportsEvent untuk merepresentasikan EPG (panduan program elektronik) terkait. Anda dapat menemukan definisi untuk entitas ini di bagian Memahami jenis entitas yang tersedia dengan memfilter jenis ini. Untuk penjelasan yang lebih mendetail, Anda dapat membuka halaman Saluran TV Live.

Hubungan antara entitas yang merepresentasikan channel TV Live

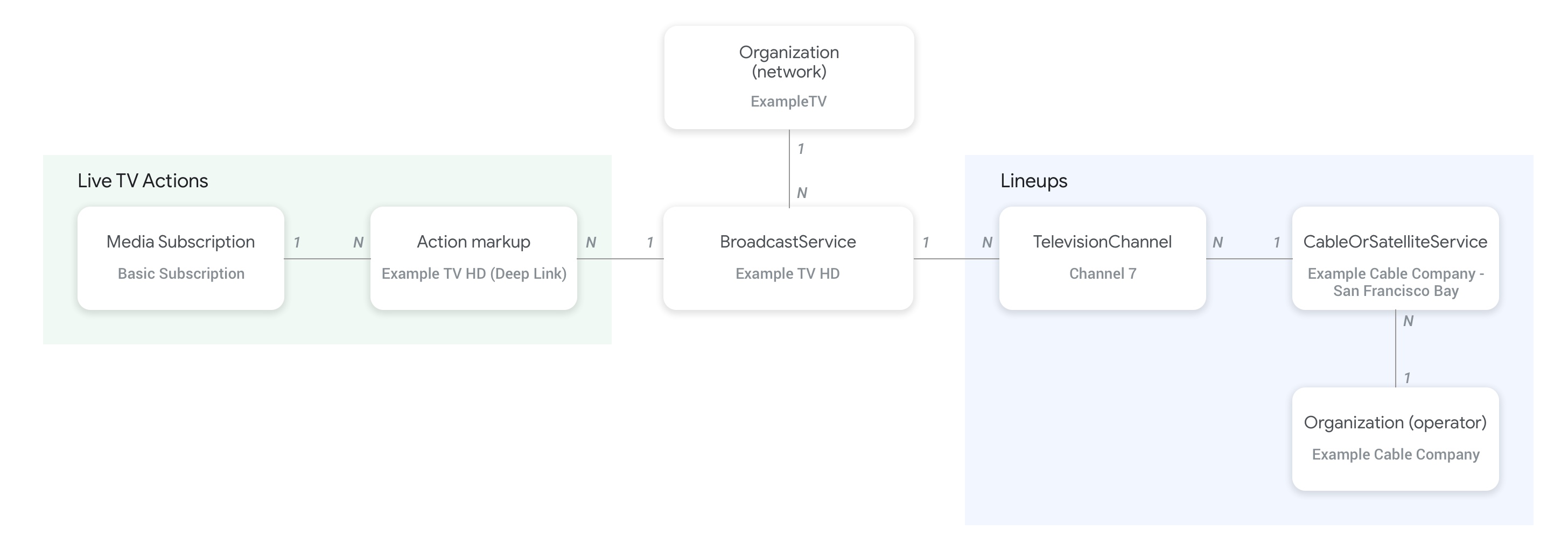

Gambar di bawah menunjukkan hubungan antara entitas Organization, BroadcastService, CableOrSatelliteService, dan TelevisionChannel:

Link antara jenis entitas channel TV Live — **Gambar**: Link antara jenis entity channel TV Live.

Entitas Organization (operator) yang merepresentasikan penyedia feed dan juga organisasi induk layanan CableOrSatelliteService terhubung menggunakan properti provider pada entitas CableOrSatelliteService.
Entitas Organization yang sesuai dengan entitas BroadcastService dihubungkan menggunakan properti broadcastAffiliateOf pada entitas BroadcastService.
Entitas TelevisionChannel terhubung dengan entitas CableOrSatelliteService, yang merepresentasikan daftar lagu yang menjadi bagiannya, menggunakan properti inBroadcastLineup.
Entitas TelevisionChannel terhubung dengan entitas BroadcastService, yang programnya disediakan oleh channel ini, menggunakan properti providesBroadcastService.

Sebaiknya buka halaman konsep Channel TV Live untuk melihat contoh konkret tentang cara hubungan antara entitas BroadcastService dan Organization harus dibuat.

Hubungan antara saluran dan panduan program (EPG)

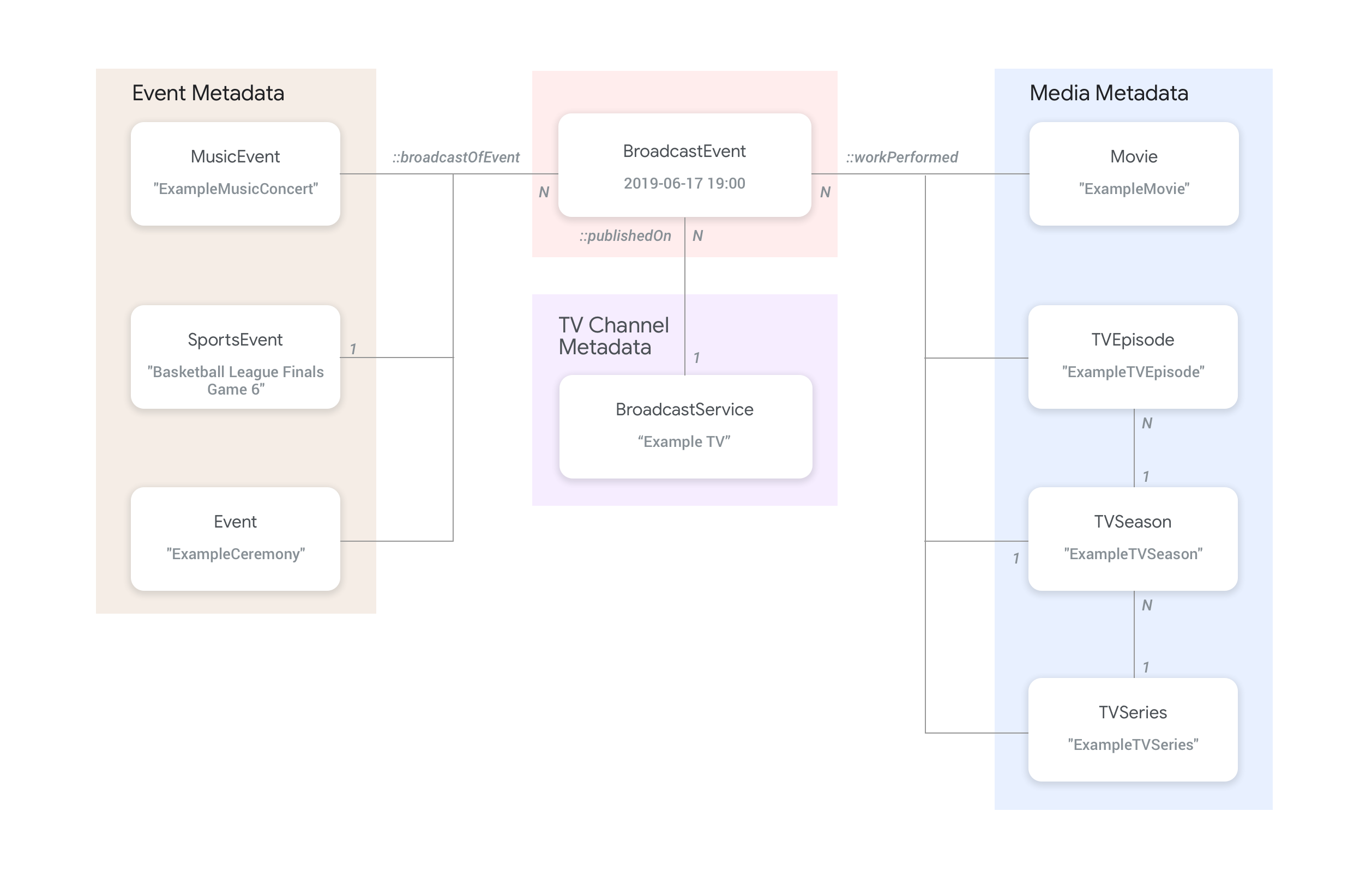

Gambar di bawah menunjukkan cara entitas BroadcastEvent ditautkan ke entitas lainnya dalam feed.

**Gambar**: Link antara jenis entity acara TV Live.

Entitas BroadcastEvent, yang merepresentasikan panduan pemrograman (EPG) BroadcastService, terhubung dengan entitas BroadcastService menggunakan properti publishedOn pada entitas BroadcastEvent.
Entitas BroadcastEvent juga dapat dihubungkan ke entitas TVEpisode, TVSeries, Movie tingkat teratas menggunakan properti workPerformed.
Entitas BroadcastEvent juga dapat dihubungkan ke entitas SportsEvent tingkat teratas menggunakan properti broadcastOfEvent.
Untuk acara tanpa channel yang di-streaming secara online, entitasBroadcastEvent terhubung dengan entitas yang merepresentasikan acara live menggunakan properti workPerformed atau broadcastOfEvent, bergantung pada apa yang di-streaming secara live. Dalam kasus tersebut, properti publishedOn tidak diperlukan karena koneksi ke channel tidak diperlukan.

Contoh

Bagian berikut memberikan contoh dan cuplikan untuk berbagai kasus penggunaan Tindakan Tonton.

Penyedia layanan TV nasional di internet

Organisasi

Penyedia layanan Internet Protocol Television fiktif, ExampleTV Digital Service (Organization), menyediakan layanan TV Live di Internet, yang berisi dua saluran berikut: ExampleTV-Movie (Organization) dan ExampleTV-Comedy (Organization):

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/digital",
  "name":"ExampleTV Digital Service",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_digital_service"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/movie",
  "name":"ExampleTV Movie",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_movie"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/comedy",
  "name":"ExampleTV Comedy",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_comedy"
}

BroadcastService

Dua entitas BroadcastService ini memberikan detail deep link dan persyaratan akses untuk channel fiktif ExampleTV-Movie dan ExampleTV-Comedy:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/movie",
  "name": "ExampleTV-Movie",
  "alternateName": [
    "Example Television Movie",
    "Example TV Movie"
  ],
  "description": "A fictional Internet Protocol TV movie channel.",
  "broadcastDisplayName":"ExampleTV-Movie",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/movie"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/movie?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "12345"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-movie-33345"
    }
  ]
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/comedy",
  "name": "ExampleTV-Comedy",
  "alternateName": [
    "Example Television Comedy",
    "Example TV Comedy"
  ],
  "description": "A fictional Internet Protocol TV comedy channel.",
  "broadcastDisplayName":"ExampleTV-Comedy",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/comedy"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/comedy?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "15555"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-comedy-12323"
    }
  ]
}

CableOrSatelliteService

CableOrSatelliteService ini menjelaskan penyedia layanan ExampleTV Digital Service yang memiliki cakupan nasional:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"CableOrSatelliteService",
  "@id":"http://example.com/example_iptv/us",
  "name":"Example TV Digital Service - US",
  "provider": {
    "@type": "Organization",
    "@id": "http://example.com/exampletv/digital",
  },
  "areaServed":[
    {
      "@type":"Country",
      "name": "US",
    }
  ]
}

TelevisionChannel

Entitas TelevisionChannel ini menunjukkan bahwa IPTV ExampleTV Digital Service memiliki program ExampleTV Movie di saluran ExTV-Movie dan program ExampleTV Comedy di saluran ExTV-Comedy:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-movie",
  "broadcastChannelId":"ExTV-Movie",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/movie"
  }
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-comedy",
  "broadcastChannelId":"ExTV-Comedy",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/comedy"
  }
}

Lihat bagian Contoh TV Live untuk contoh lainnya.

Siaran Film di saluran TV

Film disiarkan di jaringan televisi Example TV (BroadcastService) antara pukul 17.00 dan 19.00 pada 12 Juli 2019.

BroadcastEvent

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live/movie/new_release",
  "name": "My Favorite Movie",
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "startDate": "2019-07-12T17:00-08:00",
  "endDate": "2019-07-12T19:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "publishedOn": {
    "@type": "BroadcastService",
    "@id": "http://example.com/stations/example_tv"
  },
  "workPerformed": {
    "@type": "Movie",
    "@id": "http://www.example.com/my_favorite_movie"
  }
}

BroadcastService

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"http://example.com/stations/example_tv",
  "name":"EXAMPLE-TV",
  "broadcastDisplayName":"ABCD",
  "callSign": "EXA-TV",
  "videoFormat":"SD",
  "broadcastTimezone":"America/Los_Angeles",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://example.com/networks/abcd-network",
  }
  "identifier": [
   {
     "@type": "PropertyValue",
     "propertyID": "TMS_ID",
     "value": "12258"
   },
   {
     "@type": "PropertyValue",
     "propertyID": "_PARTNER_ID_",
     "value": "exampletv-123456"
   }
  ],
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://example.com/livestream",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast",
        "http://schema.org/AndroidTVPlatform"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "externalsubscription",
      "availabilityStarts": "2018-07-21T10:35:29Z",
      "availabilityEnds": "2019-10-21T10:35:29Z",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://example.com/subscription",
        "name": "ABCD",
        "sameAs": "http://example.com/subscription",
        "authenticator": {
          "@type": "Organization",
          "name": "TVE"
        }
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  }
}

Film

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "Movie",
  "@id": "http://www.example.com/my_favorite_movie",
  "url": "http://www.example.com/my_favorite_movie",
  "name": "My Favorite Movie",
  "sameAs": "https://en.wikipedia.org/wiki/my_favorite_movie",
  "releasedEvent": {
    "@type": "PublicationEvent",
    "startDate": "2008-01-20",
    "location": {
      "@type": "Country",
      "name": "US"
    }
  },
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "actor": [
    {
      "@type": "Person",
      "name": "John Doe",
      "sameAs": "https://en.wikipedia.org/wiki/John_Doe"
    },
    {
      "@type": "Person",
      "name": "Jane Doe",
      "sameAs": "https://en.wikipedia.org/wiki/Jane_Doe"
    }
  ],
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "IMDB_ID",
      "value":  "tt0123456"
    }
  ]
}

Lihat bagian Contoh Acara TV Live untuk contoh lainnya.

Pertandingan olahraga live yang di-streaming secara online

Acara siaran


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live_eevent/basketball/professional/final_game_6",
  "name": "2019 Professional Basketball Finals, Game 6: Team A at Team B",
  "description": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B.",
  "startDate": "2018-09-16T10:00-08:00",
  "endDate": "2018-09-16T13:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/pbl_semis_game?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "availabilityStarts": "2018-09-16T10:00-08:00",
      "availabilityEnds": "2018-09-16T10:00-08:00",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "name": "Example Package",
        "commonTier": true,
        "@id": "http://www.example.com/example_package"
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "broadcastOfEvent": {
    "@type": "SportsEvent",
    "@id": "http://example.com/basketball/professional/final_game_6"
  }
}

Acara olahraga


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"SportsEvent",
  "@id": "http://example.com/basketball/professional/final_game_6",
  "name":"2019 Professional Basketball Finals, Game 6: Team A vs Team B",
  "sport":"https://en.wikipedia.org/wiki/Basketball",
  "description": {
      "@language": "en",
      "@value": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B."
    },
  "startDate": "2019-09-16T10:00-08:00",
  "endDate": "2019-09-16T13:00-08:00",
  "homeTeam":{
    "@type":"SportsTeam",
    "name":"Team B",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "parentOrganization":{
      "@type":"SportsOrganization",
      "name":"Professional Basketball League",
      "sameAs":"http://www.example.com/professional_basketball_league"
    },
    "athlete":[
      {
        "@type":"Person",
        "name":"John doe"
      }
    ]
  },
  "awayTeam":{
    "@type":"SportsTeam",
    "name":"Team A",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "athlete":[
      {
        "@type":"Person",
        "name":"Jane Doe"
      }
    ]
  },
  "location":{
    "@type":"Place",
    "name":"Example Stadium",
    "address":{
      "@type":"PostalAddress",
      "streetAddress":"1600 Amphitheatre Pkwy",
      "addressLocality":"Mountain View",
      "addressRegion":"CA",
      "postalCode":"94043",
      "addressCountry":"US"
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value":  "TMS ID of this game"
    }
  ]
}

Lihat bagian Contoh olahraga untuk contoh lainnya.

Sebelumnya

Kumpulkan ID, URL, dan Nama

Berikutnya

Mengumpulkan Metadata

Mengidentifikasi hubungan antara jenis entity Tetap teratur dengan koleksi Simpan dan kategorikan konten berdasarkan preferensi Anda.

Acara TV

Identify the relationships

Example

TVSeries

TVSeason

TVEpisode

Radio

Identify the relationships

Example

Musik

Entity Action and Entity-seeded Action

Identify the relationships

Example

MusicGroup

MusicAlbum

MusicRecording

MusicPlaylist

TV live

Hubungan antara entitas yang merepresentasikan channel TV Live

Hubungan antara saluran dan panduan program (EPG)

Contoh

Penyedia layanan TV nasional di internet

Organisasi

BroadcastService

CableOrSatelliteService

TelevisionChannel

Siaran Film di saluran TV

BroadcastEvent

BroadcastService

Film

Pertandingan olahraga live yang di-streaming secara online

Acara siaran

Acara olahraga

Mengidentifikasi hubungan antara jenis entity
