识别实体类型之间的关系

对于某些实体类型，您需要在 Feed 中的内容之间建立关系。这些信息有助于 Google 向用户显示内容的正确顺序和结构，并在用户的查询含糊不清时识别正确的内容。

选择您提供的内容类型：

电视节目

如果您是电视节目提供商，则需要在媒体目录 Feed 中添加 TVEpisode、TVSeason 和 TVSeries 实体类型。您可以通过在了解可用的实体类型部分中过滤出这些类型，找到这些实体的定义。

确定关系

确保在这些资源之间建立以下关系：

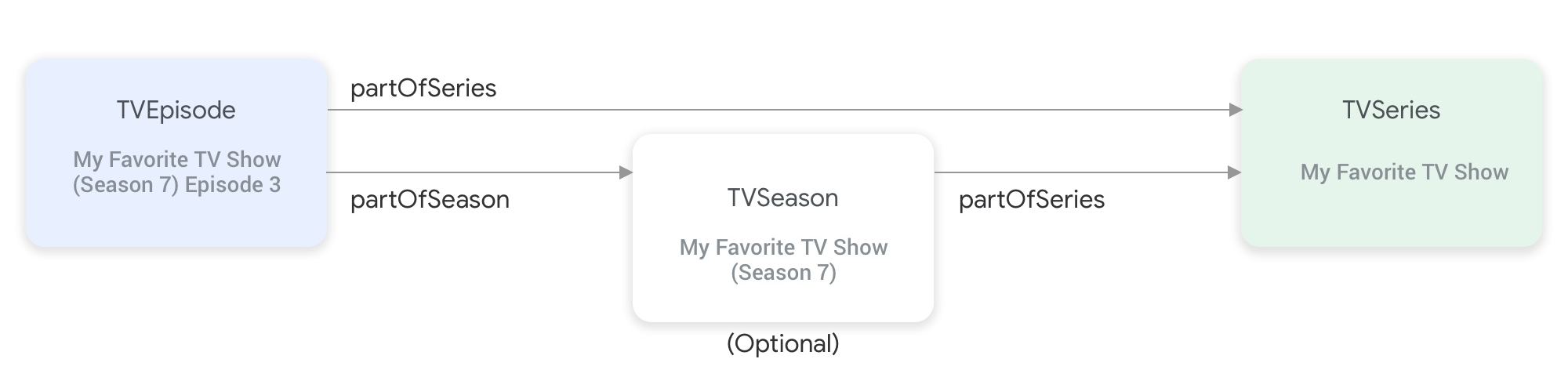

图：`partOfSeries` 和 `partOfSeason` 属性将电视节目实体类型关联在一起。

TVEpisode 实体需要您提供 partOfSeries 属性，该属性用于指定剧集的 TVSeries 实体的 @id 和 name。

"partOfSeries": {
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
},

如果您的 Feed 包含电视剧季，则对于 TVSeason 实体，您还需要在 partOfSeries 属性中指定其 TVSeries 实体。

注意：提供 TVSeason 作为顶级实体是可选的。不过，如果您选择为电视节目提供 TVSeason 实体，则这些 TVSeason 实体必须涵盖目录中电视连续剧的所有剧集。例如，如果我最喜欢的电视节目有 8 季，每季有 5 集。您的 Feed 应包含我最喜欢的电视节目的所有 40 集。如果您为节目提供 TVSeason 个实体，则您的 Feed 必须包含所有 8 个 TVSeason 实体。
TVEpisode 实体需要您提供 partOfSeason 属性，该属性用于指定剧集的 TVSeason 实体的 @id 和 seasonNumber。
```
"partOfSeason": {
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "seasonNumber": 7
},
```
如果 TVEpisode 实体在 Feed 中没有对应的 TVSeason 实体，请按以下步骤为 TVEpisode 实体提供 partOfSeason.@id 和 partOfSeason.seasonNumber 属性：
- 获取其 partofSeries.@id，并附加占位符查询字段（例如 ?season1），以创建唯一的 partOfSeason.@id（例如 http://www.example.com/my_favorite_tv_show?season1）。
- 将 partOfSeason.seasonNumber 设置为 1。
之后，如果您决定在 Feed 中提供电视剧季，可以重复使用相应 TVSeason 实体的现有 partOfSeason.@id，也可以将此占位符 partOfSeason.@id 替换为 TVSeason 实体的实际 @id。

示例

TVSeries

我最喜欢的电视节目

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "url": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
  "potentialAction":{ … },
  ...
}

TVSeason

我最喜欢的电视节目（第 7 季）

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "url": "http://www.example.com/my_favorite_tv_show/s7",
  "name": "My Favorite TV Show, Season 7",
  "seasonNumber": 7,
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

TVEpisode

我最喜欢的电视节目第 3 集（第 7 季）

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVEpisode",
  "@id": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "url": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "name": "John Doe returns at night",
  "episodeNumber": 3,
  "partOfSeason": {
    "@type": "TVSeason",
    "@id": "http://www.example.com/my_favorite_tv_show/s7",
    "seasonNumber": 7
  },
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

电台

If you're a radio provider, you need to add the RadioBroadcastService entity type in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for this type.

Identify the relationships

Since there is only one entity type for such integrations, while there are no explicit relationships that need to be established, ensure that you collect the following information for the RadioBroadcastService entities:

description: The description of the radio station.
broadcastDisplayName: The display name of the radio station.
areaServed: The area where the radio station is available.
callSign: The official government-issued callsign of the radio station. For North America radio stations, this property is required.
broadcastFrequency: The frequency specification of the radio station.
- For terrestrial AM/FM radio stations, this property is required.
- For online streaming-only content, the value is set to INTERNET_STREAM.
broadcastAffiliateOf: The network of which this radio station provides programming. If the radio station is not part of any affiliation, this property is not required.
broadcaster: The organization who owns and operates the radio station.
parentService: The parent radio station. If the radio station is a repeater or translator of another radio station, this property is required.

Example

{
  "@context": "http://schema.googleapis.com",
  "@type": "RadioBroadcastService",
  "@id": "https://www.example.com/stations?id=1",
  "url": "https://www.example.com/stations?id=1",
  "name": "KABC",
  "callSign": "KABC-FM",
  "broadcastDisplayName": "KABC",
  "description": "Local News & Information",
  "broadcastFrequency": {
    "@type": "BroadcastFrequencySpecification",
    "broadcastFrequencyValue": "89.5",
    "broadcastSignalModulation": "FM",
    "broadcastSubChannel": "HD1"
  },
  "areaServed": {
    "@type": "City",
    "name": "San Francisco, CA"
  },
  "broadcastAffiliateOf": [
    {
      "@id": "https://www.example.com/networks/xyz",
      "@type": "Organization",
      "name": "XYZ",
      "sameAs": "https://en.wikipedia.org/wiki/XYZ"
    },
    {
      "@id": "https://www.example.com/networks/efg",
      "@type": "Organization",
      "name": "EFG",
      "sameAs": "https://www.example.com/"
    }
  ],
  "broadcaster": [
    {
      "@type": "Organization",
      "name": "California Local Public Broadcasting",
      "sameAs": "https://www.example.org/w/clpb/"
    },
    {
      "@type": "Organization",
      "sameAs": "https://www.example.org/kabc",
      "name": "KABC Inc"
    }
  ],
  "potentialAction": { … },
  …
}

音乐

If you're a music provider, you need to add the MusicGroup, MusicAlbum, and MusicRecording entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

MusicGroup, MusicAlbum, and MusicRecording let your app or platform play more content from a playlist (MusicPlaylist) once all the content from the seed entity is played. Check out the following scenario:

A MusicAlbum entity contains a list of songs from Album XYZ (a seed entity).
A MusicPlaylist entity contains a playlist of songs that are similar to the songs from Album XYZ.
The MusicAlbum entity includes the MusicPlaylist entity as an Entity-seeded Action.

In this setup, once all the songs from Album XYZ are played, your app can continue to play songs from the playlist provided by the MusicPlaylist entity.

Entity Action and Entity-seeded Action

Listen Actions support two types of Actions:

Entity Action: Plays a specific artist, album, or song (a seed entity). It includes MusicGroup, MusicAlbum, MusicRecording.
Entity-seeded Action: Plays content similar to the seed entity. It includes MusicPlaylist.
- After completing an Entity Action, your app or platform may initiate an Entity-seeded Action.
- An Entity-seeded Action can include playback of the content from the seed entity.

We recommend you include an Entity-seeded Action in every Entity Action.

Identify the relationships

For MusicGroup, if you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicAlbum and MusicRecording, you need to identify which MusicGroup they belong to.
- Identify @id and name of its MusicGroup.
- If you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicPlaylist,
- If applicable, identify genre that best represents the content in the playlist.
- If the playlist is hand curated, identify numTracks.
  - The absence of numTracks tells Google that the playlist is an auto-generated, endless playlist.

Example

MusicGroup

Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicGroup",
  "@id":"http://www.example.com/artist/my_favorite_artist/",
  "url":"http://www.example.com/artist/my_favorite_artist/",
  "name":"My Favorite Artist",
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/artist_mix/my_favorite_artist/",
    "url":"http://www.example.com/artist_mix/my_favorite_artist/",
    "name":"My Favorite Artist Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicAlbum

Album: My Favorite Album
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicAlbum",
  "@id":"http://www.example.com/album/my_favorite_album",
  "url":"http://www.example.com/album/my_favorite_album",
  "name":"My Favorite Album",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/album_mix/my_favorite_album",
    "url":"http://www.example.com/album_mix/my_favorite_album",
    "name":"My Favorite Album Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicRecording

Song: My Favorite Song
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicRecording",
  "@id":"http://www.example.com/track/my_favorite_song",
  "url":"http://www.example.com/track/my_favorite_song",
  "name":"My Favorite Song",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/track_mix/my_favorite_song",
    "url":"http://www.example.com/track_mix/my_favorite_song",
    "name":"My Favorite Song Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicPlaylist

A custom playlist: "Top Pop Songs of the 2010s"

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicPlaylist",
  "@id":"http://www.example.com/playlist/top_pop_songs/",
  "url":"http://www.example.com/playlist/top_pop_songs/",
  "name":"Top Pop Songs of the 2010s",
  "genre": [
     "pop",
     "2010s"
  ],
  "numTracks":"46",
  "potentialAction":{ … },
  ...
}

电视直播

If you're a Live TV provider, you need to add the Organization, BroadcastService, CableOrSatelliteService, and TelevisionChannel entity types in your media catalog feed to represent your channel lineup. You may also need to provide the BroadcastEvent, TVSeries, TVEpisode, Movie, and SportsEvent entities to represent the associated EPG (electornic programming guide). You can find the definitions for these entities in the Understand the available entity types section by filtering for these types. For a more detailed explanation, you can visit the Live TV Channels page.

Relationships between entities representing Live TV channels

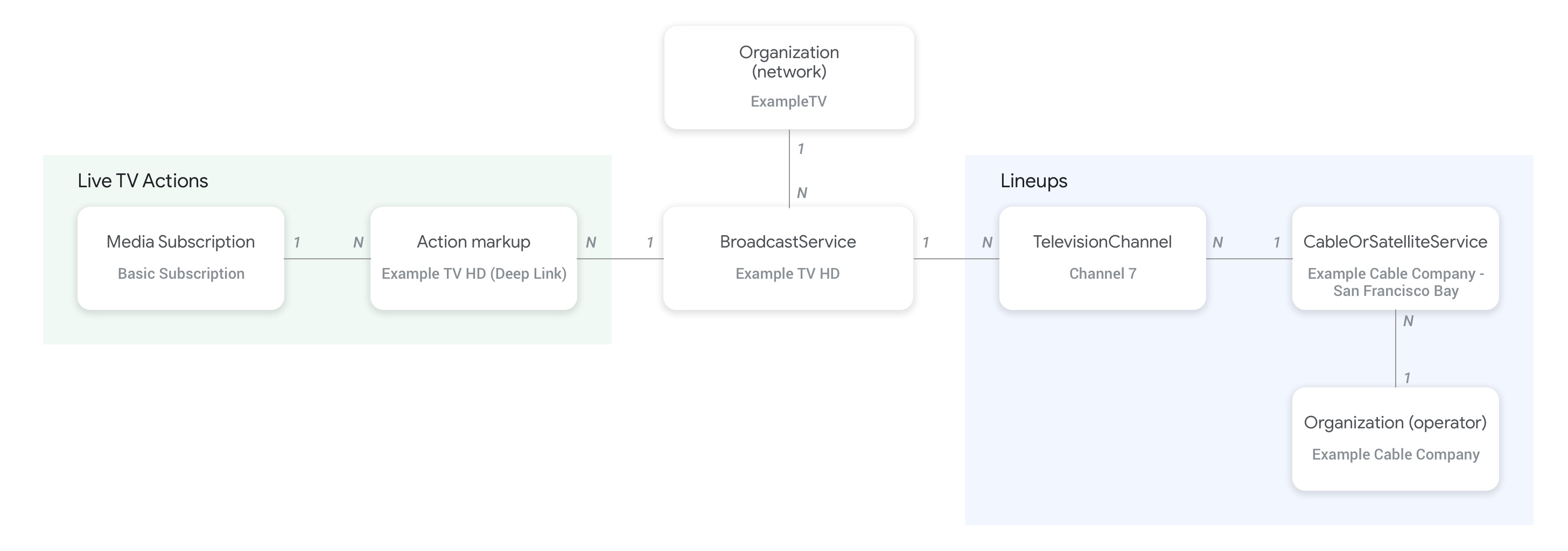

The figure below shows how the Organization, BroadcastService, CableOrSatelliteService, and TelevisionChannel entities are related:

**Figure**: The links between the Live TV channel entity types.

Organization (operator) entity representing the feed provider and also the parent organization of CableOrSatelliteService service are connected using the provider property on the CableOrSatelliteService entity.
Organization entities corresponding to the BroadcastService entities are connected using the broadcastAffiliateOf property on the BroadcastService entity.
TelevisionChannel entities connect with the CableOrSatelliteService entity, that represents the lineup they belong to, using the inBroadcastLineup property.
TelevisionChannel entities connect with the BroadcastService entity, whose programming this channel provides, using the providesBroadcastService property.

It is highly recommended to go through the Live TV channels concept page for concrete examples of how the relationship between the BroadcastService and Organization entities needs to be established.

Relationships between channels and their programming guide (EPG)

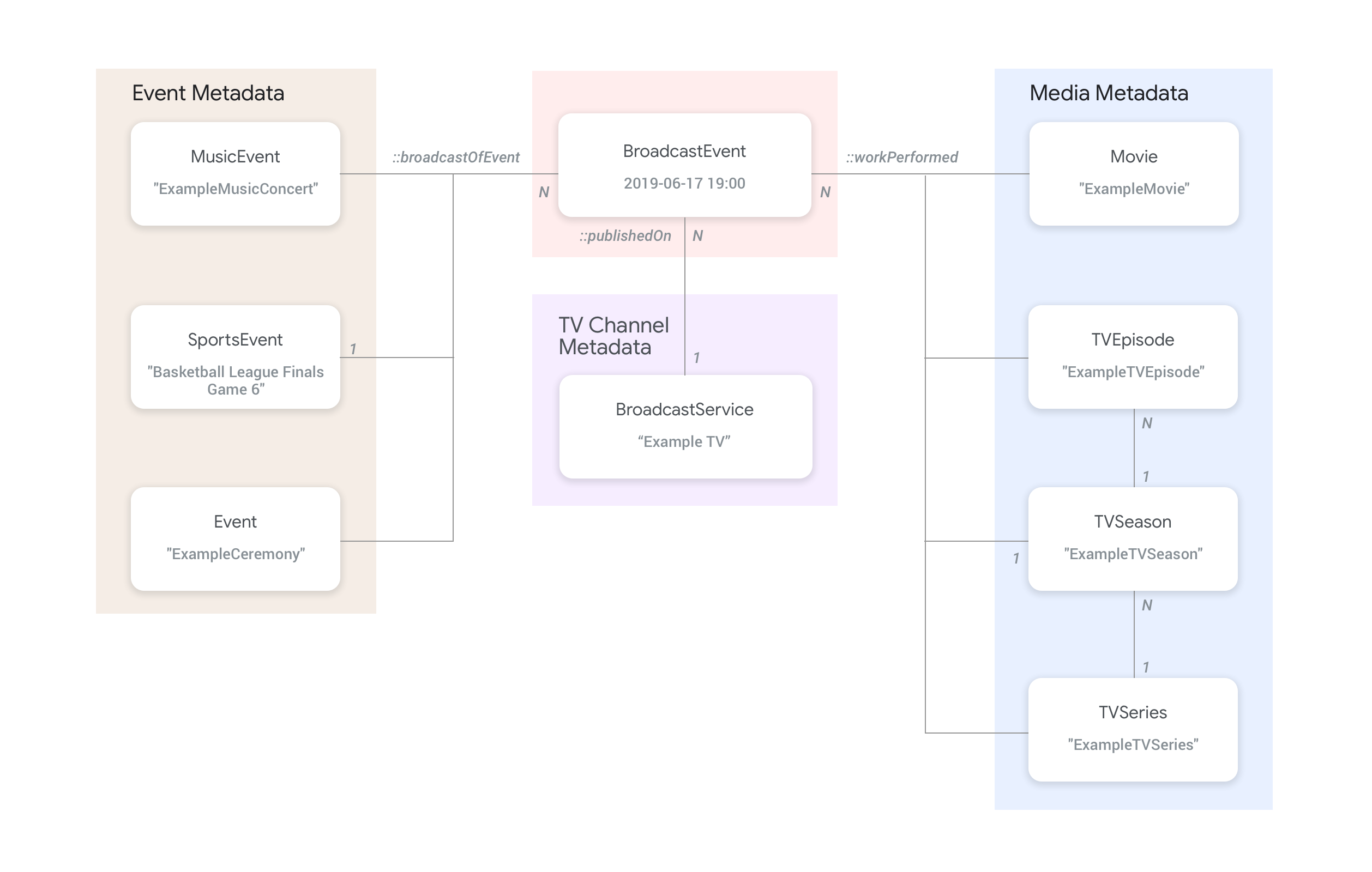

The figure below shows how the BroadcastEvent entity links to the rest of the entities in the feed.

**Figure**: The links between the Live TV event entity types.

BroadcastEvent entities, representing the programming guide (EPG) of a BroadcastService, are connected with the BroadcastService entities using the publishedOn property on the BroadcastEvent entity.
BroadcastEvent entities can also be connected to top level TVEpisode, TVSeries, Movie entities using the workPerformed property.
BroadcastEvent entities can also be connected to top level SportsEvent entities using the broadcastOfEvent property.
For channel-less events streamed online, theBroadcastEvent entities connect with the entity representing the live event using either the workPerformed or broadcastOfEvent property depending on what is being live streamed. In such cases, the publishedOn property is not required since the connection to a channel is not required.

Examples

The following section provides examples and snippet for various Watch Action use cases.

National TV service provider on the internet

Organization

A fictional Internet Protocol Television service provider, ExampleTV Digital Service (Organization), provides Live TV service on the Internet, which contains the following two channels: ExampleTV-Movie (Organization) and ExampleTV-Comedy (Organization):

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/digital",
  "name":"ExampleTV Digital Service",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_digital_service"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/movie",
  "name":"ExampleTV Movie",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_movie"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/comedy",
  "name":"ExampleTV Comedy",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_comedy"
}

BroadcastService

These two BroadcastService entities provide the details of deep links and access requirement for the fictional channels ExampleTV-Movie and ExampleTV-Comedy:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/movie",
  "name": "ExampleTV-Movie",
  "alternateName": [
    "Example Television Movie",
    "Example TV Movie"
  ],
  "description": "A fictional Internet Protocol TV movie channel.",
  "broadcastDisplayName":"ExampleTV-Movie",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/movie"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/movie?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "12345"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-movie-33345"
    }
  ]
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/comedy",
  "name": "ExampleTV-Comedy",
  "alternateName": [
    "Example Television Comedy",
    "Example TV Comedy"
  ],
  "description": "A fictional Internet Protocol TV comedy channel.",
  "broadcastDisplayName":"ExampleTV-Comedy",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/comedy"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/comedy?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "15555"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-comedy-12323"
    }
  ]
}

CableOrSatelliteService

This CableOrSatelliteService describes the service provider ExampleTV Digital Service that has national coverage:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"CableOrSatelliteService",
  "@id":"http://example.com/example_iptv/us",
  "name":"Example TV Digital Service - US",
  "provider": {
    "@type": "Organization",
    "@id": "http://example.com/exampletv/digital",
  },
  "areaServed":[
    {
      "@type":"Country",
      "name": "US",
    }
  ]
}

TelevisionChannel

These TelevisionChannel entities indicate that ExampleTV Digital Service IPTV has the ExampleTV Movie programming on channel ExTV-Movie and the ExampleTV Comedy programming on channel ExTV-Comedy:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-movie",
  "broadcastChannelId":"ExTV-Movie",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/movie"
  }
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-comedy",
  "broadcastChannelId":"ExTV-Comedy",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/comedy"
  }
}

See the Live TV examples section for more examples.

Broadcast of a Movie on a TV channel

A movie is broadcast on the television network Example TV (BroadcastService) between 5 pm and 7 pm on July 12th, 2019.

BroadcastEvent

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live/movie/new_release",
  "name": "My Favorite Movie",
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "startDate": "2019-07-12T17:00-08:00",
  "endDate": "2019-07-12T19:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "publishedOn": {
    "@type": "BroadcastService",
    "@id": "http://example.com/stations/example_tv"
  },
  "workPerformed": {
    "@type": "Movie",
    "@id": "http://www.example.com/my_favorite_movie"
  }
}

BroadcastService

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"http://example.com/stations/example_tv",
  "name":"EXAMPLE-TV",
  "broadcastDisplayName":"ABCD",
  "callSign": "EXA-TV",
  "videoFormat":"SD",
  "broadcastTimezone":"America/Los_Angeles",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://example.com/networks/abcd-network",
  }
  "identifier": [
   {
     "@type": "PropertyValue",
     "propertyID": "TMS_ID",
     "value": "12258"
   },
   {
     "@type": "PropertyValue",
     "propertyID": "_PARTNER_ID_",
     "value": "exampletv-123456"
   }
  ],
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://example.com/livestream",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast",
        "http://schema.org/AndroidTVPlatform"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "externalsubscription",
      "availabilityStarts": "2018-07-21T10:35:29Z",
      "availabilityEnds": "2019-10-21T10:35:29Z",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://example.com/subscription",
        "name": "ABCD",
        "sameAs": "http://example.com/subscription",
        "authenticator": {
          "@type": "Organization",
          "name": "TVE"
        }
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  }
}

Movie

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "Movie",
  "@id": "http://www.example.com/my_favorite_movie",
  "url": "http://www.example.com/my_favorite_movie",
  "name": "My Favorite Movie",
  "sameAs": "https://en.wikipedia.org/wiki/my_favorite_movie",
  "releasedEvent": {
    "@type": "PublicationEvent",
    "startDate": "2008-01-20",
    "location": {
      "@type": "Country",
      "name": "US"
    }
  },
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "actor": [
    {
      "@type": "Person",
      "name": "John Doe",
      "sameAs": "https://en.wikipedia.org/wiki/John_Doe"
    },
    {
      "@type": "Person",
      "name": "Jane Doe",
      "sameAs": "https://en.wikipedia.org/wiki/Jane_Doe"
    }
  ],
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "IMDB_ID",
      "value":  "tt0123456"
    }
  ]
}

See the Live TV Event examples section for more examples.

A live sports game streamed online

Broadcast event


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live_eevent/basketball/professional/final_game_6",
  "name": "2019 Professional Basketball Finals, Game 6: Team A at Team B",
  "description": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B.",
  "startDate": "2018-09-16T10:00-08:00",
  "endDate": "2018-09-16T13:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/pbl_semis_game?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "availabilityStarts": "2018-09-16T10:00-08:00",
      "availabilityEnds": "2018-09-16T10:00-08:00",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "name": "Example Package",
        "commonTier": true,
        "@id": "http://www.example.com/example_package"
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "broadcastOfEvent": {
    "@type": "SportsEvent",
    "@id": "http://example.com/basketball/professional/final_game_6"
  }
}

Sports event


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"SportsEvent",
  "@id": "http://example.com/basketball/professional/final_game_6",
  "name":"2019 Professional Basketball Finals, Game 6: Team A vs Team B",
  "sport":"https://en.wikipedia.org/wiki/Basketball",
  "description": {
      "@language": "en",
      "@value": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B."
    },
  "startDate": "2019-09-16T10:00-08:00",
  "endDate": "2019-09-16T13:00-08:00",
  "homeTeam":{
    "@type":"SportsTeam",
    "name":"Team B",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "parentOrganization":{
      "@type":"SportsOrganization",
      "name":"Professional Basketball League",
      "sameAs":"http://www.example.com/professional_basketball_league"
    },
    "athlete":[
      {
        "@type":"Person",
        "name":"John doe"
      }
    ]
  },
  "awayTeam":{
    "@type":"SportsTeam",
    "name":"Team A",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "athlete":[
      {
        "@type":"Person",
        "name":"Jane Doe"
      }
    ]
  },
  "location":{
    "@type":"Place",
    "name":"Example Stadium",
    "address":{
      "@type":"PostalAddress",
      "streetAddress":"1600 Amphitheatre Pkwy",
      "addressLocality":"Mountain View",
      "addressRegion":"CA",
      "postalCode":"94043",
      "addressCountry":"US"
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value":  "TMS ID of this game"
    }
  ]
}

See the Sports examples section for more examples.

收集 ID、网址和名称

收集元数据

识别实体类型之间的关系 使用集合让一切井井有条 根据您的偏好保存内容并对其进行分类。

电视节目

确定关系

示例

TVSeries

TVSeason

TVEpisode

电台

Identify the relationships

Example

音乐

Entity Action and Entity-seeded Action

Identify the relationships

Example

MusicGroup

MusicAlbum

MusicRecording

MusicPlaylist

电视直播

Relationships between entities representing Live TV channels

Relationships between channels and their programming guide (EPG)

Examples

National TV service provider on the internet

Organization

BroadcastService

CableOrSatelliteService

TelevisionChannel

Broadcast of a Movie on a TV channel

BroadcastEvent

BroadcastService

Movie

A live sports game streamed online

Broadcast event

Sports event

识别实体类型之间的关系
